Design and Analysis of Algorithms 5.Approximation Algorithms Mingyu XIAO School of Computer Science and Engineering University of Electronic Science and Technology of China
Design and Analysis of Algorithms 5. Approximation Algorithms Mingyu XIAO School of Computer Science and Engineering University of Electronic Science and Technology of China

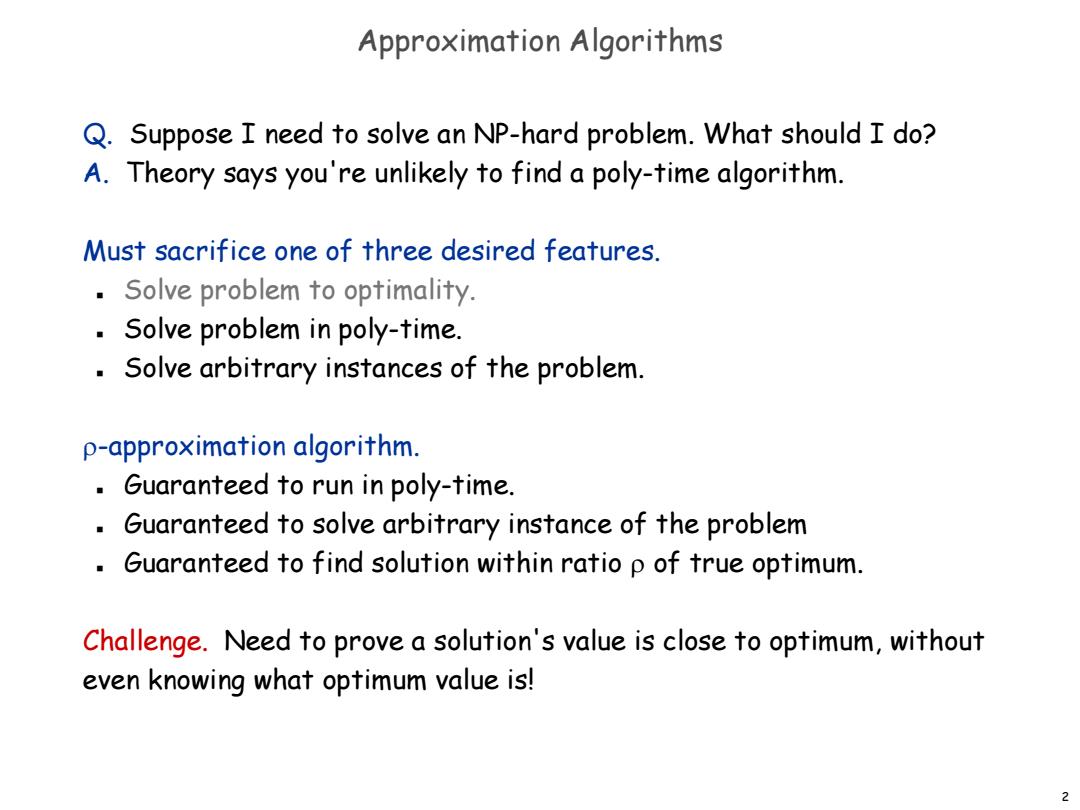

Approximation Algorithms Q.Suppose I need to solve an NP-hard problem.What should I do? A.Theory says you're unlikely to find a poly-time algorithm. Must sacrifice one of three desired features. Solve problem to optimality. Solve problem in poly-time. Solve arbitrary instances of the problem. p-approximation algorithm. Guaranteed to run in poly-time. Guaranteed to solve arbitrary instance of the problem Guaranteed to find solution within ratio p of true optimum. Challenge.Need to prove a solution's value is close to optimum,without even knowing what optimum value is! 2
2 Approximation Algorithms Q. Suppose I need to solve an NP-hard problem. What should I do? A. Theory says you're unlikely to find a poly-time algorithm. Must sacrifice one of three desired features. Solve problem to optimality. Solve problem in poly-time. Solve arbitrary instances of the problem. -approximation algorithm. Guaranteed to run in poly-time. Guaranteed to solve arbitrary instance of the problem Guaranteed to find solution within ratio of true optimum. Challenge. Need to prove a solution's value is close to optimum, without even knowing what optimum value is!
5.1 Load Balancing
5.1 Load Balancing
Load Balancing Input.m identical machines;n jobs,job j has processing time tj. Job j must run contiguously on one machine. A machine can process at most one job at a time. Def.Let J(i)be the subset of jobs assigned to machine i.The load of machine i is Li=>jeJ(i)fj. Def.The makespan is the maximum load on any machine L max;Li. Load balancing.Assign each job to a machine to minimize makespan
4 Load Balancing Input. m identical machines; n jobs, job j has processing time tj . Job j must run contiguously on one machine. A machine can process at most one job at a time. Def. Let J(i) be the subset of jobs assigned to machine i. The load of machine i is Li = j J(i) tj . Def. The makespan is the maximum load on any machine L = maxi Li . Load balancing. Assign each job to a machine to minimize makespan
Load Balancing:List Scheduling List-scheduling algorithm. Consider n jobs in some fixed order. D Assign job j to machine whose load is smallest so far. List-Scheduling(m,n,t1,t2,...,tn){ for i=1 to m 工1←0 load on machine i J(i)←中- jobs assigned to machine i } for j=1 to n i=argmink Lk machine i has smallest load J(i)←J(i)U{} assign job j to machine i 工：←工：+t与 update load of machine i return J(1),…,J(m) Implementation.O(n log m)using a priority queue. 5
5 List-scheduling algorithm. Consider n jobs in some fixed order. Assign job j to machine whose load is smallest so far. Implementation. O(n log m) using a priority queue. Load Balancing: List Scheduling List-Scheduling(m, n, t1,t2,…,tn) { for i = 1 to m { Li 0 J(i) } for j = 1 to n { i = argmink Lk J(i) J(i) {j} Li Li + tj } return J(1), …, J(m) } jobs assigned to machine i load on machine i machine i has smallest load assign job j to machine i update load of machine i
