Relations of abdominal viscera 3 4 f 【2【Ddroend First layer-liver,gallbladder,stomach Second layer-duodenum,pancreas,spleen Third layer-suprarenal gland,kidney,ureter,inferior vena cava,abdominal aorta,nerves and lymphatics
Relations of abdominal viscera First layer－liver, gallbladder, stomach Second layer－duodenum, pancreas, spleen Third layer－suprarenal gland, kidney, ureter, inferior vena cava, abdominal aorta, nerves and lymphatics
Anterolateral abdominal wall 9.Layers(from superficial to deep) ·Skin 。 Superficial fascia(2layers below umbilicus) ·Deep fascia Anterolateral muscles(3 layers of paired m, Transversalis fascia Extraperitoneal fascia Parietal peritoneum
Anterolateral abdominal wall 9. Layers ( from superficial to deep) • Skin • Superficial fascia (2layers below umbilicus) • Deep fascia • Anterolateral muscles(3 layers of paired m,) • Transversalis fascia • Extraperitoneal fascia • Parietal peritoneum
Anterolateral abdominal wall 1st.Skin 2nd .Superficial fascia Fatty layer(Camper's fascia)continuous with the superficial fascia over the rest of the body. Membranous layer (Scarpa's fascia) below umbilicus passes over the inguinal ligamentto fuse the deep fascia of the thigh(fascia lata). In the perineum,it is attaches on each side to the margins of the pubic arch and is know as Colles'fascia. 3rd.Investing fascia(deep fascia)
Anterolateral abdominal wall 2 nd .Superficial fascia ------ • Fatty layer (Camper’s fascia) continuous with the superficial fascia over the rest of the body. • Membranous layer (Scarpa’s fascia) below umbilicus passes over the inguinal ligament to fuse the deep fascia of the thigh (fascia lata). In the perineum, it is attaches on each side to the margins of the pubic arch and is know as Colles’ fascia. 3 rd . Investing fascia (deep fascia) 1 st . Skin

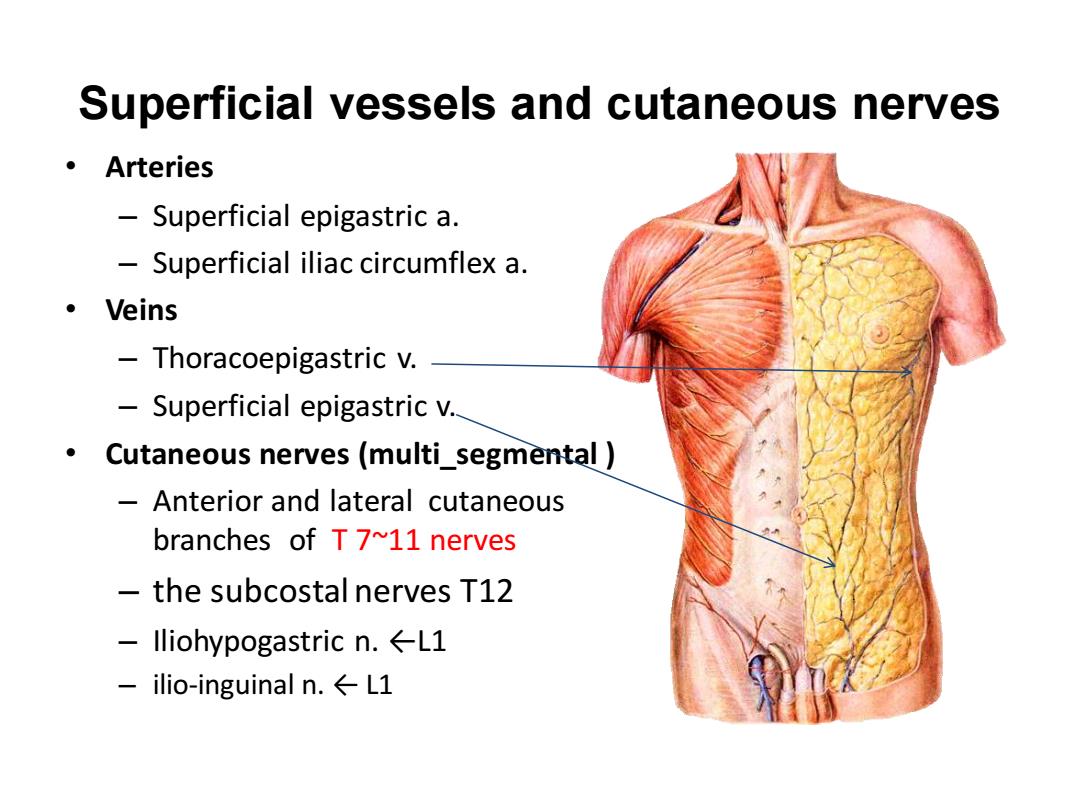

Superficial vessels and cutaneous nerves Arteries Superficial epigastric a. Superficial iliac circumflex a. 。Veins Thoracoepigastric v. Superficial epigastric v.. Cutaneous nerves(multi_segmental Anterior and lateral cutaneous branches of T 7~11 nerves the subcostal nerves T12 lliohypogastric n.<L1 -ilio-inguinal n.←L1
Superficial vessels and cutaneous nerves • Arteries – Superficial epigastric a. – Superficial iliac circumflex a. • Veins – Thoracoepigastric v. – Superficial epigastric v. • Cutaneous nerves (multi_segmental ) – Anterior and lateral cutaneous branches of T 7~11 nerves – the subcostal nerves T12 – Iliohypogastric n. ←L1 – ilio-inguinal n. ← L1

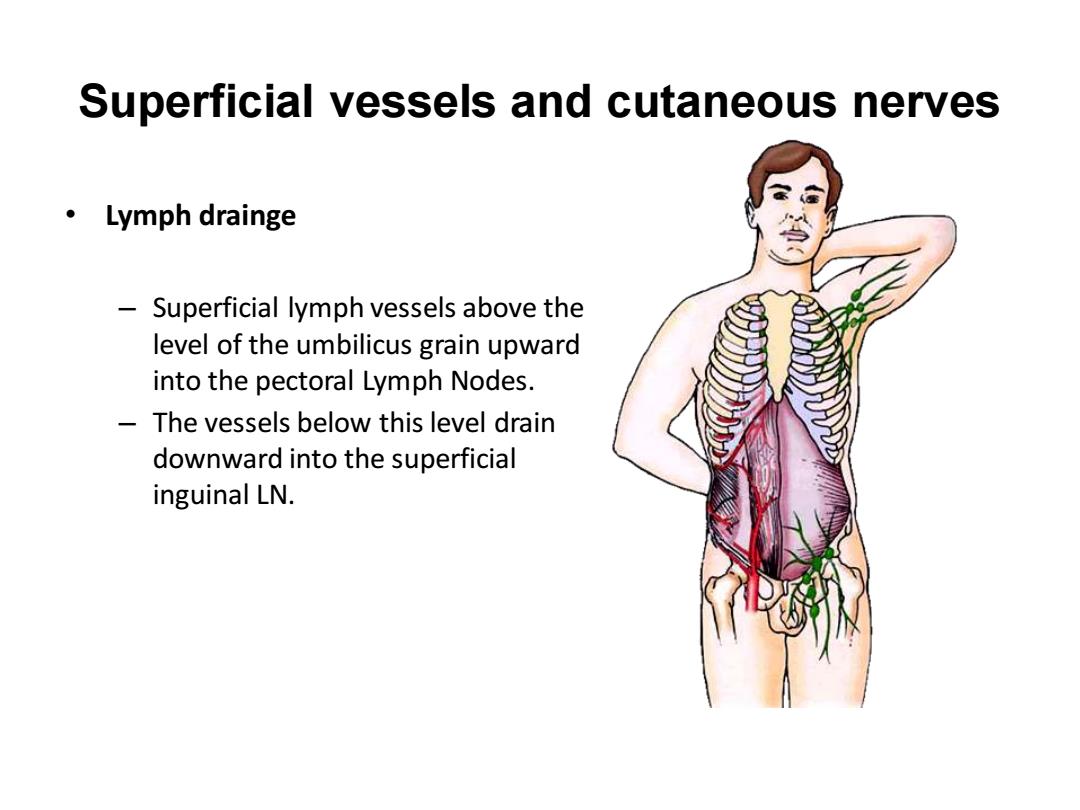

Superficial vessels and cutaneous nerves ·Lymph drainge Superficial lymph vessels above the level of the umbilicus grain upward into the pectoral Lymph Nodes. The vessels below this level drain downward into the superficial inguinal LN
Superficial vessels and cutaneous nerves • Lymph drainge – Superficial lymph vessels above the level of the umbilicus grain upward into the pectoral Lymph Nodes. – The vessels below this level drain downward into the superficial inguinal LN
