Chapter 8 Mechanically Stabilized Earth and Concrete Retaining Walls
Chapter 8 Mechanically Stabilized Earth and Concrete Retaining Walls
8.1 Introduction Retaining walls are used to prevent retained material from assuming its natural slope. Retaining walls may be classified according to how they produce stability: DMechanically reinforced earth-gravity wall ②Gravity ÷③Cantilever ④Anchored
8.1 Introduction ❖ Retaining walls are used to prevent retained material from assuming its natural slope. ❖ Retaining walls may be classified according to how they produce stability: ❖ ①Mechanically reinforced earth-gravity wall ❖ ②Gravity ❖ ③Cantilever ❖ ④Anchored
墙顶 1:m 墙面 回填土 泄水孔 反滤层 地面 墙背 图1重力式挡 ZM119K29 土墙的基本组成 夯填粘土层 排水沟 墙趾墙底 境踵

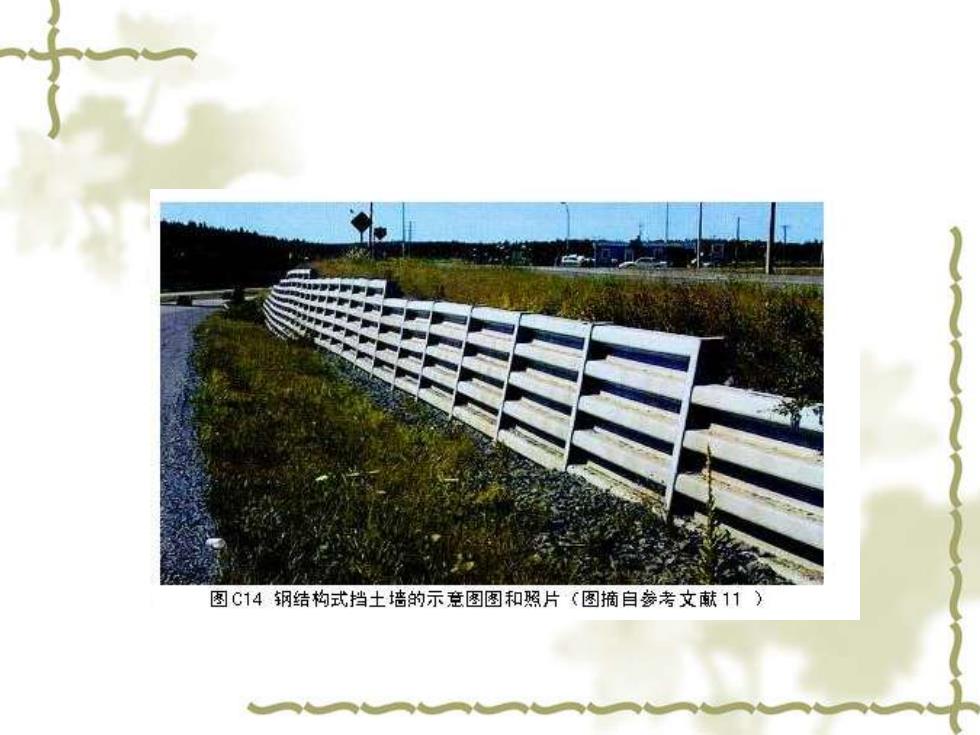

图C14钢结构式挡土墙的示意图图和照片（图摘自参考文献11）
