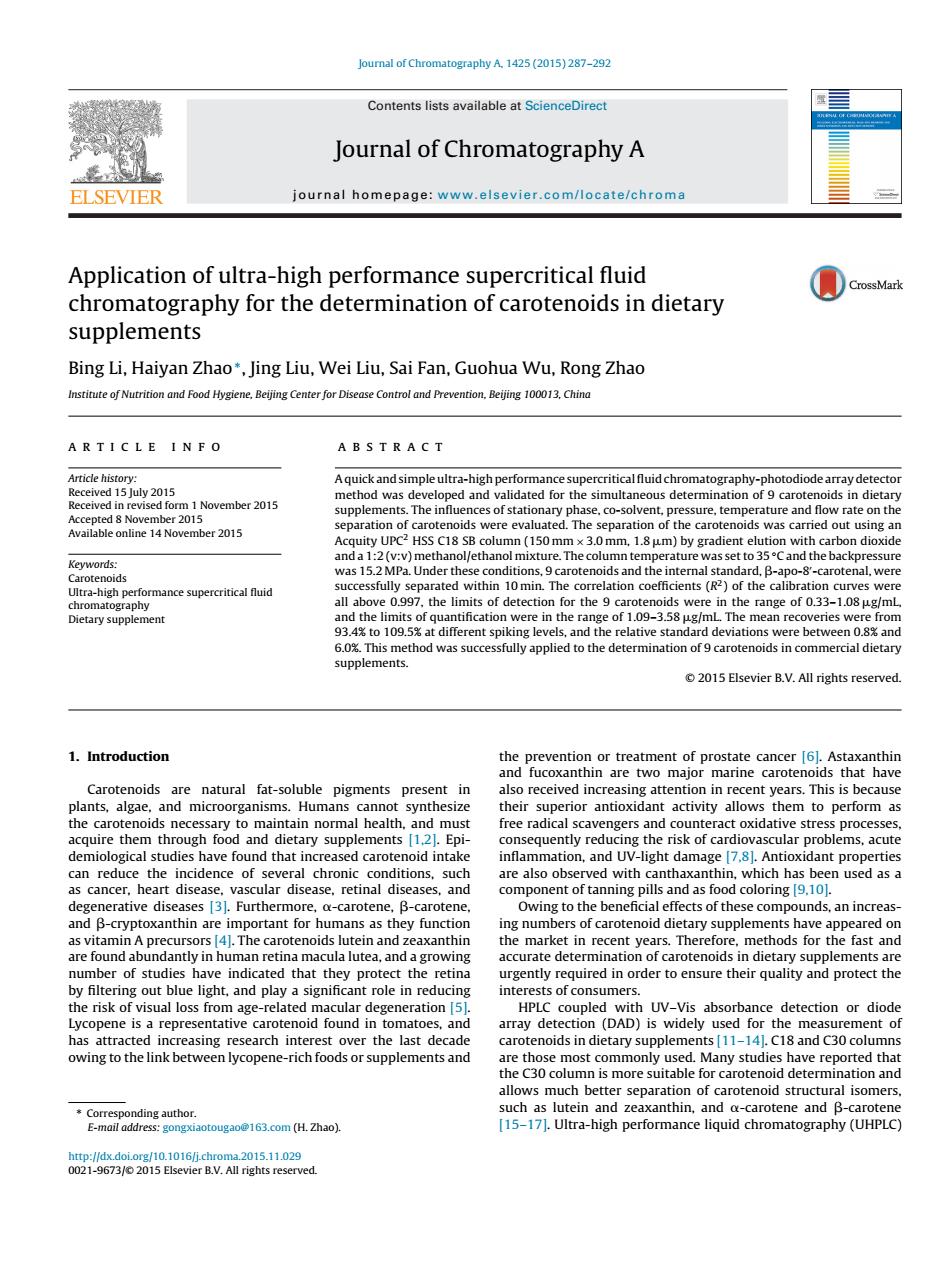

Journal of Chromatography A, 1425 (2015) 287–292 Contents lists available at ScienceDirect Journal of Chromatography A jou rn al h om epage: www.elsevier.com/locate/chroma Application of ultra-high performance supercritical fluid chromatography for the determination of carotenoids in dietary supplements Bing Li, Haiyan Zhao∗, Jing Liu, Wei Liu, Sai Fan, Guohua Wu, Rong Zhao Institute of Nutrition and Food Hygiene, Beijing Center for Disease Control and Prevention, Beijing 100013, China a r t i c l e i n f o Article history: Received 15 July 2015 Received in revised form 1 November 2015 Accepted 8 November 2015 Available online 14 November 2015 Keywords: Carotenoids Ultra-high performance supercritical fluid chromatography Dietary supplement a b s t r a c t Aquick andsimpleultra-highperformance supercriticalfluidchromatography-photodiode arraydetector method was developed and validated for the simultaneous determination of 9 carotenoids in dietary supplements. The influences of stationary phase, co-solvent, pressure, temperature and flow rate on the separation of carotenoids were evaluated. The separation of the carotenoids was carried out using an Acquity UPC2 HSS C18 SB column (150 mm × 3.0 mm, 1.8 m) by gradient elution with carbon dioxide and a 1:2 (v:v) methanol/ethanol mixture. The column temperature was setto 35 ◦C and the backpressure was 15.2 MPa. Under these conditions, 9 carotenoids and the internal standard, -apo-8 -carotenal, were successfully separated within 10 min. The correlation coefficients (R2) of the calibration curves were all above 0.997, the limits of detection for the 9 carotenoids were in the range of 0.33–1.08 g/mL, and the limits of quantification were in the range of 1.09–3.58 g/mL. The mean recoveries were from 93.4% to 109.5% at different spiking levels, and the relative standard deviations were between 0.8% and 6.0%. This method was successfully applied to the determination of 9 carotenoids in commercial dietary supplements. © 2015 Elsevier B.V. All rights reserved. 1. Introduction Carotenoids are natural fat-soluble pigments present in plants, algae, and microorganisms. Humans cannot synthesize the carotenoids necessary to maintain normal health, and must acquire them through food and dietary supplements [1,2]. Epidemiological studies have found that increased carotenoid intake can reduce the incidence of several chronic conditions, such as cancer, heart disease, vascular disease, retinal diseases, and degenerative diseases [3]. Furthermore, -carotene, -carotene, and -cryptoxanthin are important for humans as they function as vitamin A precursors [4]. The carotenoids lutein and zeaxanthin are found abundantly in human retina macula lutea, and a growing number of studies have indicated that they protect the retina by filtering out blue light, and play a significant role in reducing the risk of visual loss from age-related macular degeneration [5]. Lycopene is a representative carotenoid found in tomatoes, and has attracted increasing research interest over the last decade owing to the link between lycopene-rich foods or supplements and ∗ Corresponding author. E-mail address: gongxiaotougao@163.com (H. Zhao). the prevention or treatment of prostate cancer [6]. Astaxanthin and fucoxanthin are two major marine carotenoids that have also received increasing attention in recent years. This is because their superior antioxidant activity allows them to perform as free radical scavengers and counteract oxidative stress processes, consequently reducing the risk of cardiovascular problems, acute inflammation, and UV-light damage [7,8]. Antioxidant properties are also observed with canthaxanthin, which has been used as a component of tanning pills and as food coloring [9,10]. Owing to the beneficial effects of these compounds, an increasing numbers of carotenoid dietary supplements have appeared on the market in recent years. Therefore, methods for the fast and accurate determination of carotenoids in dietary supplements are urgently required in order to ensure their quality and protect the interests of consumers. HPLC coupled with UV–Vis absorbance detection or diode array detection (DAD) is widely used for the measurement of carotenoids in dietary supplements [11–14]. C18 and C30 columns are those most commonly used. Many studies have reported that the C30 column is more suitable for carotenoid determination and allows much better separation of carotenoid structural isomers, such as lutein and zeaxanthin, and -carotene and -carotene [15–17]. Ultra-high performance liquid chromatography (UHPLC) http://dx.doi.org/10.1016/j.chroma.2015.11.029 0021-9673/© 2015 Elsevier B.V. All rights reserved.

288 B. Li et al. / J. Chromatogr. A 1425 (2015) 287–292 Fig. 1. Chemical structures of nine carotenoids in the present study. with sub-2 m particle-size columns is generally considered offering shorter analysis times, smaller peak widths and higher chromatographic resolution compared to conventional HPLC [18]. However, until now, there are no commercially available UHPLC C30 stationary phase columns. Bijttebier et al. compared the separation of complex carotenoid mixtures between the HPLC C30 column and different UHPLC columns. The study found that the overall performance of HPLC C30 column was better than all the tested UHPLC columns in the carotenoids separation. However, the main drawbacks of this method were the long analysis times [18]. Long analysis times not only mean large solvent volume usage which is not environmentally friendly, but also are not suitable for the determination of unstable compounds. Supercritical fluid chromatography (SFC) is a suitable alternative method for carotenoids determination. CO2 is the most used mobile phase in SFC. Above its critical pressure (PC = 7.3 MPa) and temperature (TC = 31 ◦C) the supercritical fluid has lower viscosity and higher diffusivity relative to conventional liquids, and higherdensity anddissolving capacity compared withconventional gases. These unique properties make SFC an effective analytical method for thermally unstable and involatile compounds. Relative to the corresponding HPLC separation, SFC allows higher flow rates and shorter run times. Furthermore, due to less organic solvent consumption, this technology is considered to be a green approach [19–25]. Owing to the low polarity of CO2, SFC is effi- cient for the separation of hydrophobic compounds. In addition, the SFC mobile phase is also very flexible, and organic co-solvents, such as methanol, can be added to change its polarity. However, the addition of these co-solvents increase critical parameters to higher pressure and temperature figures which are depending on the nature and proportion of the co-solvents [26], such as when the mobile phase CO2-MeOH 70:30 was used, critical parameters increased to 135 ◦C and 16.8 MPa [27]. Therefore, the majority of today’s separations are actually not performed under a supercritical state but rather in subcritical conditions (with P > PC and T < TC) [26,27]. The addition of polar cosolvents enhances the fluid solvent strength, enabling simultaneous determinationof different polarity carotenoids [28,29]. Recent technological advancements that employed sub-2 m particles in UHPLC have been transferred to ultra-high performance supercritical fluid chromatography (UHPSFC) [30]. The aim of this work was to develop a rapid and reliable method using ultrahigh performance supercritical fluid chromatography coupled to photodiode arraydetector (PDA) and sub-2 mparticle columns for the determination of 9 selected carotenoids, including lycopene, - carotene, -carotene, -cryptoxanthin, astaxanthin, fucoxanthin, canthaxanthin, lutein and zeaxanthin in dietary supplements. 2. Experimental 2.1. Chemicals and materials -Carotene, -carotene, lutein, zeaxanthin, fucoxanthin (all ≥95.0%), -cryptoxanthin, astaxanthin (≥97.0%), lycopene (≥90.0%), canthaxanthin (≥98.8%), and the internal standard (IS) trans-Apo-8 -carotenal (≥96.0%) were purchased from Sigma–Aldrich (St. Louis, MO, USA). The chemical structures of the 9 carotenoids are shown in Fig. 1. Methanol and ethanol were purchased from Fisher Scientific (Pittsburgh, PA, USA). Dichloromethane (DCM), and dimethyl sulfoxide (DMSO) were purchased from Dikma Scientific (Lake Forest, CA, USA). Butylated hydroxytoluene (BHT) was purchased from Sigma–Aldrich (St. Louis, MO, USA). All reagents were of HPLC-grade or better. Ultrapure water of purity ≥18.0 -cm was prepared using a milli-Q system (Millipore, Millford, MA, USA). 2.2. Standard solution preparation Stock solutions of each carotenoid and IS were prepared in DCM + 0.1% BHT. The concentrations of these solutions were determined using a Shimadzu – 2600 UV–Vis spectrophotometer. Before measuring absorbance, the stock solutions were diluted in suitable solvents (hexane for -carotene, -carotene, lycopene and astaxanthin; ethanol for fucoxanthin, -cryptoxanthin, lutein and zeaxanthin; petroleum ether for canthaxanthin; chloroform for IS). The wavelengths of UV/visible absorbance detection and extinction coefficients used for the calculation of the exact concentrations of the standards are as follows: 471 nm, 3450 for lycopene; 445 nm, 2710 for -carotene; 453 nm, 2592 for -carotene; 470 nm, 2100 for astaxanthin; 466 nm, 2200 for canthaxanthin; 452 nm, 1601 for fucoxanthin; 452 nm, 2350 for -cryptoxanthin; 445 nm, 2550 for lutein; 450 nm, 2540 for zeaxanthin and 461 nm, 2640 for IS. Absorbances of the solutions were between 0.200 and 0.800, and were recorded in triplicate. Individual working solutions of each carotenoid and IS prepared in DCM-ethanol 1:2 (v/v) were injected for purity determination in the UHPSFC system. Purity of

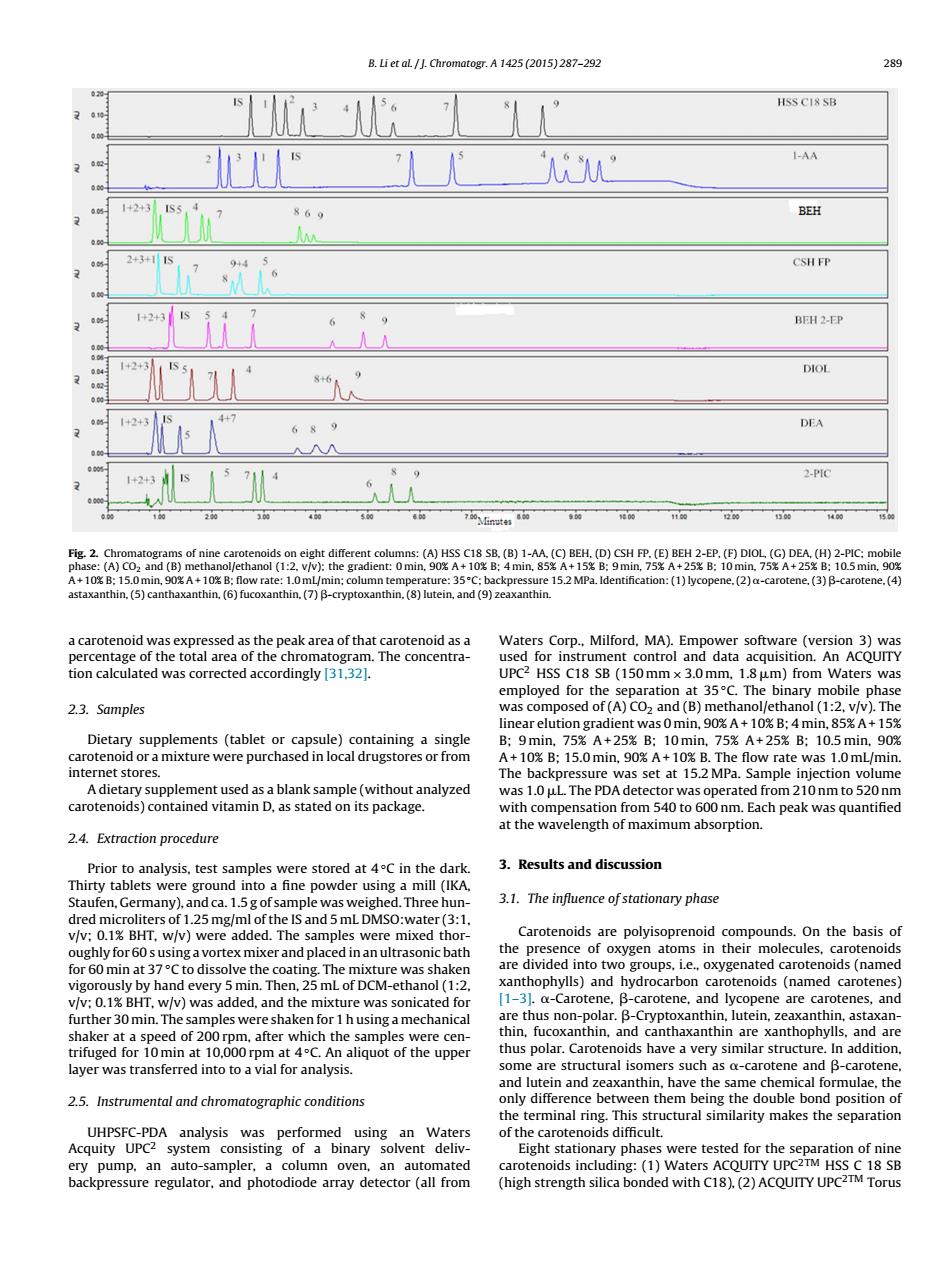

B. Li et al. / J. Chromatogr. A 1425 (2015) 287–292 289 Fig. 2. Chromatograms of nine carotenoids on eight different columns: (A) HSS C18 SB, (B) 1-AA, (C) BEH, (D) CSH FP, (E) BEH 2-EP, (F) DIOL, (G) DEA, (H) 2-PIC; mobile phase: (A) CO2 and (B) methanol/ethanol (1:2, v/v); the gradient: 0 min, 90% A+ 10% B; 4 min, 85% A+ 15% B; 9 min, 75% A+ 25% B; 10 min, 75% A+ 25% B; 10.5 min, 90% A+ 10% B; 15.0 min, 90% A+ 10% B; flow rate: 1.0 mL/min; column temperature: 35 ◦C; backpressure 15.2 MPa. Identification: (1) lycopene, (2) -carotene, (3) -carotene, (4) astaxanthin, (5) canthaxanthin, (6) fucoxanthin, (7) -cryptoxanthin, (8) lutein, and (9) zeaxanthin. a carotenoid was expressed as the peak area of that carotenoid as a percentage of the total area of the chromatogram. The concentration calculated was corrected accordingly [31,32]. 2.3. Samples Dietary supplements (tablet or capsule) containing a single carotenoid or a mixture were purchased in local drugstores or from internet stores. A dietary supplement used as a blank sample (without analyzed carotenoids) contained vitamin D, as stated on its package. 2.4. Extraction procedure Prior to analysis, test samples were stored at 4 ◦C in the dark. Thirty tablets were ground into a fine powder using a mill (IKA, Staufen, Germany), and ca. 1.5 g of sample was weighed. Three hundred microliters of 1.25 mg/ml of the IS and 5 mL DMSO:water (3:1, v/v; 0.1% BHT, w/v) were added. The samples were mixed thoroughly for 60 s using a vortex mixer and placed in an ultrasonic bath for 60 min at 37 ◦C to dissolve the coating. The mixture was shaken vigorously by hand every 5 min. Then, 25 mL of DCM-ethanol (1:2, v/v; 0.1% BHT, w/v) was added, and the mixture was sonicated for further 30 min. The samples were shaken for 1 h using a mechanical shaker at a speed of 200 rpm, after which the samples were centrifuged for 10 min at 10,000 rpm at 4 ◦C. An aliquot of the upper layer was transferred into to a vial for analysis. 2.5. Instrumental and chromatographic conditions UHPSFC-PDA analysis was performed using an Waters Acquity UPC2 system consisting of a binary solvent delivery pump, an auto-sampler, a column oven, an automated backpressure regulator, and photodiode array detector (all from Waters Corp., Milford, MA). Empower software (version 3) was used for instrument control and data acquisition. An ACQUITY UPC2 HSS C18 SB (150 mm × 3.0 mm, 1.8 m) from Waters was employed for the separation at 35 ◦C. The binary mobile phase was composed of (A) CO2 and (B) methanol/ethanol (1:2, v/v). The linear elution gradient was 0 min, 90% A+ 10% B; 4 min, 85% A+ 15% B; 9 min, 75% A+ 25% B; 10 min, 75% A+ 25% B; 10.5 min, 90% A+ 10% B; 15.0 min, 90% A+ 10% B. The flow rate was 1.0 mL/min. The backpressure was set at 15.2 MPa. Sample injection volume was 1.0 L. The PDA detector was operated from 210 nm to 520 nm with compensation from 540 to 600 nm. Each peak was quantified at the wavelength of maximum absorption. 3. Results and discussion 3.1. The influence of stationary phase Carotenoids are polyisoprenoid compounds. On the basis of the presence of oxygen atoms in their molecules, carotenoids are divided into two groups, i.e., oxygenated carotenoids (named xanthophylls) and hydrocarbon carotenoids (named carotenes) [1–3]. -Carotene, -carotene, and lycopene are carotenes, and are thus non-polar. -Cryptoxanthin, lutein, zeaxanthin, astaxanthin, fucoxanthin, and canthaxanthin are xanthophylls, and are thus polar. Carotenoids have a very similar structure. In addition, some are structural isomers such as -carotene and -carotene, and lutein and zeaxanthin, have the same chemical formulae, the only difference between them being the double bond position of the terminal ring. This structural similarity makes the separation of the carotenoids difficult. Eight stationary phases were tested for the separation of nine carotenoids including: (1) Waters ACQUITY UPC2TM HSS C 18 SB (high strength silica bonded with C18), (2) ACQUITY UPC2TM Torus

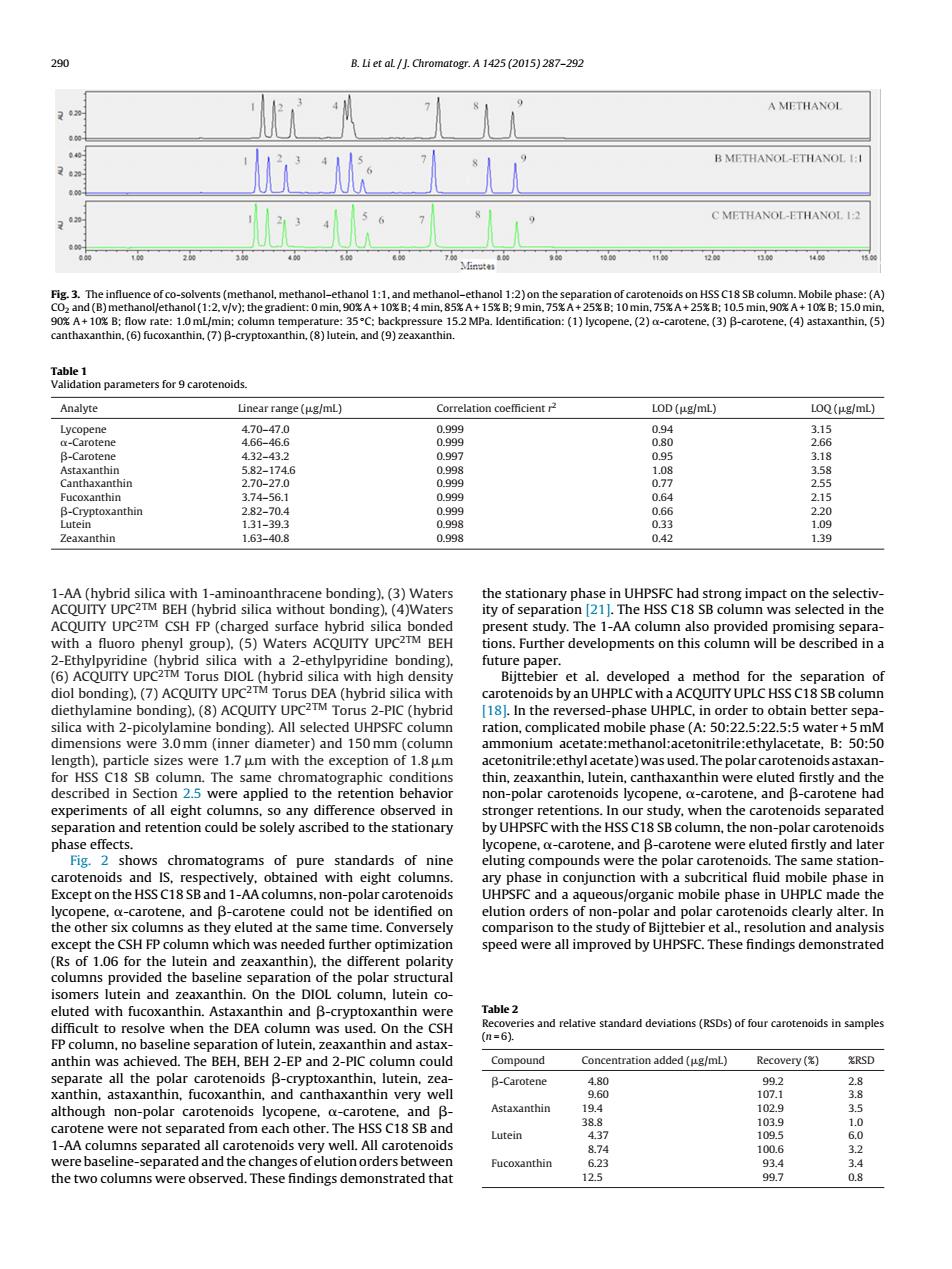

290 B. Li et al. / J. Chromatogr. A 1425 (2015) 287–292 Fig. 3. The influence of co-solvents (methanol, methanol–ethanol 1:1, and methanol–ethanol 1:2) on the separation of carotenoids on HSS C18 SB column. Mobile phase: (A) CO2 and (B) methanol/ethanol(1:2, v/v);the gradient: 0 min, 90% A+ 10% B; 4 min, 85% A+ 15% B; 9 min, 75% A+ 25% B; 10 min, 75% A+ 25% B; 10.5 min, 90% A+ 10% B; 15.0 min, 90% A+ 10% B; flow rate: 1.0 mL/min; column temperature: 35 ◦C; backpressure 15.2 MPa. Identification: (1) lycopene, (2) -carotene, (3) -carotene, (4) astaxanthin, (5) canthaxanthin, (6) fucoxanthin, (7) -cryptoxanthin, (8) lutein, and (9) zeaxanthin. Table 1 Validation parameters for 9 carotenoids. Analyte Linear range (g/mL) Correlation coefficient r2 LOD (g/mL) LOQ (g/mL) Lycopene 4.70–47.0 0.999 0.94 3.15 -Carotene 4.66–46.6 0.999 0.80 2.66 -Carotene 4.32–43.2 0.997 0.95 3.18 Astaxanthin 5.82–174.6 0.998 1.08 3.58 Canthaxanthin 2.70–27.0 0.999 0.77 2.55 Fucoxanthin 3.74–56.1 0.999 0.64 2.15 -Cryptoxanthin 2.82–70.4 0.999 0.66 2.20 Lutein 1.31–39.3 0.998 0.33 1.09 Zeaxanthin 1.63–40.8 0.998 0.42 1.39 1-AA (hybrid silica with 1-aminoanthracene bonding), (3) Waters ACQUITY UPC2TM BEH (hybrid silica without bonding), (4)Waters ACQUITY UPC2TM CSH FP (charged surface hybrid silica bonded with a fluoro phenyl group), (5) Waters ACQUITY UPC2TM BEH 2-Ethylpyridine (hybrid silica with a 2-ethylpyridine bonding), (6) ACQUITY UPC2TM Torus DIOL (hybrid silica with high density diol bonding), (7) ACQUITY UPC2TM Torus DEA (hybrid silica with diethylamine bonding), (8) ACQUITY UPC2TM Torus 2-PIC (hybrid silica with 2-picolylamine bonding). All selected UHPSFC column dimensions were 3.0 mm (inner diameter) and 150 mm (column length), particle sizes were 1.7 m with the exception of 1.8 m for HSS C18 SB column. The same chromatographic conditions described in Section 2.5 were applied to the retention behavior experiments of all eight columns, so any difference observed in separation and retention could be solely ascribed to the stationary phase effects. Fig. 2 shows chromatograms of pure standards of nine carotenoids and IS, respectively, obtained with eight columns. Except on the HSS C18 SB and 1-AA columns, non-polar carotenoids lycopene, -carotene, and -carotene could not be identified on the other six columns as they eluted at the same time. Conversely except the CSH FP column which was needed further optimization (Rs of 1.06 for the lutein and zeaxanthin), the different polarity columns provided the baseline separation of the polar structural isomers lutein and zeaxanthin. On the DIOL column, lutein coeluted with fucoxanthin. Astaxanthin and -cryptoxanthin were difficult to resolve when the DEA column was used. On the CSH FP column, no baseline separation of lutein, zeaxanthin and astaxanthin was achieved. The BEH, BEH 2-EP and 2-PIC column could separate all the polar carotenoids -cryptoxanthin, lutein, zeaxanthin, astaxanthin, fucoxanthin, and canthaxanthin very well although non-polar carotenoids lycopene, -carotene, and - carotene were not separated from each other. The HSS C18 SB and 1-AA columns separated all carotenoids very well. All carotenoids were baseline-separated and the changes of elution orders between the two columns were observed. These findings demonstrated that the stationary phase in UHPSFC had strong impact on the selectivity of separation [21]. The HSS C18 SB column was selected in the present study. The 1-AA column also provided promising separations. Further developments on this column will be described in a future paper. Bijttebier et al. developed a method for the separation of carotenoids by an UHPLC with a ACQUITY UPLC HSS C18 SB column [18]. In the reversed-phase UHPLC, in order to obtain better separation, complicated mobile phase (A: 50:22.5:22.5:5 water + 5 mM ammonium acetate:methanol:acetonitrile:ethylacetate, B: 50:50 acetonitrile:ethyl acetate) wasused. Thepolar carotenoids astaxanthin, zeaxanthin, lutein, canthaxanthin were eluted firstly and the non-polar carotenoids lycopene, -carotene, and -carotene had stronger retentions. In our study, when the carotenoids separated by UHPSFC with the HSS C18 SB column, the non-polar carotenoids lycopene, -carotene, and -carotene were eluted firstly and later eluting compounds were the polar carotenoids. The same stationary phase in conjunction with a subcritical fluid mobile phase in UHPSFC and a aqueous/organic mobile phase in UHPLC made the elution orders of non-polar and polar carotenoids clearly alter. In comparison to the study of Bijttebier et al., resolution and analysis speed were all improved by UHPSFC. These findings demonstrated Table 2 Recoveries and relative standard deviations (RSDs) of four carotenoids in samples (n = 6). Compound Concentration added (g/mL) Recovery (%) %RSD -Carotene 4.80 99.2 2.8 9.60 107.1 3.8 Astaxanthin 19.4 102.9 3.5 38.8 103.9 1.0 Lutein 4.37 109.5 6.0 8.74 100.6 3.2 Fucoxanthin 6.23 93.4 3.4 12.5 99.7 0.8

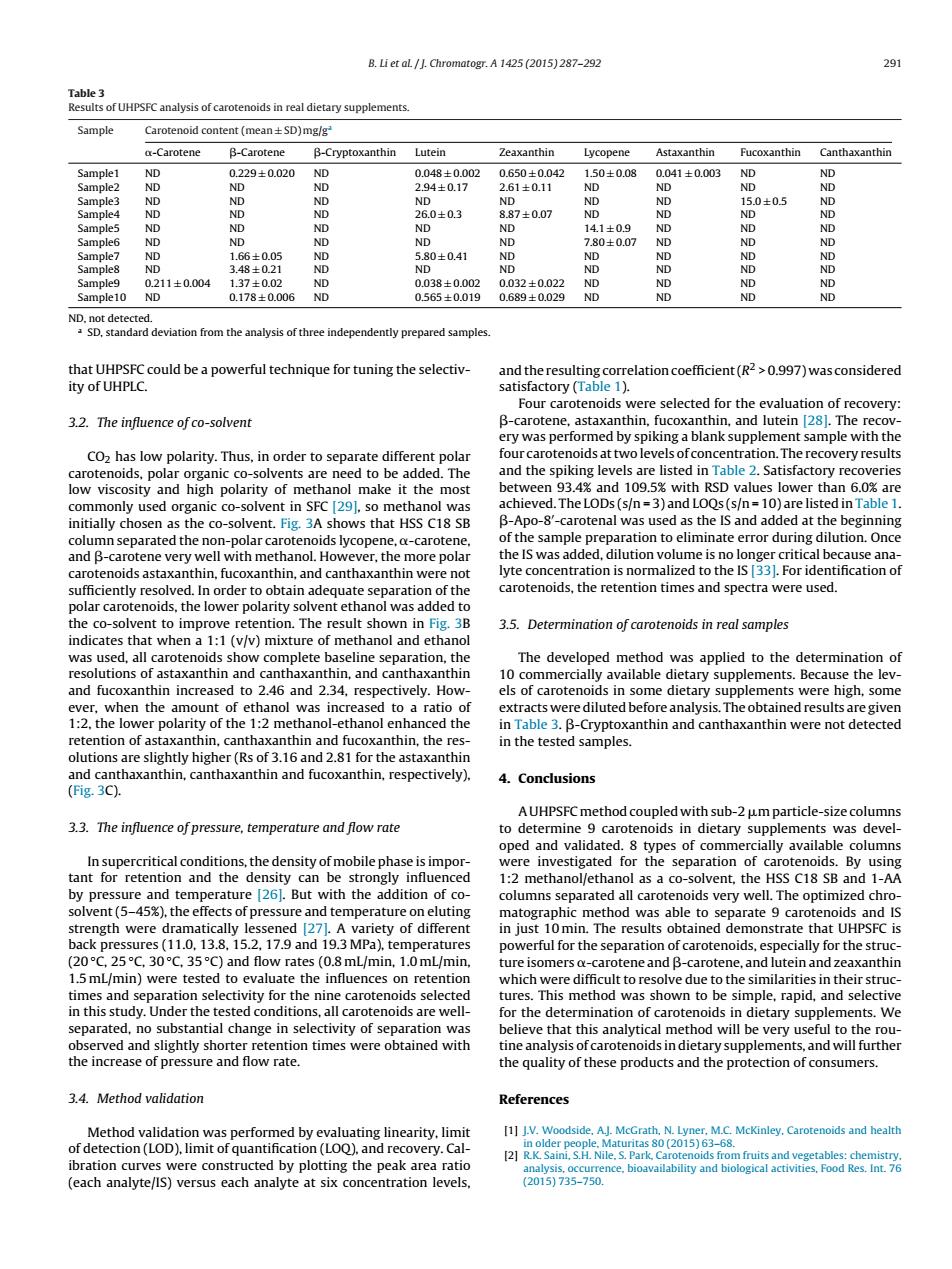

B. Li et al. / J. Chromatogr. A 1425 (2015) 287–292 291 Table 3 Results of UHPSFC analysis of carotenoids in real dietary supplements. Sample Carotenoid content (mean ± SD) mg/ga -Carotene -Carotene -Cryptoxanthin Lutein Zeaxanthin Lycopene Astaxanthin Fucoxanthin Canthaxanthin Sample1 ND 0.229 ± 0.020 ND 0.048 ± 0.002 0.650 ± 0.042 1.50 ± 0.08 0.041 ± 0.003 ND ND Sample2 ND ND ND 2.94 ± 0.17 2.61 ± 0.11 ND ND ND ND Sample3 ND ND ND ND ND ND ND 15.0 ± 0.5 ND Sample4 ND ND ND 26.0 ± 0.3 8.87 ± 0.07 ND ND ND ND Sample5 ND ND ND ND ND 14.1 ± 0.9 ND ND ND Sample6 ND ND ND ND ND 7.80 ± 0.07 ND ND ND Sample7 ND 1.66 ± 0.05 ND 5.80 ± 0.41 ND ND ND ND ND Sample8 ND 3.48 ± 0.21 ND ND ND ND ND ND ND Sample9 0.211 ± 0.004 1.37 ± 0.02 ND 0.038 ± 0.002 0.032 ± 0.022 ND ND ND ND Sample10 ND 0.178 ± 0.006 ND 0.565 ± 0.019 0.689 ± 0.029 ND ND ND ND ND, not detected. a SD, standard deviation from the analysis of three independently prepared samples. that UHPSFC could be a powerful technique for tuning the selectivity of UHPLC. 3.2. The influence of co-solvent CO2 has low polarity. Thus, in order to separate different polar carotenoids, polar organic co-solvents are need to be added. The low viscosity and high polarity of methanol make it the most commonly used organic co-solvent in SFC [29], so methanol was initially chosen as the co-solvent. Fig. 3A shows that HSS C18 SB column separated the non-polar carotenoids lycopene, -carotene, and -carotene very well with methanol. However, the more polar carotenoids astaxanthin, fucoxanthin, and canthaxanthin were not sufficiently resolved. In order to obtain adequate separation of the polar carotenoids, the lower polarity solvent ethanol was added to the co-solvent to improve retention. The result shown in Fig. 3B indicates that when a 1:1 (v/v) mixture of methanol and ethanol was used, all carotenoids show complete baseline separation, the resolutions of astaxanthin and canthaxanthin, and canthaxanthin and fucoxanthin increased to 2.46 and 2.34, respectively. However, when the amount of ethanol was increased to a ratio of 1:2, the lower polarity of the 1:2 methanol-ethanol enhanced the retention of astaxanthin, canthaxanthin and fucoxanthin, the resolutions are slightly higher (Rs of 3.16 and 2.81 for the astaxanthin and canthaxanthin, canthaxanthin and fucoxanthin, respectively), (Fig. 3C). 3.3. The influence of pressure, temperature and flow rate In supercritical conditions,the density of mobile phase is important for retention and the density can be strongly influenced by pressure and temperature [26]. But with the addition of cosolvent (5–45%), the effects of pressure and temperature on eluting strength were dramatically lessened [27]. A variety of different back pressures (11.0, 13.8, 15.2, 17.9 and 19.3 MPa), temperatures (20 ◦C, 25 ◦C, 30 ◦C, 35 ◦C) and flow rates (0.8 mL/min, 1.0 mL/min, 1.5 mL/min) were tested to evaluate the influences on retention times and separation selectivity for the nine carotenoids selected in this study. Under the tested conditions, all carotenoids are wellseparated, no substantial change in selectivity of separation was observed and slightly shorter retention times were obtained with the increase of pressure and flow rate. 3.4. Method validation Method validation was performed by evaluating linearity, limit of detection (LOD), limit of quantification (LOQ), and recovery. Calibration curves were constructed by plotting the peak area ratio (each analyte/IS) versus each analyte at six concentration levels, and the resulting correlationcoefficient(R2 > 0.997) was considered satisfactory (Table 1). Four carotenoids were selected for the evaluation of recovery: -carotene, astaxanthin, fucoxanthin, and lutein [28]. The recovery was performed by spiking a blank supplement sample with the four carotenoids attwo levels of concentration. The recovery results and the spiking levels are listed in Table 2. Satisfactory recoveries between 93.4% and 109.5% with RSD values lower than 6.0% are achieved. The LODs (s/n = 3) and LOQs (s/n = 10) are listed in Table 1. -Apo-8 -carotenal was used as the IS and added at the beginning of the sample preparation to eliminate error during dilution. Once the IS was added, dilution volume is no longer critical because analyte concentration is normalized to the IS [33]. For identification of carotenoids, the retention times and spectra were used. 3.5. Determination of carotenoids in real samples The developed method was applied to the determination of 10 commercially available dietary supplements. Because the levels of carotenoids in some dietary supplements were high, some extracts were diluted before analysis. The obtained results are given in Table 3. -Cryptoxanthin and canthaxanthin were not detected in the tested samples. 4. Conclusions A UHPSFC method coupled with sub-2 m particle-size columns to determine 9 carotenoids in dietary supplements was developed and validated. 8 types of commercially available columns were investigated for the separation of carotenoids. By using 1:2 methanol/ethanol as a co-solvent, the HSS C18 SB and 1-AA columns separated all carotenoids very well. The optimized chromatographic method was able to separate 9 carotenoids and IS in just 10 min. The results obtained demonstrate that UHPSFC is powerful for the separation of carotenoids, especially for the structure isomers -carotene and -carotene, and lutein and zeaxanthin which were difficult to resolve due to the similarities in their structures. This method was shown to be simple, rapid, and selective for the determination of carotenoids in dietary supplements. We believe that this analytical method will be very useful to the routine analysis of carotenoids in dietary supplements, and willfurther the quality of these products and the protection of consumers. References [1] J.V. Woodside, A.J. McGrath, N. Lyner, M.C. McKinley, Carotenoids and health in older people, Maturitas 80 (2015) 63–68. [2] R.K. Saini, S.H. Nile, S. Park, Carotenoids from fruits and vegetables: chemistry, analysis, occurrence, bioavailability and biological activities, Food Res. Int. 76 (2015) 735–750.
