南京大学：《并行处理技术——分布式与并行计算 Distributed and Parallel computing（并行计算——结构、算法、编程）》课程教学资源（课件讲稿）引论 Introduction（谢磊）

课程简介-经典的并发模型：Pipeline(1) 组装

课程简介-经典的并发模型：Pipeline （1）

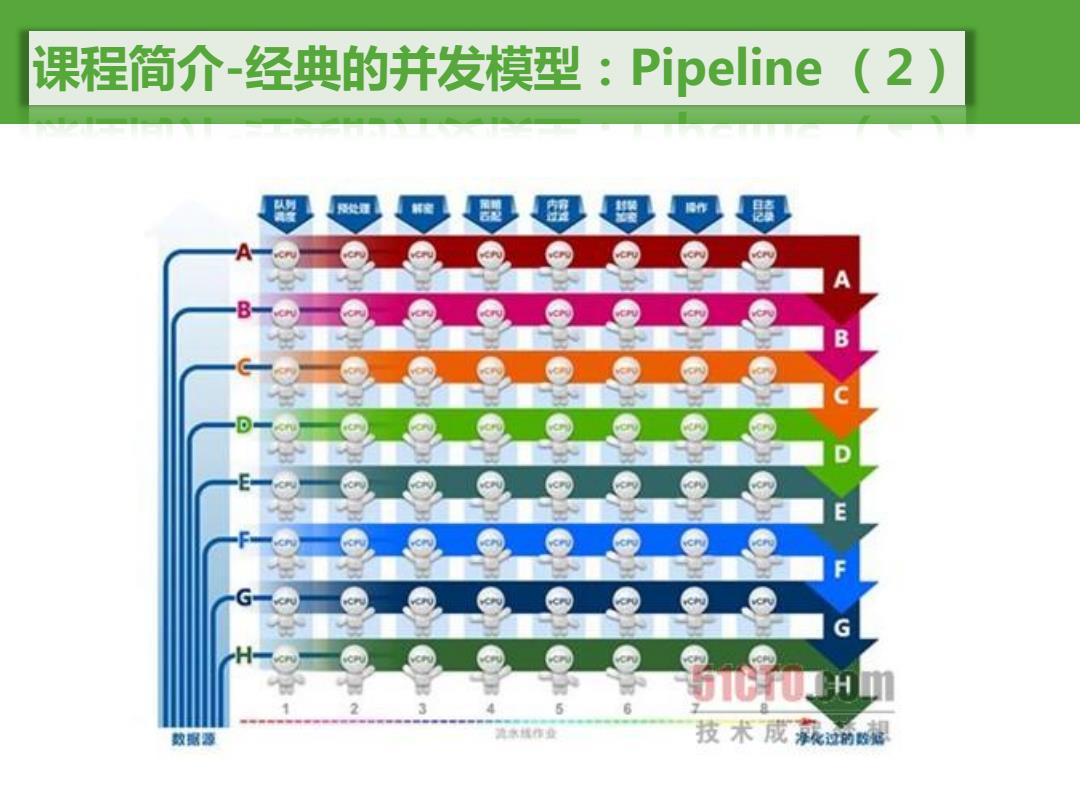

课程简介-经典的并发模型：Pipeline（2) 博n B 8 E G 数据源 汽来域作鱼 技术成就过的想

课程简介-经典的并发模型：Pipeline （2）

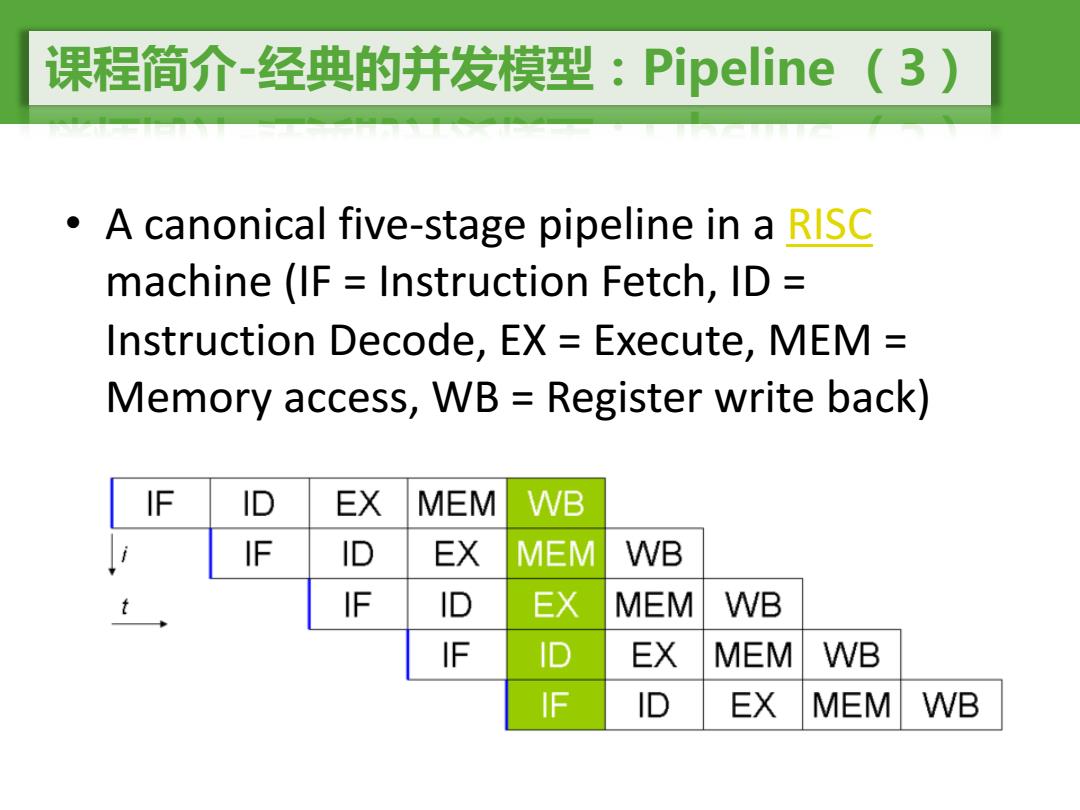

课程简介-经典的并发模型：Pipeline（3)》 A canonical five-stage pipeline in a RISC machine (IF Instruction Fetch,ID Instruction Decode,EX Execute,MEM Memory access,WB Register write back) IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB

课程简介-经典的并发模型：Pipeline （3） • A canonical five-stage pipeline in a RISC machine (IF = Instruction Fetch, ID = Instruction Decode, EX = Execute, MEM = Memory access, WB = Register write back)

课程简介-经典的并发模型：Pipeline（4) A five-stage pipelined superscalar processor, capable of issuing two instructions per cycle.It can have two instructions in each stage of the pipeline,for a total of up to 10 instructions (shown in green)being simultaneously executed

课程简介-经典的并发模型：Pipeline （4） • A five-stage pipelined superscalar processor, capable of issuing two instructions per cycle. It can have two instructions in each stage of the pipeline, for a total of up to 10 instructions (shown in green) being simultaneously executed

课程简介-经典的并发模型：Pipeline（5) IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB IF ID EX MEM WB

课程简介-经典的并发模型：Pipeline （5）
