元器件交易网www.cecb2b.com BTA40 and BTA/BTB41 Series STANDARD 40A TRIACs MAIN FEATURES: Symbol Value Unit IT(RMS) 40 A VDRM/VRRM 600and800 V lGT (Q) 50 mA DESCRIPTION Available in high power packages,the BTA/ BTB40-41 series is suitable for general purpose RD91 AC power switching.They can be used as an ON/ (BTA40) A2 OFF function in applications such as static relays, heating regulation,water heaters,induction motor starting circuits,welding equipment.or for phase control operation in high power motor speed con- trollers,soft start circuits. Thanks to their clip assembly technique,they A1A2 provide a superior performance in surge current G A1A2 G handling capabilities. TOP3 Insulated TOP3 By using an internal ceramic pad,the BTA series (BTA41) (BTB41) provides voltage insulated tab (rated at 2500 V RMS)complying with UL standards (File ref.: E81734). ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit IT(RMS) RMS on-state current RD91 A (full sine wave) Tc=80C TOP3 40 TOP3 Ins. Tc=70°C ITSM Non repetitive surge peak on-state F=60 Hz t=16.7ms 420 A current (full cycle,Tj initial =25C) F=50 Hz t=20 ms 400 It t Value for fusing tp=10ms 880 As Critical rate of rise of on-state current dl/dt lG=2xlGT,tr≤100ns F=120 Hz Ti=125C 50 A/us VDSM/VRSM Non repetitive surge peak off-state tp=10ms Tj=25C VDRM/VRRM voltage +100 IGM Peak gate current tp =20 us T可=125C 8 A PG(AV) Average gate power dissipation T可=125C W Tstg Storage junction temperature range -40t0+150 Operating junction temperature range 40to+125 C October 2001-Ed:4 1/6
1/6 BTA40 and BTA/BTB41 Series STANDARD 40A TRIACS October 2001 - Ed: 4 MAIN FEATURES: DESCRIPTION Available in high power packages, the BTA/ BTB40-41 series is suitable for general purpose AC power switching. They can be used as an ON/ OFF function in applications such as static relays, heating regulation, water heaters, induction motor starting circuits, welding equipment. or for phase control operation in high power motor speed controllers, soft start circuits. Thanks to their clip assembly technique, they provide a superior performance in surge current handling capabilities. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500 V RMS) complying with UL standards (File ref.: E81734). Symbol Value Unit IT(RMS) 40 A VDRM/VRRM 600 and 800 V IGT (Q1) 50 mA ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit I T(RMS) RMS on-state current (full sine wave) RD91 Tc = 80°C 40 A TOP3 TOP3 Ins. Tc = 70°C ITSM Non repetitive surge peak on-state current (full cycle, Tj initial = 25°C) F = 60 Hz t = 16.7 ms 420 A F = 50 Hz t = 20 ms 400 I t I t Value for fusing tp = 10 ms 880 A s dI/dt Critical rate of rise of on-state current I G =2xIGT , tr ≤ 100 ns F = 120 Hz Tj = 125°C 50 A/µs VDSM/VRSM Non repetitive surge peak off-state voltage tp = 10 ms Tj = 25°C VDRM/VRRM + 100 V I GM Peak gate current tp = 20 µs Tj = 125°C8 A PG(AV) Average gate power dissipation Tj = 125°C1 W Tstg Tj Storage junction temperature range Operating junction temperature range - 40 to + 150 - 40 to + 125 °C G A2 A1 A1 A2 G A2 A2 A1 G RD91 (BTA40) A1 A2 G TOP3 (BTB41) TOP3 Insulated (BTA41) 元器件交易网www.cecb2b.com

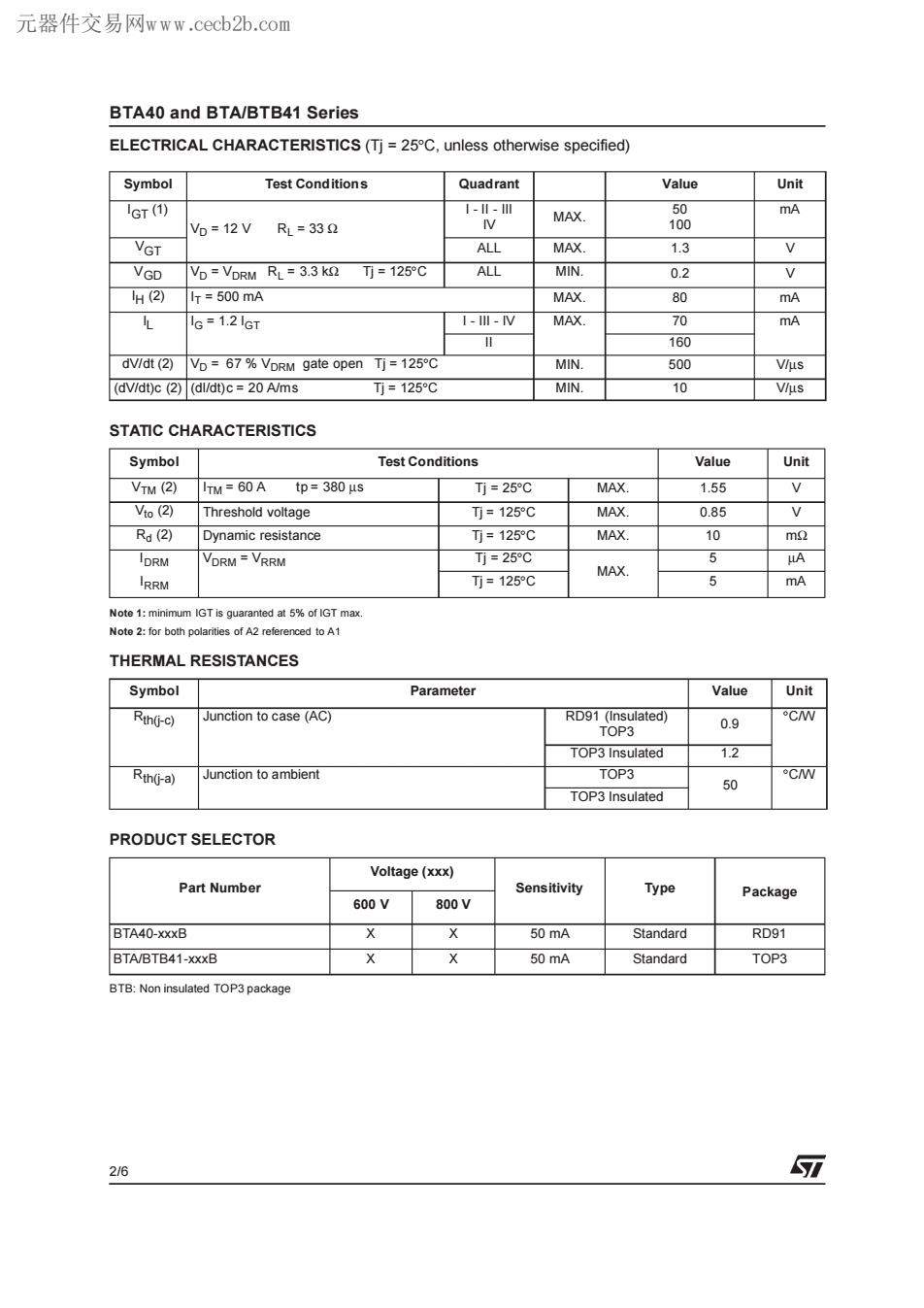

元器件交易网www.cecb2b.com BTA40 and BTA/BTB41 Series ELECTRICAL CHARACTERISTICS(Tj 25C,unless otherwise specified) Symbol Test Conditions Quadrant Value Unit IGT (1) 1-川- V MAX. 50 mA VD=12 V RL=332 100 VGT ALL MAX. 1.3 V VGD VD VDRM RL=3.3 ko T可=125C ALL MIN. 0.2 V H(2) IT=500 mA MAX. 80 mA l6=1.2l6T 1-Ill-IV MAX. 70 mA 160 dV/dt (2)Vo=67%VDRM gate open Tj=125C MIN. 500 Vlμs (dV/dt)c (2)(dl/dt)c=20 A/ms 可=125℃ MIN. 10 Vlμs STATIC CHARACTERISTICS Symbol Test Conditions Value Unit VTM (2) ITM=60 A tp=380 us Tj=25C MAX. 1.55 V Vo(2) Threshold voltage Tj=125°C MAX. 0.85 V Ra(2) Dynamic resistance T=125C MAX. 10 mo DRM VDRM VRRM T可=25°C 5 A MAX IRRM J=125°C 5 mA Note 1:minimum IGT is guaranted at 5%of IGT max Note 2:for both polarities of A2 referenced to A1 THERMAL RESISTANCES Symbol Parameter Value Unit Rth(j-c) Junction to case (AC) RD91 (Insulated) 0.9 CM TOP3 TOP3 Insulated 1.2 Rth(j-a) Junction to ambient TOP3 CM 50 TOP3 Insulated PRODUCT SELECTOR Voltage (xxx) Part Number Sensitivity Type Package 600V 800V BTA40-xxxB X X 50 mA Standard RD91 BTA/BTB41-XXxB X X 50 mA Standard TOP3 BTB:Non insulated TOP3 package 2/6 可
BTA40 and BTA/BTB41 Series 2/6 ELECTRICAL CHARACTERISTICS (Tj = 25°C, unless otherwise specified) STATIC CHARACTERISTICS Note 1: minimum IGT is guaranted at 5% of IGT max. Note 2: for both polarities of A2 referenced to A1 THERMAL RESISTANCES PRODUCT SELECTOR BTB: Non insulated TOP3 package Symbol Test Conditions Quadrant Value Unit I GT (1) VD = 12 V RL = 33 Ω I - II - III IV MAX. 50 100 mA VGT ALL MAX. 1.3 V VGD VD = VDRM RL = 3.3 kΩ Tj = 125°C ALL MIN. 0.2 V I H (2) IT = 500 mA MAX. 80 mA I L IG = 1.2 IGT I - III - IV MAX. 70 mA II 160 dV/dt (2) VD = 67 % VDRM gate open Tj = 125°C MIN. 500 V/µs (dV/dt)c (2) (dI/dt)c = 20 A/ms Tj = 125°C MIN. 10 V/µs Symbol Test Conditions Value Unit VTM (2) ITM = 60 A tp = 380 µs Tj = 25°C MAX. 1.55 V Vto (2) Threshold voltage Tj = 125°C MAX. 0.85 V Rd (2) Dynamic resistance Tj = 125°C MAX. 10 mΩ IDRM IRRM VDRM = VRRM Tj = 25°C MAX. 5 µA Tj = 125°C 5 mA Symbol Parameter Value Unit Rth(j-c) Junction to case (AC) RD91 (Insulated) TOP3 0.9 °C/W TOP3 Insulated 1.2 Rth(j-a) Junction to ambient TOP3 50 °C/W TOP3 Insulated Part Number Voltage (xxx) Sensitivity Type Package 600 V 800 V BTA40-xxxB X X 50 mA Standard RD91 BTA/BTB41-xxxB X X 50 mA Standard TOP3 元器件交易网www.cecb2b.com

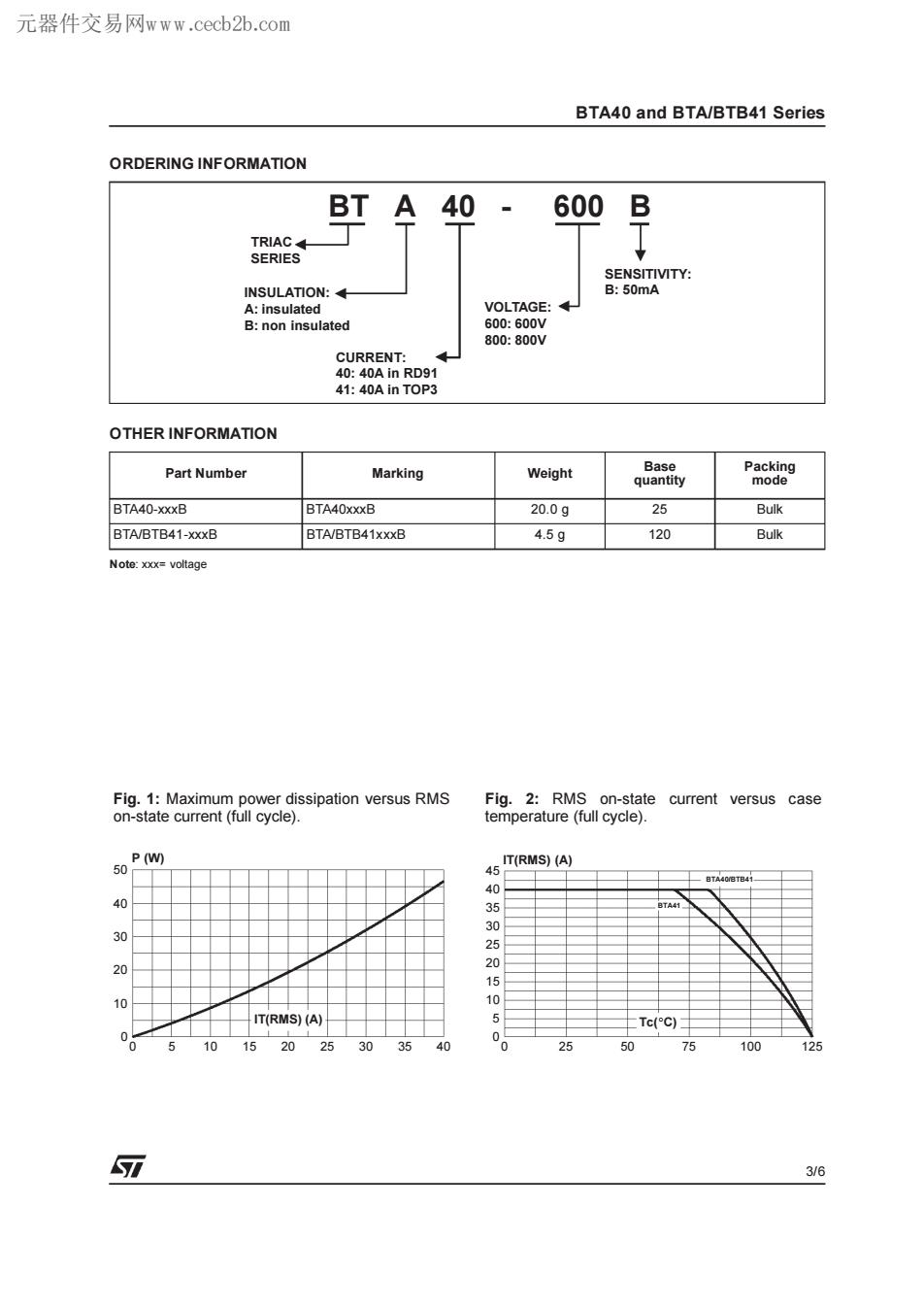

元器件交易网www.cecb2b.com BTA40 and BTA/BTB41 Series ORDERING INFORMATION BT A 40 600 TRIAC T SERIES SENSITIVITY: INSULATION:◆ B:50mA A:insulated VOLTAGE: B:non insulated 600:600V 800:800V CURRENT: 40:40A in RD91 41:40A in TOP3 OTHER INFORMATION Part Number Marking Weight Base Packing quantity mode BTA40-xxxB BTA40xxxB 20.0g 25 Bulk BTA/BTB41-xxxB BTA/BTB41xxxB 4.5g 120 Bulk Note:xxx=voltage Fig.1:Maximum power dissipation versus RMS Fig.2:RMS on-state current versus case on-state current (full cycle). temperature (full cycle). P(W) 50 IT(RMS)(A) 45 BTA40/8TB41- 40 40 3 30 2 20 0 15 IT(RMS)(A) 5 ETc(C) 0 0 5 10 15 2025 30 35 40 0 25 50 75 100 125 7 3/6
BTA40 and BTA/BTB41 Series 3/6 ORDERING INFORMATION OTHER INFORMATION Note: xxx= voltage Part Number Marking Weight Base quantity Packing mode BTA40-xxxB BTA40xxxB 20.0 g 25 Bulk BTA/BTB41-xxxB BTA/BTB41xxxB 4.5 g 120 Bulk Fig. 1: Maximum power dissipation versus RMS on-state current (full cycle). Fig. 2: RMS on-state current versus case temperature (full cycle). BT A 40 - 600 B TRIAC SERIES INSULATION: A: insulated B: non insulated CURRENT: 40: 40A in RD91 41: 40A in TOP3 SENSITIVITY: B: 50mA VOLTAGE: 600: 600V 800: 800V 0 5 10 15 20 25 30 35 40 0 10 20 30 40 50 IT(RMS) (A) P (W) 0 25 50 75 100 125 0 5 10 15 20 25 30 35 40 45 Tc(°C) IT(RMS) (A) BTA41 BTA40/BTB41 元器件交易网www.cecb2b.com

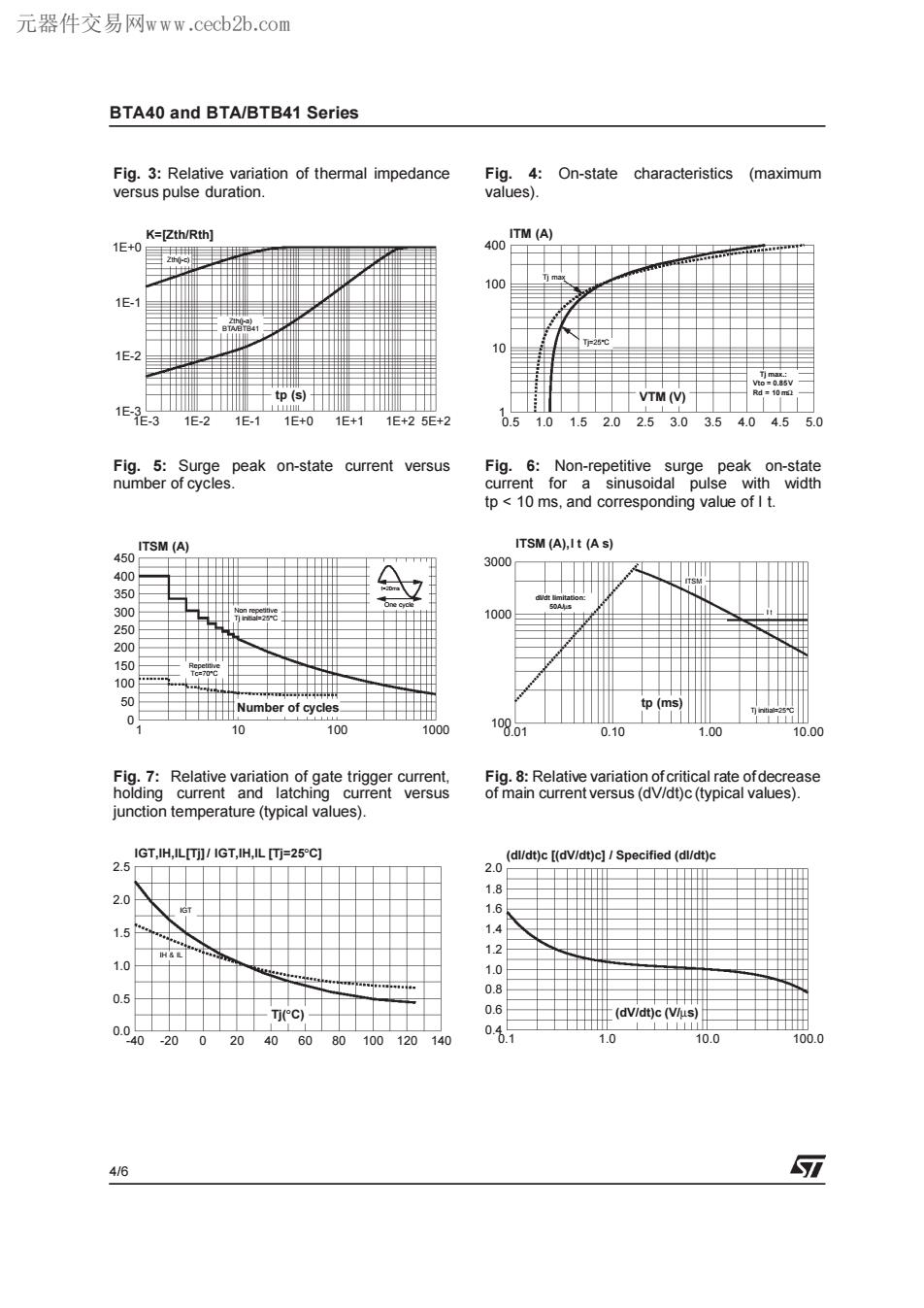

元器件交易网www.cecb2b.com BTA40 and BTA/BTB41 Series Fig.3:Relative variation of thermal impedance Fig.4:On-state characteristics (maximum versus pulse duration. values). K=[Zth/Rth] ITM (A) 1E+0 400— 王目 100 1E-1 10 1E-2 Vto=0.85V tp (s) VTM (V) Rd 10 m 1花 1E-2 1E-11E+01E+11E+25E+2 051.0 1.52.02.53.03.54.04.55.0 Fig.5:Surge peak on-state current versus Fig.6:Non-repetitive surge peak on-state number of cycles. current for a sinusoidal pulse with width tp 10 ms,and corresponding value of I t. ITSM(A) ITSM(A),It (A s) 450 3000 400 350 300 A 1000 250 200 150 100 50 Number of cycles tp(ms)】 0 10 100 1000 10吗 0.10 1.00 10.00 Fig.7:Relative variation of gate trigger current Fig.8:Relative variation of critical rate ofdecrease holding current and latching current versus of main current versus(dV/dt)c(typical values). junction temperature(typical values). IGT,IH,IL[Tj]/IGT,IH,IL [Tj=25C] (dl/dt)c [(dv/dt)c]Specified(dl/dt)c 2.5 2.0 1.8 2.0 1.6 1.5 14 1.0 1.0 0.5 0.8 Tj°C) 0.6 (dV/dt)c(Vlus) 0. -40-20020406080100120140 061 1.0 10.0 100.0 4/6 7
BTA40 and BTA/BTB41 Series 4/6 Fig. 3: Relative variation of thermal impedance versus pulse duration. Fig. 4: On-state characteristics (maximum values). Fig. 5: Surge peak on-state current versus number of cycles. Fig. 6: Non-repetitive surge peak on-state current for a sinusoidal pulse with width tp < 10 ms, and corresponding value of I t. Fig. 7: Relative variation of gate trigger current, holding current and latching current versus junction temperature (typical values). Fig. 8: Relative variation ofcritical rate ofdecrease of main current versus (dV/dt)c (typical values). 1E-3 1E-2 1E-1 1E+0 1E+1 1E+2 5E+2 1E-3 1E-2 1E-1 1E+0 tp (s) K=[Zth/Rth] Zth(j-c) Zth(j-a) BTA/BTB41 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 1 10 100 400 VTM (V) ITM (A) Tj=25°C Tj max Tj max.: Vto = 0.85V Rd = 10 mΩ 1 10 100 1000 0 50 100 150 200 250 300 350 400 450 Number of cycles ITSM (A) Non repetitive Tj initial=25°C Repetitive Tc=70°C One cycle t=20ms 0.01 0.10 1.00 10.00 100 1000 3000 tp (ms) ITSM (A),I t (A s) Tj initial=25°C ITSM I t dI/dt limitation: 50A/µs -40 -20 0 20 40 60 80 100 120 140 0.0 0.5 1.0 1.5 2.0 2.5 Tj(°C) IGT,IH,IL[Tj]/ IGT,IH,IL [Tj=25°C] IGT IH & IL 0.1 1.0 10.0 100.0 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 (dV/dt)c (V/µs) (dI/dt)c [(dV/dt)c] / Specified (dI/dt)c 元器件交易网www.cecb2b.com
元器件交易网www.cecb2b.com BTA40 and BTA/BTB41 Series Fig.9:Relative variation of critical rate of decrease of main current versus junction temperature (dl/dt)c [Tj]/(dl/dt)c [Tj specified] T可(PC) 25 50 75 100 125 PACKAGE MECHANICAL DATA RD91(Plastic) DIMENSIONS A2 REF. Millimeters Inches Min. Max. Min. Max. 40.00 1.575 B1 A1 29.90 30.30 1.177 1.193 A2 22.00 0.867 B 27.00 1.063 B1 13.50 16.50 0.531 0.650 A1 B2 24.00 0.945 C 14.00 0.551 C1 3.50 0.138 N C2 1.95 3.00 0.077 0.118 E3 0.70 0.90 0.027 0.035 F 4.00 4.50 0.157 0.177 11.20 13.60 0.441 0.535 L1 3.10 3.50 0.122 0.138 L2 1.70 1.90 0.067 0.075 N1 33 439 33 43 N2 28 380 28© 380 司 5/6
BTA40 and BTA/BTB41 Series 5/6 Fig. 9: Relative variation of critical rate of decrease of main current versus junction temperature. 0 25 50 75 100 125 0 1 2 3 4 5 6 Tj (°C) (dI/dt)c [Tj] / (dI/dt)c [Tj specified] PACKAGE MECHANICAL DATA RD91 (Plastic) REF. DIMENSIONS Millimeters Inches Min. Max. Min. Max. A 40.00 1.575 A1 29.90 30.30 1.177 1.193 A2 22.00 0.867 B 27.00 1.063 B1 13.50 16.50 0.531 0.650 B2 24.00 0.945 C 14.00 0.551 C1 3.50 0.138 C2 1.95 3.00 0.077 0.118 E3 0.70 0.90 0.027 0.035 F 4.00 4.50 0.157 0.177 I 11.20 13.60 0.441 0.535 L1 3.10 3.50 0.122 0.138 L2 1.70 1.90 0.067 0.075 N1 33° 43° 33° 43° N2 28° 38° 28° 38° L2 L1 A2 B2 C C2 A1 C1 B1 N1 B F I A E3 N2 元器件交易网www.cecb2b.com
