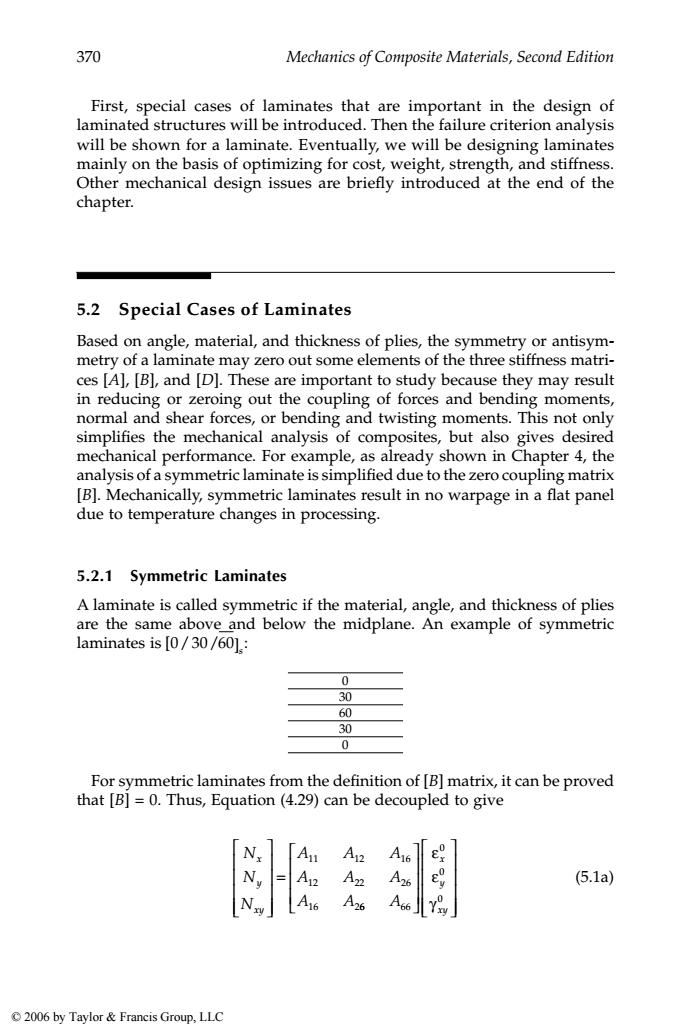

370 Mechanics of Composite Materials, Second Edition First, special cases of laminates that are important in the design of laminated structures will be introduced. Then the failure criterion analysis will be shown for a laminate. Eventually, we will be designing laminates mainly on the basis of optimizing for cost, weight, strength, and stiffness. Other mechanical design issues are briefly introduced at the end of the chapter. 5.2 Special Cases of Laminates Based on angle, material, and thickness of plies, the symmetry or antisymmetry of a laminate may zero out some elements of the three stiffness matrices [A], [B], and [D]. These are important to study because they may result in reducing or zeroing out the coupling of forces and bending moments, normal and shear forces, or bending and twisting moments. This not only simplifies the mechanical analysis of composites, but also gives desired mechanical performance. For example, as already shown in Chapter 4, the analysis of a symmetric laminate is simplified due to the zero coupling matrix [B]. Mechanically, symmetric laminates result in no warpage in a flat panel due to temperature changes in processing. 5.2.1 Symmetric Laminates A laminate is called symmetric if the material, angle, and thickness of plies are the same above and below the midplane. An example of symmetric laminates is : For symmetric laminates from the definition of [B] matrix, it can be proved that [B] = 0. Thus, Equation (4.29) can be decoupled to give (5.1a) 0 30 60 30 0 [ /0 30/60]s N N N A A A A A A A A x y xy ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ = 11 12 16 12 22 26 16 26 66 0 0 A 0 x y xy ⎡ ⎣ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ε ε γ 1343_book.fm Page 370 Tuesday, September 27, 2005 11:53 AM © 2006 by Taylor & Francis Group, LLC
Failure,Analysis,and Design of Laminates 371 D12 D16 K My D12 D2 D26 (5.1b) D16 D26 D66」 This shows that the force and moment terms are uncoupled.Thus,if a laminate is subjected only to forces,it will have zero midplane curvatures. Similarly,if it is subjected only to moments,it will have zero midplane strains. The uncoupling between extension and bending in symmetric laminates makes analyzing such laminates simpler.It also prevents a laminate from twisting due to thermal loads,such as cooling down from processing temper- atures and temperature fluctuations during use such as in a space shuttle,etc. 5.2.2 Cross-Ply Laminates A laminate is called a cross-ply laminate(also called laminates with specially orthotropic layers)if only 0 and 90 plies were used to make a laminate.An example of a cross ply laminate is a [0/902/0/90]laminate: 0 90 90 0 90 For cross-ply laminates,A16=0,A26=0,Bi6=0,B26=0,D16=0,and D26 =0;thus,Equation(4.29)can be written as Nx An A12 0 B11 B12 0 Ny A An 0 B12 B22 0 e a 0 0 A66 0 0 Bos Ya (5.2) M B11 B12 0 D11 D12 0 Kx M, Bxz B 0 D12 Da 0 My」 0 0 Bos 0 0 Do K到 In these cases,uncoupling occurs between the normal and shear forces, as well as between the bending and twisting moments.If a cross-ply lami- nate is also symmetric,then in addition to the preceding uncoupling,the coupling matrix [B]=0 and no coupling takes place between the force and moment terms. 2006 by Taylor Francis Group,LLC
Failure, Analysis, and Design of Laminates 371 . (5.1b) This shows that the force and moment terms are uncoupled. Thus, if a laminate is subjected only to forces, it will have zero midplane curvatures. Similarly, if it is subjected only to moments, it will have zero midplane strains. The uncoupling between extension and bending in symmetric laminates makes analyzing such laminates simpler. It also prevents a laminate from twisting due to thermal loads, such as cooling down from processing temperatures and temperature fluctuations during use such as in a space shuttle, etc. 5.2.2 Cross-Ply Laminates A laminate is called a cross-ply laminate (also called laminates with specially orthotropic layers) if only 0 and 90° plies were used to make a laminate. An example of a cross ply laminate is a [0/902/0/90] laminate: For cross-ply laminates, A16 = 0, A26 = 0, B16 = 0, B26 = 0, D16 = 0, and D26 = 0; thus, Equation (4.29) can be written as . (5.2) In these cases, uncoupling occurs between the normal and shear forces, as well as between the bending and twisting moments. If a cross-ply laminate is also symmetric, then in addition to the preceding uncoupling, the coupling matrix [B] = 0 and no coupling takes place between the force and moment terms. 0 90 90 0 90 M M M D D D D D D D D x y xy ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ = 11 12 16 12 22 26 16 26 6 D 6 x y xy ⎡ ⎣ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ κ κ κ N N N M M M x A A B y xy x y xy ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ = 11 12 0 11 12 12 22 12 22 66 66 11 12 11 1 0 0 0 0 0 0 0 0 B A A B B A B B B D D 2 12 22 12 22 66 66 0 0 0 0 0 0 0 B B D D B D ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ε ε γ κ κ κ x y xy x y xy 0 0 0 ⎥ 1343_book.fm Page 371 Tuesday, September 27, 2005 11:53 AM © 2006 by Taylor & Francis Group, LLC
372 Mechanics of Composite Materials,Second Edition 5.2.3 Angle Ply Laminates A laminate is called an angle ply laminate if it has plies of the same material and thickness and only oriented at +0 and-0 directions.An example of an angle ply laminate is [-40/40/-40/40]: -40 40 -40 40 If a laminate has an even number of plies,then A=A26=0.However,if the number of plies is odd and it consists of alternating +0 and-0 plies,then it is symmetric,giving [B]=0,and A1e,A26,Di6 and D26 also become small as the number of layers increases for the same laminate thickness.This behavior is similar to the symmetric cross-ply laminates.However,these angle ply laminates have higher shear stiffness and shear strength properties than cross-ply laminates. 5.2.4 Antisymmetric Laminates A laminate is called antisymmetric if the material and thickness of the plies are the same above and below the midplane,but the ply orientations at the same distance above and below the midplane are negative of each other.An example of an antisymmetric laminate is: 45 60 -60 -45 From Equation (4.28a)and Equation (4.28c),the coupling terms of the extensional stiffness matrix,Ai6=A26=0,and the coupling terms of the bending stiffness matrix,D16=D26=0: A12 0 B11 B12 B16 e A12 A2 B12 B2 B26 到 0 0 A66 B16 B26 Bos Y (5.3) M B11 B2 B16 D11 D12 0 K M, B12 B2 B26 D12 D2 0 Ky B16 B26 Bos 0 0 Doe 2006 by Taylor Francis Group,LLC
372 Mechanics of Composite Materials, Second Edition 5.2.3 Angle Ply Laminates A laminate is called an angle ply laminate if it has plies of the same material and thickness and only oriented at +θ and –θ directions. An example of an angle ply laminate is [–40/40/–40/40]: If a laminate has an even number of plies, then A16 = A26 = 0. However, if the number of plies is odd and it consists of alternating +θ and –θ plies, then it is symmetric, giving [B] = 0, and A16, A26, D16, and D26 also become small as the number of layers increases for the same laminate thickness. This behavior is similar to the symmetric cross-ply laminates. However, these angle ply laminates have higher shear stiffness and shear strength properties than cross-ply laminates. 5.2.4 Antisymmetric Laminates A laminate is called antisymmetric if the material and thickness of the plies are the same above and below the midplane, but the ply orientations at the same distance above and below the midplane are negative of each other. An example of an antisymmetric laminate is: From Equation (4.28a) and Equation (4.28c), the coupling terms of the extensional stiffness matrix, A16 = A26 =0, and the coupling terms of the bending stiffness matrix, D16 = D26 = 0: . (5.3) –40 40 –40 40 45 60 –60 –45 N N N M M M x A A B y xy x y xy ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ = 11 12 0 11 12 16 12 22 12 22 26 66 16 26 66 11 0 0 0 B B A A B B B A B B B B B22 16 11 12 12 22 26 12 22 16 26 66 66 0 0 0 0 B D D B B B D D B B B D ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎡ ⎣ ⎢ ⎢ ⎢ ε ε γ κ κ κ x y xy x y xy 0 0 0 ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ 1343_book.fm Page 372 Tuesday, September 27, 2005 11:53 AM © 2006 by Taylor & Francis Group, LLC
Failure,Analysis,and Design of Laminates 373 5.2.5 Balanced Laminate A laminate is balanced if layers at angles other than 0 and 90 occur only as plus and minus pairs of +0 and-0.The plus and minus pairs do not need to be adjacent to each other,but the thickness and material of the plus and minus pairs need to be the same.Here,the terms A16=A26=0.An example of a balanced laminate is [30/40/-30/30/-30/-40]: 30 40 -30 30 -30 -40 From Equation(4.28a), Nx An A12 0 B B12 B16 e Ny An An 0 B12 B22 B26 Na 0 0 A26 B16 B26 B66 M (5.4) Bu B12 B16 D Dv2 D16 Kx B1 B22 B26 D2 D2 D Ky May B16 B26 Bes Di6 D26 D66 5.2.6 Quasi-Isotropic Laminates For a plate of isotropic material with Young's modulus,E,Poisson's ratio, v,and thickness,h,the three stiffness matrices are E VE 1-v2 1-v2 [A]= vE E 1-v 1-v2 0 h, (5.5) E 0 0 2(1+v) [B= 0 0 (5.6) 0 0 0 2006 by Taylor Francis Group,LLC
Failure, Analysis, and Design of Laminates 373 5.2.5 Balanced Laminate A laminate is balanced if layers at angles other than 0 and 90° occur only as plus and minus pairs of +θ and –θ. The plus and minus pairs do not need to be adjacent to each other, but the thickness and material of the plus and minus pairs need to be the same. Here, the terms A16 = A26 = 0. An example of a balanced laminate is [30/40/–30/30/–30/–40]: From Equation (4.28a), . (5.4) 5.2.6 Quasi-Isotropic Laminates For a plate of isotropic material with Young’s modulus, E, Poisson’s ratio, ν, and thickness, h, the three stiffness matrices are , (5.5) , (5.6) 30 40 –30 30 –30 –40 N N N M M M x A A B y xy x y xy ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ = 11 12 0 11 12 16 12 22 12 22 26 26 16 26 66 11 0 0 0 B B A A B B B A B B B B B12 16 11 12 16 12 22 26 12 22 26 16 26 66 B D D D B B B D D D B B B D16 26 66 0 0 0 D D x y xy x y ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ε ε γ κ κ κxy ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ [ ] ( ) A E E E E E = − − − − + ⎡ ⎣ ⎢ ⎢ ⎢ ⎢ 1 1 0 1 1 0 0 0 2 1 2 2 2 2 ν ν ν ν ν ν ν ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ h [ ] B = ⎡ ⎣ ⎢ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ ⎥ 000 000 000 1343_book.fm Page 373 Tuesday, September 27, 2005 11:53 AM © 2006 by Taylor & Francis Group, LLC
