Copy A few important large veins an University 1. lnt.jugular v.左颈内静脉 2. Subclavian v.左锁骨下静脉 3. Brachiocephalic v.右头臂静脉 颈内静脉 静脉角 颈外静脉 4. Sup.vena cava上腔静脉 锁骨下静脉 ~锁骨下动脉 5.Venous angle静脉角 头臂静脉- 主动脉 上腔静脉- 动脉韧带 右肺 肺动脉干 右心耳 左心耳 右心室 左心室 心包 Copy Right-HongqI ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University 1. Int. jugular v. 左颈内静脉 2. Subclavian v. 左锁骨下静脉 3. Brachiocephalic v.右头臂静脉 4. Sup.vena cava 上腔静脉 5. Venous angle 静脉角 A few important large veins 静脉角

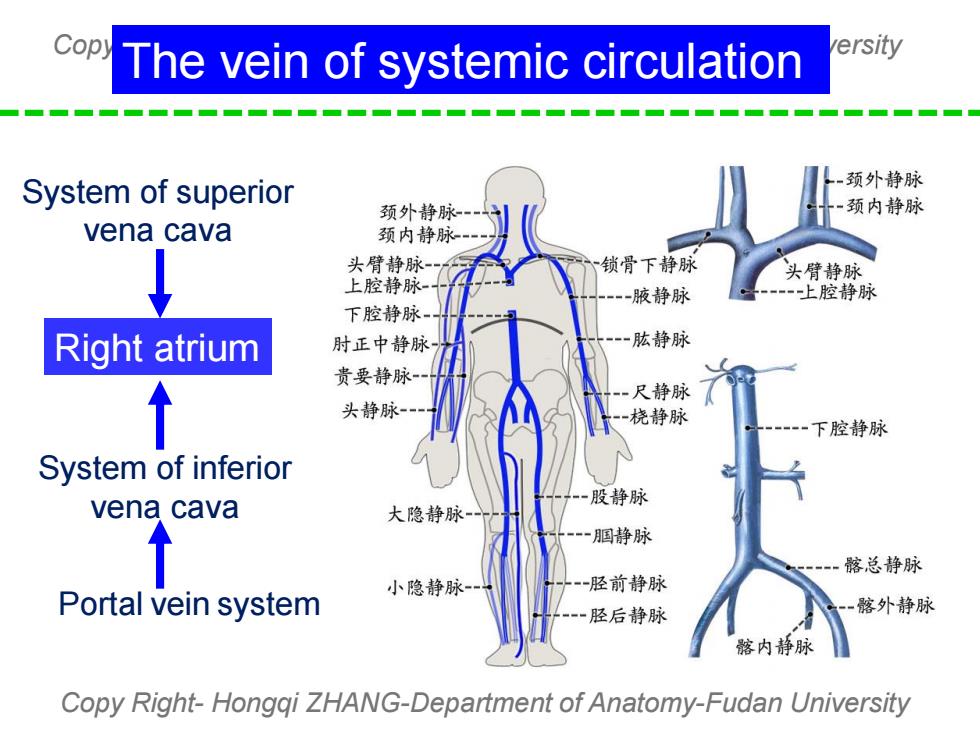

Copy The vein of systemic circulation versity System of superior 颈外静脉 颈外静脉 颈内静脉 vena cava 颈内静脉 头臂静脉 锁骨下静脉 头臂静脉 上腔静脉 -腋静脉 -上腔静脉 下腔静脉 Right atrium 肘正中静脉 ~肱静脉 贵要静脉 ↑ 尺静脉 头静脉 桡静脉 下腔静脉 System of inferior vena cava 股静脉 大隐静脉 胭静脉 髂总静脉 小隐静脉 胫前静脉 Portal vein system 胫后静脉 髂外静脉 髂内静脉 Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University System of inferior vena cava The vein of systemic circulation Portal vein system System of superior vena cava Right atrium

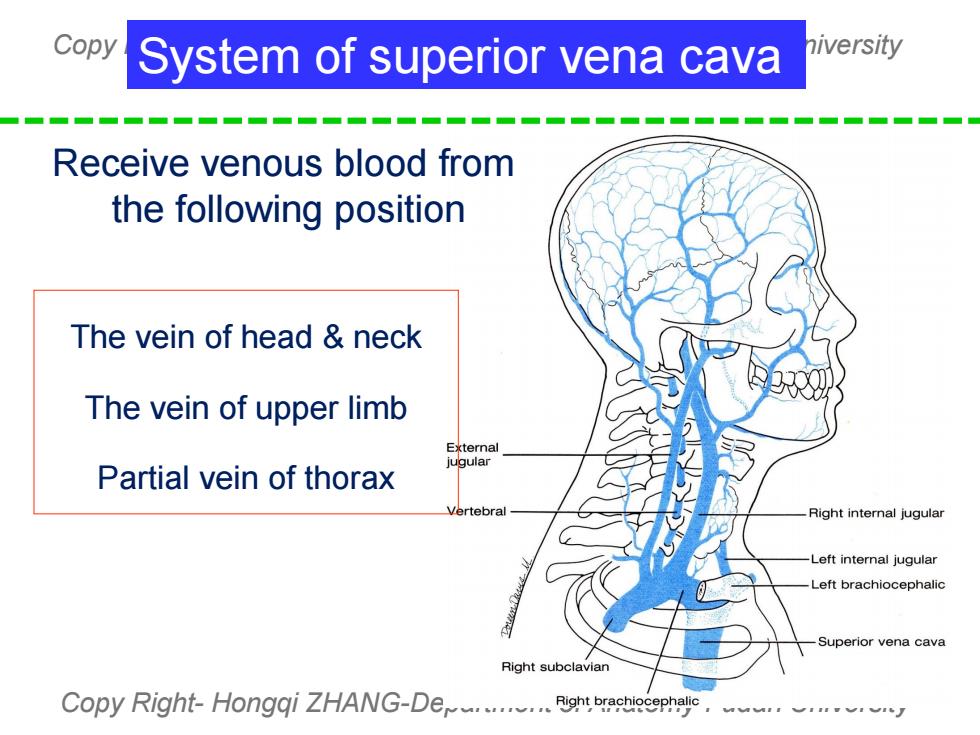

Copy System of superior vena cava niversity Receive venous blood from the following position The vein of head neck The vein of upper limb na Partial vein of thorax ebra Right internal jugular -Left internal jugular Left brachiocephalic Superior vena cava Right subclavian Copy Right-Hongqi ZHANG-De
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University System of superior vena cava Receive venous blood from the following position The vein of head & neck The vein of upper limb Partial vein of thorax
Copy Rig The vein of the head and neck University 1 Facial v.面静脉 Sup.v. 2Sup.temporal v.颢浅静脉 浅静脉 3Ant.jugular v.颈前静脉 一内眦静脉 4Ext.jugular v.颈外静脉 颞浅静脉 上颌静脉- 翼静脉丛 下颌后静脉 面静脉 Intracranial v.颅内静脉 枕静脉 Deep v. 耳后静脉 5lnt.jugular v.颈内静脉 颈外静脉 -颈前静脉 深静脉 6 Subclavian v.锁骨下静脉 颈内静脉 Distention of jugular vein颈静脉怒张 venous puncture静脉穿刺 锁骨下静脉 Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University The vein of the head and neck Sup.v. 浅静脉 Deep v. 深静脉 Distention of jugular vein 颈静脉怒张 venous puncture 静脉穿刺 Intracranial v.颅内静脉 5 Int. jugular v.颈内静脉 6 Subclavian v.锁骨下静脉 1 Facial v. 面静脉 2 Sup.temporal v. 颞浅静脉 3 Ant. jugular v. 颈前静脉 4 Ext. jugular v.颈外静脉
Anterior view of the superficial vein in the neck Ext.jugular vein Int.jugular vein 颈外静脉 颈内静脉 Ant.jugular vein 颈前静脉 Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Anterior view of the superficial vein in the neck Int. jugular vein 颈内静脉 Ant. jugular vein 颈前静脉 Ext. jugular vein 颈外静脉
