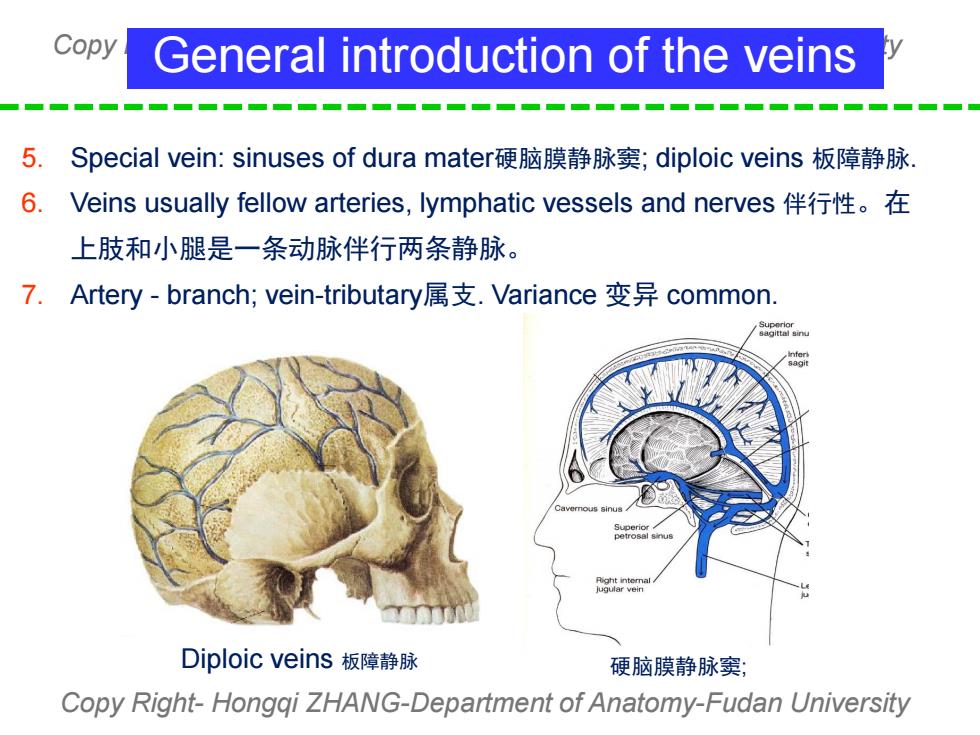

Copy General introduction of the veins 5.Special vein:sinuses of dura matert硬脑膜静脉窦；diploic veins板障静脉 6.Veins usually fellow arteries,ymphatic vessels and nerves伴行t性。在 上肢和小腿是一条动脉伴行两条静脉。 7.Artery-branch;vein-tributary)属支.Variance变异common. oa vin Diploic veins板障静脉 硬脑膜静脉窦； Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University 5. Special vein: sinuses of dura mater硬脑膜静脉窦; diploic veins 板障静脉. 6. Veins usually fellow arteries, lymphatic vessels and nerves 伴行性。在 上肢和小腿是一条动脉伴行两条静脉。 7. Artery - branch; vein-tributary属支. Variance 变异 common. General introduction of the veins Diploic veins 板障静脉 硬脑膜静脉窦;
Copy F Arteries and veins of whole body 8.Superficial(subcutaneous皮下)vein,&deep(accompanied)伴行vein. Right common carotid Right subclavian Lett common carotid Extemal jugula -Internal jugular Brachiocephalic trun Left subclavian Axillary Aortic arch- Pulmonary trunk Superior vena cava Brachial Ascending aorta Descending aorta Basilic Diaphragm Celiac trunk Renal Hepatic Brachial Median cubital Gonadal Gonadal Radial Radial Lumbar Inienor mesenten Ulnar. Common iliac Median antebrachial Intemal ifac Uinar External iliac arches Popliteal Posterior tibial Anterior tibial Small saphenou Dorsalis pedis Plantar venous arch Plantar arch C0pyy3兴-， ment Dorsa venous arch-
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Arteries and veins of whole body 8. Superficial (subcutaneous 皮下) vein, & deep (accompanied) 伴行 vein
Copy General introduction of the veins 9.3 system:Cardiac vein,systemic pulmonary circulatory v. 1O.Drainage factors回流因素：valve,aspiration of heart,negative pressure, muscle contraction. 11.The clinic临床：Superficial vein usually are used for the puncture静脉穿刺 12.Common disease:Thrombosis,phlebitis,varicose veins,leg ulcers,etc. Ulcer Thrombosis varicose veins Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University 9. 3 system：Cardiac vein, systemic & pulmonary circulatory v. 10. Drainage factors 回流因素: valve, aspiration of heart, negative pressure, muscle contraction. 11. The clinic 临床: Superficial vein usually are used for the puncture 静脉穿刺 12. Common disease: Thrombosis, phlebitis, varicose veins, leg ulcers, etc. General introduction of the veins Ulcer Thrombosis varicose veins
Copy Right- n University Cardiac venous system 1-Great cardiac vein 2-Middle cardiac vein 3-Small cardiac vein Coronary sinus Right atrium 2 Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Cardiac venous system 1-Great cardiac vein 2-Middle cardiac vein 3-Small cardiac vein Coronary sinus Right atrium 1 2 3
Copy Ri versity Vein of pulmonary circulation -pulmonary vein Four pulmonary vein:two for each side Carry oxygenated blood to left atrium Coronary I sinus Great cardiac vein Posterior vein of left ventricle Middle cardiac Small cardiac vein vein Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Vein of pulmonary circulation -pulmonary vein Four pulmonary vein: two for each side Carry oxygenated blood to left atrium
