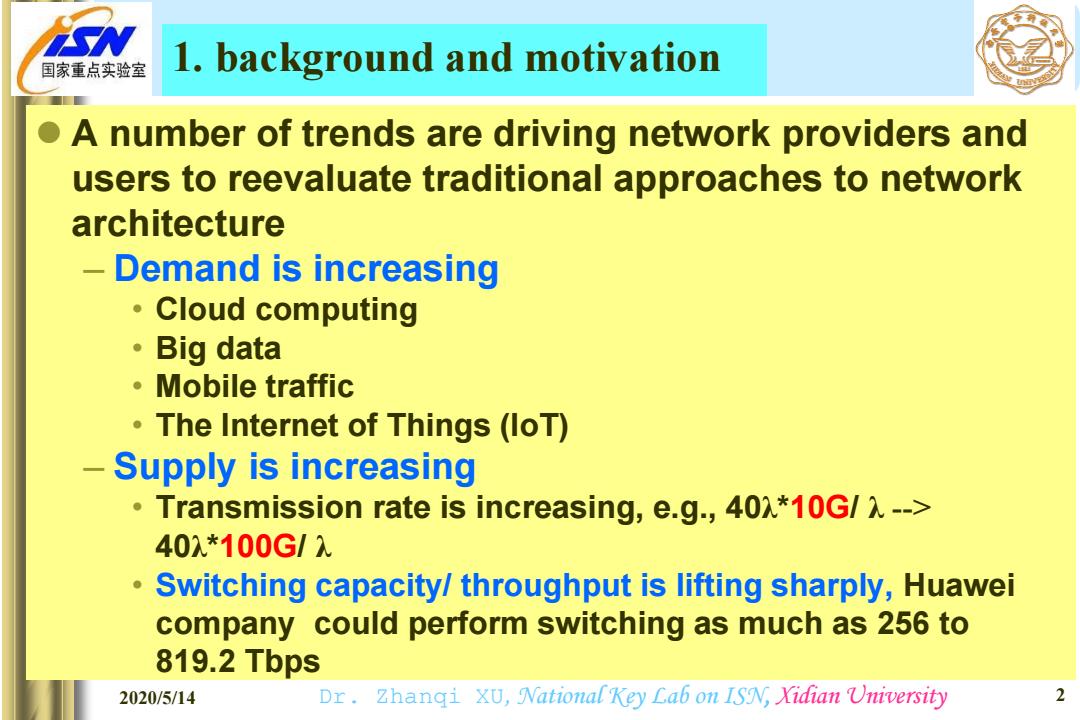

N 国家重点实验室 1.background and motivation A number of trends are driving network providers and users to reevaluate traditional approaches to network architecture - Demand is increasing ·Cloud computing 。 Big data 。Mobile traffic The Internet of Things(loT) Supply is increasing Transmission rate is increasing,e.g.,401*10G/--> 401*100G/入 Switching capacity/throughput is lifting sharply,Huawei company could perform switching as much as 256 to 819.2 Tbps 2020/5/14 Dr.Zhangi XU,National Key Lab on ISN,Xidian University 2
2020/5/14 Dr. Zhanqi XU, National Key Lab on ISN, Xidian University 2 1. background and motivation A number of trends are driving network providers and users to reevaluate traditional approaches to network architecture – Demand is increasing • Cloud computing • Big data • Mobile traffic • The Internet of Things (IoT) – Supply is increasing • Transmission rate is increasing, e.g., 40λ*10G/ λ --> 40λ*100G/ λ • Switching capacity/ throughput is lifting sharply, Huawei company could perform switching as much as 256 to 819.2 Tbps
-continued 国家重点实验室 Traffic A number of developments have resulted in far more dynamic and complex traffic patterns within the enterprise data centers,local and regional enterprise networks,and carrier networks; Client/server applications access multiple databases and servers,which generates "horizontal"traffic between servers as well as "vertical"traffic between servers and clients; Network convergence of voice,data,and video traffic creates unpredictable traffic patterns; The widespread use of public clouds has shifted a significant amount of what previously had been local traffic onto WANs for many enterprises,resulting in increased and often very unpredictable loads on enterprise routers. 2020/5/14 Dr.Zhanqi XU,National Key Lab on ISN,Xidian University 3
2020/5/14 Dr. Zhanqi XU, National Key Lab on ISN, Xidian University 3 -continued – Traffic A number of developments have resulted in far more dynamic and complex traffic patterns within the enterprise data centers, local and regional enterprise networks, and carrier networks; Client/server applications access multiple databases and servers, which generates “horizontal” traffic between servers as well as “vertical” traffic between servers and clients; Network convergence of voice, data, and video traffic creates unpredictable traffic patterns; The widespread use of public clouds has shifted a significant amount of what previously had been local traffic onto WANs for many enterprises, resulting in increased and often very unpredictable loads on enterprise routers
国家重点实验室 Once Upon a Time "AT&T Eyes Flexibility,Cost Savings With New Network Design",Wall Street journal,2014. Upgrade their internal network infrastructure(routers and switches)every 18 months to keep up with the current demands for network. Cost Billions USD to upgrade. Cisco top of the line switch cost $27K USD Other high cost:Involved many men power to upgrade the network. In Summary:AT&T was eyeing for SDN capable switches (only $11K USD each). 2020/5/14 Dr.Zhangi xU,National Key Lab on ISN,Xidian University 4
2020/5/14 Dr. Zhanqi XU, National Key Lab on ISN, Xidian University 4 “AT&T Eyes Flexibility, Cost Savings With New Network Design”, Wall Street journal, 2014. – Upgrade their internal network infrastructure (routers and switches) every 18 months to keep up with the current demands for network. – Cost Billions USD to upgrade. • Cisco top of the line switch cost $27K USD – Other high cost: Involved many men power to upgrade the network. – In Summary: AT&T was eyeing for SDN capable switches (only $11K USD each). Once Upon a Time
国家重点实验 The Networking Industry(2007) Applications are Routing,management,mobility management, access control,VPNs,.. App 1 App 2 App n Million of lines Operating Managed by 6000 RFCs of source code System Specialized Packet 500M gates Power Hungry Forwarding Hardware 10Gbytes RAM Earth Angry Many complex functions baked into the infrastructure OSPF,BGP(边界网关协议)，multicast,,differentiated services#(区 分服务) Traffic Engineering(流量工程)，NAT#(Network Address Translators 地址转换器)，firewalls,MPLS,redundant layers,. An industry with a“mainframe-mentality”（大型智力？)
Managed by 6000 RFCs 500M gates 10Gbytes RAM Power Hungry Earth Angry The Networking Industry (2007) Specialized Packet Forwarding Hardware Operating System App 1 App 2 App n Applications are Routing, management, mobility management, access control, VPNs, … Million of lines of source code Many complex functions baked into the infrastructure OSPF, BGP （边界网关协议）, multicast, differentiated services #（区 分服务） Traffic Engineering（流量工程）, NAT#（Network Address Translators， 地址转换器）, firewalls, MPLS, redundant layers, … An industry with a “mainframe-mentality” (大型智力？)
