Introduction:Why are 3-D textile technologies applied to composite materials? ANTONIO MIRAVETE Composite materials have been used for the past 30 years in many sectors such as aeronautics,space,sporting goods,marine,automotive,ground transportation and off-shore.These materials emerged in such areas because of their high stiffness and strength at low-density,high-specific energy absorption behaviour and excellent fatigue performance. Among the main limitations of these materials,however,are their high cost and the inability to have fibres in the laminate thickness direction, which greatly reduces damage tolerance and impact resistance. Manufacturing costs :dny 3-D reinforced composite materials are manufactured by impregnating a preform.This issue is critical in terms of manufacturing costs,since the 盖 process is reduced and simplified in comparison with traditional manufac- turing technologies. Figure 1 represents the manufacturing steps of a standard sandwich com- posed of two skins and a core (left)and a warp knitted structure (right) The warp knitted sandwich structure has arisen as an efficient configura- tion for applications where interlaminar stresses (peeling or interlaminar shear)are critical.The warp knitted sandwich structure is characterized by having a series of fibres in the thickness directions or plies,which bridge the top and the bottom skins(Fig.1,right). The standard sandwich requires three steps to be manufactured.First, both skins must be made.Hand lay-up or vacuum bag processes may be used for this purpose.Second,the core must be manufactured:honeycomb or foam materials are usually applied for the central part of the sandwich construction.Finally,the three sub-structures must be assembled by means of vacuum bag or press technologies.The foam may also be injected once the skins are positioned in the tooling. The manufacturing process of a warp knitted sandwich structure is much simpler and,therefore,much cheaper.The impregnated preform is pulled 1
Composite materials have been used for the past 30 years in many sectors such as aeronautics, space, sporting goods, marine, automotive, ground transportation and off-shore. These materials emerged in such areas because of their high stiffness and strength at low-density, high-specific energy absorption behaviour and excellent fatigue performance. Among the main limitations of these materials, however, are their high cost and the inability to have fibres in the laminate thickness direction, which greatly reduces damage tolerance and impact resistance. Manufacturing costs 3-D reinforced composite materials are manufactured by impregnating a preform. This issue is critical in terms of manufacturing costs, since the process is reduced and simplified in comparison with traditional manufacturing technologies. Figure 1 represents the manufacturing steps of a standard sandwich composed of two skins and a core (left) and a warp knitted structure (right). The warp knitted sandwich structure has arisen as an efficient configuration for applications where interlaminar stresses (peeling or interlaminar shear) are critical. The warp knitted sandwich structure is characterized by having a series of fibres in the thickness directions or plies, which bridge the top and the bottom skins (Fig. 1, right). The standard sandwich requires three steps to be manufactured. First, both skins must be made. Hand lay-up or vacuum bag processes may be used for this purpose. Second, the core must be manufactured: honeycomb or foam materials are usually applied for the central part of the sandwich construction. Finally, the three sub-structures must be assembled by means of vacuum bag or press technologies. The foam may also be injected once the skins are positioned in the tooling. The manufacturing process of a warp knitted sandwich structure is much simpler and, therefore, much cheaper. The impregnated preform is pulled Introduction: Why are 3-D textile technologies applied to composite materials? ANTONIO MIRAVETE 1 RICIN 7/10/99 7:11 PM Page 1 Copyrighted Material downloaded from Woodhead Publishing Online Delivered by http://woodhead.metapress.com Hong Kong Polytechnic University (714-57-975) Saturday, January 22, 2011 12:29:10 AM IP Address: 158.132.122.9

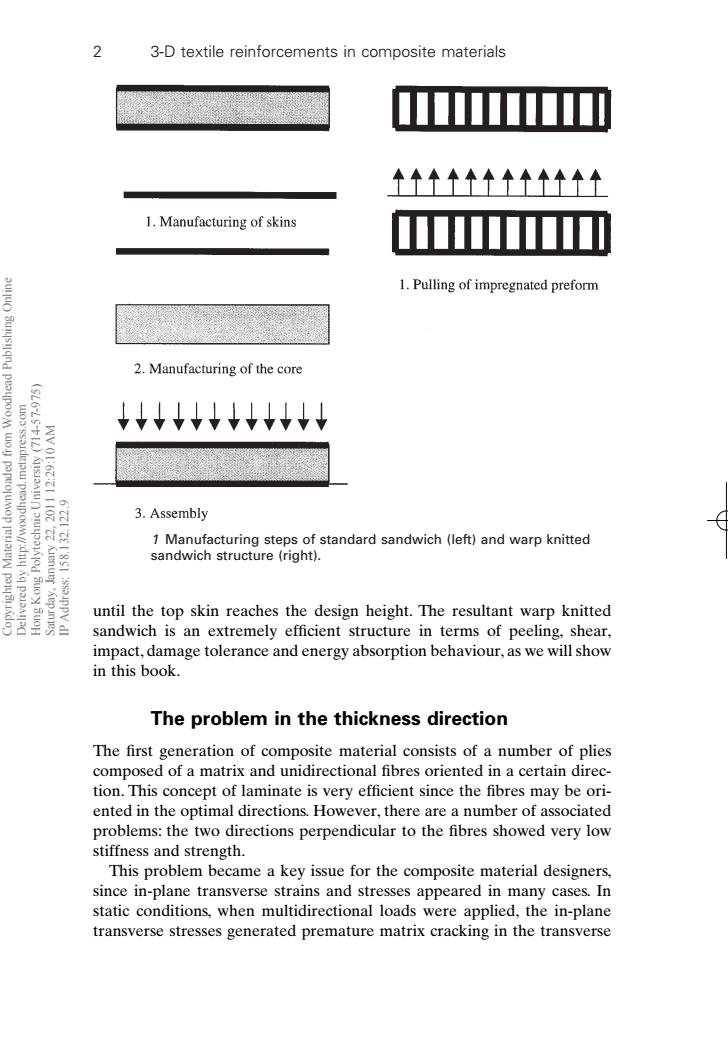

2 3-D textile reinforcements in composite materials 1.Manufacturing of skins 1.Pulling of impregnated preform 2.Manufacturing of the core ↓↓↓ wo'ssaudmau'peaypoow/:dny 2102 3.Assembly 1 Manufacturing steps of standard sandwich (left)and warp knitted sandwich structure (right). 三名g until the top skin reaches the design height.The resultant warp knitted sandwich is an extremely efficient structure in terms of peeling,shear, impact,damage tolerance and energy absorption behaviour,as we will show in this book. The problem in the thickness direction The first generation of composite material consists of a number of plies composed of a matrix and unidirectional fibres oriented in a certain direc- tion.This concept of laminate is very efficient since the fibres may be ori- ented in the optimal directions.However,there are a number of associated problems:the two directions perpendicular to the fibres showed very low stiffness and strength. This problem became a key issue for the composite material designers, since in-plane transverse strains and stresses appeared in many cases.In static conditions,when multidirectional loads were applied,the in-plane transverse stresses generated premature matrix cracking in the transverse
until the top skin reaches the design height. The resultant warp knitted sandwich is an extremely efficient structure in terms of peeling, shear, impact, damage tolerance and energy absorption behaviour, as we will show in this book. The problem in the thickness direction The first generation of composite material consists of a number of plies composed of a matrix and unidirectional fibres oriented in a certain direction. This concept of laminate is very efficient since the fibres may be oriented in the optimal directions. However, there are a number of associated problems: the two directions perpendicular to the fibres showed very low stiffness and strength. This problem became a key issue for the composite material designers, since in-plane transverse strains and stresses appeared in many cases. In static conditions, when multidirectional loads were applied, the in-plane transverse stresses generated premature matrix cracking in the transverse 2 3-D textile reinforcements in composite materials 1 Manufacturing steps of standard sandwich (left) and warp knitted sandwich structure (right). RICIN 7/10/99 7:11 PM Page 2 Copyrighted Material downloaded from Woodhead Publishing Online Delivered by http://woodhead.metapress.com Hong Kong Polytechnic University (714-57-975) Saturday, January 22, 2011 12:29:10 AM IP Address: 158.132.122.9
Introduction 3 HIGH STIFFNESS AND LOW STRENGTH STIFFNESS AND STRENGTH 2 Stiffness and strength in the plane of the ply(left)and out of the plane(right). directions.In fatigue analyses,matrix crackings were also reported for a low number of cycles.In crash problems,non-linear deformations occurred owing to the low strength and stiffness in the in-plane transverse direction and,finally,dynamic studies concluded that these transverse properties induced low natural frequencies and therefore low dynamic stiffness of a large number of composite structures. To overcome this problem,two solutions were proposed: The implementation of multidirectional laminates. D 豆 2-D reinforced composite materials were implemented because,by means n of this typology,the two perpendicular directions were covered with fibres and,therefore,the weakness of the in-plane transverse direction vanishes.Not only were bidirectional fabrics [0/90]implemented,but multi- directional 2-D fabrics were also incorporated in order to increase stiffness and strength in a number of directions:[0/60/-60],[0/45/90/-45],etc.By using multidirectional plies or 2-D fabrics,it is possible to optimize the directions of the fibres in the plane of the ply.However,the perpendicular direction to the plane of the ply exhibits very low stiffness and strength (Fig.2). Figure 3 shows the values of elastic moduli and strengths (MPa)in tension and compression of a carbon fibre/epoxy matrix unidirectional laminate in directions 1 (longitudinal)and 2 (thickness direction).As expected,both tension and compression elastic moduli and strengths are much higher in direction 1 than in direction 2.This problem is a major one in those cases where out-of-plane stresses are predominant over in-plane stresses.Generally speaking,when the laminate is thin and the case is static, the in-plane stresses are the most important components
directions. In fatigue analyses, matrix crackings were also reported for a low number of cycles. In crash problems, non-linear deformations occurred owing to the low strength and stiffness in the in-plane transverse direction and, finally, dynamic studies concluded that these transverse properties induced low natural frequencies and therefore low dynamic stiffness of a large number of composite structures. To overcome this problem, two solutions were proposed: • The implementation of multidirectional laminates. • The use of 2-D fabrics. 2-D reinforced composite materials were implemented because, by means of this typology, the two perpendicular directions were covered with fibres and, therefore, the weakness of the in-plane transverse direction vanishes. Not only were bidirectional fabrics [0/90] implemented, but multidirectional 2-D fabrics were also incorporated in order to increase stiffness and strength in a number of directions: [0/60/-60], [0/45/90/-45], etc. By using multidirectional plies or 2-D fabrics, it is possible to optimize the directions of the fibres in the plane of the ply. However, the perpendicular direction to the plane of the ply exhibits very low stiffness and strength (Fig. 2). Figure 3 shows the values of elastic moduli and strengths (MPa) in tension and compression of a carbon fibre/epoxy matrix unidirectional laminate in directions 1 (longitudinal) and 2 (thickness direction). As expected, both tension and compression elastic moduli and strengths are much higher in direction 1 than in direction 2. This problem is a major one in those cases where out-of-plane stresses are predominant over in-plane stresses. Generally speaking, when the laminate is thin and the case is static, the in-plane stresses are the most important components. Introduction 3 2 Stiffness and strength in the plane of the ply (left) and out of the plane (right). RICIN 7/10/99 7:11 PM Page 3 Copyrighted Material downloaded from Woodhead Publishing Online Delivered by http://woodhead.metapress.com Hong Kong Polytechnic University (714-57-975) Saturday, January 22, 2011 12:29:10 AM IP Address: 158.132.122.9
4 3-D textile reinforcements in composite materials 2000 150 1500 100 Tension Strength 1000 E(tension) gE(compression到 50 ▣Compression 500 Strength 1 2 I-direction 2-direction 3 Comparison of elastic moduli and strengths in MPa(tension and compression)in 1-and 2-directions. 4 Delamination due to an impact transverse load(left)and compression after impact(right). However,the three out-of-plane stress components(peeling and the two interlaminar shear components)can become critical if the following condi- tions are applied: 。Thick laminate Fatigue loading Dynamic effects Impact loads ·Crash problems Stress concentrations Figure 4 shows a delamination failure due to an impact transverse load (left)and a compression after impact loading case (right).For those cases, the 3-D fabric reinforcement provides a solution to the problem detailed above. The manufacturing costs are considerably reduced when using 3-D textile reinforced composite materials,which are obtained by applying highly productive textile technologies in the manufacture of fibre preforms
However, the three out-of-plane stress components (peeling and the two interlaminar shear components) can become critical if the following conditions are applied: • Thick laminate • Fatigue loading • Dynamic effects • Impact loads • Crash problems • Stress concentrations Figure 4 shows a delamination failure due to an impact transverse load (left) and a compression after impact loading case (right). For those cases, the 3-D fabric reinforcement provides a solution to the problem detailed above. The manufacturing costs are considerably reduced when using 3-D textile reinforced composite materials, which are obtained by applying highly productive textile technologies in the manufacture of fibre preforms. 4 3-D textile reinforcements in composite materials 3 Comparison of elastic moduli and strengths in MPa (tension and compression) in 1- and 2-directions. 4 Delamination due to an impact transverse load (left) and compression after impact (right). RICIN 7/10/99 7:11 PM Page 4 Copyrighted Material downloaded from Woodhead Publishing Online Delivered by http://woodhead.metapress.com Hong Kong Polytechnic University (714-57-975) Saturday, January 22, 2011 12:29:10 AM IP Address: 158.132.122.9
Introduction 5 Table 1 Comparison of stiffness and strength properties of a standard sandwich structure and a warp knitted sandwich structure Standard sandwich Warp knitted sandwich Core Height: 50mm Core Height: 50mm Material: polyurethane Material: polyurethane foam p= foam p= 40 kg/m3 40kg/m3 Plies each 5mm (d= 0.6mm) Skins Thickness:2mm Skins Thickness:2mm Material: E-glass/ Material: E-glass/ polyester polyester (0°/190) (0/90) fabrics fabrics V=30% 4=30% Bending stiffness 25×10 25×10 poo El(N/mm7/mm length) Maximum bending 812 812 10:6 moment(Nmm/ mm length) Peeling strength 0.51 23 (N/mm2) Interlaminar shear 0.28 10 strength (N/mm2) 号 V=fibre volume fraction. The damage tolerance and the impact resistance are also increased since the trend to delamination is drastically diminished because of the existence of reinforcements in the thickness. Nowadays there are a number of manufacturing techniques available for composite materials: 。Braiding ·Stitching Warp knitting Weft knitting Weaving These textile technologies have made possible a second generation of com- posite materials,specially designed for bearing high stresses in three direc- tions,impact,crash,energy absorption and multiaxial fatigue. Table 1 represents the results of both configurations in terms of bending stiffness,peeling and interlaminar shear effects.The values of the bending
The damage tolerance and the impact resistance are also increased since the trend to delamination is drastically diminished because of the existence of reinforcements in the thickness. Nowadays there are a number of manufacturing techniques available for composite materials: • Braiding • Stitching • Warp knitting • Weft knitting • Weaving These textile technologies have made possible a second generation of composite materials, specially designed for bearing high stresses in three directions, impact, crash, energy absorption and multiaxial fatigue. Table 1 represents the results of both configurations in terms of bending stiffness, peeling and interlaminar shear effects. The values of the bending Introduction 5 Table 1 Comparison of stiffness and strength properties of a standard sandwich structure and a warp knitted sandwich structure Standard sandwich Warp knitted sandwich Core Height: 50mm Core Height: 50mm Material: polyurethane Material: polyurethane foam r = foam r = 40kg/m3 40kg/m3 Plies each 5mm (d = 0.6mm) Skins Thickness: 2mm Skins Thickness: 2mm Material: E-glass/ Material: E-glass/ polyester polyester (0°/90°) (0°/90°) fabrics fabrics Vf = 30%a Vf = 30%a Bending stiffness 25 ¥ 106 25 ¥ 106 EI (N/mm2 /mm length) Maximum bending 812 812 moment (Nmm/ mm length) Peeling strength 0.51 23 (N/mm2 ) Interlaminar shear 0.28 10 strength (N/mm2 ) aVf = fibre volume fraction. RICIN 7/10/99 7:11 PM Page 5 Copyrighted Material downloaded from Woodhead Publishing Online Delivered by http://woodhead.metapress.com Hong Kong Polytechnic University (714-57-975) Saturday, January 22, 2011 12:29:10 AM IP Address: 158.132.122.9
