15-1 CONNECTING DEVICES In this section,we divide connecting devices into five different categories based on the layer in which they operate in a network. Topics discussed in this section: ●Passive Hubs(无源集线器) ●Active Hubs(有源集线器) Bridges(桥) ●Two-Layer Switches(二层交换) ●Routers(路由器) ●Three-Layer Switches(三层交换) ●Gateways(网关) 15.2
15.2 15-1 CONNECTING DEVICES In this section, we divide connecting devices into five different categories based on the layer in which they operate in a network. Passive Hubs（无源集线器） Active Hubs（有源集线器） Bridges（桥） Two-Layer Switches（二层交换） Routers（路由器） Three-Layer Switches（三层交换） Gateways（网关） Topics discussed in this section:
Figure 15.1 Five categories of connecting devices Application Application Gateway Transport Transport Router or Network three-layer switch Network Bridge Data link or two-layer switch Data link Physical Repeater or hub Physical Passive hub 15.3
15.3 Figure 15.1 Five categories of connecting devices

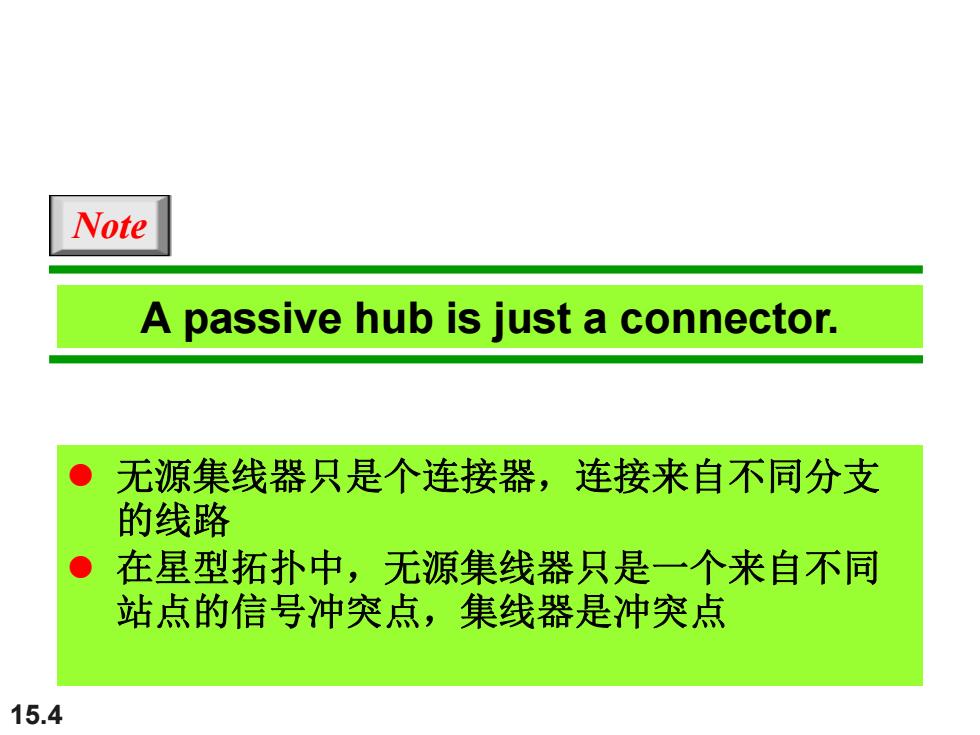

Note A passive hub is just a connector. 无源集线器只是个连接器，连接来自不同分支 的线路 在星型拓扑中，无源集线器只是一个来自不同 站点的信号冲突点，集线器是冲突点 15.4
15.4 A passive hub is just a connector. Note 无源集线器只是个连接器，连接来自不同分支 的线路 在星型拓扑中，无源集线器只是一个来自不同 站点的信号冲突点，集线器是冲突点
Figure 15.2 A repeater connecting two segments of a LAN Repeater Segment 1 Segment 2 15.5
15.5 Figure 15.2 A repeater connecting two segments of a LAN
