移动互联网-PV6 苏锐丹
移动互联网-IPv6 苏锐丹
一些形式的地址 2001:0db8:1234:5678:9abc:def0:1234:5678 2001:0db8:0000:130F:0000:0000:087C:140B 2001:0db8:0:130F:87C:140B 2001:db8:12:/64
一些形式的地址
IPv6地址 ■Network ID ▣64位，全球地址管理IANA ■Host ID configured manually or auto-configured Figure 2-1 IPv6 Unicast Network and Host ID Format Network ID Host ID XXXX:XXXX:XXXX:XXXX:YYYY:YYYY:YYYY:YYYY 64 Bits 64 Bits
IPv6地址 ◼ Network ID 64位，全球地址管理IANA ◼ Host ID configured manually or auto-configured

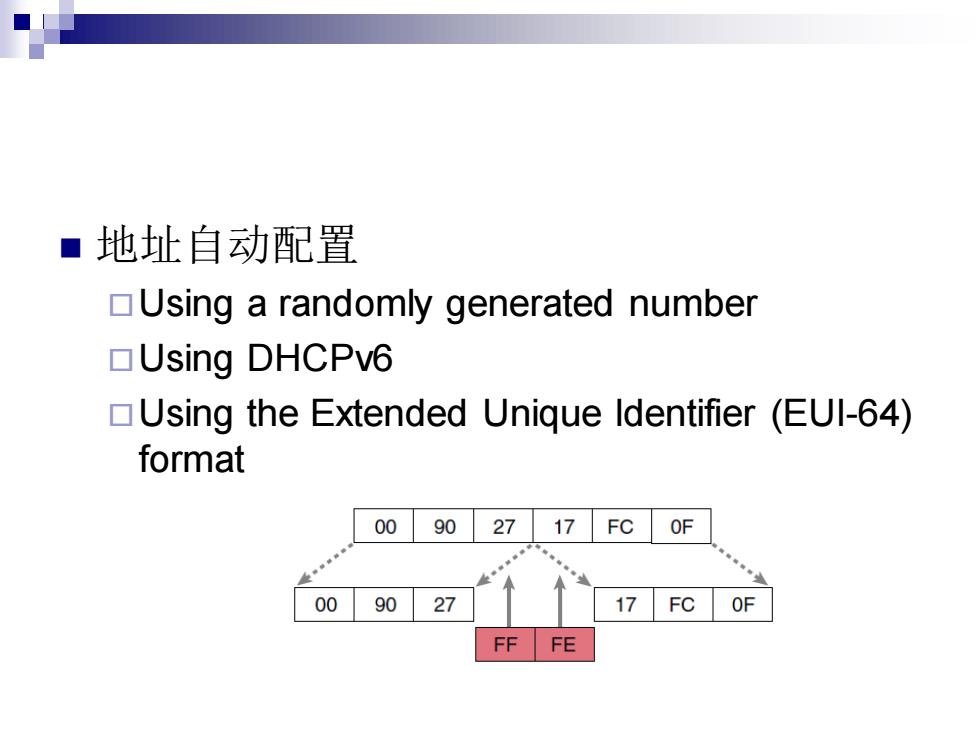

■地址自动配置 Using a randomly generated number ▣Using DHCPV6 Using the Extended Unique ldentifier (EUl-64) format 009027 17 FC OF 00 90 27 OF FF FE
◼ 地址自动配置 Using a randomly generated number Using DHCPv6 Using the Extended Unique Identifier (EUI-64) format
·Unicast address Identifies a single node or interface.Traffic destined for a unicast address is forwarded to a single interface. ·Multicast address Identifies a group of nodes or interfaces.Traffic destined for a multicast address is forwarded to all the nodes in the group. ·Anycast address Identifies a group of nodes or interfaces.Traffic destined to an anycast address is forwarded to the nearest node in the group.An anycast address is essentially a unicast address assigned to multiple devices with a host ID =0000:0000:0000:0000.(Anycast addresses are not widely used today.) With IPv6,broadcast addresses are no longer used
◼ With IPv6, broadcast addresses are no longer used
