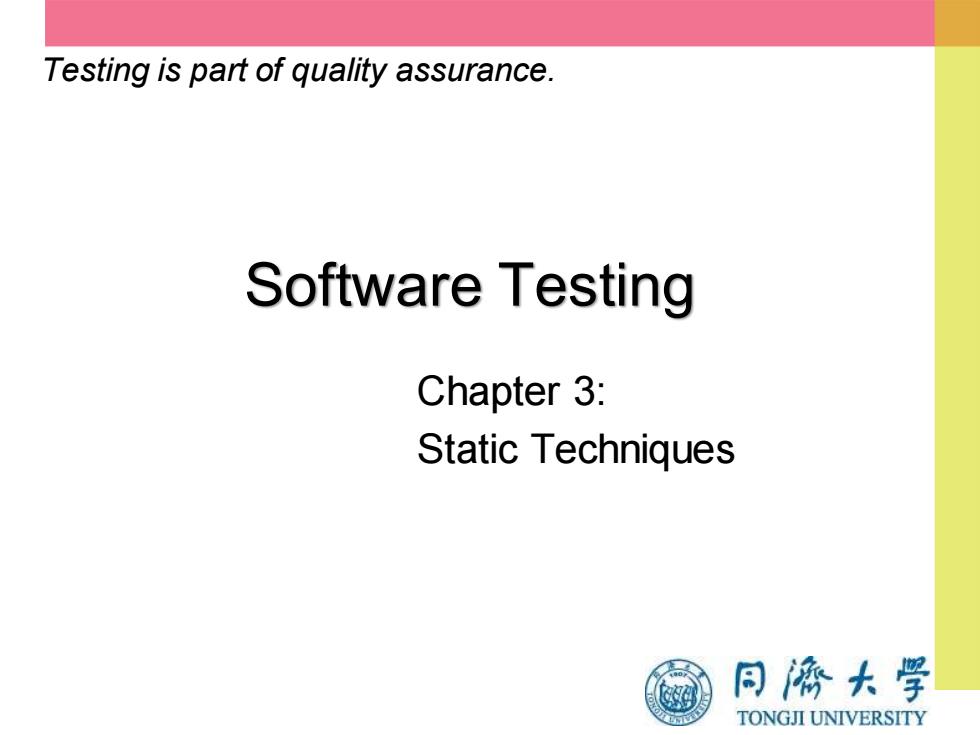

Testing is part of quality assurance. Software Testing Chapter 3: Static Techniques 同海大学 TONGJI UNIVERSITY
Software Testing Testing is part of quality assurance. Chapter 3: Static Techniques
Outline Static techniques and the test process 。Review process Static analysis by tools 同桥大学 TONGJI UNIVERSITY Software Testing 15/5/182
Software Testing Outline • Static techniques and the test process • Review process • Static analysis by tools 15/5/18 2
Static Techniques and the Test Process Recognize software work products that can be examined by the different static techniques Describe the importance and value of considering static techniques for the assessment of software work products ● Explain the factors for successful performance of reviews Understand the objectives of static analysis and reviews,and comparison of objective with dynamic testing 同源大学 TONGJI UNIVERSITY SoftwareTesting 15/5/183
Software Testing Static Techniques and the Test Process 15/5/18 3 • Recognize software work products that can be examined by the different static techniques • Describe the importance and value of considering static techniques for the assessment of software work products • Explain the factors for successful performance of reviews • Understand the objectives of static analysis and reviews, and comparison of objective with dynamic testing
Static testing ·Reviews and tools -Reviews range from informal to very formal Tools can perform some types of static tests -Static techniques can be used for requirements and designs,plus code,database schemas,documentation,tests... Models and prototypes -A diagram of a complex system can often reveal design problems that can hide in words -An ugly diagram often means lots of bugs ·Test cases and data Test analysis and design based on requirements and design specs is a form of structured review Test analysis and design often reveals problems 同海大学 TONGJI UNIVERSITY SoftwareTesting 15/5/184
Software Testing Static testing 15/5/18 4 • Reviews and tools – Reviews range from informal to very formal – Tools can perform some types of static tests – Static techniques can be used for requirements and designs, plus code, database schemas, documentation, tests … • Models and prototypes – A diagram of a complex system can often reveal design problems that can hide in words – An ugly diagram often means lots of bugs • Test cases and data – Test analysis and design based on requirements and design specs is a form of structured review – Test analysis and design often reveals problems
Static Tools ·Static analysis Problematic wording:spell grammar checkers -Dangerous programming:J-Test,Safer C Measurement:complexity analysis ·System simulations General Purpose System simulator Performance modeling operations research tools Spreadsheets 同梅大学 TONGJI UNIVERSITY SoftwareTesting 15/5/18 5
Software Testing Static Tools 15/5/18 5 • Static analysis – Problematic wording: spell / grammar checkers – Dangerous programming: J-Test, Safer C – Measurement: complexity analysis • System simulations – General Purpose System simulator – Performance modeling / operations research tools – Spreadsheets
