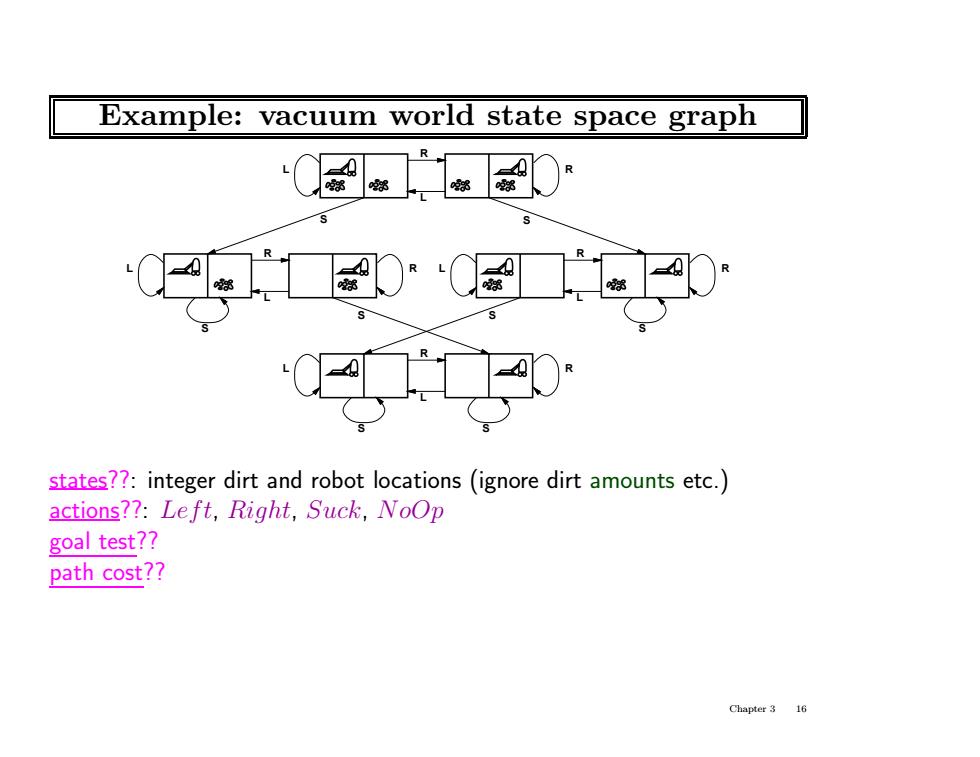

Example:vacuum world state space graph g园0☐0 states??:integer dirt and robot locations (ignore dirt amounts etc.) actions??:Left,Right,Suck,NoOp goal test?? path cost?? Chapter3 16
Example: vacuum world state space graph R L S S S S R L R L R L S S S S L L L L R R R R states??: integer dirt and robot locations (ignore dirt amounts etc.) actions??: Left, Right, Suck, NoOp goal test?? path cost?? Chapter 3 16

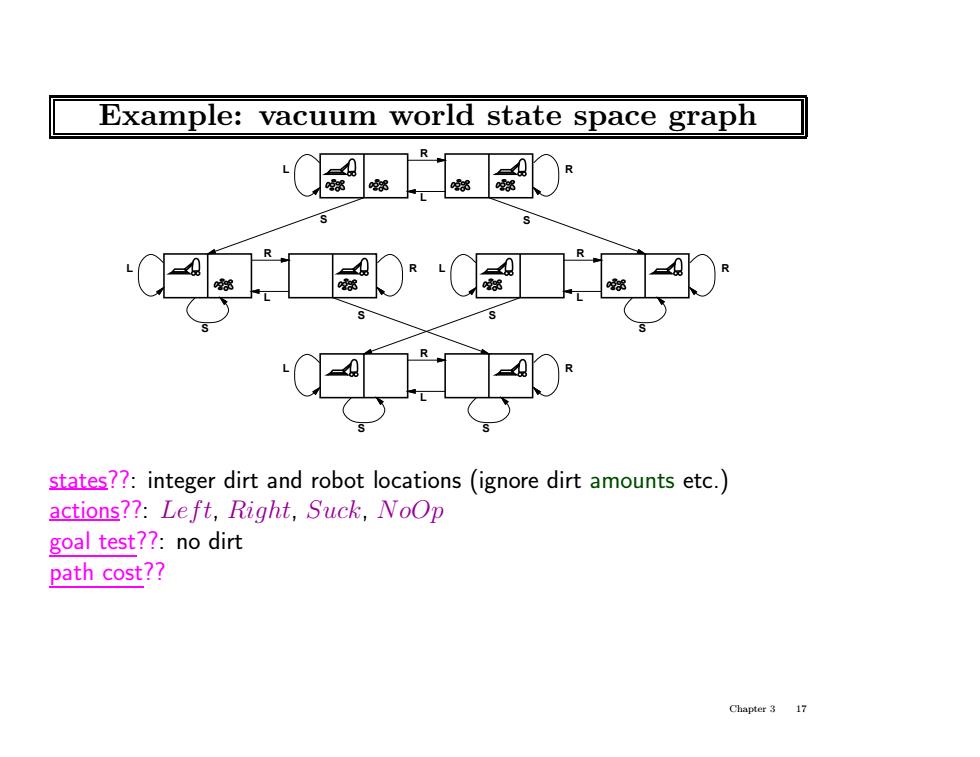

Example:vacuum world state space graph states??:integer dirt and robot locations (ignore dirt amounts etc. actions??:Left,Right,Suck,NoOp goal test??:no dirt path cost?? Chapter 3 17
Example: vacuum world state space graph R L S S S S R L R L R L S S S S L L L L R R R R states??: integer dirt and robot locations (ignore dirt amounts etc.) actions??: Left, Right, Suck, NoOp goal test??: no dirt path cost?? Chapter 3 17

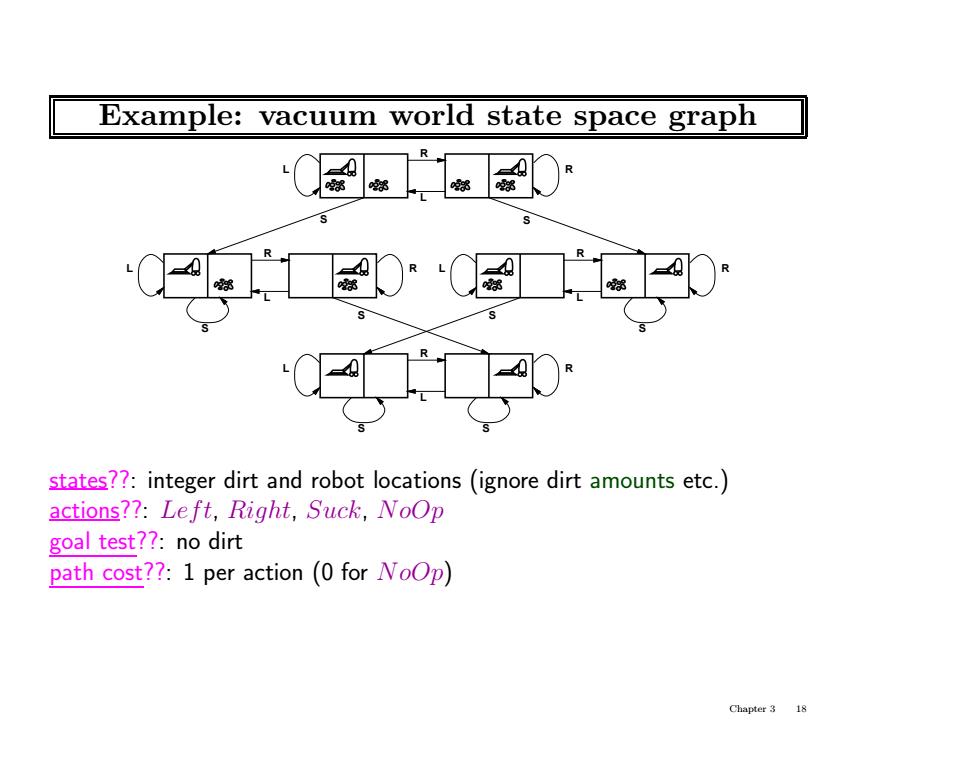

Example:vacuum world state space graph states??:integer dirt and robot locations (ignore dirt amounts etc.) actions??:Left,Right,Suck,NoOp goal test??:no dirt path cost??:1 per action(0 for NoOp) Chapter 3 18
Example: vacuum world state space graph R L S S S S R L R L R L S S S S L L L L R R R R states??: integer dirt and robot locations (ignore dirt amounts etc.) actions??: Left, Right, Suck, NoOp goal test??: no dirt path cost??: 1 per action (0 for NoOp) Chapter 3 18

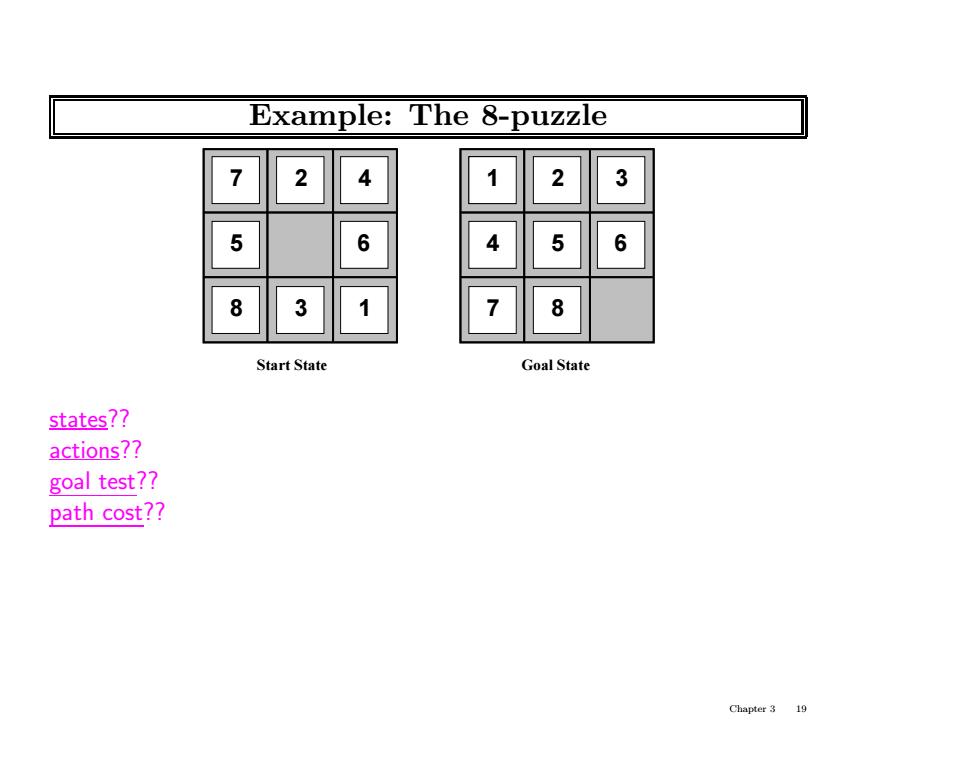

Example:The 8-puzzle 7 2 4 1 2 3 5 6 4 5 6 8 3 8 Start State Goal State states?? actions?? goal test?? path cost?? Chapter 3 19
Example: The 8-puzzle 2 Start State Goal State 51 3 4 6 7 8 5 1 2 3 4 6 7 8 5 states?? actions?? goal test?? path cost?? Chapter 3 19

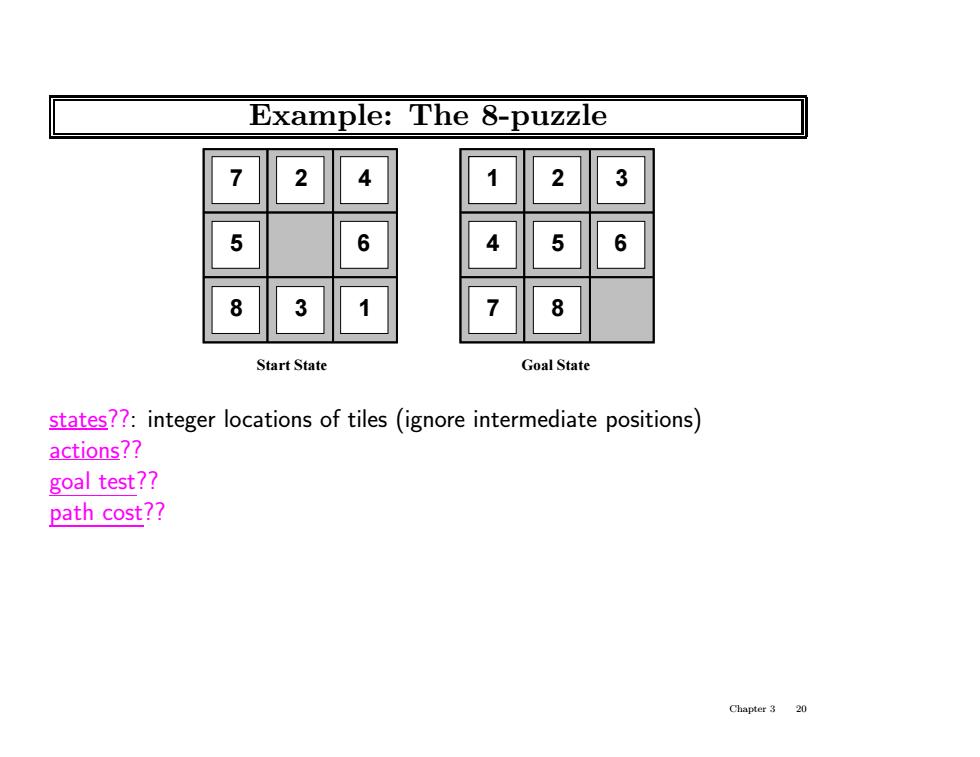

Example:The 8-puzzle 7 4 1 5 6 4 5 6 8 3 1 8 Start State Goal State states??:integer locations of tiles (ignore intermediate positions) actions?? goal test?? path cost?? Chapter3 20
Example: The 8-puzzle 2 Start State Goal State 51 3 4 6 7 8 5 1 2 3 4 6 7 8 5 states??: integer locations of tiles (ignore intermediate positions) actions?? goal test?? path cost?? Chapter 3 20
