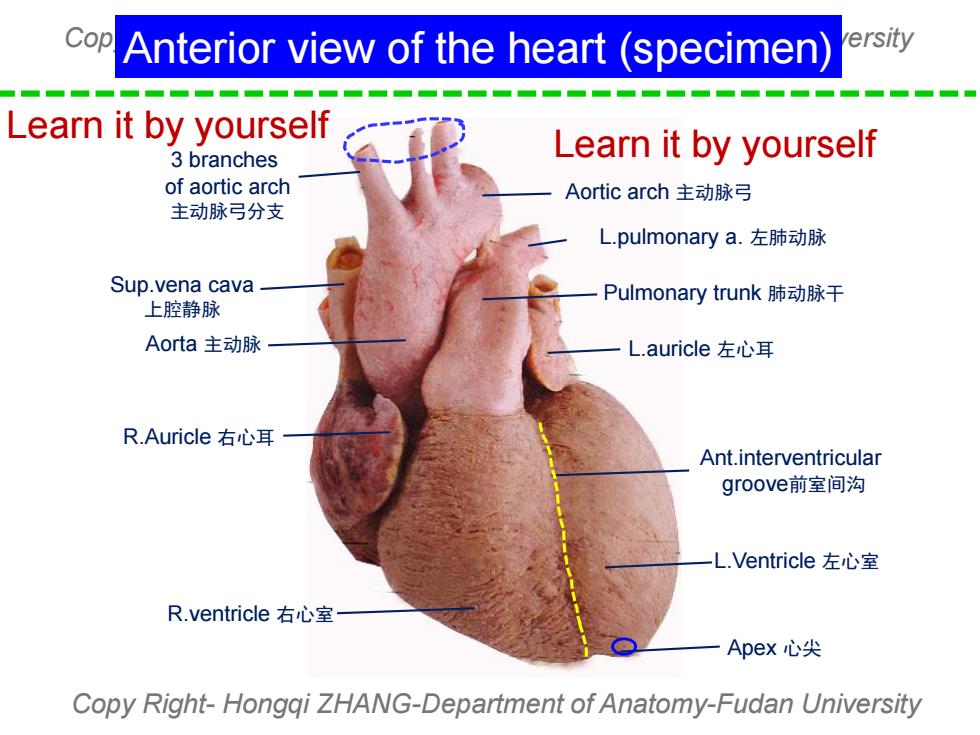

Cop Anterior view of the heart (specimen) ersity Learn it by yourself 3 branches Learn it by yourself of aortic arch Aortic arch主动脉弓 主动脉弓分支 L.pulmonary a.左肺动脉 Sup.vena cava Pulmonary trunk肺动脉干 上腔静脉 Aorta主动脉 L.auricle左心耳 R.Auricle右心耳 Ant.interventricular groove前室间沟 -L.Ventricle左心室 R.ventricle右心室 Apex心尖 Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University 3 branches of aortic arch 主动脉弓分支 Sup.vena cava 上腔静脉 Aorta 主动脉 R.Auricle 右心耳 L.auricle 左心耳 R.ventricle 右心室 Apex 心尖 L.Ventricle 左心室 Ant.interventricular groove前室间沟 L.pulmonary a. 左肺动脉 Pulmonary trunk 肺动脉干 Aortic arch 主动脉弓 Anterior view of the heart (specimen) Learn it by yourself Learn it by yourself

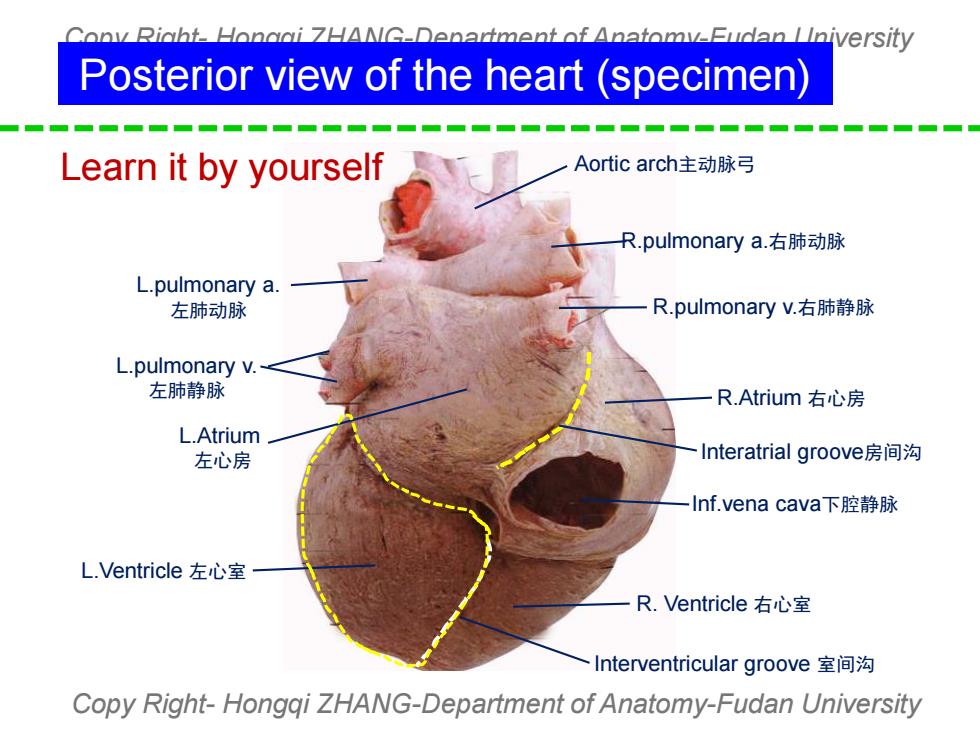

Cony Riaht-Hongai 7HANG-Denartment of Anatomy-Eudan lniversity Posterior view of the heart (specimen) Learn it by yourself Aortic arch主动脉弓 R.pulmonary a.右肺动脉 L.pulmonary a. 左肺动脉 R.pulmonary v.右肺静脉 L.pulmonary v. 左肺静脉 R.Atrium右心房 L.Atrium 左心房 Interatrial groove房间沟 lnf.vena cava下腔静脉 L.Ventricle左心室 R.Ventricle右心室 Interventricular groove室间沟 Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University R.Atrium 右心房 Aortic arch主动脉弓 Inf.vena cava下腔静脉 R.pulmonary a.右肺动脉 R. Ventricle 右心室 R.pulmonary v.右肺静脉 L.Ventricle 左心室 L.Atrium 左心房 L.pulmonary a. 左肺动脉 Interatrial groove房间沟 Interventricular groove 室间沟 L.pulmonary v. 左肺静脉 Posterior view of the heart (specimen) Learn it by yourself

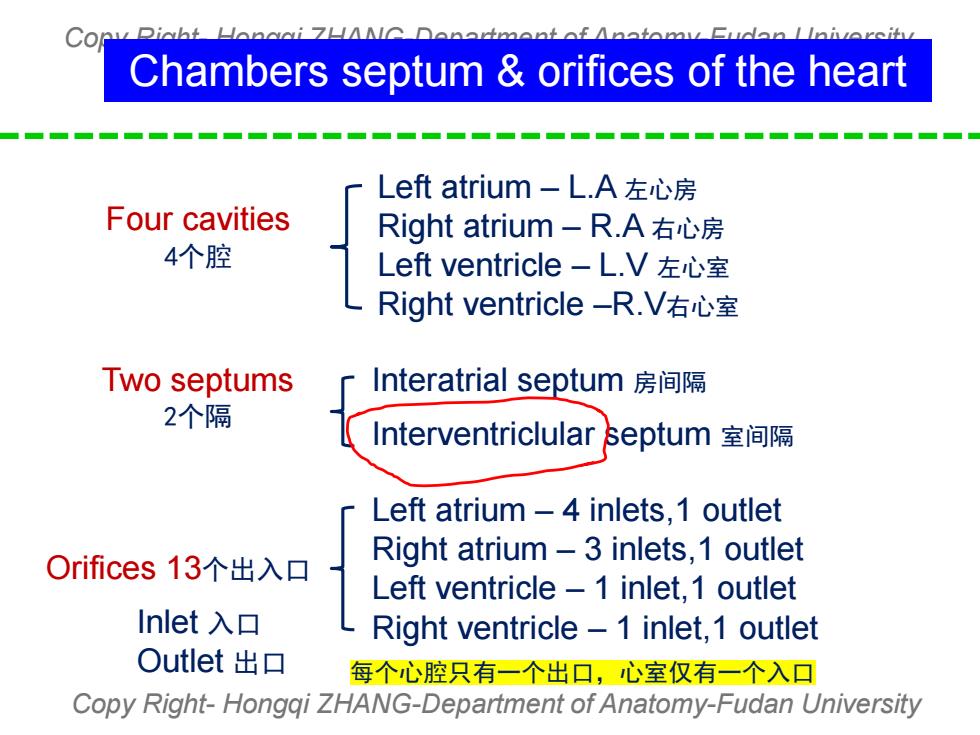

Chambers septum orifices of the heart Left atrium-L.A左心房 Four cavities Right atrium-R.A右心房 4个腔 Left ventricle-L.V左心室 Right ventricle-R.V佑心室 Two septums Interatrial septum房间隔 2个隔 Interventriclular septum室间隔 Left atrium-4 inlets,1 outlet Orifices13个出入▣ Right atrium-3 inlets,1 outlet Left ventricle-1 inlet,1 outlet Inlet入▣ Right ventricle-1 inlet,1 outlet Outlet出▣ 每个心腔只有一个出口，心室仅有一个入口 Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Chambers septum & orifices of the heart Left atrium – L.A 左心房 Right atrium – R.A 右心房 Left ventricle – L.V 左心室 Right ventricle –R.V右心室 Four cavities 4个腔 Two septums 2个隔 Interatrial septum 房间隔 Interventriclular septum 室间隔 Orifices 13个出入口 Left atrium – 4 inlets,1 outlet Right atrium – 3 inlets,1 outlet Left ventricle – 1 inlet,1 outlet Right ventricle – 1 inlet,1 outlet Inlet 入口 Outlet 出口 每个心腔只有一个出口，心室仅有一个入口

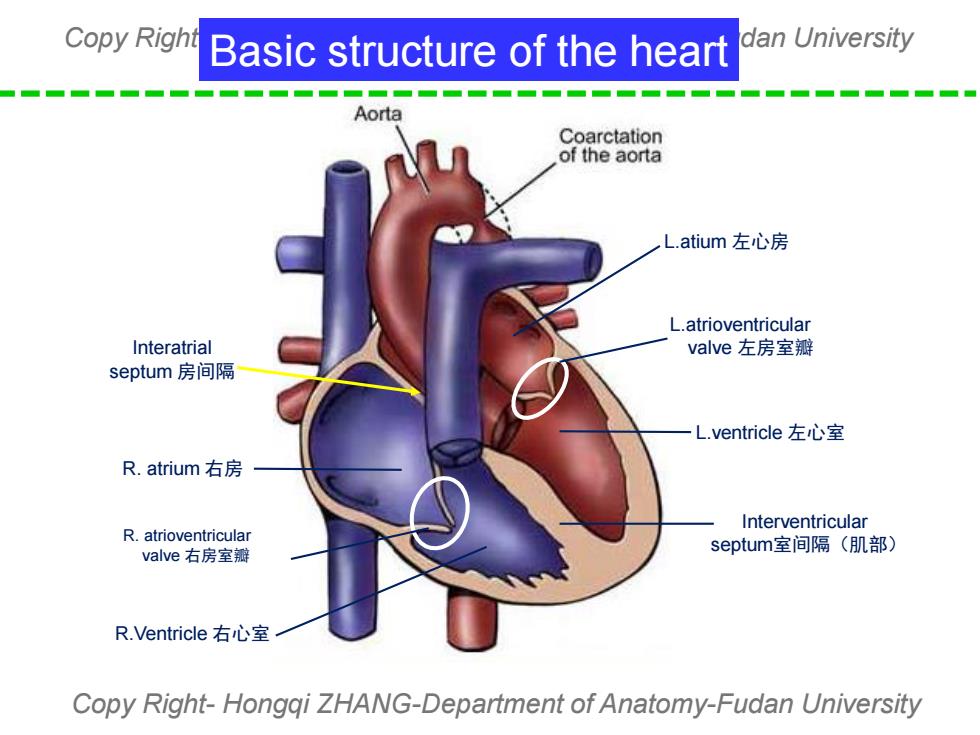

Copy Right Basic structure of the heart dan University Aorta Coarctation of the aorta L.atium左心房 L.atrioventricular Interatrial valve左房室瓣 septum房间隔 L.ventricle左心室 R.atrium右房 Interventricular R.atrioventricular vave右房室瓣 septum室间隔（肌部） R.Ventricle右心室 Copy Right-Hongqi ZHANG-Department of Anatomy-Fudan University
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University R. atrium 右房 R.Ventricle 右心室 L.atium 左心房 L.ventricle 左心室 Interatrial septum 房间隔 Interventricular septum室间隔（肌部） L.atrioventricular valve 左房室瓣 R. atrioventricular valve 右房室瓣 Basic structure of the heart

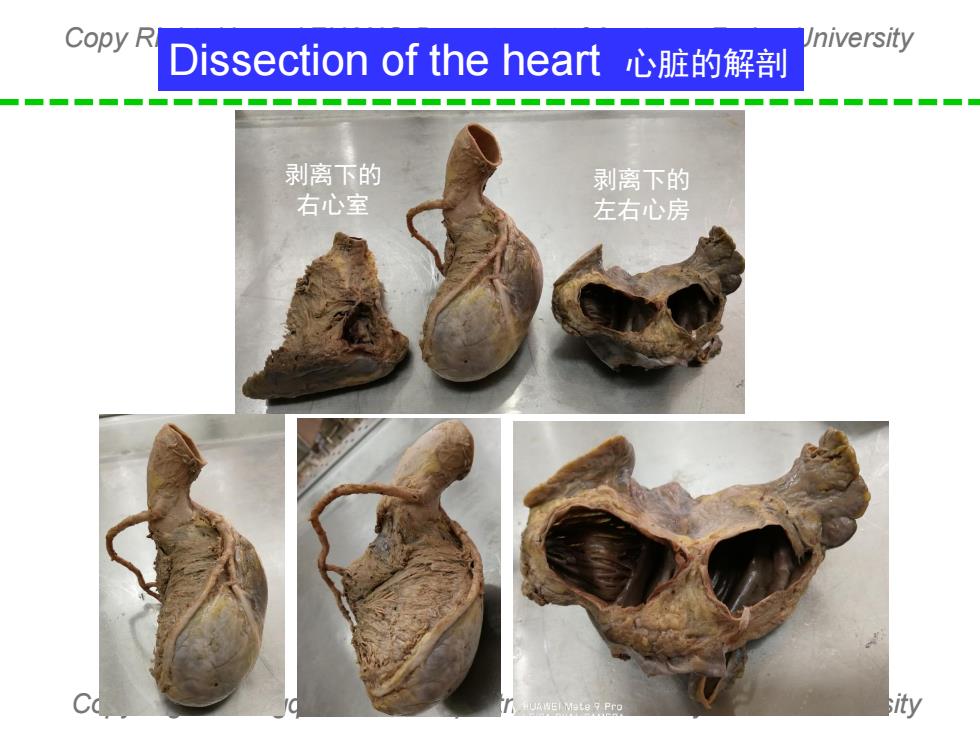

Copy R Jniversity Dissection of the heart心脏的解剖 剥离下的 剥离下的 右心室 左右心房 Cd
Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Copy Right- Hongqi ZHANG-Department of Anatomy-Fudan University Dissection of the heart 心脏的解剖 剥离下的 右心室 剥离下的 左右心房
