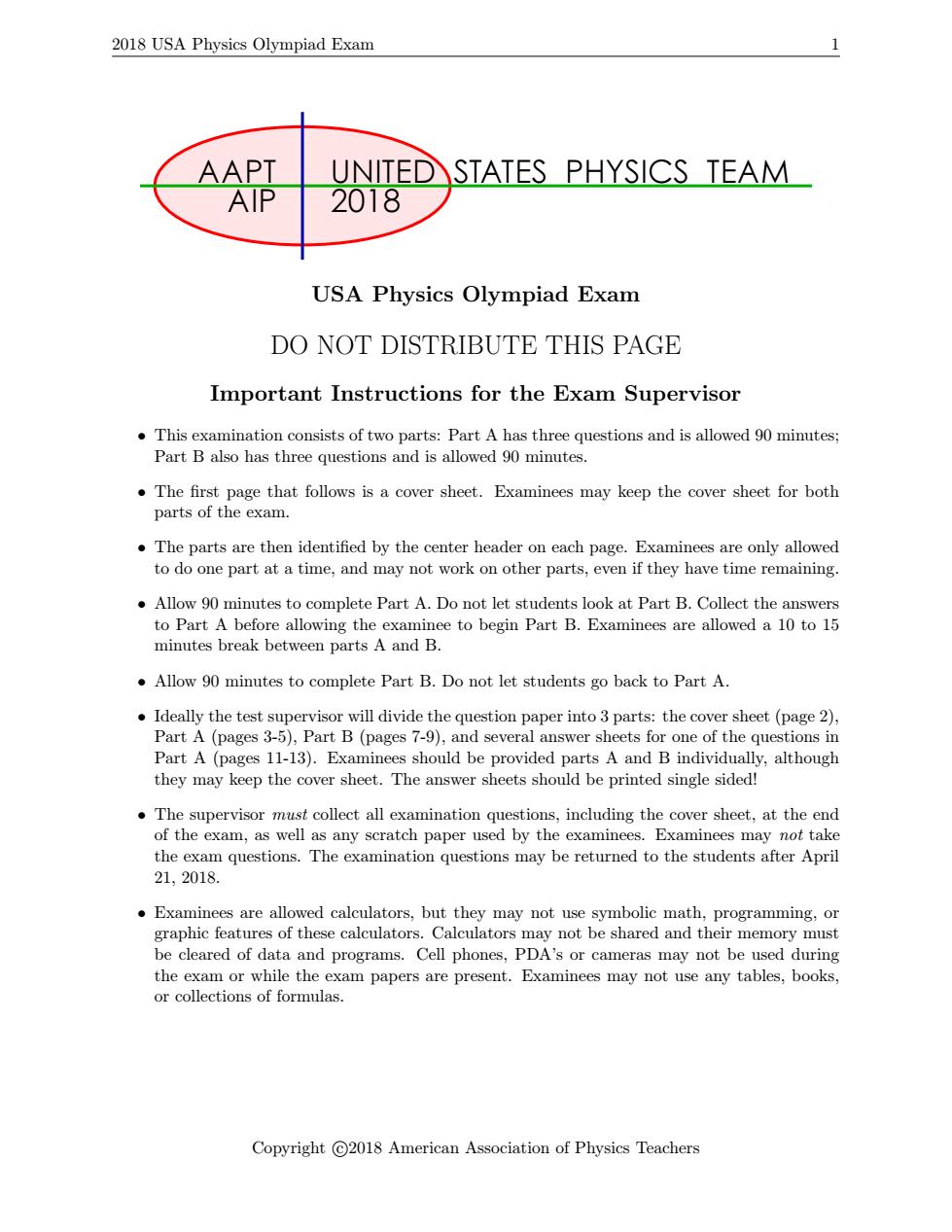

2018 USA Physics Olympiad Exam 1 AAPT AIP 2018 UNITED STATES PHYSICS TEAM USA Physics Olympiad Exam DO NOT DISTRIBUTE THIS PAGE Important Instructions for the Exam Supervisor • This examination consists of two parts: Part A has three questions and is allowed 90 minutes; Part B also has three questions and is allowed 90 minutes. • The first page that follows is a cover sheet. Examinees may keep the cover sheet for both parts of the exam. • The parts are then identified by the center header on each page. Examinees are only allowed to do one part at a time, and may not work on other parts, even if they have time remaining. • Allow 90 minutes to complete Part A. Do not let students look at Part B. Collect the answers to Part A before allowing the examinee to begin Part B. Examinees are allowed a 10 to 15 minutes break between parts A and B. • Allow 90 minutes to complete Part B. Do not let students go back to Part A. • Ideally the test supervisor will divide the question paper into 3 parts: the cover sheet (page 2), Part A (pages 3-5), Part B (pages 7-9), and several answer sheets for one of the questions in Part A (pages 11-13). Examinees should be provided parts A and B individually, although they may keep the cover sheet. The answer sheets should be printed single sided! • The supervisor must collect all examination questions, including the cover sheet, at the end of the exam, as well as any scratch paper used by the examinees. Examinees may not take the exam questions. The examination questions may be returned to the students after April 21, 2018. • Examinees are allowed calculators, but they may not use symbolic math, programming, or graphic features of these calculators. Calculators may not be shared and their memory must be cleared of data and programs. Cell phones, PDA’s or cameras may not be used during the exam or while the exam papers are present. Examinees may not use any tables, books, or collections of formulas. Copyright c 2018 American Association of Physics Teachers
2018 USA Physics Olympiad Exam Cover Sheet 2 AAPT UNITED STATES PHYSICS TEAM AIP 2018 USA Physics Olympiad Exam INSTRUCTIONS DO NOT OPEN THIS TEST UNTIL YOU ARE TOLD TO BEGIN Work Part A first.You have 90 minutes to complete all three problems.Each question is worth 25 points.Do not look at Part B during this time. After you have completed Part A you may take a break. Then work Part B.You have 90 minutes to complete three problems.Each question is worth 25 points.Do not look at Part A during this time. Show all your work.Partial credit will be given.Do not write on the back of any page.Do not write anything that you wish graded on the question sheets. Start each question on a new sheet of paper.Put your AAPT ID number,your proctor's AAPT ID number,the question number and the page number/total pages for this problem, in the upper right hand corner of each page.For example, Student AAPT ID# Proctor AAPT ID# A1-1/3 A hand-held calculator may be used.Its memory must be cleared of data and programs.You may use only the basic functions found on a simple scientific calculator.Calculators may not be shared.Cell phones,PDA's or cameras may not be used during the exam or while the exam papers are present.You may not use any tables,books,or collections of formulas. Questions with the same point value are not necessarily of the same difficulty. In order to maintain exam security,do not communicate any information about the questions (or their answers/solutions)on this contest until after April 13, 2018. Possibly Useful Information.You may use this sheet for both parts of the exam. g=9.8 N/kg G=6.67×10-11N·m2/kg2 k=1/4πe0=8.99×109N.m2/C2 km=40/4r=10-7T·m/A c=3.00×103m/s kB=1.38×10-23J/K NA=6.02×1023(mol)-1 R=NAkB =8.31 J/(mol.K) o=5.67×10-8J/(s·m2.K4) e=1.602×10-19C 1eV=1.602×10-19J h=6.63×10-34J.s=4.14×10-15eV.s me =9.109 x 10-31 kg=0.511 MeV/c2 (1+x)m1+nx for <1 sin0≈0-03forl0l<1 cos0≈1-号02forl0l<1 Copyright C2018 American Association of Physics Teachers
2018 USA Physics Olympiad Exam Cover Sheet 2 AAPT AIP 2018 UNITED STATES PHYSICS TEAM USA Physics Olympiad Exam INSTRUCTIONS DO NOT OPEN THIS TEST UNTIL YOU ARE TOLD TO BEGIN • Work Part A first. You have 90 minutes to complete all three problems. Each question is worth 25 points. Do not look at Part B during this time. • After you have completed Part A you may take a break. • Then work Part B. You have 90 minutes to complete three problems. Each question is worth 25 points. Do not look at Part A during this time. • Show all your work. Partial credit will be given. Do not write on the back of any page. Do not write anything that you wish graded on the question sheets. • Start each question on a new sheet of paper. Put your AAPT ID number, your proctor’s AAPT ID number, the question number and the page number/total pages for this problem, in the upper right hand corner of each page. For example, Student AAPT ID # Proctor AAPT ID # A1 - 1/3 • A hand-held calculator may be used. Its memory must be cleared of data and programs. You may use only the basic functions found on a simple scientific calculator. Calculators may not be shared. Cell phones, PDA’s or cameras may not be used during the exam or while the exam papers are present. You may not use any tables, books, or collections of formulas. • Questions with the same point value are not necessarily of the same difficulty. • In order to maintain exam security, do not communicate any information about the questions (or their answers/solutions) on this contest until after April 13, 2018. Possibly Useful Information. You may use this sheet for both parts of the exam. g = 9.8 N/kg G = 6.67 × 10−11 N · m2/kg2 k = 1/4π0 = 8.99 × 109 N · m2/C 2 km = µ0/4π = 10−7 T · m/A c = 3.00 × 108 m/s kB = 1.38 × 10−23 J/K NA = 6.02 × 1023 (mol)−1 R = NAkB = 8.31 J/(mol · K) σ = 5.67 × 10−8 J/(s · m2 · K4 ) e = 1.602 × 10−19 C 1 eV = 1.602 × 10−19 J h = 6.63 × 10−34 J · s = 4.14 × 10−15 eV · s me = 9.109 × 10−31 kg = 0.511 MeV/c 2 (1 + x) n ≈ 1 + nx for |x| 1 sin θ ≈ θ − 1 6 θ 3 for |θ| 1 cos θ ≈ 1 − 1 2 θ 2 for |θ| 1 Copyright c 2018 American Association of Physics Teachers
2018 USA Physics Olympiad Exam Part A 2 Part A Question Al a.Suppose you drop a block of mass m vertically onto a fixed ramp with angle 0 with coefficient of static and kinetic friction u.The block is dropped in such a way that it does not rotate after colliding with the ramp.Throughout this problem,assume the time of the collision is negligible. i.Suppose the block's speed just before it hits the ramp is v and the block slides down the ramp immediately after impact.What is the speed of the block right after the collision? ii.What is the minimum u such that the speed of the block right after the collision is 0? b.Now suppose you drop a sphere with mass m,radius R and moment of inertia BmR2 vertically onto the same fixed ramp such that it reaches the ramp with speed v. i.Suppose the sphere immediately begins to roll without slipping.What is the new speed of the sphere in this case? ii.What is the minimum coefficient of friction such that the sphere rolls without slipping immediately after the collision? Copyright C2018 American Association of Physics Teachers
2018 USA Physics Olympiad Exam Part A 3 Part A Question A1 a. Suppose you drop a block of mass m vertically onto a fixed ramp with angle θ with coefficient of static and kinetic friction µ. The block is dropped in such a way that it does not rotate after colliding with the ramp. Throughout this problem, assume the time of the collision is negligible. i. Suppose the block’s speed just before it hits the ramp is v and the block slides down the ramp immediately after impact. What is the speed of the block right after the collision? ii. What is the minimum µ such that the speed of the block right after the collision is 0? b. Now suppose you drop a sphere with mass m, radius R and moment of inertia βmR2 vertically onto the same fixed ramp such that it reaches the ramp with speed v. i. Suppose the sphere immediately begins to roll without slipping. What is the new speed of the sphere in this case? ii. What is the minimum coefficient of friction such that the sphere rolls without slipping immediately after the collision? Copyright c 2018 American Association of Physics Teachers
2018 USA Physics Olympiad Exam Part A 4 Question A2 For this problem,graphical answers should be drawn on the answer sheets graphs provided.Supporting work is to be written on blank answer sheets.Incorrect graphs without supporting work will receive no partial credit. The current I as a function of voltage V for a certain electrical device is I=loe-aVolkaT (eV/eT-1) where q is the magnitude of the charge on an electron,kB is Boltzmann's constant,and T is the absolute temperature.To and Vo are non-zero positive constants.Throughout this problem assume low temperature values kBT<<gVo. a.On the answer sheets,sketch a graph of the current versus voltage for low temperature values kBT<qVo,clearly indicating any asymptotic behavior. Shown is a schematic for the device.Positive voltage means that the electric potential of the left hand side of the device is higher than the right hand side.For this device,Io =25pA and %=1.0V. 一Vr Below is a circuit made up of these elements.The voltage supplied the circuit is sinusoidal, VAB VA-VB Vs sinwt,and is also shown on answer sheets.The resistance is R=5.00 and Vs=5.0V. VA VB+ b.Sketch the potential difference Vcp Vc-Vp as a function of time on the answer sheet.For your convenience,VAB is shown in light gray.Assume that VAB has been running for a long time A capacitor is connected to the circuit as shown below.The capacitance is C=50mF. VA. VD VB· c.Sketch the new potential difference VCD =Vc-Vp as a function of time on the answer sheet. For your convenience,VAB is shown in light gray.Assume that VAB has been running for a long time. Copyright C2018 American Association of Physics Teachers
2018 USA Physics Olympiad Exam Part A 4 Question A2 For this problem, graphical answers should be drawn on the answer sheets graphs provided. Supporting work is to be written on blank answer sheets. Incorrect graphs without supporting work will receive no partial credit. The current I as a function of voltage V for a certain electrical device is I = I0e −qV0/kBT e qV /kBT − 1 where q is the magnitude of the charge on an electron, kB is Boltzmann’s constant, and T is the absolute temperature. I0 and V0 are non-zero positive constants. Throughout this problem assume low temperature values kBT qV0. a. On the answer sheets, sketch a graph of the current versus voltage for low temperature values kBT qV0, clearly indicating any asymptotic behavior. Shown is a schematic for the device. Positive voltage means that the electric potential of the left hand side of the device is higher than the right hand side. For this device, I0 = 25 µA and V0 = 1.0 V. VL VR Below is a circuit made up of these elements. The voltage supplied the circuit is sinusoidal, VAB = VA − VB = Vs sin ωt, and is also shown on answer sheets. The resistance is R = 5.0 Ω and Vs = 5.0 V. VB VA VC VD R b. Sketch the potential difference VCD = VC −VD as a function of time on the answer sheet. For your convenience, VAB is shown in light gray. Assume that VAB has been running for a long time. A capacitor is connected to the circuit as shown below. The capacitance is C = 50 mF. VB VA VC VD C R c. Sketch the new potential difference VCD = VC −VD as a function of time on the answer sheet. For your convenience, VAB is shown in light gray. Assume that VAB has been running for a long time. Copyright c 2018 American Association of Physics Teachers
2018 USA Physics Olympiad Exam Part A 5 Question A3 A vacuum system consists of a chamber of volume V connected to a vacuum pump that is a cylinder with a piston that moves left and right.The minimum volume in the pump cylinder is Vo,and the maximum volume in the cylinder is Vo +AV.You should assume that AVV. chamber motor cylinder outlet inlet piston The cylinder has two valves.The inlet valve opens when the pressure inside the cylinder is lower than the pressure in the chamber,but closes when the piston moves to the right.The outlet valve opens when the pressure inside the cylinder is greater than atmospheric pressure Pa,and closes when the piston moves to the left.A motor drives the piston to move back and forth.The piston moves at such a rate that heat is not conducted in or out of the gas contained in the cylinder during the pumping cycle.One complete cycle takes a time At.You should assume that At is a very small quantity,but AV/At =R is finite.The gas in the chamber is ideal monatomic and remains at a fixed temperature of Ta. Start with assumption that Vo =0 and there are no leaks in the system. a.At t =0 the pressure inside the chamber is Pa.Find an equation for the pressure at a later time t. b.Find an expression for the temperature of the gas as it is emitted from the pump cylinder into the atmosphere.Your answer may depend on time. For the remainder of this problem 0<Vo<AV<V. c.Find an expression for the minimum possible pressure in the chamber,Pmin. Copyright C2018 American Association of Physics Teachers
2018 USA Physics Olympiad Exam Part A 5 Question A3 A vacuum system consists of a chamber of volume V connected to a vacuum pump that is a cylinder with a piston that moves left and right. The minimum volume in the pump cylinder is V0, and the maximum volume in the cylinder is V0 + ∆V . You should assume that ∆V V . V chamber cylinder outlet inlet piston motor The cylinder has two valves. The inlet valve opens when the pressure inside the cylinder is lower than the pressure in the chamber, but closes when the piston moves to the right. The outlet valve opens when the pressure inside the cylinder is greater than atmospheric pressure Pa, and closes when the piston moves to the left. A motor drives the piston to move back and forth. The piston moves at such a rate that heat is not conducted in or out of the gas contained in the cylinder during the pumping cycle. One complete cycle takes a time ∆t. You should assume that ∆t is a very small quantity, but ∆V /∆t = R is finite. The gas in the chamber is ideal monatomic and remains at a fixed temperature of Ta. Start with assumption that V0 = 0 and there are no leaks in the system. a. At t = 0 the pressure inside the chamber is Pa. Find an equation for the pressure at a later time t. b. Find an expression for the temperature of the gas as it is emitted from the pump cylinder into the atmosphere. Your answer may depend on time. For the remainder of this problem 0 < V0 < ∆V V . c. Find an expression for the minimum possible pressure in the chamber, Pmin. Copyright c 2018 American Association of Physics Teachers
