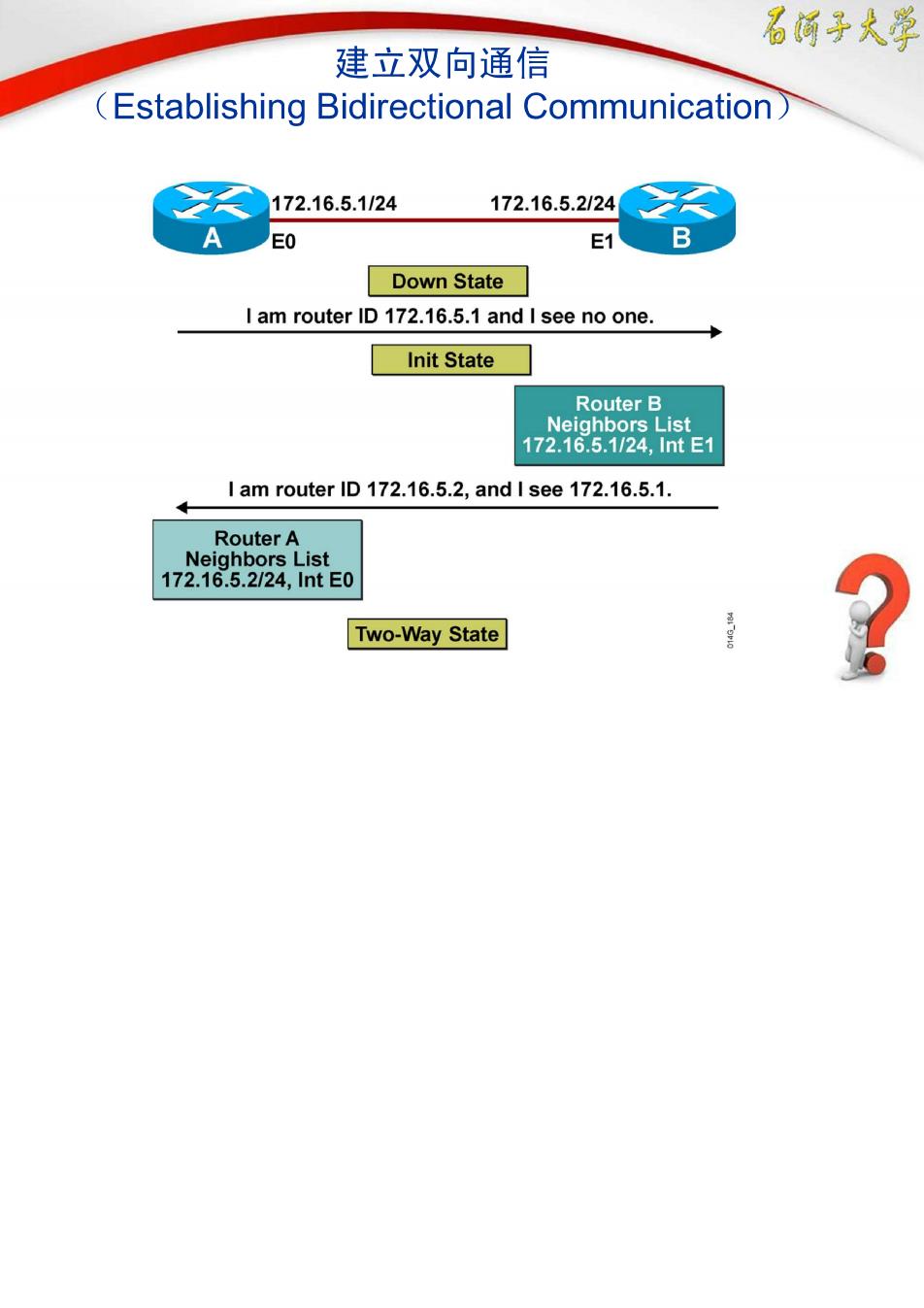

石饼子火学 建立双向通信 (Establishing Bidirectional Communication) 172.16.5.1/24 172.16.5.2/24 A E1 B Down State I am router ID 172.16.5.1 and I see no one. Init State Router B Neig 172.16.5.1/24,1ntE1 1 am router ID172.16.5.2,and1see172.16.5.1. List 172.16.5.2/24,ntE0 Two-Way State

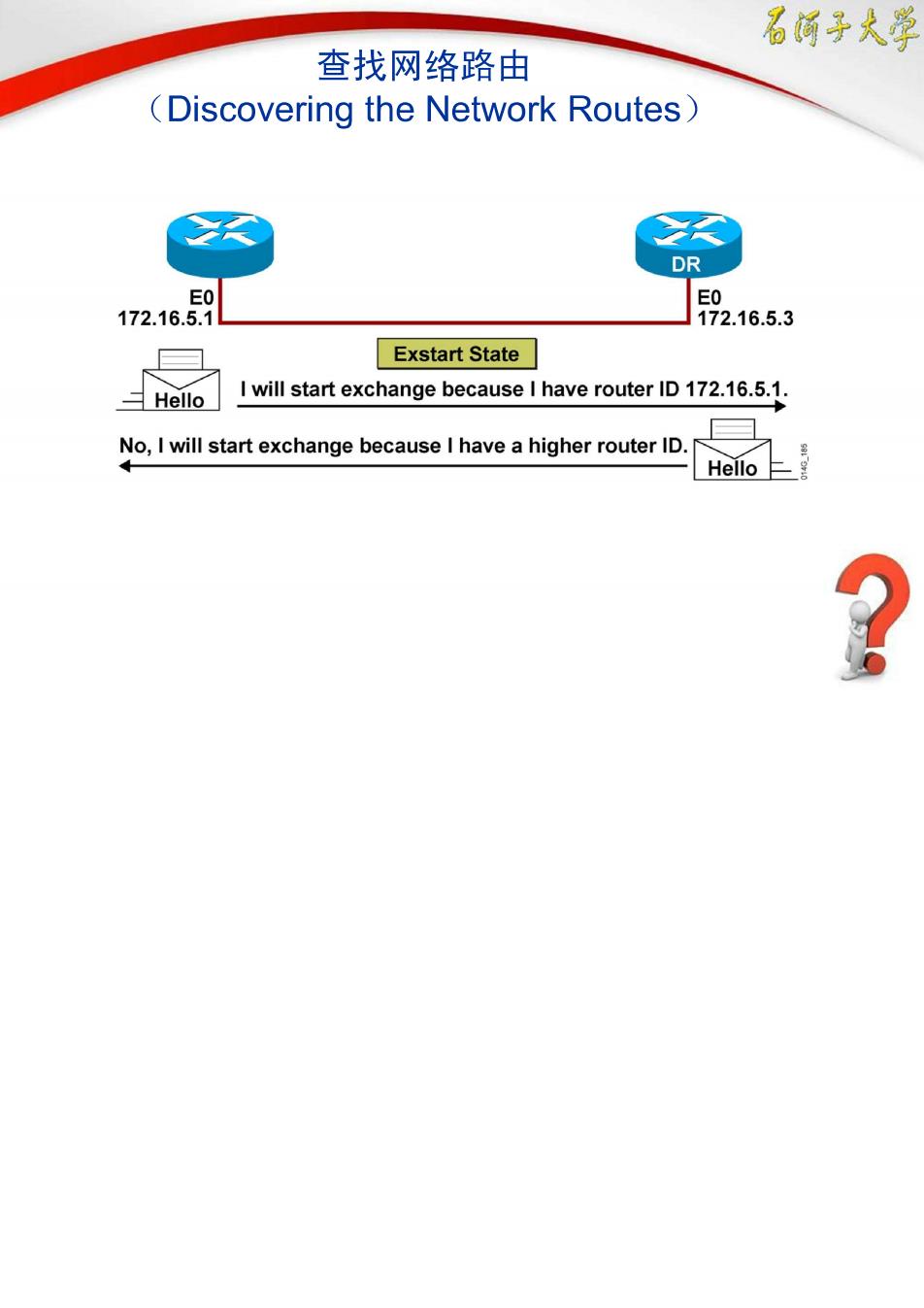

名闻子大学 查找网络路由 (Discovering the Network Routes) 天 DR 17216l 172.16.5.3 Exstart State Hello Iwill start exchange because I have router ID 172.16.5.1. No,I will start exchange because I have a higher router ID

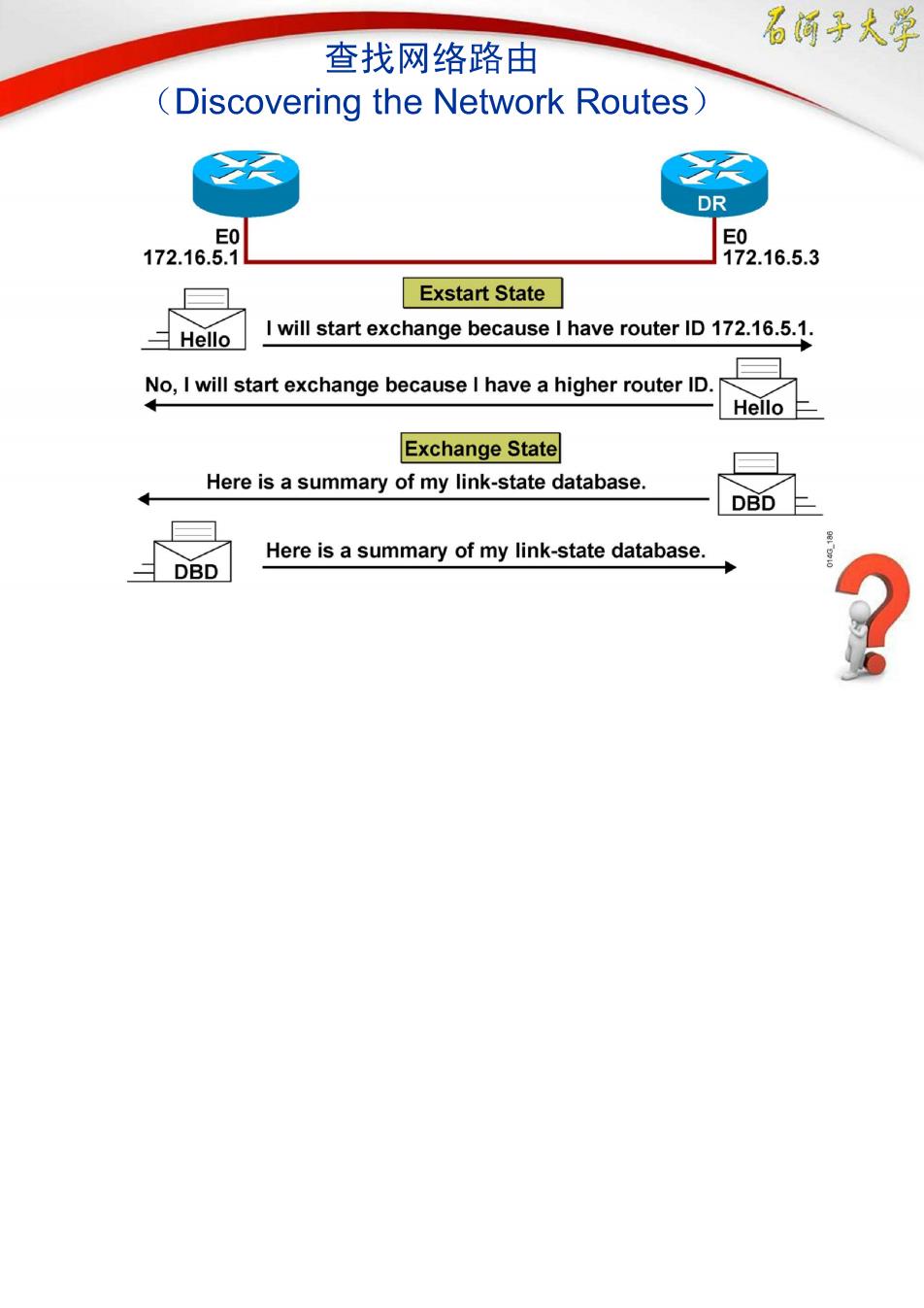

石饼子火学 查找网络路由 (Discovering the Network Routes) DR 172.16.5.1 172.16.5.3 Exstart State 三Hello] I will start exchange because I have router ID 172.16.5.1 No,I will start exchange because I have a higher router ID. Hello Exchange State Here is a summary of my link-state database. DBD DBD Here is a summary of my link-state database

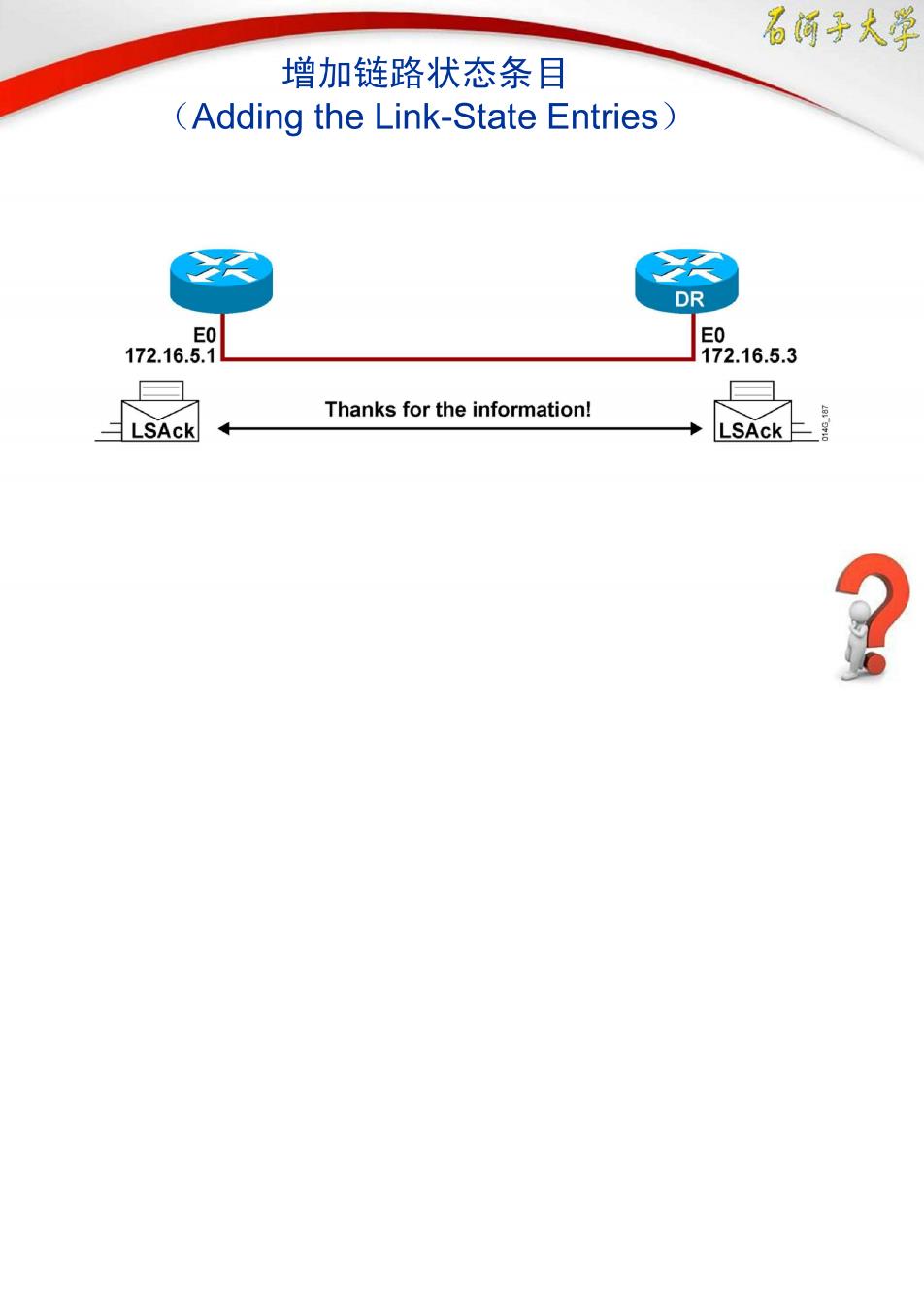

名闻子大学 增加链路状态条目 (Adding the Link-State Entries) 172.16.5.1 172.16.5.3 Thanks for the information! LSAck LSAck

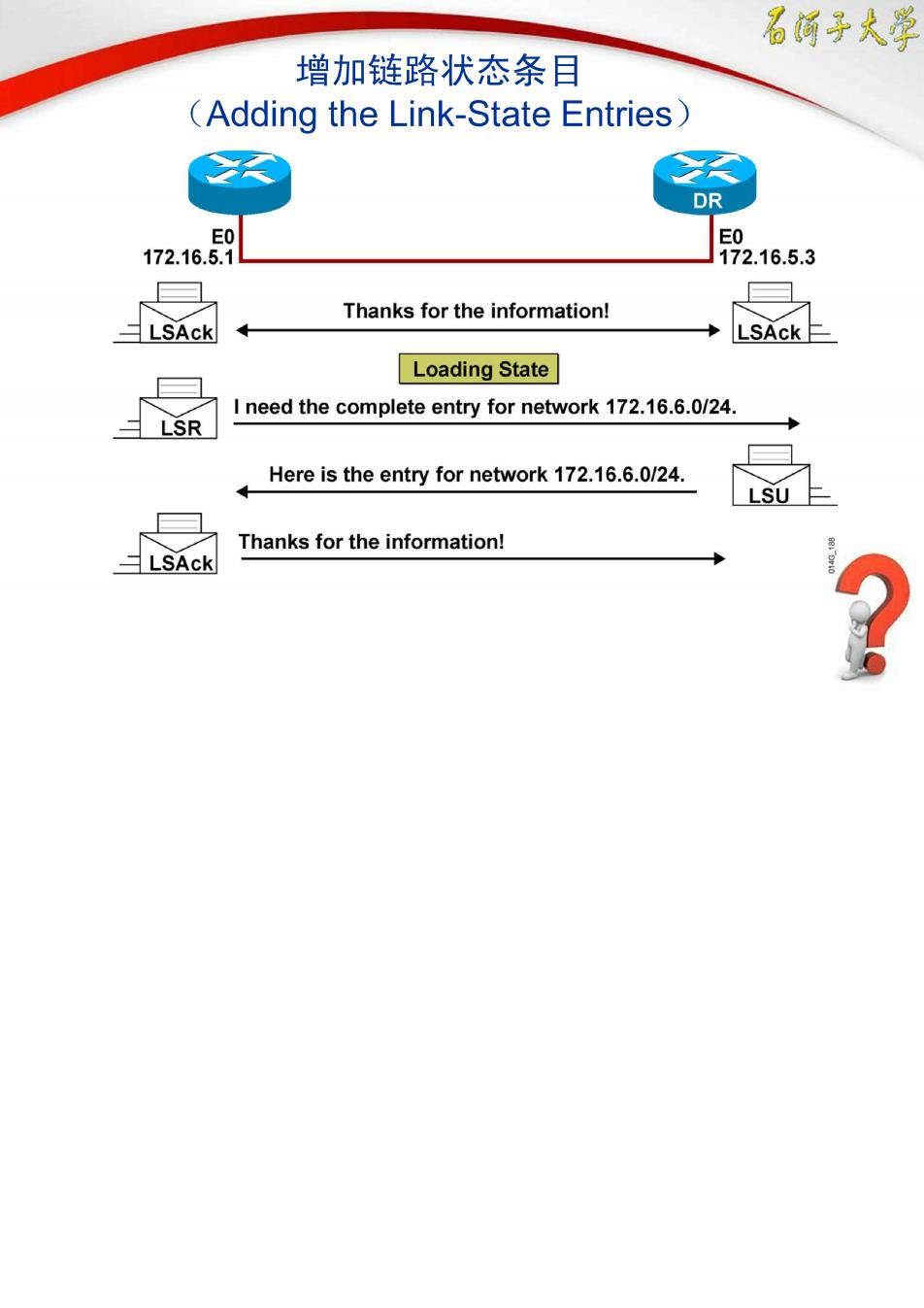

石样子火学 增加链路状态条目 (Adding the Link-State Entries) DR 172.16.5.1 172.16.5.3 -LSAck Thanks for the information! LSAckE Loading State I need the complete entry for network 172.16.6.0/24. Here is the entry for network 172.16.6.0/24. LSU -LSAcK Thanks for the information!
