Chapter 15 Transmission and transfer case 月傍大学 Section 1 Speed-change driving mechanism 换档废叉 换档拉村
Chapter 15 Transmission and transfer case Section 1 Speed-change driving mechanism
Chapter 15 Transmission and transfer case 圖月儕大学 TONGII UNIVERSTTY Speed-change driving mechanism /Adobe Flash Player 10 日回☒ 文件)查看控制C)超助
Chapter 15 Transmission and transfer case Speed-change driving mechanism

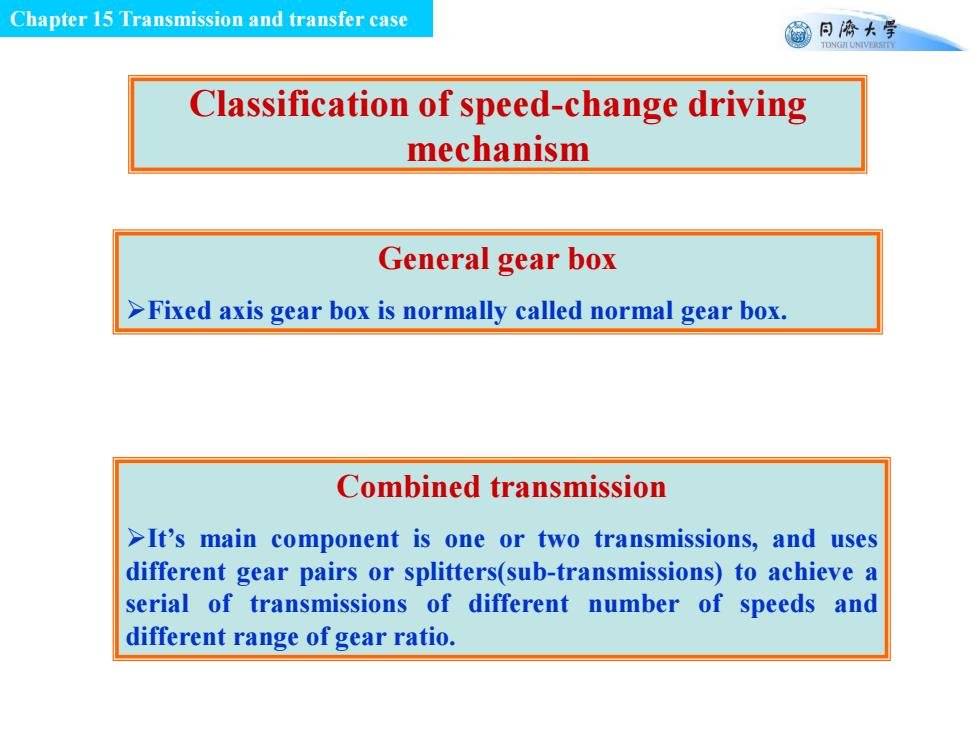

Chapter 15 Transmission and transfer case 同©大学 TONGII UNIVERSTTY Classification of speed-change driving mechanism General gear box >Fixed axis gear box is normally called normal gear box. Combined transmission >It's main component is one or two transmissions,and uses different gear pairs or splitters(sub-transmissions)to achieve a serial of transmissions of different number of speeds and different range of gear ratio
Chapter 15 Transmission and transfer case General gear box Fixed axis gear box is normally called normal gear box. Combined transmission It’s main component is one or two transmissions, and uses different gear pairs or splitters(sub-transmissions) to achieve a serial of transmissions of different number of speeds and different range of gear ratio. Classification of speed-change driving mechanism
Chapter 15 Transmission and transfer case @ 同©大学 TONGII UNIVERSTTY Classification of speed-change driving mechanism >Sorted by the number of fix axis type:twin-shaft transmission and three-shaft transmission Twin-shaft transmission >Two kinds of axes:input shaft(clutch shaft),output shaft(main shaft) 第，轴 空档 第二轴 Power drive path >Input shaft-Gear of input shaft-Gear of output shaft-Output shaft
Chapter 15 Transmission and transfer case Two kinds of axes: input shaft (clutch shaft), output shaft(main shaft) Sorted by the number of fix axis type: twin-shaft transmission and three-shaft transmission Twin-shaft transmission Power drive path Input shaft—— Gear of input shaft——Gear of output shaft——Output shaft Classification of speed-change driving mechanism
Chapter 15 Transmission and transfer case 同©大学 TONGII UNIVERSTTY Three-shaft transmission >Three kinds of shaft input shaft(clutch shaft),counter shaft,output shaft(main shaft) Power drive path >Input shaft-Gear of input shaft-Gear of counter shaft- Gear of output shaft-Output shaft
Chapter 15 Transmission and transfer case Three kinds of shaft : input shaft (clutch shaft), counter shaft, output shaft(main shaft) Three-shaft transmission Power drive path Input shaft—— Gear of input shaft——Gear of counter shaft—— Gear of output shaft——Output shaft
