Appendix I一关于并发和并行 a并行性(parallelism)有三种含义： 同时性(simultaneity):指两个或多个事件在同一时刻发生在 多个资源上： 口并发性(concurrency):指两个或多个事件在同一时间间隔发 生在多个资源上： 流水线(pipeline):指两个或多个事件发生在可能重叠的时间 段内。 Tian Zhang Nanjing University 2
Tian Zhang @ Nanjing University 2 Appendix I — 关于并发和并行 并行性(parallelism)有三种含义： 同时性(simultaneity)：指两个或多个事件在同一时刻发生在 多个资源上； 并发性(concurrency)：指两个或多个事件在同一时间间隔发 生在多个资源上； 流水线(pipeline)：指两个或多个事件发生在可能重叠的时间 段内
Outline Overview A review of statecharts 口 conventional state machine modeling two main limitations Harel Statecharts 口 original Harel Statecharts object-based variant of Harel Statecharts ■ State Machines in UML2.0 口 concepts and constructs diagrams Tian Zhang Nanjing University 3
Tian Zhang @ Nanjing University 3 Outline Overview A review of statecharts conventional state machine modeling – two main limitations Harel Statecharts original Harel Statecharts object-based variant of Harel Statecharts State Machines in UML2.0 concepts and constructs diagrams
Overview State Charts/Machines in both UML1.5 and 2.0 are kinds of object-based variant of Hare/statecharts. State Machines are essentially finite state-transition system used for modeling discrete behavior. ■ In addition to expressing the behavior of a part of the system,state machines can also be used to express the usage protocol of part of a system. 总之，UML2.0中的状态机是传统状态机的一个发展，它支持 OO、层次化、并发性、通信等，以实现对现代复杂分布式系 统的建模。 Tian Zhang Nanjing University 4
Tian Zhang @ Nanjing University 4 Overview State Charts/Machines in both UML1.5 and 2.0 are kinds of object-based variant of Harel statecharts. State Machines are essentially finite state-transition system used for modeling discrete behavior. In addition to expressing the behavior of a part of the system, state machines can also be used to express the usage protocol of part of a system. 总之，UML2.0中的状态机是传统状态机的一个发展，它支持 OO、层次化、并发性、通信等，以实现对现代复杂分布式系 统的建模

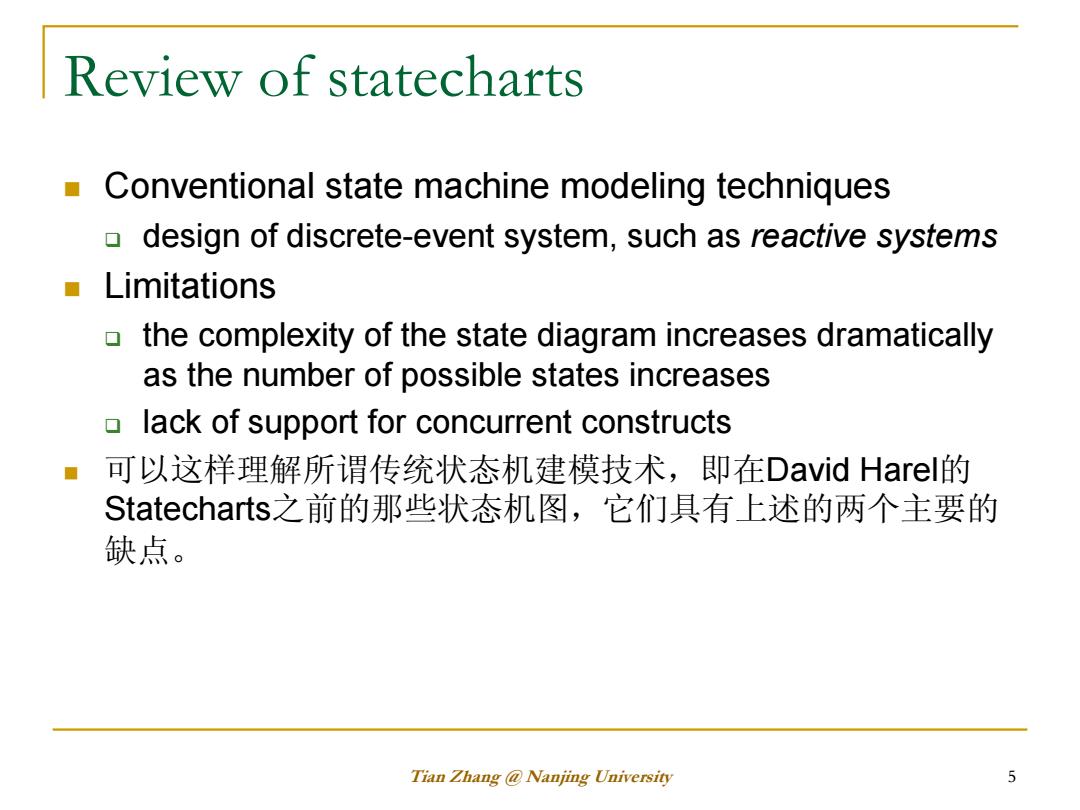

Review of statecharts Conventional state machine modeling techniques design of discrete-event system,such as reactive systems Limitations the complexity of the state diagram increases dramatically as the number of possible states increases lack of support for concurrent constructs 可以这样理解所谓传统状态机建模技术，即在David Harell的 Statecharts之前的那些状态机图，它们具有上述的两个主要的 缺点。 Tian Zhang Nanjing University 5
Tian Zhang @ Nanjing University 5 Review of statecharts Conventional state machine modeling techniques design of discrete-event system, such as reactive systems Limitations the complexity of the state diagram increases dramatically as the number of possible states increases lack of support for concurrent constructs 可以这样理解所谓传统状态机建模技术，即在David Harel的 Statecharts之前的那些状态机图，它们具有上述的两个主要的 缺点
