208 F.Costanzo and G.L.Gray the effective moduli is carried out by solving a special BVP defined over a portion of the material such that both the composition and the geometry of this portion are able to represent the material as a whole.This subset of material is called a representative volume element (RVE),which is schemat- ically shown in Fig.5.2.In general the determination of the RVE may not be o< o< o RVE 0 △ 0 0- △ 0 0 0△ 0△ 0△ -80K Fig.5.2.A representative volume element for the special case of a periodic medium straightforward,however,for periodic media,the RVE is readily identified with the periodic cell of the material.Furthermore,in the case of periodic media,there are rigorous proofs showing that the determination of Cefr by asymptotic expansion methods (see,e.g.,[3,4])delivers the same result as the solution of the RVE BVP so long as the periodicity of the material is properly accounted for. Remark 2 (Definition of Effective Quantities).Roughly speaking,in formal homogenization theory,eefr(x)and efr(x)are defined as the leading terms of an asymptotic expansion of the fields e(x)and (x)with respect to a scaling parameter,say A,defined as the ratio between the length over which the moduli vary and the overall (large)dimension of the component (for example,referring to Fig.5.1,one can set A =h/L).With this in mind, and referring to Fig.5.2,one can show that,when using the RVE as a way to determine the effective moduli,these definitions can be given the following form 1 Ceff- 2Vol(S)Jag (u⑧nx+nx⑧u)dA, (5.4) 1 Ceff= (5.5) Vol(S)Jas (anx⑧X)dA, where u denotes the displacement field.The essential feature of these defi- nitions is that eeff(x)and oefr(x)are determined by gathering information on the boundary of the RVE rather than its interior.If the RVE is a simply
the effective moduli is carried out by solving a special BVP defined over a portion of the material such that both the composition and the geometry of this portion are able to represent the material as a whole. This subset of material is called a representative volume element (RVE), which is schematically shown in Fig. 5.2. In general the determination of the RVE may not be Fig. 5.2. A representative volume element for the special case of a periodic medium straightforward, however, for periodic media, the RVE is readily identified with the periodic cell of the material. Furthermore, in the case of periodic media, there are rigorous proofs showing that the determination of Ceff by asymptotic expansion methods (see, e.g., [3, 4]) delivers the same result as the solution of the RVE BVP so long as the periodicity of the material is properly accounted for. Remark 2 (Definition of Effective Quantities). Roughly speaking, in formal homogenization theory, εeff(χ) and σeff(χ) are defined as the leading terms of an asymptotic expansion of the fields ε(χ) and σ(χ) with respect to a scaling parameter, say λ, defined as the ratio between the length over which the moduli vary and the overall (large) dimension of the component (for example, referring to Fig. 5.1, one can set λ = h/L). With this in mind, and referring to Fig. 5.2, one can show that, when using the RVE as a way to determine the effective moduli, these definitions can be given the following form εeff = 1 2 Vol(Ωκ) Z ∂Ωκ (u ⊗ nκ + nκ ⊗ u)dA, (5.4) σeff = 1 Vol(Ωκ) Z ∂Ωκ (σnκ ⊗ χ)dA, (5.5) where u denotes the displacement field. The essential feature of these defi- nitions is that εeff(χ) and σeff(χ) are determined by gathering information on the boundary of the RVE rather than its interior. If the RVE is a simply 208 F. Costanzo and G.L. Gray

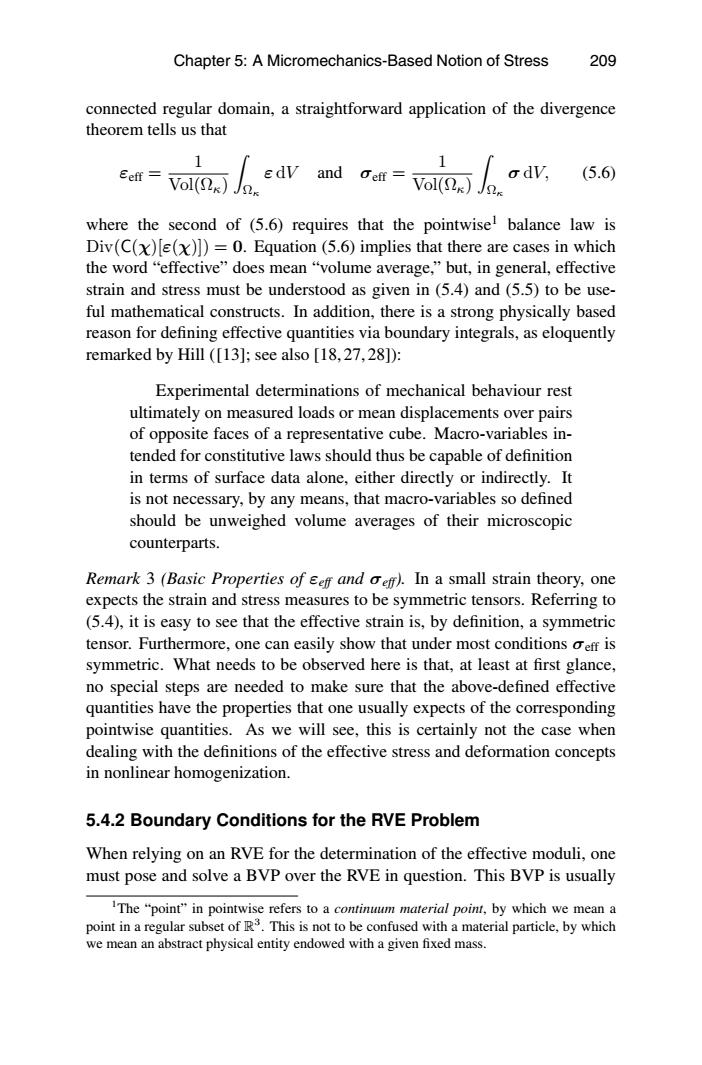

Chapter 5:A Micromechanics-Based Notion of Stress 209 connected regular domain,a straightforward application of the divergence theorem tells us that 1 Ceff- Vol(n) and Ceff= odv, (5.6) Vol(S)J where the second of (5.6)requires that the pointwise!balance law is Div(C(x)[e(x)])=0.Equation(5.6)implies that there are cases in which the word“effective”'does mean“volume average,”but,in general,.effective strain and stress must be understood as given in (5.4)and(5.5)to be use- ful mathematical constructs.In addition,there is a strong physically based reason for defining effective quantities via boundary integrals,as eloquently remarked by Hill ([13];see also [18,27,28]): Experimental determinations of mechanical behaviour rest ultimately on measured loads or mean displacements over pairs of opposite faces of a representative cube.Macro-variables in- tended for constitutive laws should thus be capable of definition in terms of surface data alone,either directly or indirectly.It is not necessary,by any means,that macro-variables so defined should be unweighed volume averages of their microscopic counterparts. Remark 3 (Basic Properties of eeff and oeff).In a small strain theory,one expects the strain and stress measures to be symmetric tensors.Referring to (5.4),it is easy to see that the effective strain is,by definition,a symmetric tensor.Furthermore,one can easily show that under most conditions oeff is symmetric.What needs to be observed here is that,at least at first glance, no special steps are needed to make sure that the above-defined effective quantities have the properties that one usually expects of the corresponding pointwise quantities.As we will see,this is certainly not the case when dealing with the definitions of the effective stress and deformation concepts in nonlinear homogenization. 5.4.2 Boundary Conditions for the RVE Problem When relying on an RVE for the determination of the effective moduli,one must pose and solve a BVP over the RVE in question.This BVP is usually The "point"in pointwise refers to a continuum material point,by which we mean a point in a regular subset of R3.This is not to be confused with a material particle,by which we mean an abstract physical entity endowed with a given fixed mass
connected regular domain, a straightforward application of the divergence theorem tells us that εeff = 1 Vol(Ωκ) Z Ωκ ε dV and σeff = 1 Vol(Ωκ) Z Ωκ σ dV, (5.6) where the second of (5.6) requires that the pointwise1 balance law is Div(C(χ)[ε(χ)]) = 0. Equation (5.6) implies that there are cases in which the word “effective” does mean “volume average,” but, in general, effective strain and stress must be understood as given in (5.4) and (5.5) to be useful mathematical constructs. In addition, there is a strong physically based reason for defining effective quantities via boundary integrals, as eloquently remarked by Hill ([13]; see also [18, 27, 28]): Experimental determinations of mechanical behaviour rest ultimately on measured loads or mean displacements over pairs of opposite faces of a representative cube. Macro-variables intended for constitutive laws should thus be capable of definition in terms of surface data alone, either directly or indirectly. It is not necessary, by any means, that macro-variables so defined should be unweighed volume averages of their microscopic counterparts. Remark 3 (Basic Properties of εeff and σeff). In a small strain theory, one expects the strain and stress measures to be symmetric tensors. Referring to (5.4), it is easy to see that the effective strain is, by definition, a symmetric tensor. Furthermore, one can easily show that under most conditions σeff is symmetric. What needs to be observed here is that, at least at first glance, no special steps are needed to make sure that the above-defined effective quantities have the properties that one usually expects of the corresponding pointwise quantities. As we will see, this is certainly not the case when dealing with the definitions of the effective stress and deformation concepts in nonlinear homogenization. 5.4.2 Boundary Conditions for the RVE Problem When relying on an RVE for the determination of the effective moduli, one must pose and solve a BVP over the RVE in question. This BVP is usually 1 The “point” in pointwise refers to a continuum material point, by which we mean a point in a regular subset of R3. This is not to be confused with a material particle, by which we mean an abstract physical entity endowed with a given fixed mass. Chapter 5: A Micromechanics-Based Notion of Stress 209

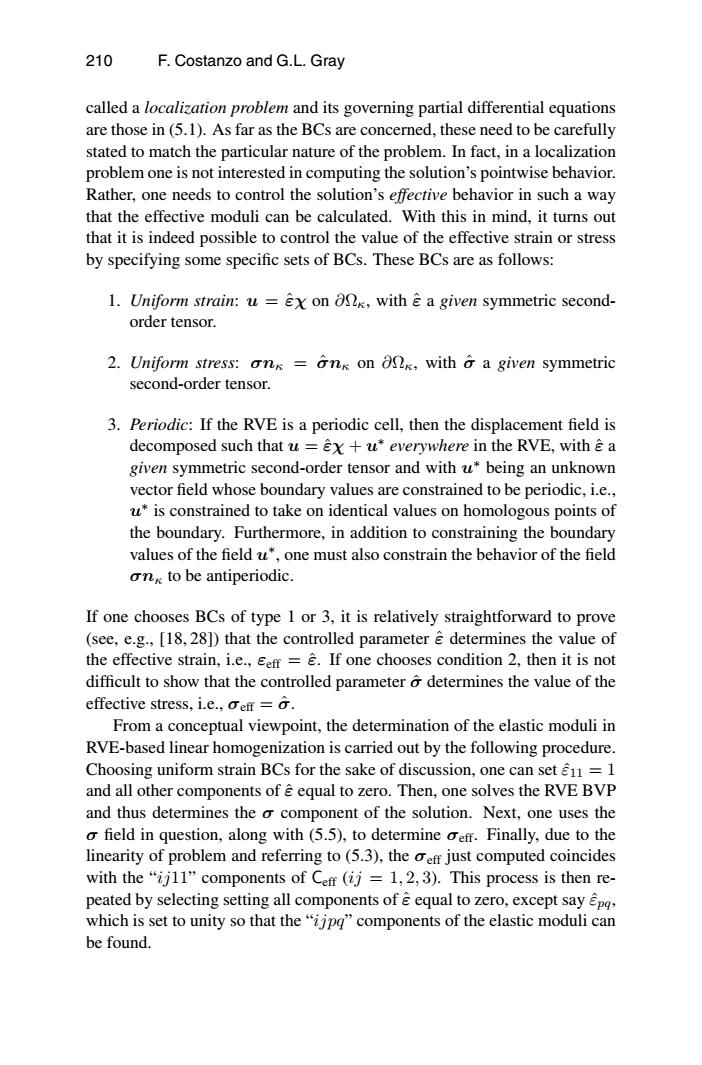

210 F.Costanzo and G.L.Gray called a localization problem and its governing partial differential equations are those in (5.1).As far as the BCs are concerned,these need to be carefully stated to match the particular nature of the problem.In fact,in a localization problem one is not interested in computing the solution's pointwise behavior. Rather,one needs to control the solution's effective behavior in such a way that the effective moduli can be calculated.With this in mind,it turns out that it is indeed possible to control the value of the effective strain or stress by specifying some specific sets of BCs.These BCs are as follows: 1.Uniform strain:u=ex on onx,with e a given symmetric second- order tensor. 2.Uniform stress:onk=onk on onk,with aa given symmetric second-order tensor. 3.Periodic:If the RVE is a periodic cell,then the displacement field is decomposed such that u =ex+u*everywhere in the RVE,with e a given symmetric second-order tensor and with u*being an unknown vector field whose boundary values are constrained to be periodic,i.e., u*is constrained to take on identical values on homologous points of the boundary.Furthermore,in addition to constraining the boundary values of the field u*,one must also constrain the behavior of the field ong to be antiperiodic. If one chooses BCs of type 1 or 3,it is relatively straightforward to prove (see,e.g.,[18,28])that the controlled parameter determines the value of the effective strain,i.e.,sefr =e.If one chooses condition 2,then it is not difficult to show that the controlled parameter o determines the value of the effective stress,i.e.,oefr=o. From a conceptual viewpoint,the determination of the elastic moduli in RVE-based linear homogenization is carried out by the following procedure. Choosing uniform strain BCs for the sake of discussion,one can set=1 and all other components of e equal to zero.Then,one solves the RVE BVP and thus determines the o component of the solution.Next,one uses the o field in question,along with (5.5),to determine oeff.Finally,due to the linearity of problem and referring to(5.3),the efr just computed coincides with the "ij11"components of Ce (ij =1,2,3).This process is then re- peated by selecting setting all components of e equal to zero,except say pg, which is set to unity so that the"ijpg"components of the elastic moduli can be found
called a localization problem and its governing partial differential equations are those in (5.1). As far as the BCs are concerned, these need to be carefully stated to match the particular nature of the problem. In fact, in a localization problem one is not interested in computing the solution’s pointwise behavior. Rather, one needs to control the solution’s effective behavior in such a way that the effective moduli can be calculated. With this in mind, it turns out that it is indeed possible to control the value of the effective strain or stress by specifying some specific sets of BCs. These BCs are as follows: 1. Uniform strain: u = εχˆ on ∂Ωκ, with εˆ a given symmetric secondorder tensor. 2. Uniform stress: σnκ = σnˆ κ on ∂Ωκ, with σˆ a given symmetric second-order tensor. 3. Periodic: If the RVE is a periodic cell, then the displacement field is decomposed such that u = εχˆ + u∗ everywhere in the RVE, with εˆ a given symmetric second-order tensor and with u∗ being an unknown vector field whose boundary values are constrained to be periodic, i.e., u∗ is constrained to take on identical values on homologous points of the boundary. Furthermore, in addition to constraining the boundary values of the field u∗, one must also constrain the behavior of the field σnκ to be antiperiodic. If one chooses BCs of type 1 or 3, it is relatively straightforward to prove (see, e.g., [18, 28]) that the controlled parameter εˆ determines the value of the effective strain, i.e., εeff = εˆ. If one chooses condition 2, then it is not difficult to show that the controlled parameter σˆ determines the value of the effective stress, i.e., σeff = σˆ. From a conceptual viewpoint, the determination of the elastic moduli in RVE-based linear homogenization is carried out by the following procedure. Choosing uniform strain BCs for the sake of discussion, one can set εˆ11 = 1 and all other components of εˆ equal to zero. Then, one solves the RVE BVP and thus determines the σ component of the solution. Next, one uses the σ field in question, along with (5.5), to determine σeff. Finally, due to the linearity of problem and referring to (5.3), the σeff just computed coincides with the “ij11” components of Ceff (ij = 1, 2, 3). This process is then repeated by selecting setting all components of εˆ equal to zero, except say εˆpq, which is set to unity so that the “ijpq” components of the elastic moduli can be found. 210 F. Costanzo and G.L. Gray
Chapter 5:A Micromechanics-Based Notion of Stress 211 5.5 The RVE Problem and Large Deformations In this section,we discuss the concepts of effective strain and stress in a con- text of large deformations.This discussion is again meant to properly setup a stage for the extension of continuum homogenization ideas to MD prob- lems.Choosing to work in a large deformation context is motivated by the fact that we want the discussion to be as general as possible.2 Before pro- ceeding to the presentation of effective measures of deformation and stress, it is important to remark that the field of nonlinear homogenization is not as well developed as the corresponding linear theory.In particular,there are fewer theoretical results linking an asymptotic approach to homogenization to the RVE-based averaging procedures.With this in mind,as has been done by other authors (see,e.g.,[12-14,25]),we will simply assume that the RVE problem is a valid way to compute effective properties.This assumption allows us to focus our attention on the RVE approach to homogenization, as opposed to considering the (more technically difficult)formal asymptotic approach. 5.5.1 Definition of Effective Deformation and Stress In general,in a context of large deformation,one must take into consider- ation two measures of stress,namely the Cauchy stress and the first Piola- Kirchhoff stress,depending on whether one chooses the deformed or reference configurations,respectively,to write the system's equation of motion.The two notions of stress are related by the well-known relation (see,e.g.,[11]) S=det(F)T(F-1)T, (5.7) where S denotes the first Piola-Kirchhoff stress tensor,F denotes the defor- mation gradient,T denotes the Cauchy stress tensor,and the superscript T denotes transposition.The relationship in (5.7)reminds us that,when we define effective deformation and stress in a context of large deformation, we need to(1)provide definitions that are based both on the reference and the deformed configurations and(2)discuss how these definitions relate to one another.With this in mind,we introduce two independent measures of effective deformation:the effective deformation gradient tensor,denoted by 2In choosing to work in a regime of large deformations,we assume that the kinematics at both the micro-and macroscales is fully nonlinear.Correspondingly,we do not assume that any aspect of the constitutive theory is linear
5.5 The RVE Problem and Large Deformations In this section, we discuss the concepts of effective strain and stress in a context of large deformations. This discussion is again meant to properly setup a stage for the extension of continuum homogenization ideas to MD problems. Choosing to work in a large deformation context is motivated by the fact that we want the discussion to be as general as possible.2 Before proceeding to the presentation of effective measures of deformation and stress, it is important to remark that the field of nonlinear homogenization is not as well developed as the corresponding linear theory. In particular, there are fewer theoretical results linking an asymptotic approach to homogenization to the RVE-based averaging procedures. With this in mind, as has been done by other authors (see, e.g., [12–14,25]), we will simply assume that the RVE problem is a valid way to compute effective properties. This assumption allows us to focus our attention on the RVE approach to homogenization, as opposed to considering the (more technically difficult) formal asymptotic approach. 5.5.1 Definition of Effective Deformation and Stress In general, in a context of large deformation, one must take into consideration two measures of stress, namely the Cauchy stress and the first Piola– Kirchhoff stress, depending on whether one chooses the deformed or reference configurations, respectively, to write the system’s equation of motion. The two notions of stress are related by the well-known relation (see, e.g., [11]) S = det(F)T(F−1) T, (5.7) where S denotes the first Piola–Kirchhoff stress tensor, F denotes the deformation gradient, T denotes the Cauchy stress tensor, and the superscript T denotes transposition. The relationship in (5.7) reminds us that, when we define effective deformation and stress in a context of large deformation, we need to (1) provide definitions that are based both on the reference and the deformed configurations and (2) discuss how these definitions relate to one another. With this in mind, we introduce two independent measures of effective deformation: the effective deformation gradient tensor, denoted by 2 In choosing to work in a regime of large deformations, we assume that the kinematics at both the micro- and macroscales is fully nonlinear. Correspondingly, we do not assume that any aspect of the constitutive theory is linear. Chapter 5: A Micromechanics-Based Notion of Stress 211

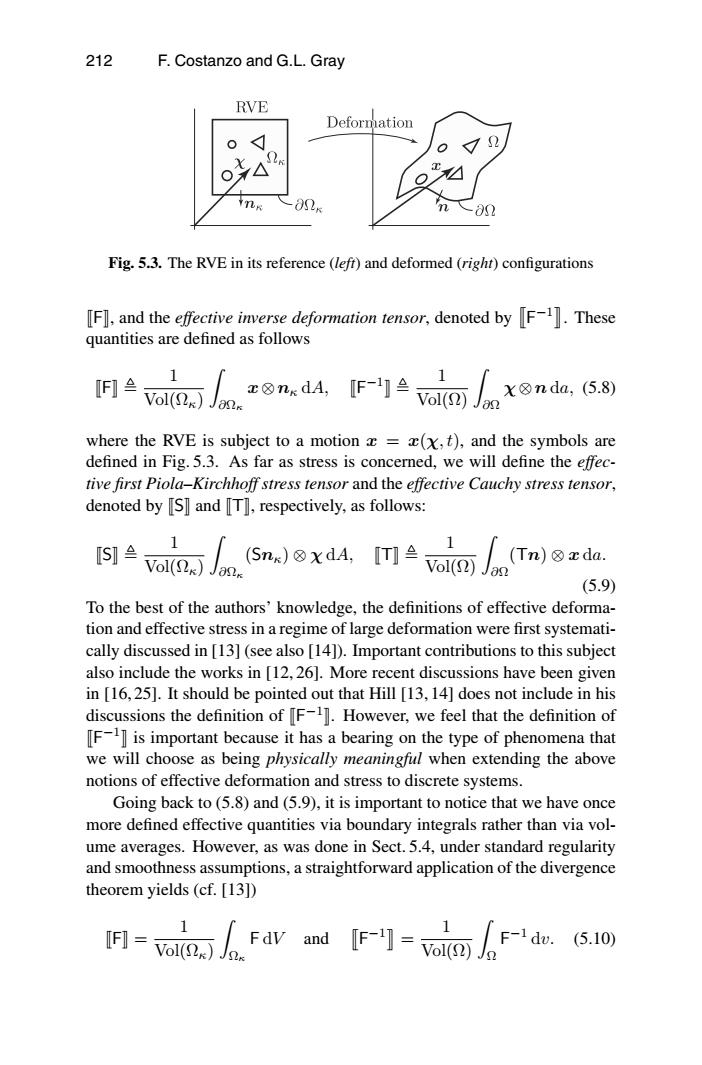

212 F.Costanzo and G.L.Gray RVE Deformation Fig.5.3.The RVE in its reference(left)and deformed(right)configurations [F],and the effective inverse deformation tensor,denoted by.These quantities are defined as follows IF]≌ 1 Vol()Jag x⑧nxdA,[F-1]e X8nda,(5.8) where the RVE is subject to a motion =(x,t),and the symbols are defined in Fig.5.3.As far as stress is concerned,we will define the effec- tive first Piola-Kirchhoff stress tensor and the effective Cauchy stress tensor, denoted by [S]and [T],respectively,as follows: IS] 1 (Sn)xdA.[V Vol(S)Jas Vol()Jan (Tn)⑧xda. (5.9) To the best of the authors'knowledge,the definitions of effective deforma- tion and effective stress in a regime of large deformation were first systemati- cally discussed in [13](see also [14]).Important contributions to this subject also include the works in [12,26].More recent discussions have been given in [16,25].It should be pointed out that Hill [13,14]does not include in his discussions the definition ofF.However,we feel that the definition of [F-1]is important because it has a bearing on the type of phenomena that we will choose as being physically meaningful when extending the above notions of effective deformation and stress to discrete systems. Going back to (5.8)and(5.9),it is important to notice that we have once more defined effective quantities via boundary integrals rather than via vol- ume averages.However,as was done in Sect.5.4,under standard regularity and smoothness assumptions,a straightforward application of the divergence theorem yields(cf.[13]) 1 [F]= Fv nd oi F-1du.(5.10)
Fig. 5.3. The RVE in its reference (left) and deformed (right) configurations JFK, and the effective inverse deformation tensor, denoted by q F−1 y . These quantities are defined as follows JFK , 1 Vol(Ωκ) Z ∂Ωκ x⊗nκ dA, JF−1K , 1 Vol(Ω) Z ∂Ω χ⊗n da, (5.8) where the RVE is subject to a motion x = x(χ, t), and the symbols are defined in Fig. 5.3. As far as stress is concerned, we will define the effective first Piola–Kirchhoff stress tensor and the effective Cauchy stress tensor, denoted by JSK and JTK, respectively, as follows: JSK , 1 Vol(Ωκ) Z ∂Ωκ (Snκ) ⊗ χ dA, JTK , 1 Vol(Ω) Z ∂Ω (Tn) ⊗ x da. (5.9) To the best of the authors’ knowledge, the definitions of effective deformation and effective stress in a regime of large deformation were first systematically discussed in [13] (see also [14]). Important contributions to this subject also include the works in [12, 26]. More recent discussions have been given in [16, 25]. It should be pointed out that Hill [13, 14] does not include in his discussions the definition of JF−1K. However, we feel that the definition of JF−1K is important because it has a bearing on the type of phenomena that we will choose as being physically meaningful when extending the above notions of effective deformation and stress to discrete systems. Going back to (5.8) and (5.9), it is important to notice that we have once more defined effective quantities via boundary integrals rather than via volume averages. However, as was done in Sect. 5.4, under standard regularity and smoothness assumptions, a straightforward application of the divergence theorem yields (cf. [13]) JFK = 1 Vol(Ωκ) Z Ωκ F dV and q F−1y = 1 Vol(Ω) Z Ω F−1 dv. (5.10) 212 F. Costanzo and G.L. Gray
