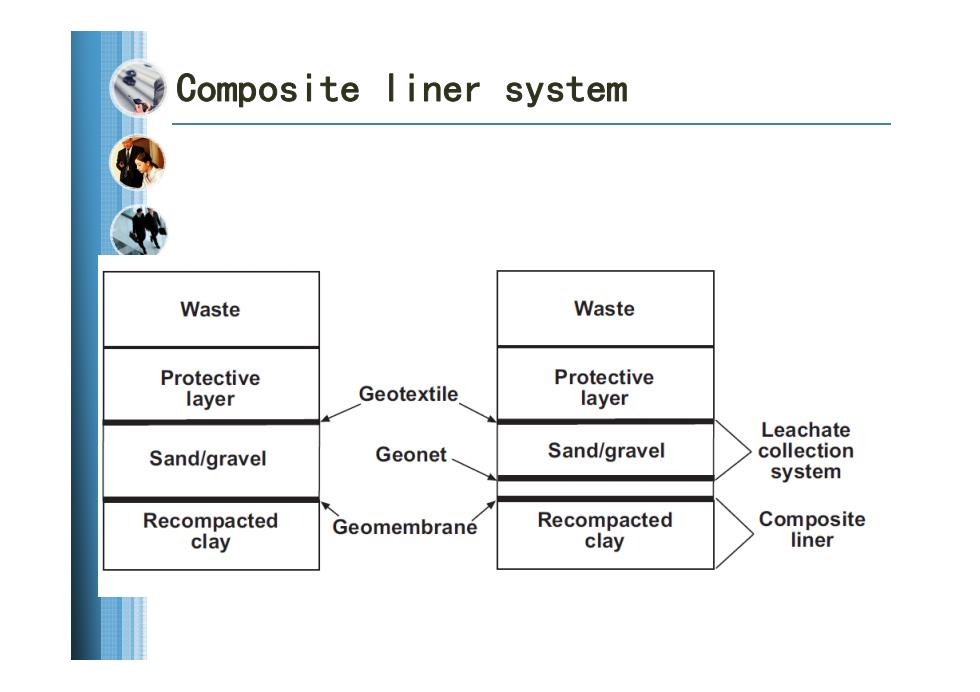

Composite liner system Waste Waste Protective Protective layer Geotextile layer Leachate Sand/gravel Geonet Sand/gravel collection system Recompacted Geomembrane Recompacted Composite clay clay liner
Composite liner system
Double l iner systems Waste Waste Protective Protective layer Geotextile layer Leachate Sand/gravel Sand/grave■ collection Recompacted system Geosynthetic clay Geomembrane clay liner Primary liner Sand/gravel Sand/gravel Leak detection Recompacted layer Recompacted clay clay Secondary liner
Double liner systems
Liner work High Density Poly Ethylene 1.5mm Welding method tear
Liner work ・ High Density Poly Ethylene 1.5mm ・ Welding method tear

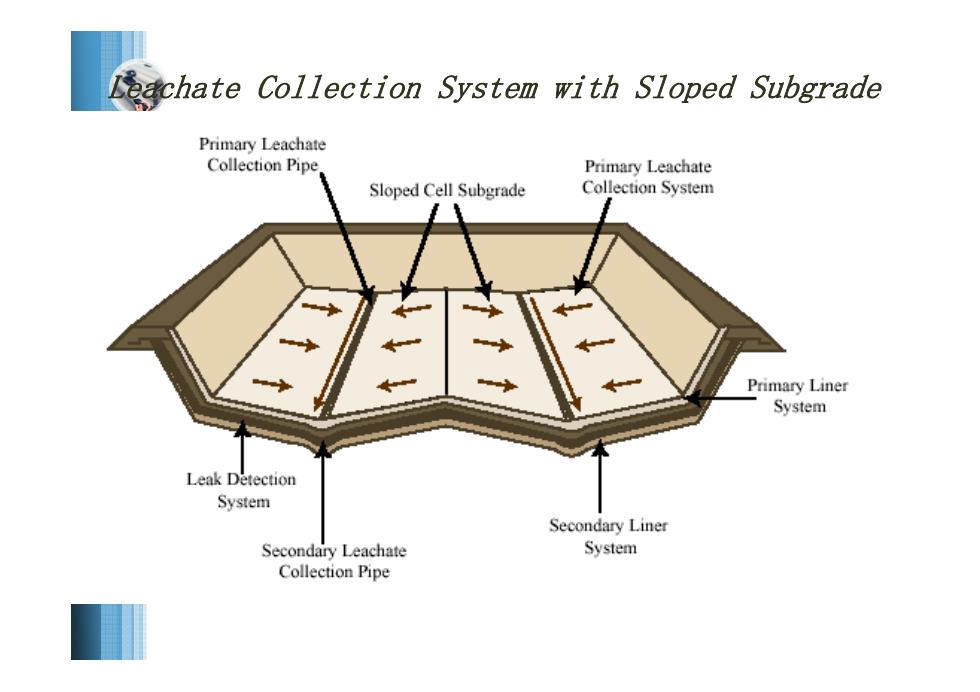

Begchate Collection System with Sloped Subgrade Primary Leachate Collection Pipe Primary Leachate Sloped Cell Subgrade Collection System Primary Liner System Leak Detection System Secondary Liner Secondary Leachate System Collection Pipe
Leachate Collection System with Sloped Subgrade

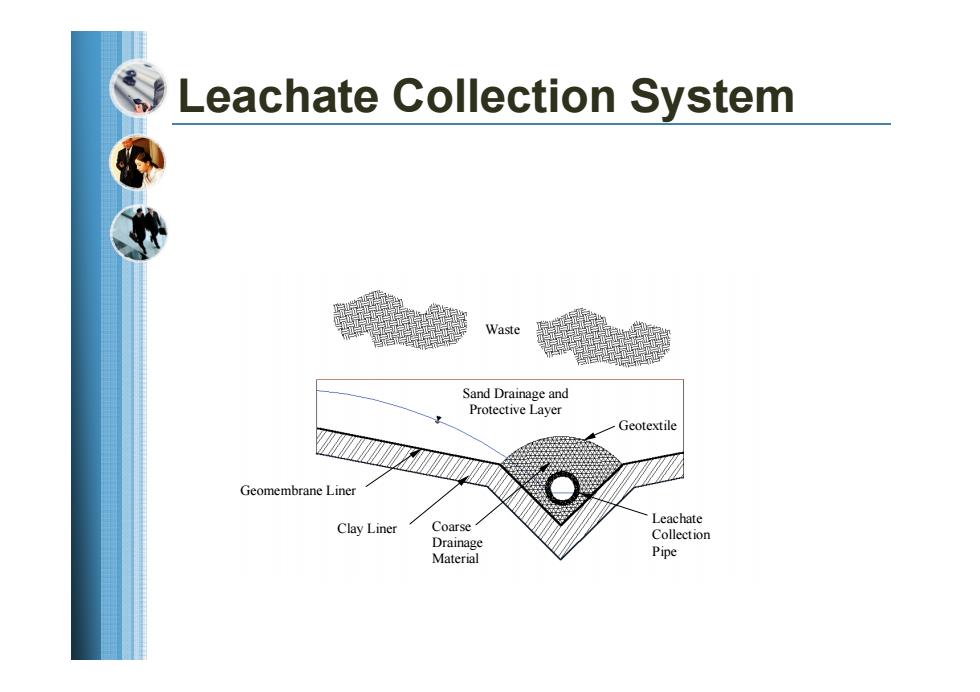

Leachate Collection System Waste Sand Drainage and Protective Layer Geotextile Geomembrane Liner Leachate Clay Liner Coarse Collection Drainage Material Pipe
Leachate Collection System Clay Liner Geomembrane Liner Leachate Collection Pipe Coarse Drainage Material Sand Drainage and Protective Layer Geotextile Waste
