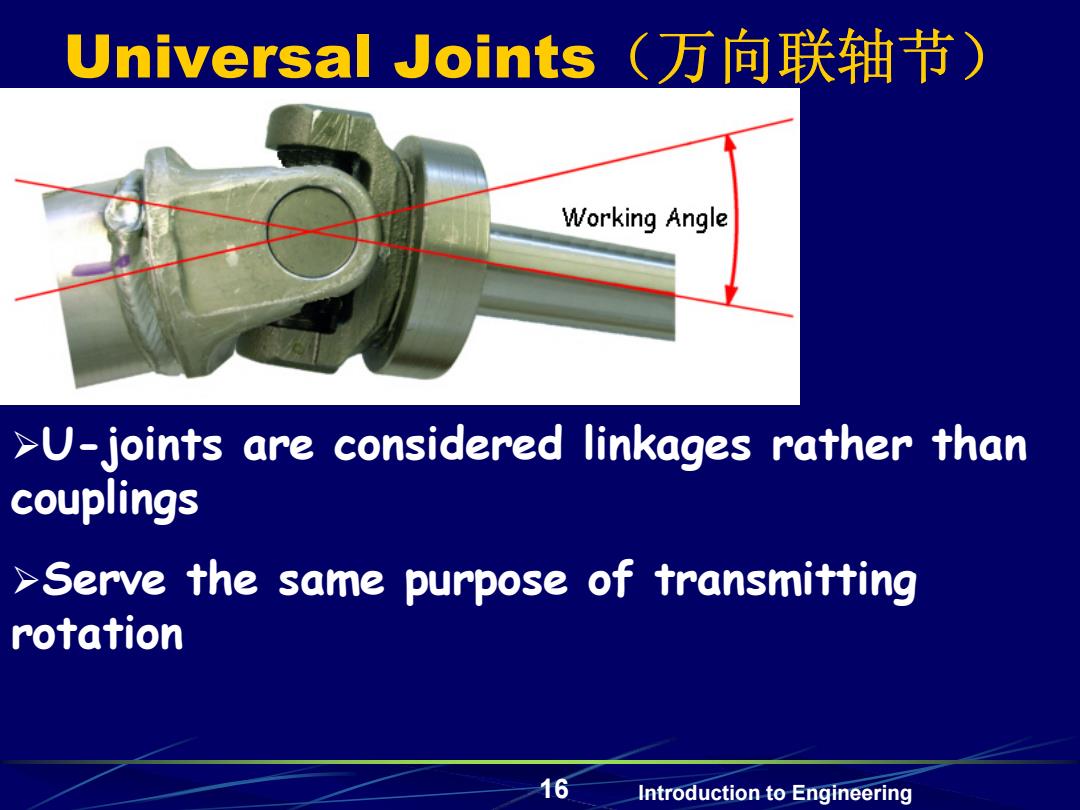

Universal Joints(万向联轴节) Working Angle >U-joints are considered linkages rather than couplings >Serve the same purpose of transmitting rotation 6 Introduction to Engineering
16 Introduction to Engineering Universal Joints（万向联轴节） U-joints are considered linkages rather than couplings Serve the same purpose of transmitting rotation

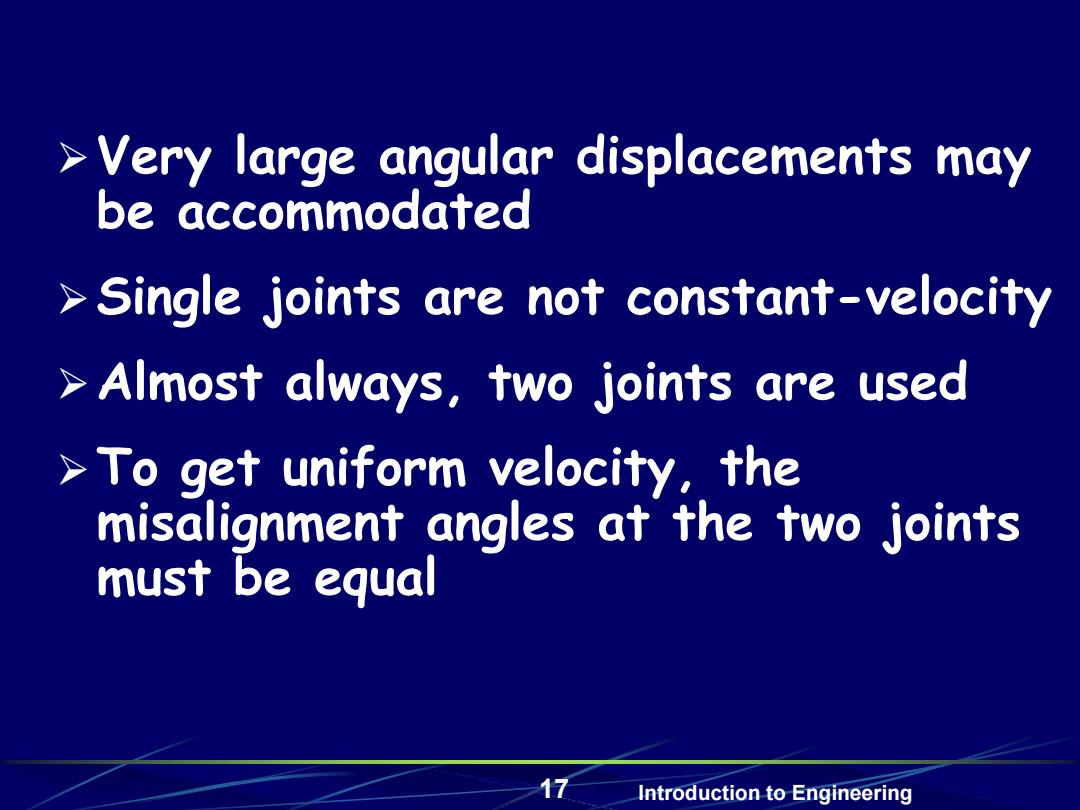

Very large angular displacements may be accommodated Single joints are not constant-velocity Almost always,two joints are used To get uniform velocity,the misalignment angles at the two joints must be equal Introduction to Engineering
17 Introduction to Engineering Very large angular displacements may be accommodated Single joints are not constant-velocity Almost always, two joints are used To get uniform velocity, the misalignment angles at the two joints must be equal
