Machine Components Introduction to Engineering
1 Introduction to Engineering Machine Components
WW 0mmm0 WM wY WWWN W 2 Introduction to Engineering
2 Introduction to Engineering Springs Springs

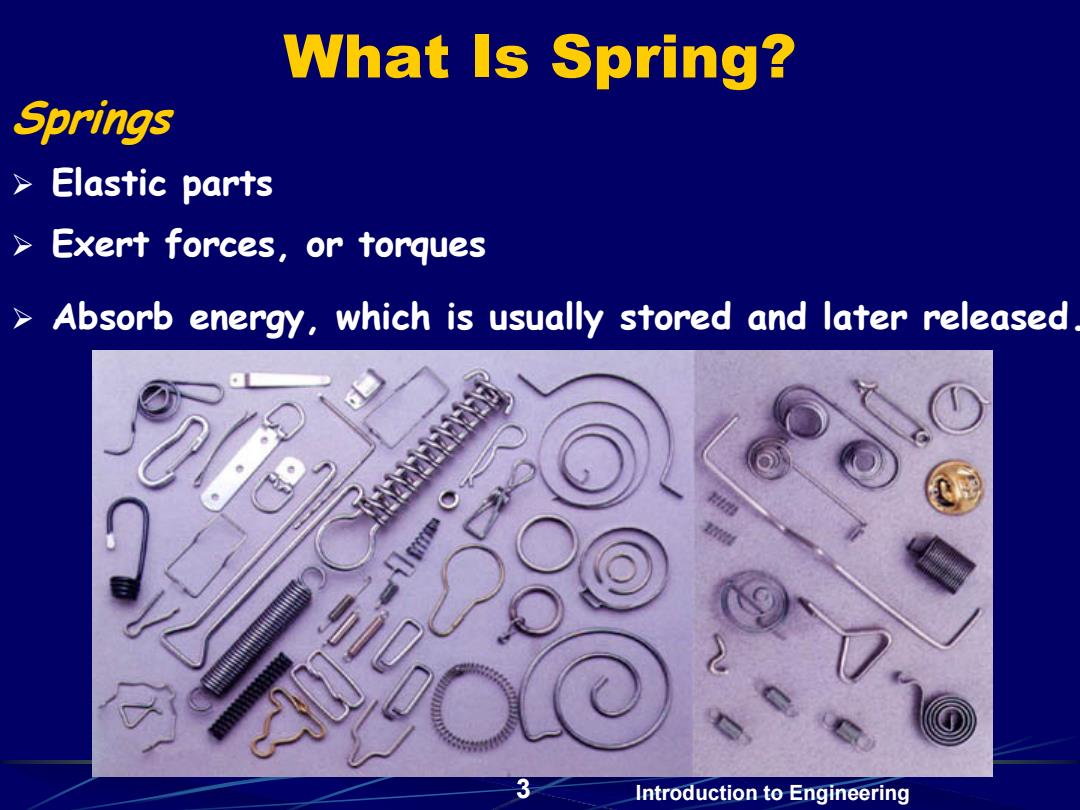

What Is Spring? Springs > Elastic parts > Exert forces,or torques Absorb energy,which is usually stored and later released Introduction to Engineering
3 Introduction to Engineering What Is Spring? Springs Elastic parts Exert forces, or torques Absorb energy, which is usually stored and later released
Type of Springs Torsion Bar Spring Helical Compression Spring Helical Extension Spring ■Torsion Springs Introduction to Engineering
4 Introduction to Engineering Type of Springs Torsion Bar Spring Helical Compression Spring Helical Extension Spring Torsion Springs
Torsion Bar Spring >The simplest >Common applications include some automotive suspension springs,and counterbalancing springs for car hoods and trunk lids,where small torsion bars fit near the hinges Fixed end Bearing Spline Torsion bar portion Generous radius Bearing Spline 5 Introduction to Engineering
5 Introduction to Engineering Torsion Bar Spring The simplest Common applications include some automotive suspension springs, and counterbalancing springs for car hoods and trunk lids, where small torsion bars fit near the hinges
