Trebachet
Trebachet

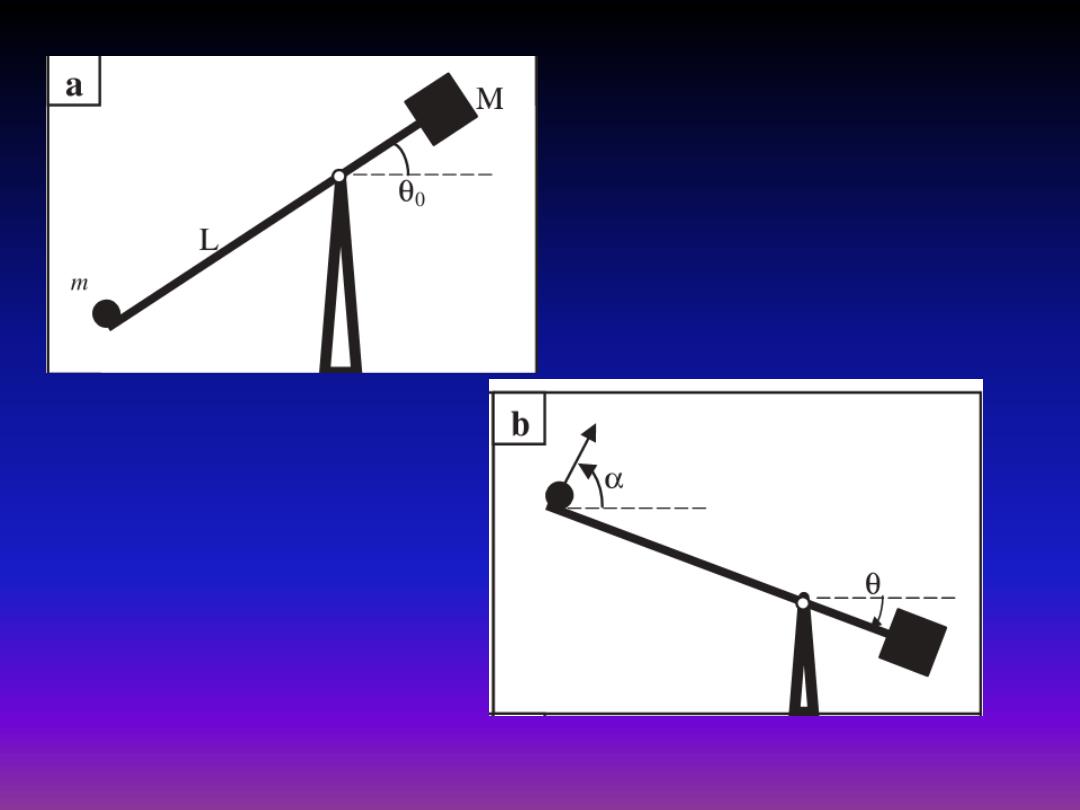

a M 80 m b 0
Counterweight mass is to be M 10,000kg (10 tons),and projectile mass is m 100 kg. The length of the main beam is that of the short lever arm plus long lever arm:L 1 12 m.The Mass of the beam is 2,000 kg. This is a realistic value for an oak mass of the main beam that is 12m long.0=45 degrees
• Counterweight mass is to be M 10,000kg (10 tons), and projectile mass is m 100 kg. The length of the main beam is that of the short lever arm plus long lever arm: L + l = 12 m. The Mass of the beam is 2,000 kg. This is a realistic value for an oak mass of the main beam that is 12m long. 0=45 degrees

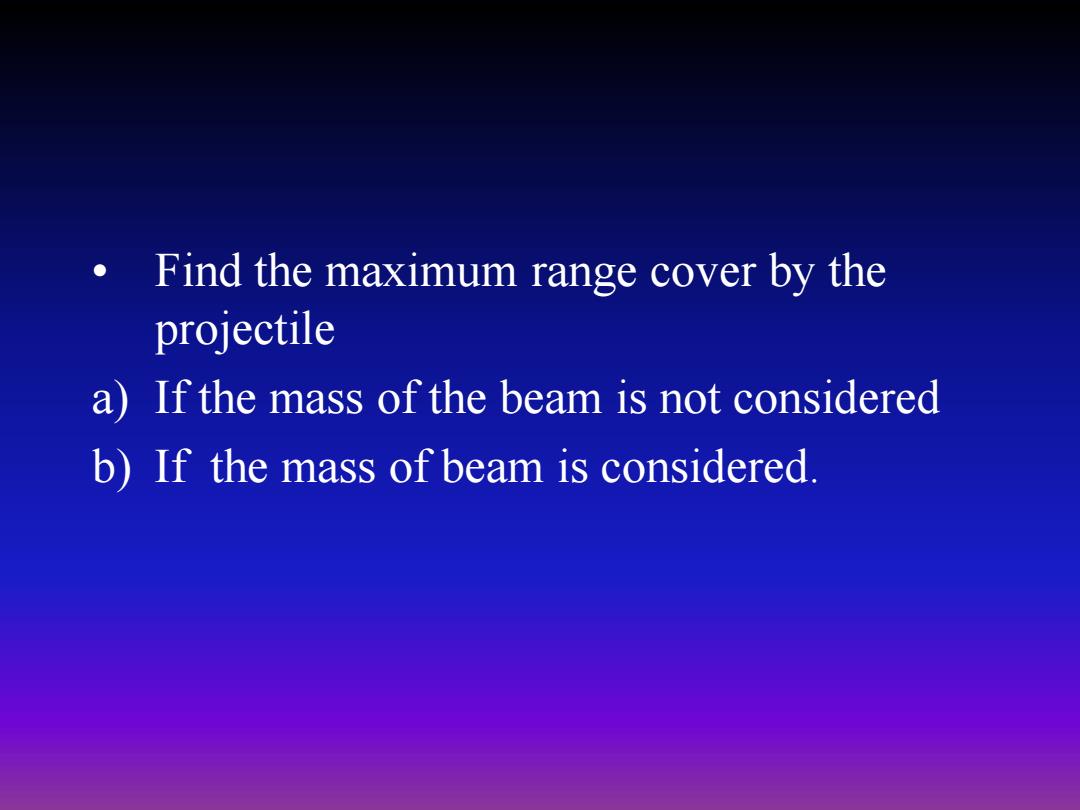

Find the maximum range cover by the projectile a)If the mass of the beam is not considered b)If the mass of beam is considered
• Find the maximum range cover by the projectile a) If the mass of the beam is not considered b) If the mass of beam is considered
