同桥大学 TONGJI UNIVERSITY Consequence Triangle has three edges. Polygons are all full polygons(every corner connected with each other.)
Consequence ⚫Triangle has three edges. ⚫Polygons are all full polygons (every corner connected with each other.)
同©大学 TONGJI UNIVERSITY oWhat about indefinite output?(D terms)
⚫What about indefinite output? (D terms)
同桥大学 TONGJI UNIVERSITY Example of indefinite output 00 01 11 10 a C,- @,0 b,- b 6 a,- ⑥，1 e,- d,ex ©.0 a,- d,- d d,ex d C,- b,- @,0 c,fx d,ex c,fx f,- b,- e,1 c,fx d,ex c,fx a,- e,- b (a)Primitive flow table (b)Implication table 2002 Prentice Hall.Inc. M.Morris Mano DIGITAL DESIGN,3e. Fig.9-23 Flow and Implication Tables
Example of indefinite output
同陈大学 TONGJI UNIVERSITY d (a)Maximal compatible: (b)Maximal compatible: (a,b.)(a,c,d)(b.e,f) (a,b.e,f)(b.c.h)(c,d)(g) Fig.9-24 Merger Diagrams 2002 Prentice Hall,Inc. M.Morris Mano DIGITAL DESIGN,3e

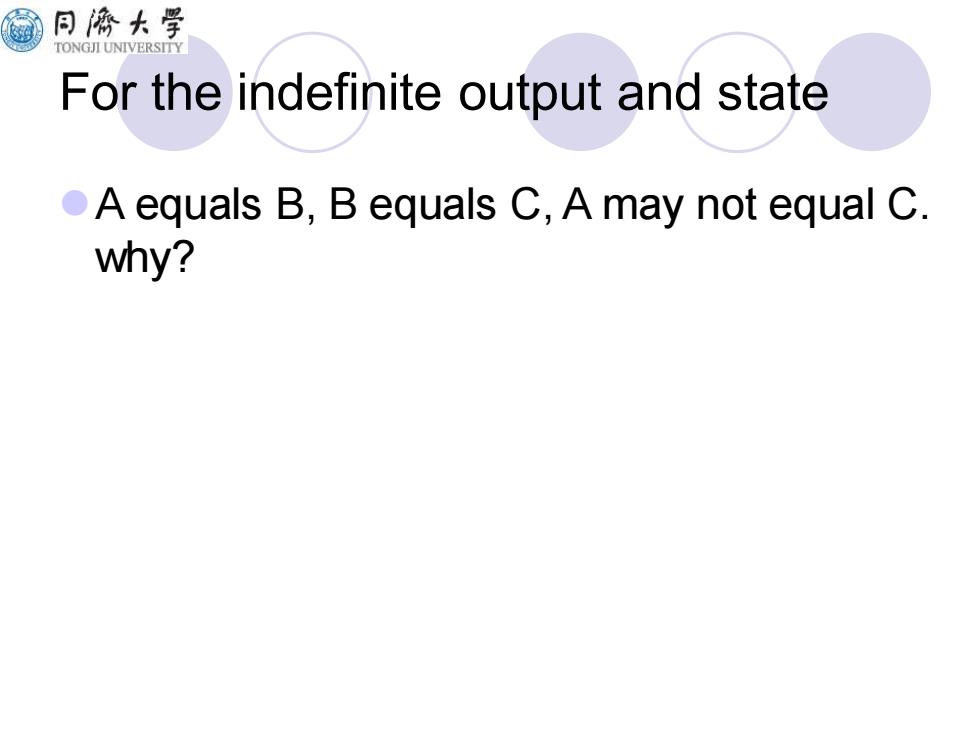

同桥大学 TONGJI UNIVERSITY For the indefinite output and state A equals B,B equals C,A may not equal C. why?
For the indefinite output and state ⚫A equals B, B equals C, A may not equal C. why?
