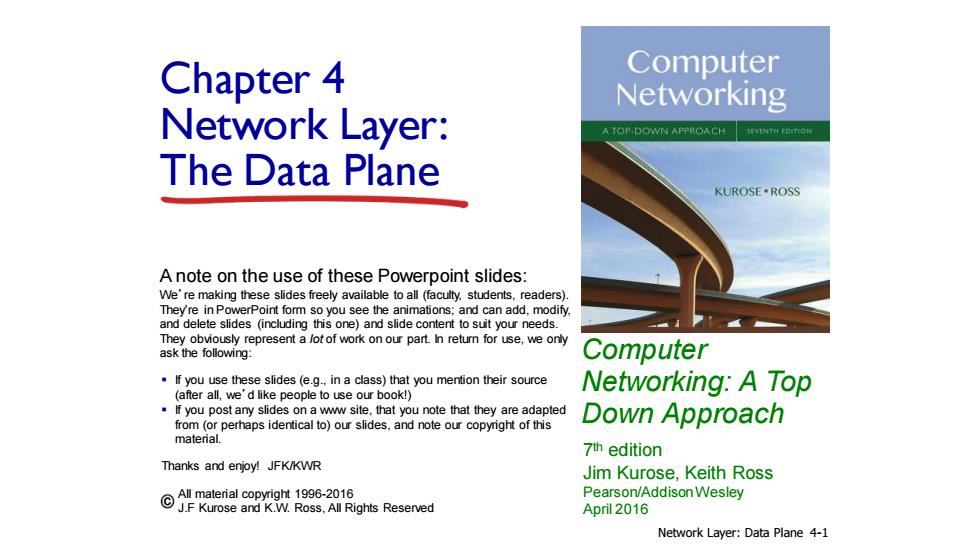

Chapter 4 Computer Networking Network Layer: ATO中DOWN APPROACH 华NTHEDITION The Data Plane KUROSE·ROSS A note on the use of these Powerpoint slides: We're making these slides freely available to all (faculty.students,readers). They're in PowerPoint form so you see the animations;and can add,modify. and delete slides (including this one)and slide content to suit your needs. They obviously represent a lot of work on our part.In return for use,we only ask the following: Computer If you use these slides (e.g.,in a class)that you mention their source (after all,we'd like people to use our book!) Networking:A Top If you post any slides on a ww site,that you note that they are adapted from(or perhaps identical to)our slides,and note our copyright of this Down Approach materal. 7th edition Thanks and enjoy!JFK/KWR Jim Kurose,Keith Ross A material copyight19-2016 Pearson/Addison Wesley J.F Kurose and K.W.Ross.All Rights Reserved April 2016 Network Layer:Data Plane 4-1
Computer Networking: A Top Down Approach A note on the use of these Powerpoint slides: We’re making these slides freely available to all (faculty, students, readers). They’re in PowerPoint form so you see the animations; and can add, modify, and delete slides (including this one) and slide content to suit your needs. They obviously represent a lot of work on our part. In return for use, we only ask the following: ▪ If you use these slides (e.g., in a class) that you mention their source (after all, we’d like people to use our book!) ▪ If you post any slides on a www site, that you note that they are adapted from (or perhaps identical to) our slides, and note our copyright of this material. Thanks and enjoy! JFK/KWR All material copyright 1996-2016 J.F Kurose and K.W. Ross, All Rights Reserved 7 th edition Jim Kurose, Keith Ross Pearson/Addison Wesley April 2016 Chapter 4 Network Layer: The Data Plane Network Layer: Data Plane 4-1
Chapter 4:outline 4.I Overview of Network 4.4 Generalized Forward and SDN layer 。natch ·data plane ·action 。control plane OpenFlow examples of match- 4.2 What's inside a router plus-action in action 4.3 IP:Internet Protocol ·datagram format ·fragmentation ·lPv4 addressing ·network address translation ·IPv6 Network Layer:Data Plane 4-2
4.1 Overview of Network layer • data plane • control plane 4.2 What’s inside a router 4.3 IP: Internet Protocol • datagram format • fragmentation • IPv4 addressing • network address translation • IPv6 4.4 Generalized Forward and SDN • match • action • OpenFlow examples of matchplus-action in action Chapter 4: outline Network Layer: Data Plane 4-2
Chapter 4:network layer chapter goals: understand principles behind network layer services,focusing on data plane: network layer service models forwarding versus routing ·how a router works generalized forwarding instantiation,implementation in the Internet Network Layer:Data Plane 4-3
Chapter 4: network layer chapter goals: ▪ understand principles behind network layer services, focusing on data plane: • network layer service models • forwarding versus routing • how a router works • generalized forwarding ▪ instantiation, implementation in the Internet Network Layer: Data Plane 4-3
Network layer transport segment from ata lin sending to receiving host etwork network on sending side data link data link physical physical data link encapsulates segments physical data link data link into datagrams physical physica on receiving side,delivers network data link data link physical physical segments to transport data link layer physical application network network layer protocols data link network physical data link data link in every host,router data link physical physical router examines header fields in all IP datagrams passing through it Network Layer:Data Plane 4-4
Network layer ▪ transport segment from sending to receiving host ▪ on sending side encapsulates segments into datagrams ▪ on receiving side, delivers segments to transport layer ▪ network layer protocols in every host, router ▪ router examines header fields in all IP datagrams passing through it application transport network data link physical application transport network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical Network Layer: Data Plane 4-4
Two key network-layer functions network-layer functions: analogy:taking a trip forwarding:move packets forwarding:process of from router's input to getting through single appropriate router output interchange routing:determine route taken by packets from routing:process of source to destination planning trip from source ·routing algorithms to destination Network Layer:Data Plane 4-5
Two key network-layer functions network-layer functions: ▪forwarding: move packets from router’s input to appropriate router output ▪routing: determine route taken by packets from source to destination • routing algorithms analogy: taking a trip ▪ forwarding: process of getting through single interchange ▪ routing: process of planning trip from source to destination Network Layer: Data Plane 4-5
