The execution schedule in Example 2.7 is predicated upon two assumptions:the memory system is capable of servicing multiple outstanding requests,and the processor is capable of switching threads at every cycle.In addition,it also requires the program to have an explicit specification of concurrency in the form of threads.Multithreaded processors are capable of maintaining the context of a number of threads of computation with outstanding requests(memory accesses,I/O,or communication requests)and execute them as the requests are satisfied.Machines such as the HEP and Tera rely on multithreaded processors that can switch the context of execution in every cycle.Consequently,they are able to hide latency effectively,provided there is enough concurrency(threads)to keep the processor from idling.The tradeoffs between concurrency and latency will be a recurring theme through many chapters of this text. Prefetching for Latency Hiding In a typical program,a data item is loaded and used by a processor in a small time window.If the load results in a cache miss,then the use stalls.A simple solution to this problem is to advance the load operation so that even if there is a cache miss,the data is likely to have arrived by the time it is used. However,if the data item has been overwritten between load and use,a fresh load is issued.Note that this is no worse than the situation in which the load had not been advanced.A careful examination of this technique reveals that prefetching works for much the same reason as multithreading.In advancing the loads,we are trying to identify independent threads of execution that have no resource dependency (i.e., use the same registers)with respect to other threads.Many compilers aggressively try to advance loads to mask memory system latency. Example 2.8 Hiding latency by prefetching Consider the problem of adding two vectors a and b using a single for loop.In the first iteration of the loop,the processor requests a[o]and b[0].Since these are not in the cache,the processor must pay the memory latency.While these requests are being serviced,the processor also requests a[1]and b[1].Assuming that each request is generated in one cycle (1 ns)and memory requests are satisfied in 100 ns,after 100 such requests the first set of data items is returned by the memory system.Subsequently,one pair of vector components will be returned every cycle.In this way,in each subsequent cycle,one addition can be performed and processor cycles are not wasted. 2.2.4 Tradeoffs of Multithreading and Prefetching While it might seem that multithreading and prefetching solve all the problems related to memory system performance,they are critically impacted by the memory bandwidth. Example 2.9 Impact of bandwidth on multithreaded programs Consider a computation running on a machine with a 1 GHz clock,4-word cache line,single cycle access to the cache,and 100 ns latency to DRAM.The computation has a cache hit ratio at 1 KB of 25%and at 32 KB of 90%.Consider two cases:first,a single threaded execution in which the entire cache is available to the serial context,and second,a multithreaded execution with 32 threads where each thread has a cache residency of 1 KB.If the computation makes one data request in every cycle of 1 ns,in the first case the bandwidth requirement to DRAM is one word every 10 ns since the other words come from the cache(90%cache hit ratio).This corresponds to a bandwidth of 400 MB/s.In the second case,the bandwidth requirement to DRAM increases to three words every four cycles of each thread (25%cache hit ratio).Assuming that all threads exhibit similar cache behavior,this corresponds to 0.75 words/ns,or 3 GB/s. Example 2.9 illustrates a very important issue,namely that the bandwidth requirements of a multithreaded system may increase very significantly because of the smaller cache residency of each thread.In the example,while a sustained DRAM bandwidth of 400 MB/s is reasonable,3.0 GB/s is more than most systems currently offer.At this point,multithreaded systems become bandwidth bound instead of latency bound.It is important to realize that multithreading and prefetching only address the latency problem and may often exacerbate the bandwidth problem
The execution schedule in Example 2.7 is predicated upon two assumptions: the memory system is capable of servicing multiple outstanding requests, and the processor is capable of switching threads at every cycle. In addition, it also requires the program to have an explicit specification of concurrency in the form of threads. Multithreaded processors are capable of maintaining the context of a number of threads of computation with outstanding requests (memory accesses, I/O, or communication requests) and execute them as the requests are satisfied. Machines such as the HEP and Tera rely on multithreaded processors that can switch the context of execution in every cycle. Consequently, they are able to hide latency effectively, provided there is enough concurrency (threads) to keep the processor from idling. The tradeoffs between concurrency and latency will be a recurring theme through many chapters of this text. Prefetching for Latency Hiding In a typical program, a data item is loaded and used by a processor in a small time window. If the load results in a cache miss, then the use stalls. A simple solution to this problem is to advance the load operation so that even if there is a cache miss, the data is likely to have arrived by the time it is used. However, if the data item has been overwritten between load and use, a fresh load is issued. Note that this is no worse than the situation in which the load had not been advanced. A careful examination of this technique reveals that prefetching works for much the same reason as multithreading. In advancing the loads, we are trying to identify independent threads of execution that have no resource dependency (i.e., use the same registers) with respect to other threads. Many compilers aggressively try to advance loads to mask memory system latency. Example 2.8 Hiding latency by prefetching Consider the problem of adding two vectors a and b using a single for loop. In the first iteration of the loop, the processor requests a[0] and b[0]. Since these are not in the cache, the processor must pay the memory latency. While these requests are being serviced, the processor also requests a[1] and b[1]. Assuming that each request is generated in one cycle (1 ns) and memory requests are satisfied in 100 ns, after 100 such requests the first set of data items is returned by the memory system. Subsequently, one pair of vector components will be returned every cycle. In this way, in each subsequent cycle, one addition can be performed and processor cycles are not wasted. 2.2.4 Tradeoffs of Multithreading and Prefetching While it might seem that multithreading and prefetching solve all the problems related to memory system performance, they are critically impacted by the memory bandwidth. Example 2.9 Impact of bandwidth on multithreaded programs Consider a computation running on a machine with a 1 GHz clock, 4-word cache line, single cycle access to the cache, and 100 ns latency to DRAM. The computation has a cache hit ratio at 1 KB of 25% and at 32 KB of 90%. Consider two cases: first, a single threaded execution in which the entire cache is available to the serial context, and second, a multithreaded execution with 32 threads where each thread has a cache residency of 1 KB. If the computation makes one data request in every cycle of 1 ns, in the first case the bandwidth requirement to DRAM is one word every 10 ns since the other words come from the cache (90% cache hit ratio). This corresponds to a bandwidth of 400 MB/s. In the second case, the bandwidth requirement to DRAM increases to three words every four cycles of each thread (25% cache hit ratio). Assuming that all threads exhibit similar cache behavior, this corresponds to 0.75 words/ns, or 3 GB/s. Example 2.9 illustrates a very important issue, namely that the bandwidth requirements of a multithreaded system may increase very significantly because of the smaller cache residency of each thread. In the example, while a sustained DRAM bandwidth of 400 MB/s is reasonable, 3.0 GB/s is more than most systems currently offer. At this point, multithreaded systems become bandwidth bound instead of latency bound. It is important to realize that multithreading and prefetching only address the latency problem and may often exacerbate the bandwidth problem. Page 9 of 56 file://C:\Documents and Settings\CIC000\Local Settings\Temp\~hh1AB0.htm 2/8/2013

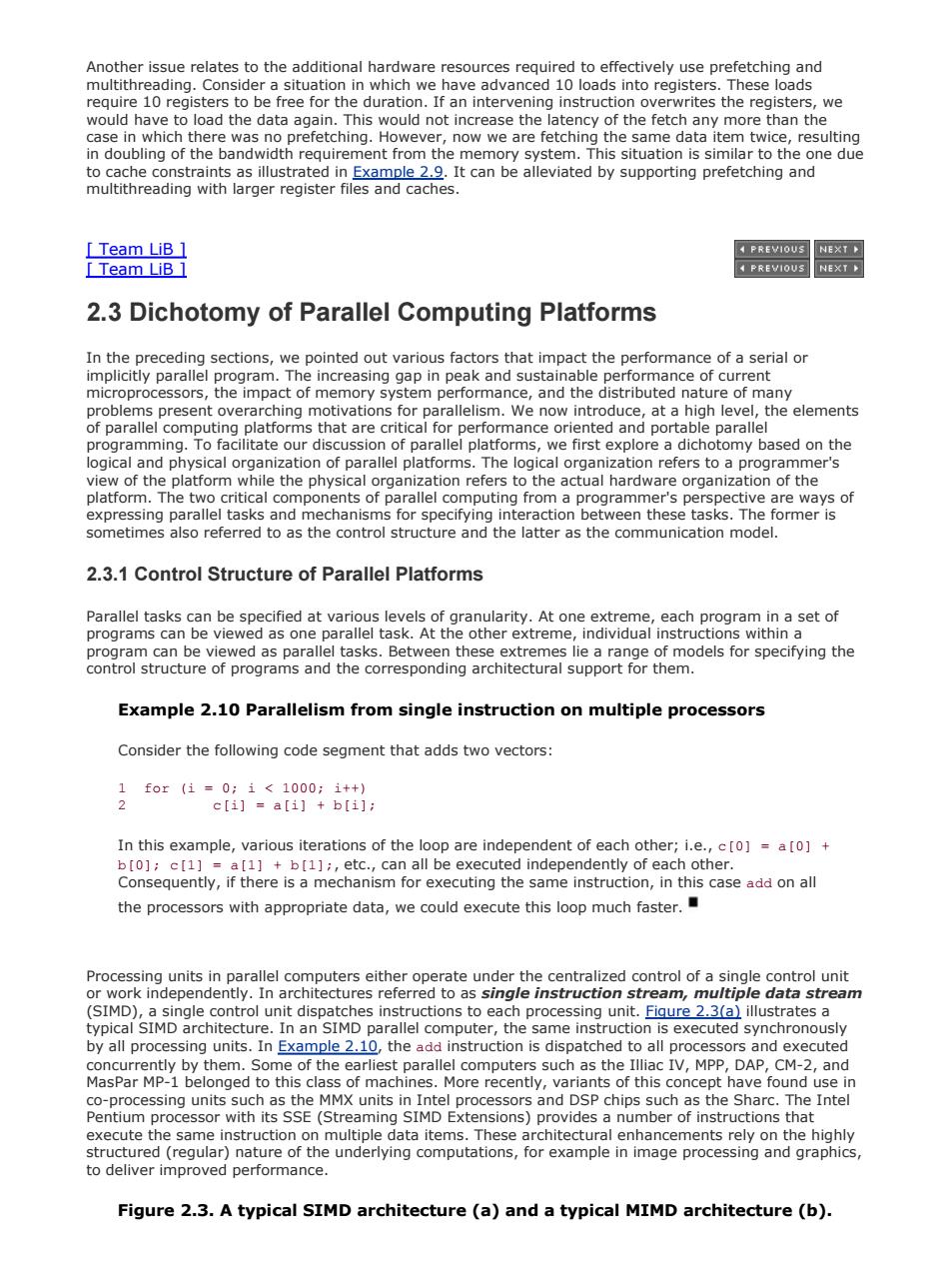

Another issue relates to the additional hardware resources required to effectively use prefetching and multithreading.Consider a situation in which we have advanced 10 loads into registers.These loads require 10 registers to be free for the duration.If an intervening instruction overwrites the registers,we would have to load the data again.This would not increase the latency of the fetch any more than the case in which there was no prefetching.However,now we are fetching the same data item twice,resulting in doubling of the bandwidth requirement from the memory system.This situation is similar to the one due to cache constraints as illustrated in Example 2.9.It can be alleviated by supporting prefetching and multithreading with larger register files and caches. Team LiB 4 PREVIOUS NEXT Team LiB 1 4 PREVIOUS NEXT 2.3 Dichotomy of Parallel Computing Platforms In the preceding sections,we pointed out various factors that impact the performance of a serial or implicitly parallel program.The increasing gap in peak and sustainable performance of current microprocessors,the impact of memory system performance,and the distributed nature of many problems present overarching motivations for parallelism.We now introduce,at a high level,the elements of parallel computing platforms that are critical for performance oriented and portable parallel programming.To facilitate our discussion of parallel platforms,we first explore a dichotomy based on the logical and physical organization of parallel platforms.The logical organization refers to a programmer's view of the platform while the physical organization refers to the actual hardware organization of the platform.The two critical components of parallel computing from a programmer's perspective are ways of expressing parallel tasks and mechanisms for specifying interaction between these tasks.The former is sometimes also referred to as the control structure and the latter as the communication model. 2.3.1 Control Structure of Parallel Platforms Parallel tasks can be specified at various levels of granularity.At one extreme,each program in a set of programs can be viewed as one parallel task.At the other extreme,individual instructions within a program can be viewed as parallel tasks.Between these extremes lie a range of models for specifying the control structure of programs and the corresponding architectural support for them. Example 2.10 Parallelism from single instruction on multiple processors Consider the following code segment that adds two vectors: 1 for(i=0:i<1000;i++) 2 c[i]=a[i]+b[i]: In this example,various iterations of the loop are independent of each other;i.e.,c[]=a[0]+ b[0];c[1]a[1]+b[1];,etc.,can all be executed independently of each other. Consequently,if there is a mechanism for executing the same instruction,in this case add on all the processors with appropriate data,we could execute this loop much faster. Processing units in parallel computers either operate under the centralized control of a single control unit or work independently.In architectures referred to as single instruction stream,multiple data stream (SIMD),a single control unit dispatches instructions to each processing unit.Fiqure 2.3(a)illustrates a typical SIMD architecture.In an SIMD parallel computer,the same instruction is executed synchronously by all processing units.In Example 2.10,the add instruction is dispatched to all processors and executed concurrently by them.Some of the earliest parallel computers such as the Illiac IV,MPP,DAP,CM-2,and MasPar MP-1 belonged to this class of machines.More recently,variants of this concept have found use in co-processing units such as the MMX units in Intel processors and DSP chips such as the Sharc.The Intel Pentium processor with its SSE (Streaming SIMD Extensions)provides a number of instructions that execute the same instruction on multiple data items.These architectural enhancements rely on the highly structured (regular)nature of the underlying computations,for example in image processing and graphics, to deliver improved performance. Figure 2.3.A typical SIMD architecture (a)and a typical MIMD architecture (b)
Another issue relates to the additional hardware resources required to effectively use prefetching and multithreading. Consider a situation in which we have advanced 10 loads into registers. These loads require 10 registers to be free for the duration. If an intervening instruction overwrites the registers, we would have to load the data again. This would not increase the latency of the fetch any more than the case in which there was no prefetching. However, now we are fetching the same data item twice, resulting in doubling of the bandwidth requirement from the memory system. This situation is similar to the one due to cache constraints as illustrated in Example 2.9. It can be alleviated by supporting prefetching and multithreading with larger register files and caches. [ Team LiB ] [ Team LiB ] 2.3 Dichotomy of Parallel Computing Platforms In the preceding sections, we pointed out various factors that impact the performance of a serial or implicitly parallel program. The increasing gap in peak and sustainable performance of current microprocessors, the impact of memory system performance, and the distributed nature of many problems present overarching motivations for parallelism. We now introduce, at a high level, the elements of parallel computing platforms that are critical for performance oriented and portable parallel programming. To facilitate our discussion of parallel platforms, we first explore a dichotomy based on the logical and physical organization of parallel platforms. The logical organization refers to a programmer's view of the platform while the physical organization refers to the actual hardware organization of the platform. The two critical components of parallel computing from a programmer's perspective are ways of expressing parallel tasks and mechanisms for specifying interaction between these tasks. The former is sometimes also referred to as the control structure and the latter as the communication model. 2.3.1 Control Structure of Parallel Platforms Parallel tasks can be specified at various levels of granularity. At one extreme, each program in a set of programs can be viewed as one parallel task. At the other extreme, individual instructions within a program can be viewed as parallel tasks. Between these extremes lie a range of models for specifying the control structure of programs and the corresponding architectural support for them. Example 2.10 Parallelism from single instruction on multiple processors Consider the following code segment that adds two vectors: 1 for (i = 0; i < 1000; i++) 2 c[i] = a[i] + b[i]; In this example, various iterations of the loop are independent of each other; i.e., c[0] = a[0] + b[0]; c[1] = a[1] + b[1];, etc., can all be executed independently of each other. Consequently, if there is a mechanism for executing the same instruction, in this case add on all the processors with appropriate data, we could execute this loop much faster. Processing units in parallel computers either operate under the centralized control of a single control unit or work independently. In architectures referred to as single instruction stream, multiple data stream (SIMD), a single control unit dispatches instructions to each processing unit. Figure 2.3(a) illustrates a typical SIMD architecture. In an SIMD parallel computer, the same instruction is executed synchronously by all processing units. In Example 2.10, the add instruction is dispatched to all processors and executed concurrently by them. Some of the earliest parallel computers such as the Illiac IV, MPP, DAP, CM-2, and MasPar MP-1 belonged to this class of machines. More recently, variants of this concept have found use in co-processing units such as the MMX units in Intel processors and DSP chips such as the Sharc. The Intel Pentium processor with its SSE (Streaming SIMD Extensions) provides a number of instructions that execute the same instruction on multiple data items. These architectural enhancements rely on the highly structured (regular) nature of the underlying computations, for example in image processing and graphics, to deliver improved performance. Figure 2.3. A typical SIMD architecture (a) and a typical MIMD architecture (b). Page 10 of 56 file://C:\Documents and Settings\CIC000\Local Settings\Temp\~hh1AB0.htm 2/8/2013

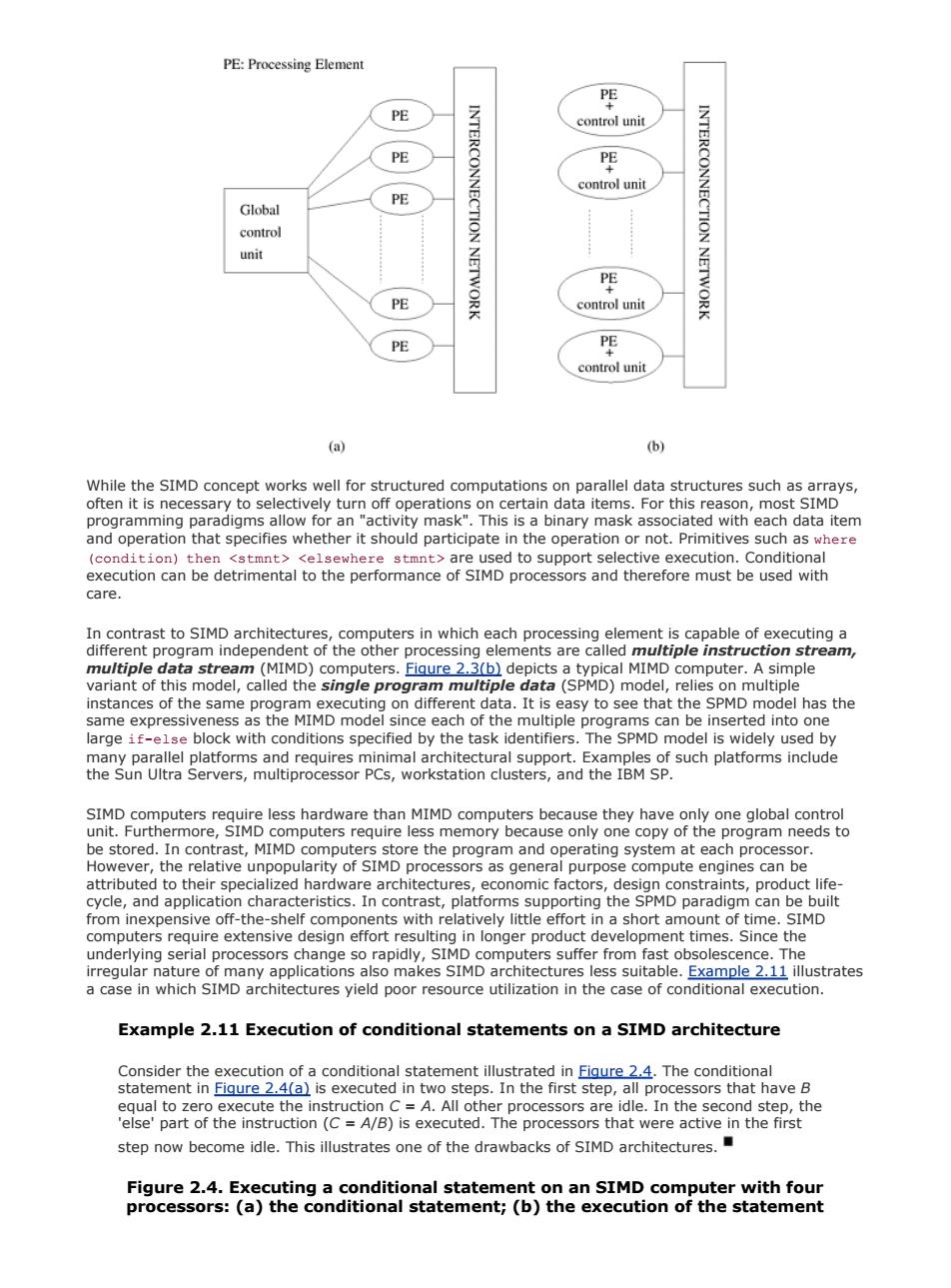

PE:Processing Element PE control unit PE 哩 control unit PE Global INTERCONNECTION INTERCONNECTION control unit 晖 PE NETWORK control unit NETWORK PE 晖 control unit (a) (b) While the SIMD concept works well for structured computations on parallel data structures such as arrays, often it is necessary to selectively turn off operations on certain data items.For this reason,most SIMD programming paradigms allow for an"activity mask".This is a binary mask associated with each data item and operation that specifies whether it should participate in the operation or not.Primitives such as where (condition)then <stmnt><elsewhere stmnt>are used to support selective execution.Conditional execution can be detrimental to the performance of SIMD processors and therefore must be used with care. In contrast to SIMD architectures,computers in which each processing element is capable of executing a different program independent of the other processing elements are called multiple instruction stream, multiple data stream (MIMD)computers.Figure 2.3(b)depicts a typical MIMD computer.A simple variant of this model,called the single program multiple data(SPMD)model,relies on multiple instances of the same program executing on different data.It is easy to see that the SPMD model has the same expressiveness as the MIMD model since each of the multiple programs can be inserted into one large if-else block with conditions specified by the task identifiers.The SPMD model is widely used by many parallel platforms and requires minimal architectural support.Examples of such platforms include the Sun Ultra Servers,multiprocessor PCs,workstation clusters,and the IBM SP. SIMD computers require less hardware than MIMD computers because they have only one global control unit.Furthermore,SIMD computers require less memory because only one copy of the program needs to be stored.In contrast,MIMD computers store the program and operating system at each processor. However,the relative unpopularity of SIMD processors as general purpose compute engines can be attributed to their specialized hardware architectures,economic factors,design constraints,product life- cycle,and application characteristics.In contrast,platforms supporting the SPMD paradigm can be built from inexpensive off-the-shelf components with relatively little effort in a short amount of time.SIMD computers require extensive design effort resulting in longer product development times.Since the underlying serial processors change so rapidly,SIMD computers suffer from fast obsolescence.The irregular nature of many applications also makes SIMD architectures less suitable.Example 2.11 illustrates a case in which SIMD architectures yield poor resource utilization in the case of conditional execution. Example 2.11 Execution of conditional statements on a SIMD architecture Consider the execution of a conditional statement illustrated in Figure 2.4.The conditional statement in Figure 2.4(a)is executed in two steps.In the first step,all processors that have B equal to zero execute the instruction C =A.All other processors are idle.In the second step,the else'part of the instruction(C A/B)is executed.The processors that were active in the first step now become idle.This illustrates one of the drawbacks of SIMD architectures. Figure 2.4.Executing a conditional statement on an SIMD computer with four processors:(a)the conditional statement;(b)the execution of the statement
While the SIMD concept works well for structured computations on parallel data structures such as arrays, often it is necessary to selectively turn off operations on certain data items. For this reason, most SIMD programming paradigms allow for an "activity mask". This is a binary mask associated with each data item and operation that specifies whether it should participate in the operation or not. Primitives such as where (condition) then <stmnt> <elsewhere stmnt> are used to support selective execution. Conditional execution can be detrimental to the performance of SIMD processors and therefore must be used with care. In contrast to SIMD architectures, computers in which each processing element is capable of executing a different program independent of the other processing elements are called multiple instruction stream, multiple data stream (MIMD) computers. Figure 2.3(b) depicts a typical MIMD computer. A simple variant of this model, called the single program multiple data (SPMD) model, relies on multiple instances of the same program executing on different data. It is easy to see that the SPMD model has the same expressiveness as the MIMD model since each of the multiple programs can be inserted into one large if-else block with conditions specified by the task identifiers. The SPMD model is widely used by many parallel platforms and requires minimal architectural support. Examples of such platforms include the Sun Ultra Servers, multiprocessor PCs, workstation clusters, and the IBM SP. SIMD computers require less hardware than MIMD computers because they have only one global control unit. Furthermore, SIMD computers require less memory because only one copy of the program needs to be stored. In contrast, MIMD computers store the program and operating system at each processor. However, the relative unpopularity of SIMD processors as general purpose compute engines can be attributed to their specialized hardware architectures, economic factors, design constraints, product lifecycle, and application characteristics. In contrast, platforms supporting the SPMD paradigm can be built from inexpensive off-the-shelf components with relatively little effort in a short amount of time. SIMD computers require extensive design effort resulting in longer product development times. Since the underlying serial processors change so rapidly, SIMD computers suffer from fast obsolescence. The irregular nature of many applications also makes SIMD architectures less suitable. Example 2.11 illustrates a case in which SIMD architectures yield poor resource utilization in the case of conditional execution. Example 2.11 Execution of conditional statements on a SIMD architecture Consider the execution of a conditional statement illustrated in Figure 2.4. The conditional statement in Figure 2.4(a) is executed in two steps. In the first step, all processors that have B equal to zero execute the instruction C = A. All other processors are idle. In the second step, the 'else' part of the instruction (C = A/B) is executed. The processors that were active in the first step now become idle. This illustrates one of the drawbacks of SIMD architectures. Figure 2.4. Executing a conditional statement on an SIMD computer with four processors: (a) the conditional statement; (b) the execution of the statement Page 11 of 56 file://C:\Documents and Settings\CIC000\Local Settings\Temp\~hh1AB0.htm 2/8/2013

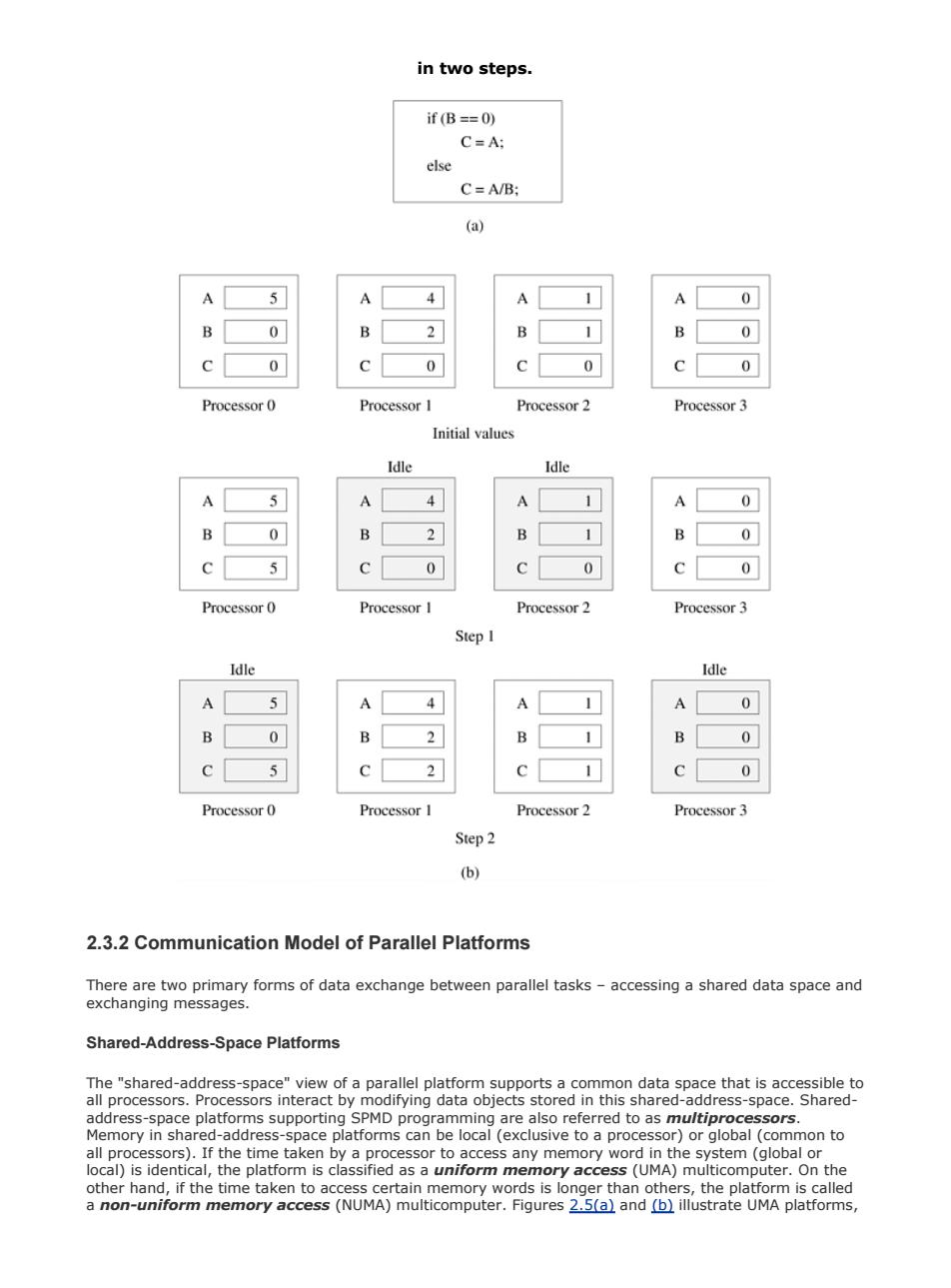

in two steps. if (B==0) C=A: else C=A/B; (a) A 5 4 A A 0 B B 2 B 0 0 C 0 C 0 Processor 0 Processor 1 Processor 2 Processor 3 Initial values Idle Idle A 5 A 4 A 0 B 0 B 2 B 0 C 5 C 0 C 0 0 Processor0 Processor I Processor 2 Processor 3 Step I Idle Idle A 5 A A 0 B 0 B 2 B 0 C 5 2 C 0 Processor 0 Processor 1 Processor 2 Processor 3 Step2 (b) 2.3.2 Communication Model of Parallel Platforms There are two primary forms of data exchange between parallel tasks-accessing a shared data space and exchanging messages. Shared-Address-Space Platforms The "shared-address-space"view of a parallel platform supports a common data space that is accessible to all processors.Processors interact by modifying data objects stored in this shared-address-space.Shared- address-space platforms supporting SPMD programming are also referred to as multiprocessors. Memory in shared-address-space platforms can be local (exclusive to a processor)or global(common to all processors).If the time taken by a processor to access any memory word in the system (global or local)is identical,the platform is classified as a uniform memory access (UMA)multicomputer.On the other hand,if the time taken to access certain memory words is longer than others,the platform is called a non-uniform memory access(NUMA)multicomputer.Figures 2.5(a)and (b)illustrate UMA platforms
in two steps. 2.3.2 Communication Model of Parallel Platforms There are two primary forms of data exchange between parallel tasks – accessing a shared data space and exchanging messages. Shared-Address-Space Platforms The "shared-address-space" view of a parallel platform supports a common data space that is accessible to all processors. Processors interact by modifying data objects stored in this shared-address-space. Sharedaddress-space platforms supporting SPMD programming are also referred to as multiprocessors. Memory in shared-address-space platforms can be local (exclusive to a processor) or global (common to all processors). If the time taken by a processor to access any memory word in the system (global or local) is identical, the platform is classified as a uniform memory access (UMA) multicomputer. On the other hand, if the time taken to access certain memory words is longer than others, the platform is called a non-uniform memory access (NUMA) multicomputer. Figures 2.5(a) and (b) illustrate UMA platforms, Page 12 of 56 file://C:\Documents and Settings\CIC000\Local Settings\Temp\~hh1AB0.htm 2/8/2013

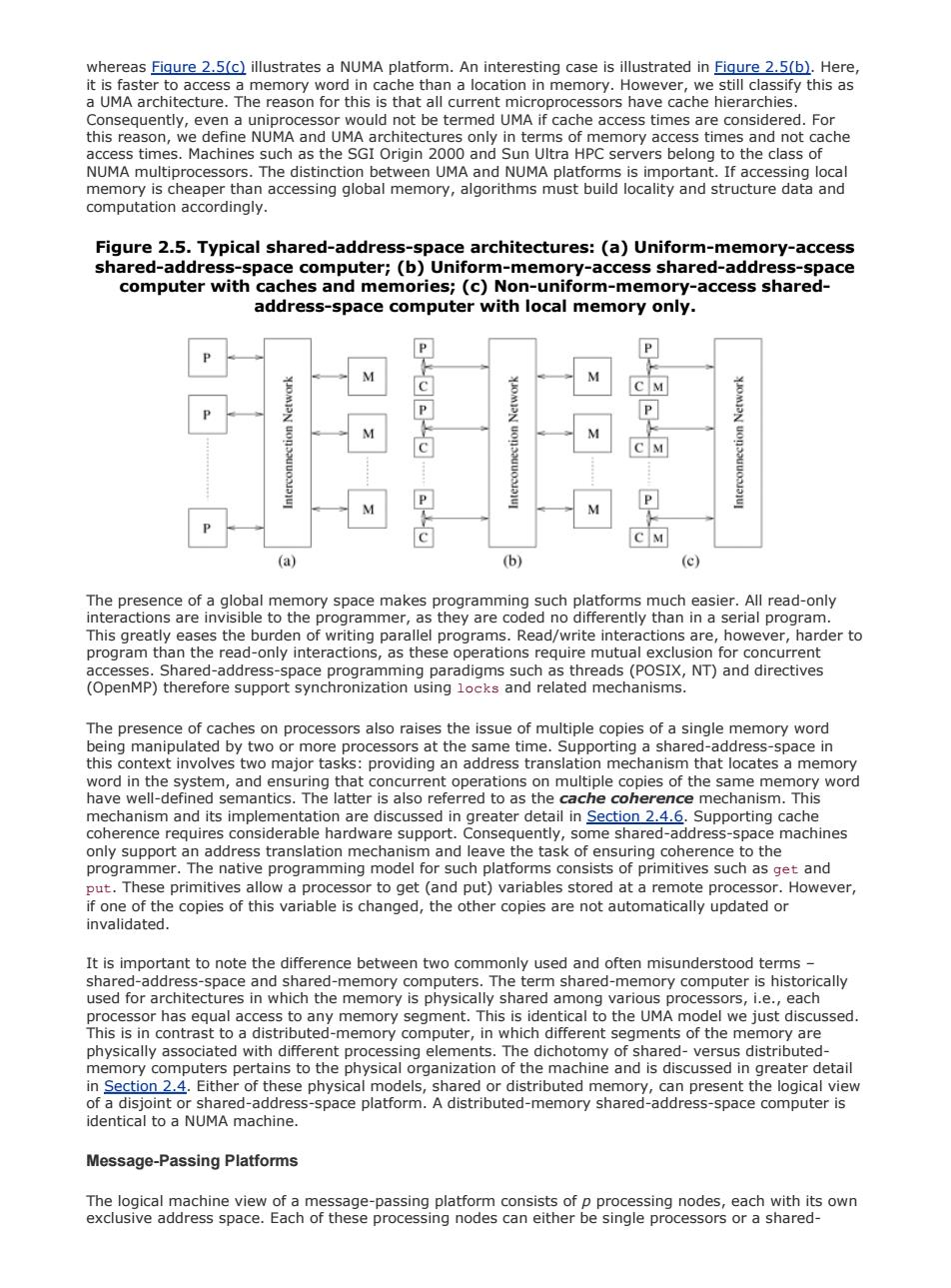

whereas Fiqure 2.5(c)illustrates a NUMA platform.An interesting case is illustrated in Fiqure 2.5(b).Here, it is faster to access a memory word in cache than a location in memory.However,we still classify this as a UMA architecture.The reason for this is that all current microprocessors have cache hierarchies. Consequently,even a uniprocessor would not be termed UMA if cache access times are considered.For this reason,we define NUMA and UMA architectures only in terms of memory access times and not cache access times.Machines such as the SGI Origin 2000 and Sun Ultra HPC servers belong to the class of NUMA multiprocessors.The distinction between UMA and NUMA platforms is important.If accessing local memory is cheaper than accessing global memory,algorithms must build locality and structure data and computation accordingly. Figure 2.5.Typical shared-address-space architectures:(a)Uniform-memory-access shared-address-space computer;(b)Uniform-memory-access shared-address-space computer with caches and memories;(c)Non-uniform-memory-access shared- address-space computer with local memory only. P P C M C M (a) (b) (c) The presence of a global memory space makes programming such platforms much easier.All read-only interactions are invisible to the programmer,as they are coded no differently than in a serial program. This greatly eases the burden of writing parallel programs.Read/write interactions are,however,harder to program than the read-only interactions,as these operations require mutual exclusion for concurrent accesses.Shared-address-space programming paradigms such as threads(POSIX,NT)and directives (OpenMP)therefore support synchronization using locks and related mechanisms. The presence of caches on processors also raises the issue of multiple copies of a single memory word being manipulated by two or more processors at the same time.Supporting a shared-address-space in this context involves two major tasks:providing an address translation mechanism that locates a memory word in the system,and ensuring that concurrent operations on multiple copies of the same memory word have well-defined semantics.The latter is also referred to as the cache coherence mechanism.This mechanism and its implementation are discussed in greater detail in Section 2.4.6.Supporting cache coherence requires considerable hardware support.Consequently,some shared-address-space machines only support an address translation mechanism and leave the task of ensuring coherence to the programmer.The native programming model for such platforms consists of primitives such as get and put.These primitives allow a processor to get (and put)variables stored at a remote processor.However, if one of the copies of this variable is changed,the other copies are not automatically updated or invalidated. It is important to note the difference between two commonly used and often misunderstood terms shared-address-space and shared-memory computers.The term shared-memory computer is historically used for architectures in which the memory is physically shared among various processors,i.e.,each processor has equal access to any memory segment.This is identical to the UMA model we just discussed. This is in contrast to a distributed-memory computer,in which different segments of the memory are physically associated with different processing elements.The dichotomy of shared-versus distributed- memory computers pertains to the physical organization of the machine and is discussed in greater detail in Section 2.4.Either of these physical models,shared or distributed memory,can present the logical view of a disjoint or shared-address-space platform.A distributed-memory shared-address-space computer is identical to a NUMA machine. Message-Passing Platforms The logical machine view of a message-passing platform consists of p processing nodes,each with its own exclusive address space.Each of these processing nodes can either be single processors or a shared-
whereas Figure 2.5(c) illustrates a NUMA platform. An interesting case is illustrated in Figure 2.5(b). Here, it is faster to access a memory word in cache than a location in memory. However, we still classify this as a UMA architecture. The reason for this is that all current microprocessors have cache hierarchies. Consequently, even a uniprocessor would not be termed UMA if cache access times are considered. For this reason, we define NUMA and UMA architectures only in terms of memory access times and not cache access times. Machines such as the SGI Origin 2000 and Sun Ultra HPC servers belong to the class of NUMA multiprocessors. The distinction between UMA and NUMA platforms is important. If accessing local memory is cheaper than accessing global memory, algorithms must build locality and structure data and computation accordingly. Figure 2.5. Typical shared-address-space architectures: (a) Uniform-memory-access shared-address-space computer; (b) Uniform-memory-access shared-address-space computer with caches and memories; (c) Non-uniform-memory-access sharedaddress-space computer with local memory only. The presence of a global memory space makes programming such platforms much easier. All read-only interactions are invisible to the programmer, as they are coded no differently than in a serial program. This greatly eases the burden of writing parallel programs. Read/write interactions are, however, harder to program than the read-only interactions, as these operations require mutual exclusion for concurrent accesses. Shared-address-space programming paradigms such as threads (POSIX, NT) and directives (OpenMP) therefore support synchronization using locks and related mechanisms. The presence of caches on processors also raises the issue of multiple copies of a single memory word being manipulated by two or more processors at the same time. Supporting a shared-address-space in this context involves two major tasks: providing an address translation mechanism that locates a memory word in the system, and ensuring that concurrent operations on multiple copies of the same memory word have well-defined semantics. The latter is also referred to as the cache coherence mechanism. This mechanism and its implementation are discussed in greater detail in Section 2.4.6. Supporting cache coherence requires considerable hardware support. Consequently, some shared-address-space machines only support an address translation mechanism and leave the task of ensuring coherence to the programmer. The native programming model for such platforms consists of primitives such as get and put. These primitives allow a processor to get (and put) variables stored at a remote processor. However, if one of the copies of this variable is changed, the other copies are not automatically updated or invalidated. It is important to note the difference between two commonly used and often misunderstood terms – shared-address-space and shared-memory computers. The term shared-memory computer is historically used for architectures in which the memory is physically shared among various processors, i.e., each processor has equal access to any memory segment. This is identical to the UMA model we just discussed. This is in contrast to a distributed-memory computer, in which different segments of the memory are physically associated with different processing elements. The dichotomy of shared- versus distributedmemory computers pertains to the physical organization of the machine and is discussed in greater detail in Section 2.4. Either of these physical models, shared or distributed memory, can present the logical view of a disjoint or shared-address-space platform. A distributed-memory shared-address-space computer is identical to a NUMA machine. Message-Passing Platforms The logical machine view of a message-passing platform consists of p processing nodes, each with its own exclusive address space. Each of these processing nodes can either be single processors or a sharedPage 13 of 56 file://C:\Documents and Settings\CIC000\Local Settings\Temp\~hh1AB0.htm 2/8/2013
