6 CHAPTER 1 Hello,world of concurrency in C++! The shared address space and lack of protection of data Process between threads makes the overhead associated with using multi- ple threads much smaller than that from using multiple pro- Thread 1 cesses,because the operating system has less bookkeeping to do. But the flexibility of shared memory also comes with a price:if data is accessed by multiple threads,the application programmer Shared memory must ensure that the view of data seen by each thread is consistent whenever it is accessed.The issues surrounding sharing data Thread 2 between threads and the tools to use and guidelines to follow to avoid problems are covered throughout this book,notably in chapters 3,4,5,and 8.The problems are not insurmountable, Figure 1.4 Commu- provided suitable care is taken when writing the code,but they do nication between a pair of threads mean that a great deal of thought must go into the communica- runningconcurrently tion between threads. in a single process The low overhead associated with launching and communicat- ing between multiple threads within a process compared to launching and communi- cating between multiple single-threaded processes means that this is the favored approach to concurrency in mainstream languages including C++,despite the poten- tial problems arising from the shared memory.In addition,the C++Standard doesn't provide any intrinsic support for communication between processes,so applications that use multiple processes will have to rely on platform-specific APIs to do so.This book therefore focuses exclusively on using multithreading for concurrency,and future refer- ences to concurrency assume that this is achieved by using multiple threads. Having clarified what we mean by concurrency,let's now look at why you would use concurrency in your applications. 1.2 Why use concurrency? There are two main reasons to use concurrency in an application:separation of con- cerns and performance.In fact,I'd go so far as to say that they're pretty much the only reasons to use concurrency;anything else boils down to one or the other(or maybe even both)when you look hard enough (well,except for reasons like "because I want to"). 1.2.1 Using concurrency for separation of concerns Separation of concerns is almost always a good idea when writing software;by group- ing related bits of code together and keeping unrelated bits of code apart,you can make your programs easier to understand and test,and thus less likely to contain bugs.You can use concurrency to separate distinct areas of functionality,even when the operations in these distinct areas need to happen at the same time;without the explicit use of concurrency you either have to write a task-switching framework or actively make calls to unrelated areas of code during an operation. Consider a processing-intensive application with a user interface,such as a DVD player application for a desktop computer.Such an application fundamentally has two
6 CHAPTER 1 Hello, world of concurrency in C++! The shared address space and lack of protection of data between threads makes the overhead associated with using multiple threads much smaller than that from using multiple processes, because the operating system has less bookkeeping to do. But the flexibility of shared memory also comes with a price: if data is accessed by multiple threads, the application programmer must ensure that the view of data seen by each thread is consistent whenever it is accessed. The issues surrounding sharing data between threads and the tools to use and guidelines to follow to avoid problems are covered throughout this book, notably in chapters 3, 4, 5, and 8. The problems are not insurmountable, provided suitable care is taken when writing the code, but they do mean that a great deal of thought must go into the communication between threads. The low overhead associated with launching and communicating between multiple threads within a process compared to launching and communicating between multiple single-threaded processes means that this is the favored approach to concurrency in mainstream languages including C++, despite the potential problems arising from the shared memory. In addition, the C++ Standard doesn’t provide any intrinsic support for communication between processes, so applications that use multiple processes will have to rely on platform-specific APIs to do so. This book therefore focuses exclusively on using multithreading for concurrency, and future references to concurrency assume that this is achieved by using multiple threads. Having clarified what we mean by concurrency, let’s now look at why you would use concurrency in your applications. 1.2 Why use concurrency? There are two main reasons to use concurrency in an application: separation of concerns and performance. In fact, I’d go so far as to say that they’re pretty much the only reasons to use concurrency; anything else boils down to one or the other (or maybe even both) when you look hard enough (well, except for reasons like “because I want to”). 1.2.1 Using concurrency for separation of concerns Separation of concerns is almost always a good idea when writing software; by grouping related bits of code together and keeping unrelated bits of code apart, you can make your programs easier to understand and test, and thus less likely to contain bugs. You can use concurrency to separate distinct areas of functionality, even when the operations in these distinct areas need to happen at the same time; without the explicit use of concurrency you either have to write a task-switching framework or actively make calls to unrelated areas of code during an operation. Consider a processing-intensive application with a user interface, such as a DVD player application for a desktop computer. Such an application fundamentally has two Figure 1.4 Communication between a pair of threads running concurrently in a single process

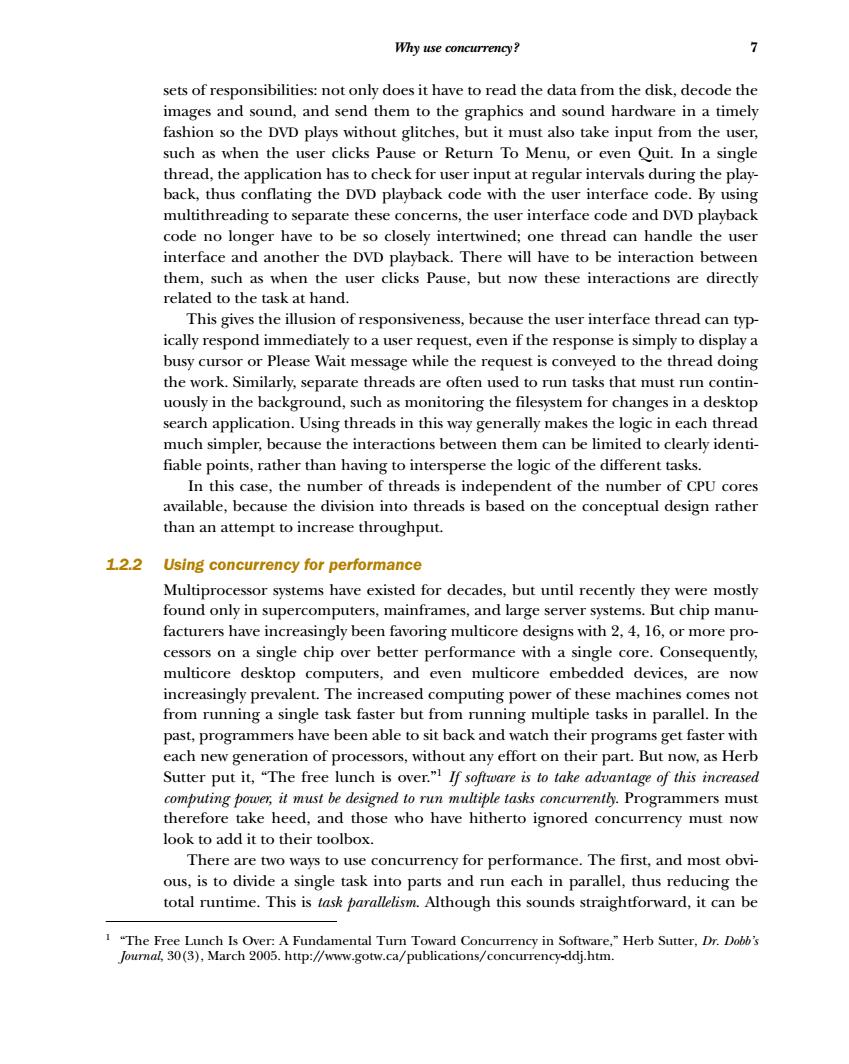

Why use concurrency？ 7 sets of responsibilities:not only does it have to read the data from the disk,decode the images and sound,and send them to the graphics and sound hardware in a timely fashion so the DVD plays without glitches,but it must also take input from the user, such as when the user clicks Pause or Return To Menu,or even Quit.In a single thread,the application has to check for user input at regular intervals during the play- back,thus conflating the DVD playback code with the user interface code.By using multithreading to separate these concerns,the user interface code and DVD playback code no longer have to be so closely intertwined;one thread can handle the user interface and another the DVD playback.There will have to be interaction between them,such as when the user clicks Pause,but now these interactions are directly related to the task at hand. This gives the illusion of responsiveness,because the user interface thread can typ- ically respond immediately to a user request,even if the response is simply to display a busy cursor or Please Wait message while the request is conveyed to the thread doing the work.Similarly,separate threads are often used to run tasks that must run contin- uously in the background,such as monitoring the filesystem for changes in a desktop search application.Using threads in this way generally makes the logic in each thread much simpler,because the interactions between them can be limited to clearly identi- fiable points,rather than having to intersperse the logic of the different tasks. In this case,the number of threads is independent of the number of CPU cores available,because the division into threads is based on the conceptual design rather than an attempt to increase throughput. 1.2.2 Using concurrency for performance Multiprocessor systems have existed for decades,but until recently they were mostly found only in supercomputers,mainframes,and large server systems.But chip manu- facturers have increasingly been favoring multicore designs with 2,4,16,or more pro- cessors on a single chip over better performance with a single core.Consequently, multicore desktop computers,and even multicore embedded devices,are now increasingly prevalent.The increased computing power of these machines comes not from running a single task faster but from running multiple tasks in parallel.In the past,programmers have been able to sit back and watch their programs get faster with each new generation of processors,without any effort on their part.But now,as Herb Sutter put it "The free lunch is over."If software is to take advantage of this increased computing power,it must be designed to run multiple tasks concurrently.Programmers must therefore take heed,and those who have hitherto ignored concurrency must now look to add it to their toolbox. There are two ways to use concurrency for performance.The first,and most obvi- ous,is to divide a single task into parts and run each in parallel,thus reducing the total runtime.This is task parallelism.Although this sounds straightforward,it can be "The Free Lunch Is Over:A Fundamental Turn Toward Concurrency in Software,"Herb Sutter,Dr.Dobb's Journal,30(3),March 2005.http://www.gotw.ca/publications/concurrency-ddj.htm
Why use concurrency? 7 sets of responsibilities: not only does it have to read the data from the disk, decode the images and sound, and send them to the graphics and sound hardware in a timely fashion so the DVD plays without glitches, but it must also take input from the user, such as when the user clicks Pause or Return To Menu, or even Quit. In a single thread, the application has to check for user input at regular intervals during the playback, thus conflating the DVD playback code with the user interface code. By using multithreading to separate these concerns, the user interface code and DVD playback code no longer have to be so closely intertwined; one thread can handle the user interface and another the DVD playback. There will have to be interaction between them, such as when the user clicks Pause, but now these interactions are directly related to the task at hand. This gives the illusion of responsiveness, because the user interface thread can typically respond immediately to a user request, even if the response is simply to display a busy cursor or Please Wait message while the request is conveyed to the thread doing the work. Similarly, separate threads are often used to run tasks that must run continuously in the background, such as monitoring the filesystem for changes in a desktop search application. Using threads in this way generally makes the logic in each thread much simpler, because the interactions between them can be limited to clearly identifiable points, rather than having to intersperse the logic of the different tasks. In this case, the number of threads is independent of the number of CPU cores available, because the division into threads is based on the conceptual design rather than an attempt to increase throughput. 1.2.2 Using concurrency for performance Multiprocessor systems have existed for decades, but until recently they were mostly found only in supercomputers, mainframes, and large server systems. But chip manufacturers have increasingly been favoring multicore designs with 2, 4, 16, or more processors on a single chip over better performance with a single core. Consequently, multicore desktop computers, and even multicore embedded devices, are now increasingly prevalent. The increased computing power of these machines comes not from running a single task faster but from running multiple tasks in parallel. In the past, programmers have been able to sit back and watch their programs get faster with each new generation of processors, without any effort on their part. But now, as Herb Sutter put it, “The free lunch is over.”1 If software is to take advantage of this increased computing power, it must be designed to run multiple tasks concurrently. Programmers must therefore take heed, and those who have hitherto ignored concurrency must now look to add it to their toolbox. There are two ways to use concurrency for performance. The first, and most obvious, is to divide a single task into parts and run each in parallel, thus reducing the total runtime. This is task parallelism. Although this sounds straightforward, it can be 1 “The Free Lunch Is Over: A Fundamental Turn Toward Concurrency in Software,” Herb Sutter, Dr. Dobb’s Journal, 30(3), March 2005. http://www.gotw.ca/publications/concurrency-ddj.htm
8 CHAPTER 1 Hello,world of concurrency in C++! quite a complex process,because there may be many dependencies between the vari- ous parts.The divisions may be either in terms of processing-one thread performs one part of the algorithm while another thread performs a different part-or in terms of data-each thread performs the same operation on different parts of the data.This latter approach is called data parallelism. Algorithms that are readily susceptible to such parallelism are frequently called embarrassingly parallel Despite the implications that you might be embarrassed to have code so easy to parallelize,this is a good thing:other terms I've encountered for such algorithms are naturally parallel and conveniently concurrent.Embarrassingly parallel algo- rithms have good scalability properties-as the number of available hardware threads goes up,the parallelism in the algorithm can be increased to match.Such an algo- rithm is the perfect embodiment of the adage,"Many hands make light work."For those parts of the algorithm that aren't embarrassingly parallel,you might be able to divide the algorithm into a fixed (and therefore not scalable)number of parallel tasks.Techniques for dividing tasks between threads are covered in chapter 8. The second way to use concurrency for performance is to use the available paral- lelism to solve bigger problems;rather than processing one file at a time,process 2 or 10 or 20,as appropriate.Although this is really just an application of data parallelism, by performing the same operation on multiple sets of data concurrently,there's a dif- ferent focus.It still takes the same amount of time to process one chunk of data,but now more data can be processed in the same amount of time.Obviously,there are lim- its to this approach too,and this won't be beneficial in all cases,but the increase in throughput that comes from such an approach can actually make new things possi- ble-increased resolution in video processing,for example,if different areas of the picture can be processed in parallel. 12.3 When not to use concurrency It's just as important to know when not to use concurrency as it is to know when to use it.Fundamentally,the only reason not to use concurrency is when the benefit is not worth the cost.Code using concurrency is harder to understand in many cases,so there's a direct intellectual cost to writing and maintaining multithreaded code,and the additional complexity can also lead to more bugs.Unless the potential perfor- mance gain is large enough or separation of concerns clear enough to justify the addi- tional development time required to get it right and the additional costs associated with maintaining multithreaded code,don't use concurrency. Also,the performance gain might not be as large as expected;there's an inherent overhead associated with launching a thread,because the OS has to allocate the associ- ated kernel resources and stack space and then add the new thread to the scheduler, all of which takes time.If the task being run on the thread is completed quickly,the actual time taken by the task may be dwarfed by the overhead of launching the thread, possibly making the overall performance of the application worse than if the task had been executed directly by the spawning thread
8 CHAPTER 1 Hello, world of concurrency in C++! quite a complex process, because there may be many dependencies between the various parts. The divisions may be either in terms of processing—one thread performs one part of the algorithm while another thread performs a different part—or in terms of data—each thread performs the same operation on different parts of the data. This latter approach is called data parallelism. Algorithms that are readily susceptible to such parallelism are frequently called embarrassingly parallel. Despite the implications that you might be embarrassed to have code so easy to parallelize, this is a good thing: other terms I’ve encountered for such algorithms are naturally parallel and conveniently concurrent. Embarrassingly parallel algorithms have good scalability properties—as the number of available hardware threads goes up, the parallelism in the algorithm can be increased to match. Such an algorithm is the perfect embodiment of the adage, “Many hands make light work.” For those parts of the algorithm that aren’t embarrassingly parallel, you might be able to divide the algorithm into a fixed (and therefore not scalable) number of parallel tasks. Techniques for dividing tasks between threads are covered in chapter 8. The second way to use concurrency for performance is to use the available parallelism to solve bigger problems; rather than processing one file at a time, process 2 or 10 or 20, as appropriate. Although this is really just an application of data parallelism, by performing the same operation on multiple sets of data concurrently, there’s a different focus. It still takes the same amount of time to process one chunk of data, but now more data can be processed in the same amount of time. Obviously, there are limits to this approach too, and this won’t be beneficial in all cases, but the increase in throughput that comes from such an approach can actually make new things possible—increased resolution in video processing, for example, if different areas of the picture can be processed in parallel. 1.2.3 When not to use concurrency It’s just as important to know when not to use concurrency as it is to know when to use it. Fundamentally, the only reason not to use concurrency is when the benefit is not worth the cost. Code using concurrency is harder to understand in many cases, so there’s a direct intellectual cost to writing and maintaining multithreaded code, and the additional complexity can also lead to more bugs. Unless the potential performance gain is large enough or separation of concerns clear enough to justify the additional development time required to get it right and the additional costs associated with maintaining multithreaded code, don’t use concurrency. Also, the performance gain might not be as large as expected; there’s an inherent overhead associated with launching a thread, because the OS has to allocate the associated kernel resources and stack space and then add the new thread to the scheduler, all of which takes time. If the task being run on the thread is completed quickly, the actual time taken by the task may be dwarfed by the overhead of launching the thread, possibly making the overall performance of the application worse than if the task had been executed directly by the spawning thread

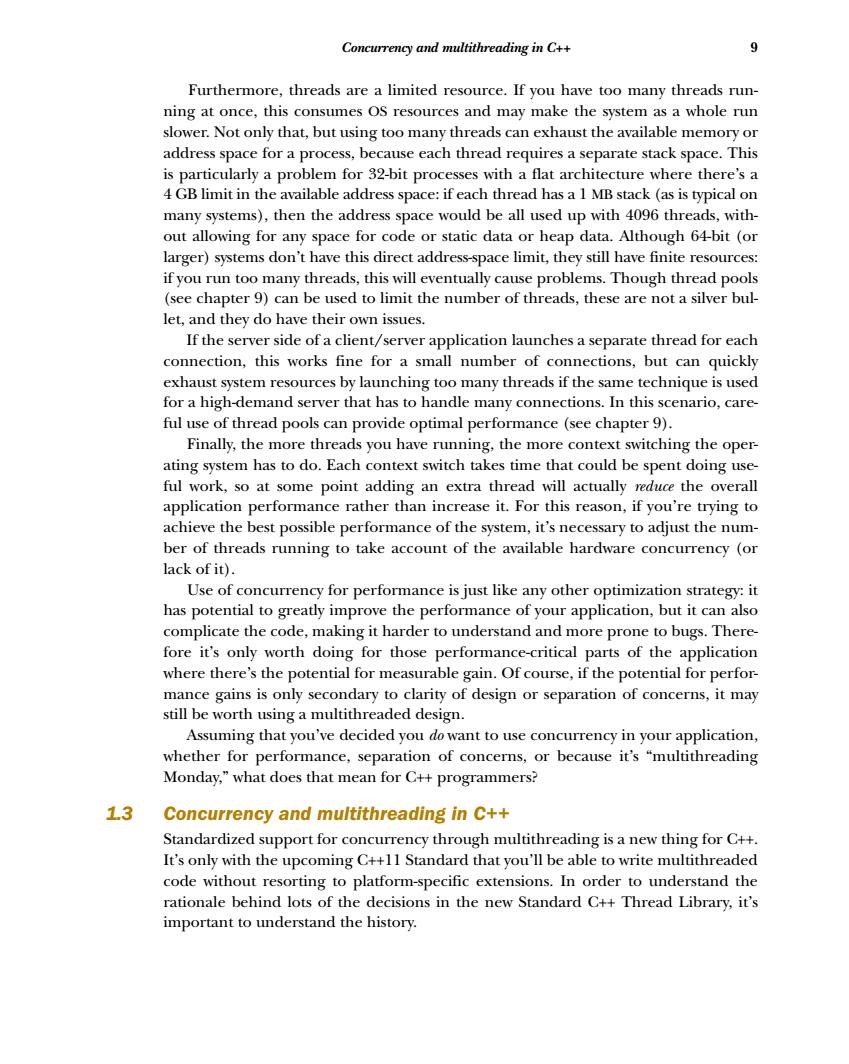

Concurrency and multithreading in C++ 9 Furthermore,threads are a limited resource.If you have too many threads run- ning at once,this consumes OS resources and may make the system as a whole run slower.Not only that,but using too many threads can exhaust the available memory or address space for a process,because each thread requires a separate stack space.This is particularly a problem for 32-bit processes with a flat architecture where there's a 4 GB limit in the available address space:if each thread has a 1 MB stack (as is typical on many systems),then the address space would be all used up with 4096 threads,with- out allowing for any space for code or static data or heap data.Although 64-bit (or larger)systems don't have this direct address-space limit,they still have finite resources: if you run too many threads,this will eventually cause problems.Though thread pools (see chapter 9)can be used to limit the number of threads,these are not a silver bul- let,and they do have their own issues. If the server side of a client/server application launches a separate thread for each connection,this works fine for a small number of connections,but can quickly exhaust system resources by launching too many threads if the same technique is used for a high-demand server that has to handle many connections.In this scenario,care- ful use of thread pools can provide optimal performance(see chapter 9). Finally,the more threads you have running,the more context switching the oper- ating system has to do.Each context switch takes time that could be spent doing use- ful work,so at some point adding an extra thread will actually reduce the overall application performance rather than increase it.For this reason,if you're trying to achieve the best possible performance of the system,it's necessary to adjust the num- ber of threads running to take account of the available hardware concurrency (or lack of it). Use of concurrency for performance is just like any other optimization strategy:it has potential to greatly improve the performance of your application,but it can also complicate the code,making it harder to understand and more prone to bugs.There- fore it's only worth doing for those performance-critical parts of the application where there's the potential for measurable gain.Of course,if the potential for perfor- mance gains is only secondary to clarity of design or separation of concerns,it may still be worth using a multithreaded design. Assuming that you've decided you do want to use concurrency in your application, whether for performance,separation of concerns,or because it's"multithreading Monday,"what does that mean for C++programmers? 13 Concurrency and multithreading in C++ Standardized support for concurrency through multithreading is a new thing for C++. It's only with the upcoming C++11 Standard that you'll be able to write multithreaded code without resorting to platform-specific extensions.In order to understand the rationale behind lots of the decisions in the new Standard C++Thread Library,it's important to understand the history
Concurrency and multithreading in C++ 9 Furthermore, threads are a limited resource. If you have too many threads running at once, this consumes OS resources and may make the system as a whole run slower. Not only that, but using too many threads can exhaust the available memory or address space for a process, because each thread requires a separate stack space. This is particularly a problem for 32-bit processes with a flat architecture where there’s a 4 GB limit in the available address space: if each thread has a 1 MB stack (as is typical on many systems), then the address space would be all used up with 4096 threads, without allowing for any space for code or static data or heap data. Although 64-bit (or larger) systems don’t have this direct address-space limit, they still have finite resources: if you run too many threads, this will eventually cause problems. Though thread pools (see chapter 9) can be used to limit the number of threads, these are not a silver bullet, and they do have their own issues. If the server side of a client/server application launches a separate thread for each connection, this works fine for a small number of connections, but can quickly exhaust system resources by launching too many threads if the same technique is used for a high-demand server that has to handle many connections. In this scenario, careful use of thread pools can provide optimal performance (see chapter 9). Finally, the more threads you have running, the more context switching the operating system has to do. Each context switch takes time that could be spent doing useful work, so at some point adding an extra thread will actually reduce the overall application performance rather than increase it. For this reason, if you’re trying to achieve the best possible performance of the system, it’s necessary to adjust the number of threads running to take account of the available hardware concurrency (or lack of it). Use of concurrency for performance is just like any other optimization strategy: it has potential to greatly improve the performance of your application, but it can also complicate the code, making it harder to understand and more prone to bugs. Therefore it’s only worth doing for those performance-critical parts of the application where there’s the potential for measurable gain. Of course, if the potential for performance gains is only secondary to clarity of design or separation of concerns, it may still be worth using a multithreaded design. Assuming that you’ve decided you do want to use concurrency in your application, whether for performance, separation of concerns, or because it’s “multithreading Monday,” what does that mean for C++ programmers? 1.3 Concurrency and multithreading in C++ Standardized support for concurrency through multithreading is a new thing for C++. It’s only with the upcoming C++11 Standard that you’ll be able to write multithreaded code without resorting to platform-specific extensions. In order to understand the rationale behind lots of the decisions in the new Standard C++ Thread Library, it’s important to understand the history

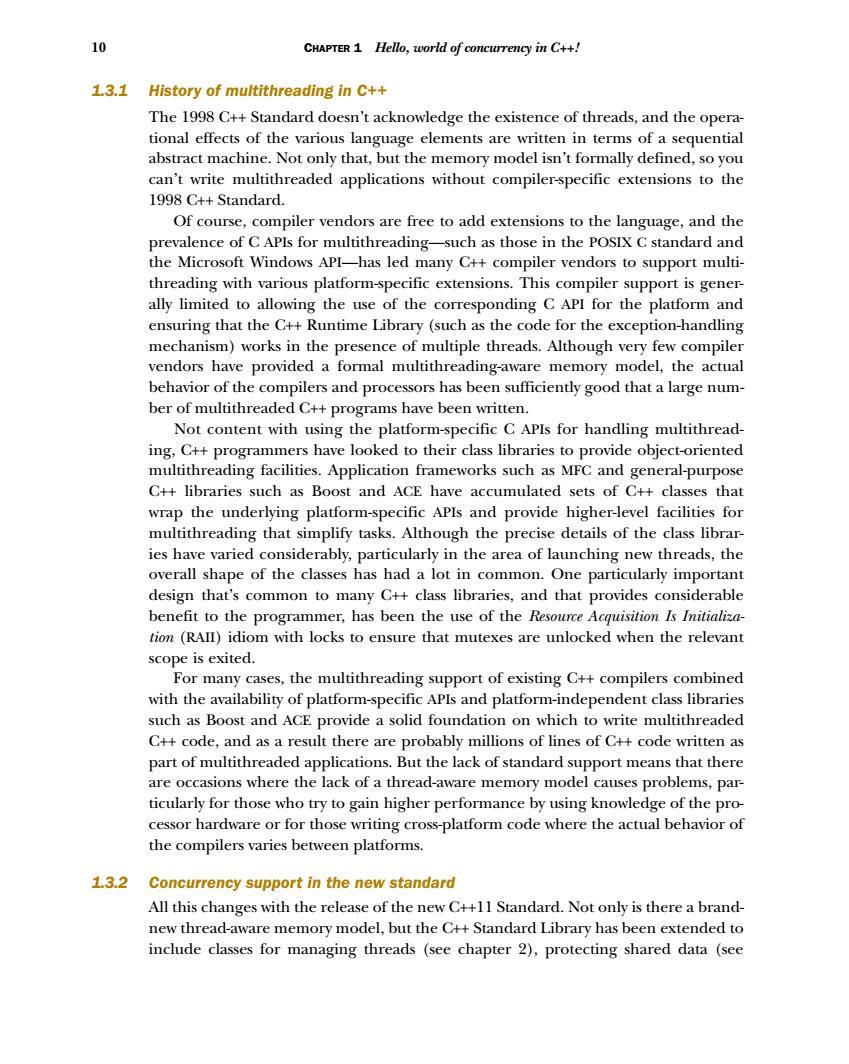

10 CHAPTER 1 Hello,world of concurrency in C++! 1.3.1 History of multithreading in C++ The 1998 C++Standard doesn't acknowledge the existence of threads,and the opera- tional effects of the various language elements are written in terms of a sequential abstract machine.Not only that,but the memory model isn't formally defined,so you can't write multithreaded applications without compiler-specific extensions to the 1998 C++Standard. Of course,compiler vendors are free to add extensions to the language,and the prevalence of C APIs for multithreading-such as those in the POSIX C standard and the Microsoft Windows API-has led many C++compiler vendors to support multi- threading with various platform-specific extensions.This compiler support is gener- ally limited to allowing the use of the corresponding C API for the platform and ensuring that the C++Runtime Library(such as the code for the exception-handling mechanism)works in the presence of multiple threads.Although very few compiler vendors have provided a formal multithreading-aware memory model,the actual behavior of the compilers and processors has been sufficiently good that a large num- ber of multithreaded C++programs have been written. Not content with using the platform-specific C APIs for handling multithread- ing,C++programmers have looked to their class libraries to provide object-oriented multithreading facilities.Application frameworks such as MFC and general-purpose C++libraries such as Boost and ACE have accumulated sets of C++classes that wrap the underlying platform-specific APIs and provide higher-level facilities for multithreading that simplify tasks.Although the precise details of the class librar- ies have varied considerably,particularly in the area of launching new threads,the overall shape of the classes has had a lot in common.One particularly important design that's common to many C++class libraries,and that provides considerable benefit to the programmer,has been the use of the Resource Acquisition Is Initializa- tion(RAll)idiom with locks to ensure that mutexes are unlocked when the relevant scope is exited. For many cases,the multithreading support of existing C++compilers combined with the availability of platform-specific APls and platform-independent class libraries such as Boost and ACE provide a solid foundation on which to write multithreaded C++code,and as a result there are probably millions of lines of C++code written as part of multithreaded applications.But the lack of standard support means that there are occasions where the lack of a thread-aware memory model causes problems,par- ticularly for those who try to gain higher performance by using knowledge of the pro- cessor hardware or for those writing cross-platform code where the actual behavior of the compilers varies between platforms. 1.3.2 Concurrency support in the new standard All this changes with the release of the new C++11 Standard.Not only is there a brand- new thread-aware memory model,but the C++Standard Library has been extended to include classes for managing threads (see chapter 2),protecting shared data(see
10 CHAPTER 1 Hello, world of concurrency in C++! 1.3.1 History of multithreading in C++ The 1998 C++ Standard doesn’t acknowledge the existence of threads, and the operational effects of the various language elements are written in terms of a sequential abstract machine. Not only that, but the memory model isn’t formally defined, so you can’t write multithreaded applications without compiler-specific extensions to the 1998 C++ Standard. Of course, compiler vendors are free to add extensions to the language, and the prevalence of C APIs for multithreading—such as those in the POSIX C standard and the Microsoft Windows API—has led many C++ compiler vendors to support multithreading with various platform-specific extensions. This compiler support is generally limited to allowing the use of the corresponding C API for the platform and ensuring that the C++ Runtime Library (such as the code for the exception-handling mechanism) works in the presence of multiple threads. Although very few compiler vendors have provided a formal multithreading-aware memory model, the actual behavior of the compilers and processors has been sufficiently good that a large number of multithreaded C++ programs have been written. Not content with using the platform-specific C APIs for handling multithreading, C++ programmers have looked to their class libraries to provide object-oriented multithreading facilities. Application frameworks such as MFC and general-purpose C++ libraries such as Boost and ACE have accumulated sets of C++ classes that wrap the underlying platform-specific APIs and provide higher-level facilities for multithreading that simplify tasks. Although the precise details of the class libraries have varied considerably, particularly in the area of launching new threads, the overall shape of the classes has had a lot in common. One particularly important design that’s common to many C++ class libraries, and that provides considerable benefit to the programmer, has been the use of the Resource Acquisition Is Initialization (RAII) idiom with locks to ensure that mutexes are unlocked when the relevant scope is exited. For many cases, the multithreading support of existing C++ compilers combined with the availability of platform-specific APIs and platform-independent class libraries such as Boost and ACE provide a solid foundation on which to write multithreaded C++ code, and as a result there are probably millions of lines of C++ code written as part of multithreaded applications. But the lack of standard support means that there are occasions where the lack of a thread-aware memory model causes problems, particularly for those who try to gain higher performance by using knowledge of the processor hardware or for those writing cross-platform code where the actual behavior of the compilers varies between platforms. 1.3.2 Concurrency support in the new standard All this changes with the release of the new C++11 Standard. Not only is there a brandnew thread-aware memory model, but the C++ Standard Library has been extended to include classes for managing threads (see chapter 2), protecting shared data (see
