Application Domain of SE Aerospace Urban infrastructure Systems Engineering is Communication systems for Complex System! Data and information systems Healthcare systems Electric power systems Production/construction systems Waste disposal systems Financial systems Education systems System Engineering by J.J.Gao 6
+ Application Domain of SE - • Aerospace Application Domain of SE Aerospace • Urban infrastructure • Communication systems Systems Engineering is for Complex System! • Data and information systems • Healthcare systems • Electric po er s stems Electric power systems • Production/construction systems • Waste disposal systems Waste disposal systems • Financial systems • Education systems System Engineering by J. J. Gao 6

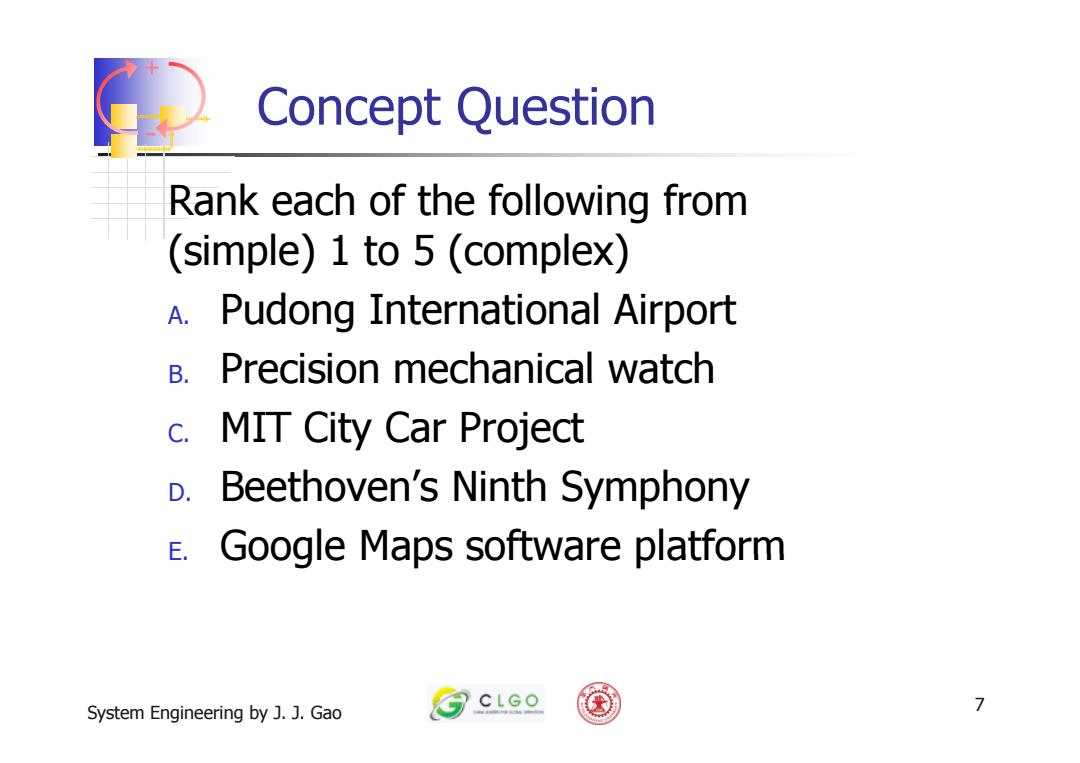

Concept Question Rank each of the following from (simple)1 to 5(complex) A.Pudong International Airport B.Precision mechanical watch c.MIT City Car Project D. Beethoven's Ninth Symphony E. Google Maps software platform System Engineering by J.J.Gao 7
+ Concept Question - Concept Question Rank each of the following from Rank each of the following from (simple) 1 to 5 (complex) A. P du ong I i l Ai International Airport B. Precision mechanical watch Precision mechanical watch C. MIT City Car Project D. Beethoven’s Ninth Symphony E. Google Maps software platform Google Maps software platform System Engineering by J. J. Gao 7
Complex VS Complicated Systems Simple System: 盛 ·Consist of few parts, Small number of interfaces Interactions well understood well controlled, Typically used as building blocks for more sophisticated parts components System Engineering by J.J.Gao CLGO 8
+ Complex VS Complicated Systems - Complex VS Complicated Systems Simple System: • Consist of few parts, • Small number of interfaces • Interactions well understood & well Interactions well understood & well controlled, • Typically used as building blocks for mo e sophisticated pa ts & components more sophisticated parts & components System Engineering by J. J. Gao 8

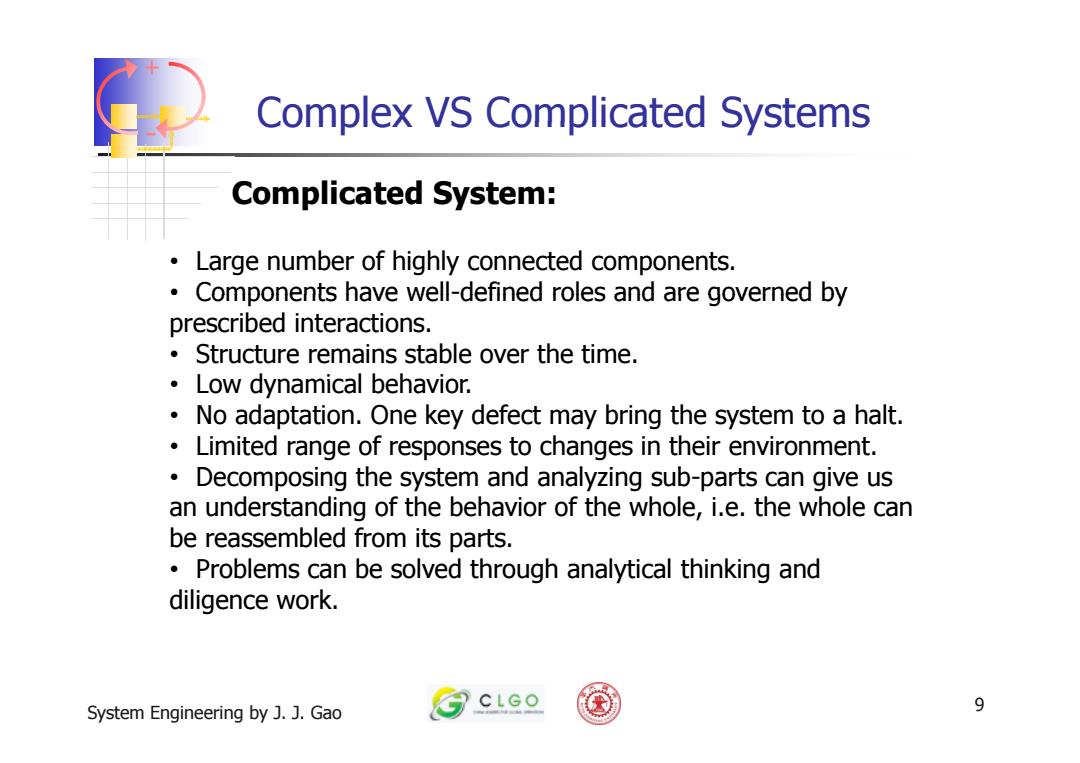

Complex VS Complicated Systems Complicated System: Large number of highly connected components. Components have well-defined roles and are governed by prescribed interactions. Structure remains stable over the time. Low dynamical behavior. No adaptation.One key defect may bring the system to a halt. Limited range of responses to changes in their environment. Decomposing the system and analyzing sub-parts can give us an understanding of the behavior of the whole,i.e.the whole can be reassembled from its parts. Problems can be solved through analytical thinking and diligence work. System Engineering by J.J.Gao CLGO 9
+ Complex VS Complicated Systems - Complex VS Complicated Systems Comp y licated System: • Large number of highly connected components. • Components have well Components have well-defined roles and are governed by defined roles and are governed by prescribed interactions. • Structure remains stable over the time. • Low dynamical behavior Low dynamical behavior. • No adaptation. One key defect may bring the system to a halt. • Limited range of responses to changes in their environment. • D i th t d l i b Decomposing the system and analyzing sub-part i s can give us an understanding of the behavior of the whole, i.e. the whole can be reassembled from its parts. • Problems can be solved through analytical thinking and diligence work. System Engineering by J. J. Gao 9
Example of Complicated Systems Star Caliber Patek Phillipe mechanical watch. We understand: how it is constructed, the required tolerances, the order of assembly. Each component works in unison to accomplish a global function: keep time precisely. We can take a reductionist path to define the smallest required parts and can further write equations of motion to predict the performance and functionality of the watch. System Engineering by J.J.Gao CLGO 10
+ Example of Complicated Systems - Example of Complicated Systems Star C lib a er P k ate Phillipe mechanical watch. We understand: how it is constructed, how it is constructed, the required tolerances, the order of assembly. Each component works in unison to accomplish a global function: keep time precisely. We can take a reductionist path to define the smallest required parts and can further write equations of motion to predict the performance and functionality of the watch. System Engineering by J. J. Gao 10
