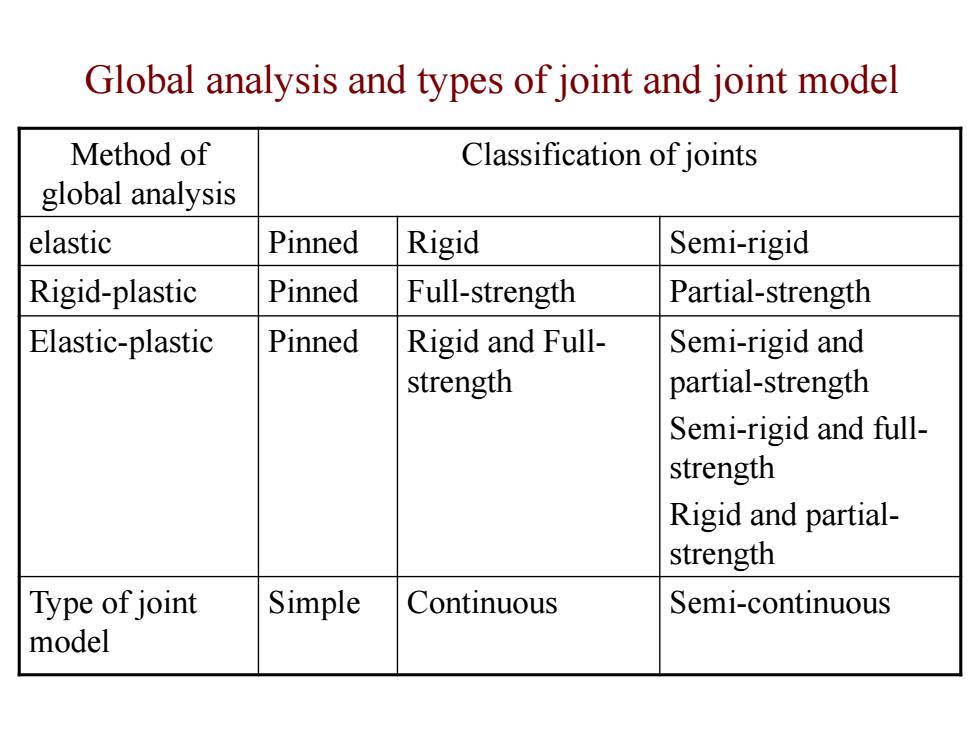

Global analysis and types of joint and joint model Method of Classification of joints global analysis elastic Pinned Rigid Semi-rigid Rigid-plastic Pinned Full-strength Partial-strength Elastic-plastic Pinned Rigid and Full- Semi-rigid and strength partial-strength Semi-rigid and full- strength Rigid and partial- strength Type of joint Simple Continuous Semi-continuous model
Global analysis and types of joint and joint model Method of global analysis Classification of joints elastic Pinned Rigid Semi-rigid Rigid-plastic Pinned Full-strength Partial-strength Elastic-plastic Pinned Rigid and Fullstrength Semi-rigid and partial-strength Semi-rigid and fullstrength Rigid and partialstrength Type of joint model Simple Continuous Semi-continuous

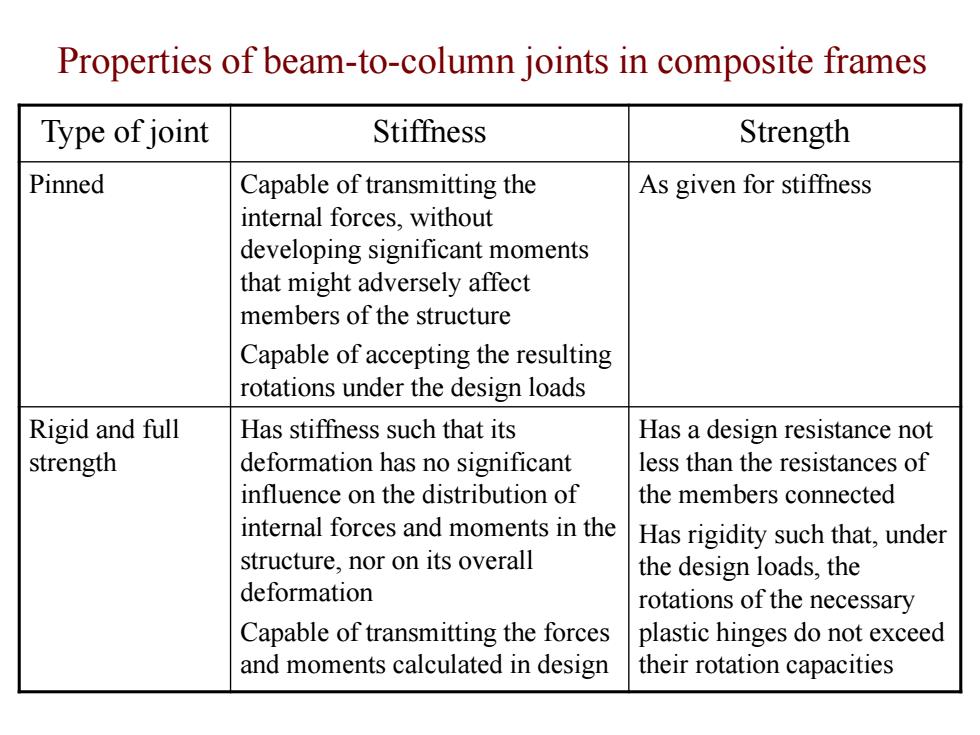

Properties of beam-to-column joints in composite frames Type of joint Stiffness Strength Pinned Capable of transmitting the As given for stiffness internal forces,without developing significant moments that might adversely affect members of the structure Capable of accepting the resulting rotations under the design loads Rigid and full Has stiffness such that its Has a design resistance not strength deformation has no significant less than the resistances of influence on the distribution of the members connected internal forces and moments in the Has rigidity such that,under structure,nor on its overall the design loads,the deformation rotations of the necessary Capable of transmitting the forces plastic hinges do not exceed and moments calculated in design their rotation capacities
Properties of beam-to-column joints in composite frames Type of joint Stiffness Strength Pinned Capable of transmitting the internal forces, without developing significant moments that might adversely affect members of the structure Capable of accepting the resulting rotations under the design loads As given for stiffness Rigid and full strength Has stiffness such that its deformation has no significant influence on the distribution of internal forces and moments in the structure, nor on its overall deformation Capable of transmitting the forces and moments calculated in design Has a design resistance not less than the resistances of the members connected Has rigidity such that, under the design loads, the rotations of the necessary plastic hinges do not exceed their rotation capacities

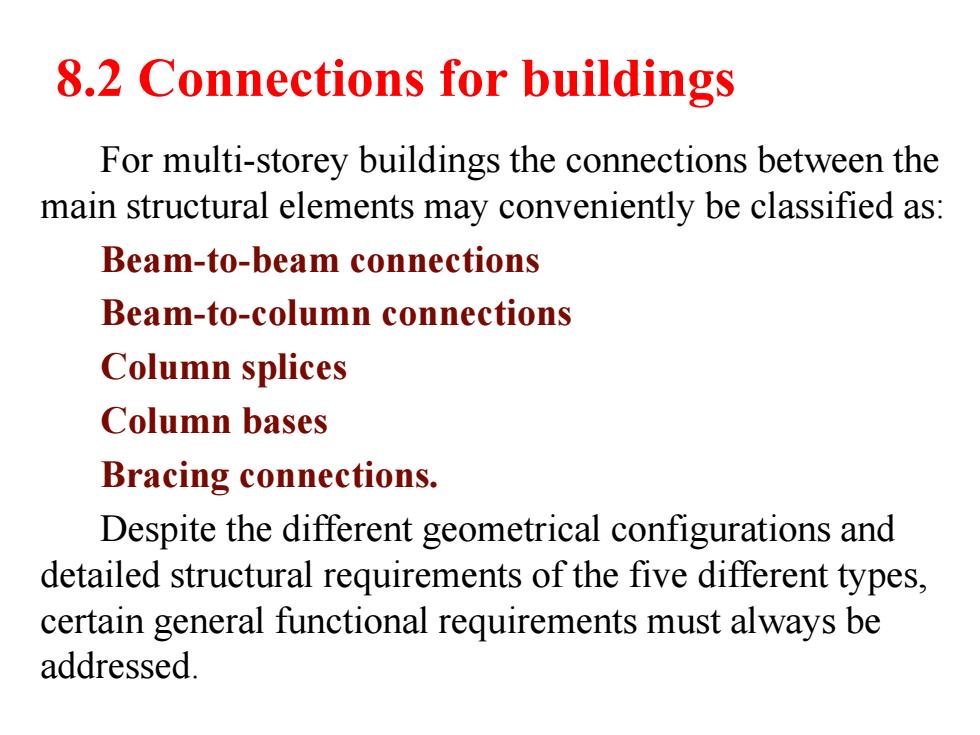

8.2 Connections for buildings For multi-storey buildings the connections between the main structural elements may conveniently be classified as: Beam-to-beam connections Beam-to-column connections Column splices Column bases Bracing connections. Despite the different geometrical configurations and detailed structural requirements of the five different types, certain general functional requirements must always be addressed
For multi-storey buildings the connections between the main structural elements may conveniently be classified as: Beam-to-beam connections Beam-to-column connections Column splices Column bases Bracing connections. Despite the different geometrical configurations and detailed structural requirements of the five different types, certain general functional requirements must always be addressed. 8.2 Connections for buildings

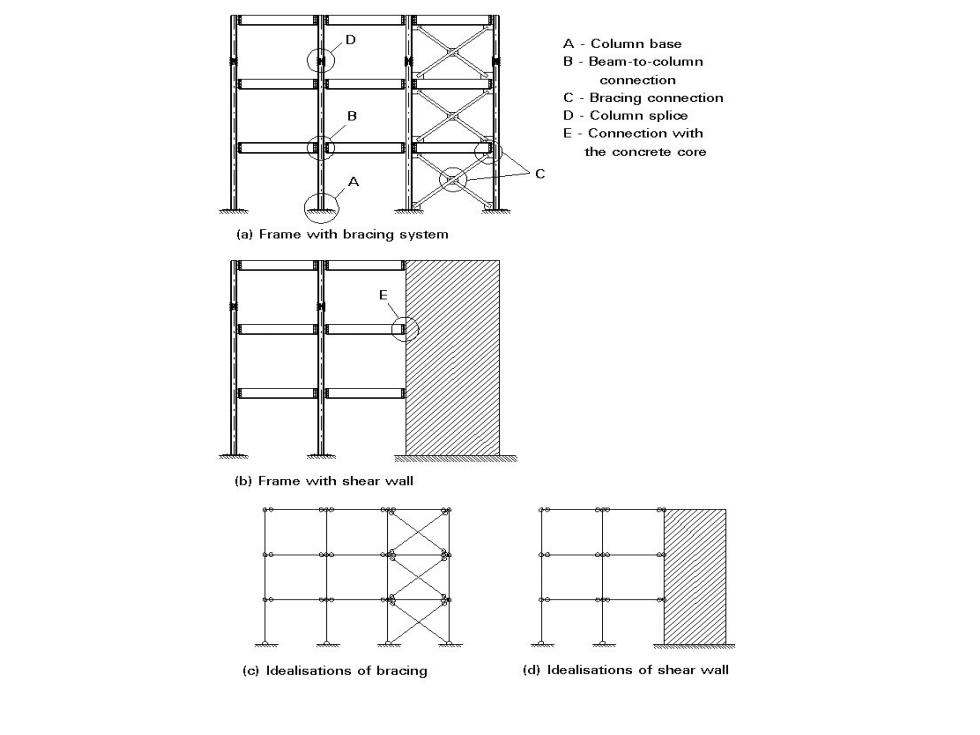

A-Column base B-Beam-to-column connection C-Bracing connection D-Column splice E-Connection with the concrete core (a)Frame with bracing system (b)Frame with shear wall (c)ldealisations of bracing (d)Idealisations of shear wall

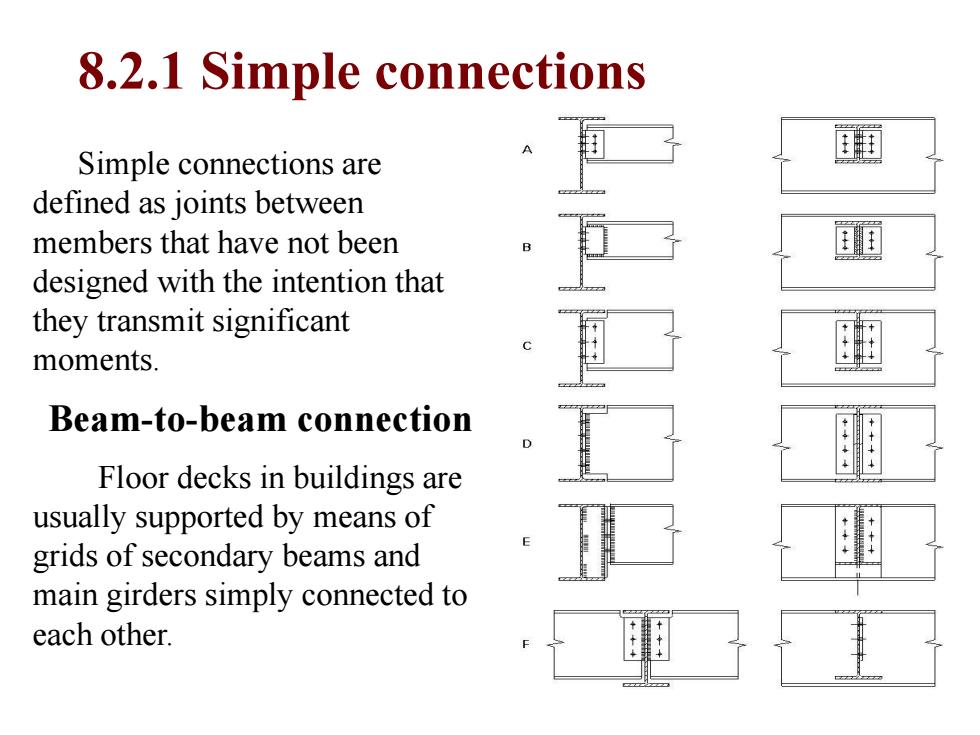

8.2.1 Simple connections Simple connections are 国国 defined as joints between members that have not been 国 designed with the intention that they transmit significant moments. Beam-to-beam connection lt Floor decks in buildings are usually supported by means of grids of secondary beams and main girders simply connected to each other
8.2.1 Simple connections Simple connections are defined as joints between members that have not been designed with the intention that they transmit significant moments. Beam-to-beam connection Floor decks in buildings are usually supported by means of grids of secondary beams and main girders simply connected to each other
