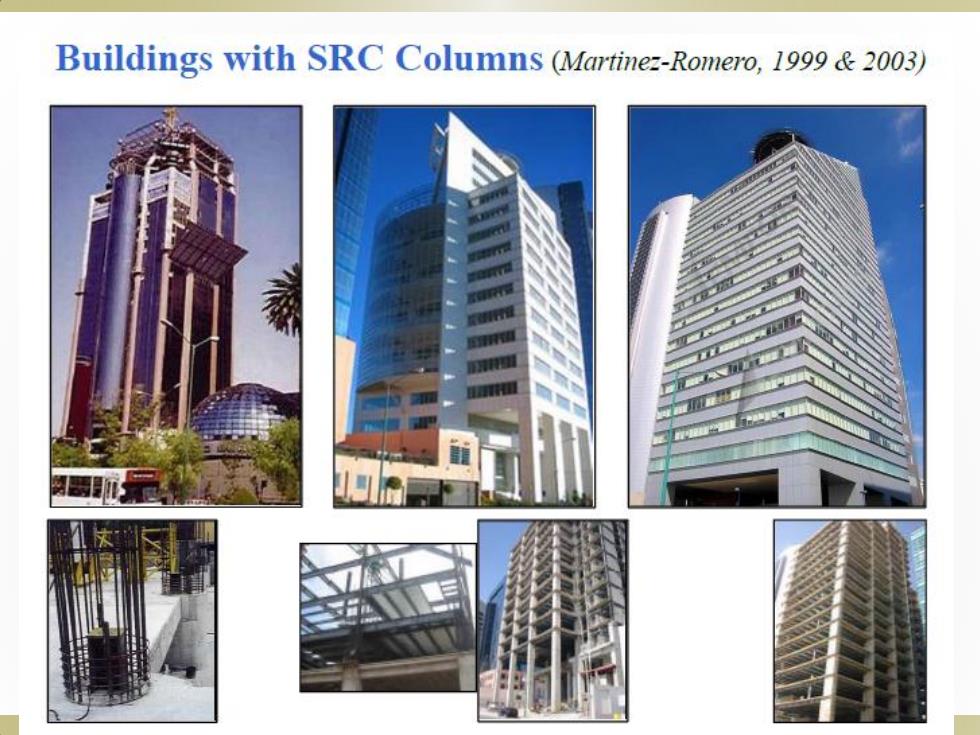

Buildings with SRC Columns (Martinez-Romero,1999 2003)
SRC-Section Drawings COLUMNA DE MONTA DEM 10 MONTAJE C-M 06 5 ESP. @9.5 @9.5 品 00 @
SRC-Section Drawings
Uses for Composite Columns Extra capacity in concrete column for no increase in dimension Large unbraced lengths in tall open spaces -Lower story in high rise buildings -Airport terminals,convention centers Corrosion,fireproof protection in steel buildings Composite frame-high rise construction Transition column between steel,concrete systems Toughness,redundancy as for blast,impact
Uses for Composite Columns • Extra capacity in concrete column for no increase in dimension • Large unbraced lengths in tall open spaces – Lower story in high rise buildings – Airport terminals, convention centers • Corrosion, fireproof protection in steel buildings • Composite frame – high rise construction • Transition column between steel, concrete systems • Toughness, redundancy as for blast, impact
Applications around the world Full-scale 3stor.3-bay braced frame tested in Taiwan
Applications around the world 2B3N-E 2C4U-S 2040 Rectangular or circular composite columns with external diaphragms
