1.1 Advantages of composite columns Use of composite columns presents several advantages which improve the quality of our structure. Following some of those: Increased strength for a given cross sectional dimension. Increased stiffness,leading to reduced slenderness and increased bulking resistance. Good fire resistance in the case of concrete encased columns. "Corrosion protection in encased columns. "Significant economic advantages over either pure structural steel or reinforced concrete alternatives Identical cross sections with different load and moment resistances can be produced by varying steel thickness,the concrete strength and reinforc ent.This allo s the outer d n to be eld constant ors in a building,thus mplifyi h tubula ng tion Erection of high rise bu ilding inan extremely efficient manne As far as it concerns the last point Iam going to report an example in order to better explain it.In composite construction,the bare steel sections support the initial construction loads, including the weight of structure during construction.Concrete is later cast around the steel section,or filled inside the tubular sections.That is why with the use of composite columns along with composite decking and composite beams it is possible to erect high rise structures in an extremely efficient manner.There is quite a vertical spread of construction activity carried out simultaneously at any one time,with numerous trades working simultaneously.For example ■ One group of workers will be erecting the steel beams and columns for one or two storeys at the top of frame. Two or three storeys below,another group of workers will be fixing the metal decking for the floors. A few storeys below,another group will be concreting the floors e go down the building,another group will be tying the column reinforcing bars in below them will be fixing the formwork,placing the concrete into the column moulds s et Page 2124

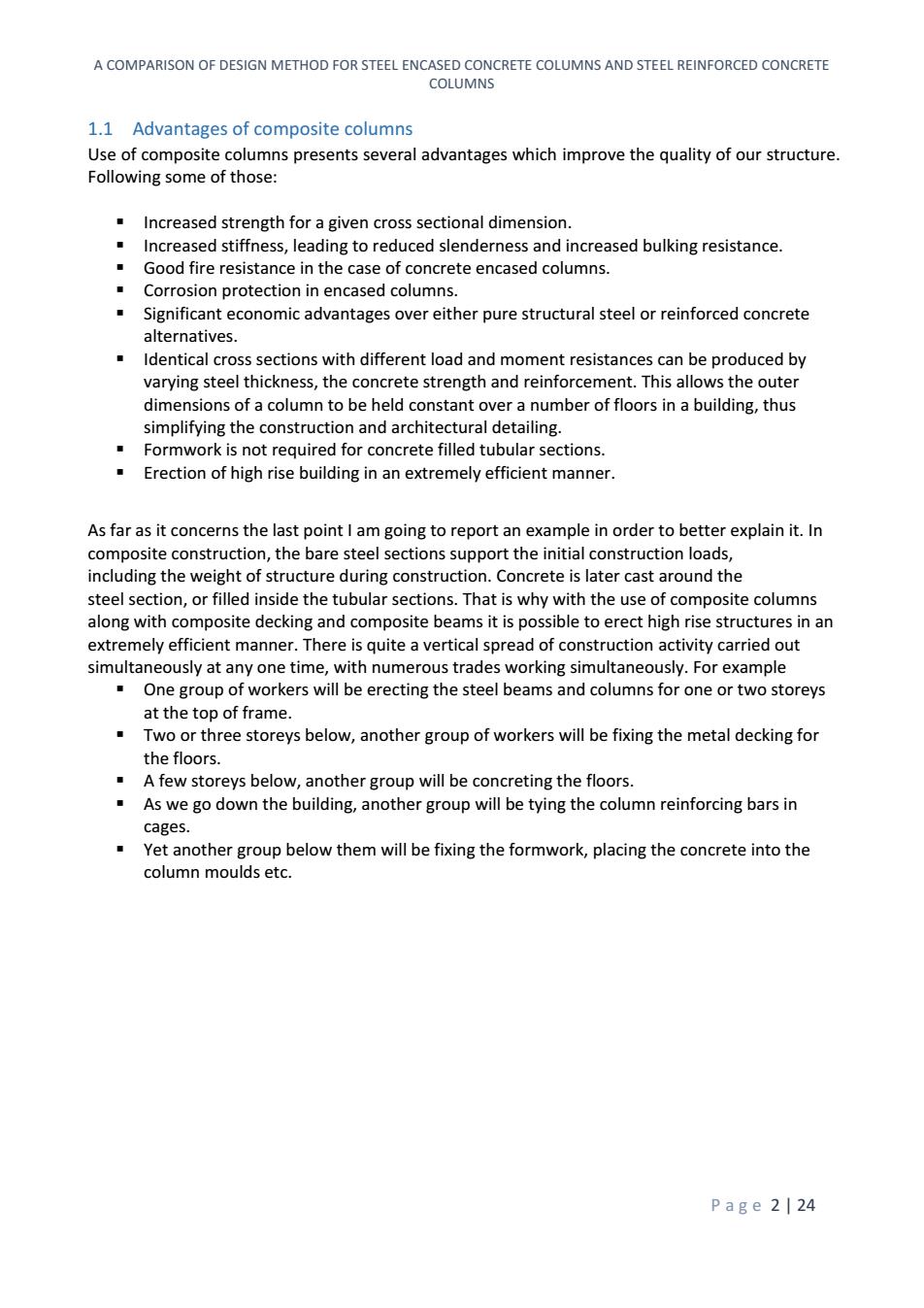

A COMPARISON OF DESIGN METHOD FOR STEEL ENCASED CONCRETE COLUMNS AND STEEL REINFORCED CONCRETE COLUMNS P a g e 2 | 24 1.1 Advantages of composite columns Use of composite columns presents several advantages which improve the quality of our structure. Following some of those: Increased strength for a given cross sectional dimension. Increased stiffness, leading to reduced slenderness and increased bulking resistance. Good fire resistance in the case of concrete encased columns. Corrosion protection in encased columns. Significant economic advantages over either pure structural steel or reinforced concrete alternatives. Identical cross sections with different load and moment resistances can be produced by varying steel thickness, the concrete strength and reinforcement. This allows the outer dimensions of a column to be held constant over a number of floors in a building, thus simplifying the construction and architectural detailing. Formwork is not required for concrete filled tubular sections. Erection of high rise building in an extremely efficient manner. As far as it concerns the last point I am going to report an example in order to better explain it. In composite construction, the bare steel sections support the initial construction loads, including the weight of structure during construction. Concrete is later cast around the steel section, or filled inside the tubular sections. That is why with the use of composite columns along with composite decking and composite beams it is possible to erect high rise structures in an extremely efficient manner. There is quite a vertical spread of construction activity carried out simultaneously at any one time, with numerous trades working simultaneously. For example One group of workers will be erecting the steel beams and columns for one or two storeys at the top of frame. Two or three storeys below, another group of workers will be fixing the metal decking for the floors. A few storeys below, another group will be concreting the floors. As we go down the building, another group will be tying the column reinforcing bars in cages. Yet another group below them will be fixing the formwork, placing the concrete into the column moulds etc
