ARTICLE doi:10.1038/nature10842 Insights into hominid evolution 1 from the gorilla genome sequence Aylwyn Scally enY.Duthei LaDeana W.HillierGregoryE.Jordanan Goodhead Javier HerreroAsger Hobolth2 Tuuli Lappalainen,Thomas Mailund,Tomas Marques-Bonet Shane McCarthy',Stephen H.Montgomery PetraC.Schwalie,Y.Amy Tang,Michelle C.Ward,Yali Xue,Bryndis Yngvadottir Can Alkan Lars N.Andersen, Qasim Ayub',Edward V.Ball,Kathryn Beal4,Brenda J.Bradley,Yuan Chen',Chris M.Clee,Stephen Fitzgerald4, Tina A.Graves4,Yong Gu,Paul Heath',Andreas Hegerl5,Emre Karakoc3,Anja Kolb-Kokocinski,Gavin K.Laird, Gerton Lunter16,Stephen Meader15,Matthew Mort2,James C.Mullikin7,Kasper Munch2,Timothy D.O'Connors Andrew D.Phillips2,Javier Prado-Martinez,Anthony S.Rogers,Saba Sajjadian3,Dominic Schmidt10,Katy Shaw2 JaredT.Simpson Peter D.Stenson2,Daniel .Turner Linda VigilantsAibertJ Vilella,Weldon WhitenerBaoliZhu David N.Cooper Pieter de Jong Emmanouil T.Dermitzakis,Evan E.Eichler Paul Flicek,Nick Goldman Nicholas I.Mundy8,Zemin Ning',Duncan T.Odom.9.10,Chris P.Ponting'5,Michael A.Quail',Oliver A.Ryder20 Stephen M.Searle,Wesley C.Warren14,Richard K.Wilson14,Mikkel H.Schierup2,Jane Rogers Chris Tyler-Smith' Richard Durbin Gorillas are humans'closest living relatives after chimpanzees,and are of comparable importance for the study of human origins and evolution.Here we present the assembly and analysis of a genome sequence for the western lowland gorilla, and compare the whole genomes of all extant great ape genera.We propose a synthesis of genetic and fossil evidence consistent with placing the human-chimpanzee and human-chimpanzee-gorilla speciation events at approximately 6 and 10 million years ago.In 30%ofthe genome,gorilla is closer to human or chimpanzee than the latter are to each other; this is rarer around coding genes,indicating pervasive selection throughout great ape evolution,and has functional consequences in gene expression.A comparison of protein coding genes reveals approximately 500 genes showing accelerated evolution on each of the gorilla,human and chimpanzee lineages,and evidence for parallel acceleration, particularly of genes involved in hearing.We also compare the western and eastern gorilla species,estimating an average sequence divergence time 1.75 million years ago,but with evidence for more recent genetic exchange and a population bottleneck in the eastern species.The use of the genome sequence in these and future analyses will promote a deeper understanding of great ape biology and evolution. Humans share many elements of their anatomy and physiology with remains a challenging computational problem.We generated a both gorillas and chimpanzees,and our similarity to these species was reference assembly from a single female western lowland gorilla emphasized by Darwin and Huxley in the first evolutionary accounts of (Gorilla gorillagorilla)named Kamilah,using 5.4X 10 base pairs human origins'.Molecular studies confirmed that we are closer to the (5.4 Gbp)of capillary sequence combined with 166.8 Gbp of African apes than to orang-utans,and on average closer to chimpanzees Illumina read pairs (Methods Summary).Genes,transcripts and pre- than gorillas?(Fig.1a).Subsequent analyses have explored functional dictions of gene orthologues and paralogues were annotated by differences between the great apes and their relevance to human evolu- Ensembls,and additional analysis found evidence for 498 functional tion,assisted recently by reference genome sequences for chimpanzee long (>200-bp)intergenic RNA transcripts.Table 1 summarizes the and orang-utan'.Here we provide a reference assembly and initial assembly and annotation properties.An assessment of assembly analysis of the gorilla genome sequence,establishing a foundation for quality using finished fosmid sequences found that typical(N50;see the further study of great ape evolution and genetics. Table 1 for definition)stretches of error-free sequence are 7.2 kbp in Recent technological developments have substantially reduced the length,with errors tending to be clustered in repetitive regions. costs of sequencing,but the assembly of a whole vertebrate genome Outside repeat masked regions and away from contig ends,the total WellcomeTrust Sanger Institute,Wellcome Trust Genome Campus,Hinxton.2Bioinformatics Research Center,Aarhus University.C.F.Mallers Alle,8000 AarhusC.DenmarkDepartment 0pnomca0aocsaga8pih52me6otnSmnosea8gs2tona Catalonia,Spain.Institucio Catalana de RecercaiEstudis Avangats,ICREA08010 Barcelona,Spain.Departmentof Zoology,University ofCambridge,Downing Street Cambridge CB23EJ.UKUniversity of Cambridge,Department of Oncology,Hutchison/MRC Research Centre.Hills Road.Cambridge CB2OXZUK.Cancer Research UK Cambridge Research Institute,Li Ka Shing Centre,Robinson Way. Cambridge CB2ORE,UK.Howard Hughes Medical Institute,University of Washington,Seattle,Washington 20815-6789,USA.12Institute of Medical Genetics,Cardiff University,Heath Park,Cardiff CF14 4XN.UK.Department of Anthropology,Yale University,10 Sachem Street,New Haven,Connecticut 06511.USA 14The Genome Institute at Washington University,Washington University School of Medicine.Saint Louis,Missouri 63108,USA.15MRC Functional Genomics Unit,University of Oxford,Department of Physiology,Anatomy and Genetics,South Parks Road,Oxford OX1 3QX,UK 1Wellcome Trust Centre for Human Genetics,Roosevelt Drive,Oxford OX3 7BN,UKComparative Genomics Unit,Genome Technology Branch,National Human Genome Research Institute,National Institutes of Health,Bethesda,Maryland,20892-2152,USAMax Planck Institute for Evolutionary Anthropology.Primatology Department,Deutscher Platz 6,Leipzig 04103,Germany.Children's Hospital Oakland Research Institute,Oakland,Califomia 94609,USA.San Diego Zoo's Institute for Conservation Research,Escondido,California 92027,USA.+Present addresses:Institut des Sciences de l'Evolution. Montpellier(1.S.E.-M.),Universite de Montpellier ll-CC 064,34095 Montpellier Cedex 05,France (J.Y.D):Centre for Genomic Research,Institute of Integrative Biology,University of Liverpool,Crown Street. .UK(G):Biological Anthropology,University of Cambridge,Fitzwilliam Street Cambridge CB2 1QH,UK(B.Y.):EASIH,University of Cambridge,Addenbrooke's Hospital, Cambridge CB2 0QQ.UK(A.S.R);Oxford Nanopore Technologies,Edmund Cartwright House,4 Robert Robinson Avenue,Oxford OX4 4GA,UK(DJ.T.):Institute of Microbiology.Chinese Academy of Sciences,Datun Road,Chaoyang District,Beijing 100101,China(B.Z);The Genome Analysis Centre,Norwich Research Park,Norwich NR4 7UH,UK (J.R) 8 MARCH 2012 VOL 483 I NATURE 169 2012 Macmillan Publishers Limited.All rights reserved

ARTICLE doi:10.1038/nature10842 Insights into hominid evolution from the gorilla genome sequence Aylwyn Scally1 , Julien Y. Dutheil2 {, LaDeana W. Hillier3 , Gregory E. Jordan4 , Ian Goodhead1 {, Javier Herrero4 , Asger Hobolth2 , Tuuli Lappalainen5 , Thomas Mailund2 , Tomas Marques-Bonet3,6,7, Shane McCarthy1 , Stephen H. Montgomery8 , Petra C. Schwalie4 , Y. Amy Tang1 , Michelle C. Ward9,10, Yali Xue1 , Bryndis Yngvadottir1 {, Can Alkan3,11, Lars N. Andersen2 , Qasim Ayub1 , Edward V. Ball12, Kathryn Beal4 , Brenda J. Bradley8,13, Yuan Chen1 , Chris M. Clee1 , Stephen Fitzgerald4 , Tina A. Graves14, Yong Gu1 , Paul Heath1 , Andreas Heger15, Emre Karakoc3 , Anja Kolb-Kokocinski1 , Gavin K. Laird1 , Gerton Lunter16, Stephen Meader15, Matthew Mort12, James C. Mullikin17, Kasper Munch2 , Timothy D. O’Connor8 , Andrew D. Phillips12, Javier Prado-Martinez6 , Anthony S. Rogers1 {, Saba Sajjadian3 , Dominic Schmidt9,10, Katy Shaw12, Jared T. Simpson1 , Peter D. Stenson12, Daniel J. Turner1 {, Linda Vigilant18, Albert J. Vilella4 , Weldon Whitener1 , Baoli Zhu19{, David N. Cooper12, Pieter de Jong19, Emmanouil T. Dermitzakis5 , Evan E. Eichler3,11, Paul Flicek4 , Nick Goldman4 , Nicholas I. Mundy8 , Zemin Ning1 , Duncan T. Odom1,9,10, Chris P. Ponting15, Michael A. Quail1 , Oliver A. Ryder20, Stephen M. Searle1 , Wesley C. Warren14, Richard K. Wilson14, Mikkel H. Schierup2 , Jane Rogers1 {, Chris Tyler-Smith1 & Richard Durbin1 Gorillas are humans’ closest living relatives after chimpanzees, and are of comparable importance for the study of human origins and evolution. Here we present the assembly and analysis of a genome sequence for the western lowland gorilla, and compare the whole genomes of all extant great ape genera. We propose a synthesis of genetic and fossil evidence consistent with placing the human–chimpanzee and human–chimpanzee–gorilla speciation events at approximately 6 and 10 million years ago. In 30% of the genome, gorilla is closer to human or chimpanzee than the latter are to each other; this is rarer around coding genes, indicating pervasive selection throughout great ape evolution, and has functional consequences in gene expression. A comparison of protein coding genes reveals approximately 500 genes showing accelerated evolution on each of the gorilla, human and chimpanzee lineages, and evidence for parallel acceleration, particularly of genes involved in hearing. We also compare the western and eastern gorilla species, estimating an average sequence divergence time 1.75 million years ago, but with evidence for more recent genetic exchange and a population bottleneck in the eastern species. The use of the genome sequence in these and future analyses will promote a deeper understanding of great ape biology and evolution. Humans share many elements of their anatomy and physiology with both gorillas and chimpanzees, and our similarity to these species was emphasized by Darwin and Huxley in the first evolutionary accounts of human origins1 . Molecular studies confirmed that we are closer to the African apes than to orang-utans, and on average closer to chimpanzees than gorillas2 (Fig. 1a). Subsequent analyses have explored functional differences between the great apes and their relevance to human evolu￾tion, assisted recently by reference genome sequences for chimpanzee3 and orang-utan4 . Here we provide a reference assembly and initial analysis of the gorilla genome sequence, establishing a foundation for the further study of great ape evolution and genetics. Recent technological developments have substantially reduced the costs of sequencing, but the assembly of a whole vertebrate genome remains a challenging computational problem. We generated a reference assembly from a single female western lowland gorilla (Gorilla gorilla gorilla) named Kamilah, using 5.4 3 109 base pairs (5.4 Gbp) of capillary sequence combined with 166.8 Gbp of Illumina read pairs (Methods Summary). Genes, transcripts and pre￾dictions of gene orthologues and paralogues were annotated by Ensembl5 , and additional analysis found evidence for 498 functional long (.200-bp) intergenic RNA transcripts. Table 1 summarizes the assembly and annotation properties. An assessment of assembly quality using finished fosmid sequences found that typical (N50; see Table 1 for definition) stretches of error-free sequence are 7.2 kbp in length, with errors tending to be clustered in repetitive regions. Outside repeat masked regions and away from contig ends, the total 1 Wellcome Trust Sanger Institute, Wellcome Trust Genome Campus, Hinxton CB10 1SA, UK. 2 Bioinformatics Research Center, Aarhus University, C.F. Møllers Alle´ 8, 8000 Aarhus C, Denmark. 3 Department of Genome Sciences, University of Washington School of Medicine, Seattle, Washington 98195, USA. 4 European Bioinformatics Institute, Wellcome Trust Genome Campus, Hinxton CB10 1SD, UK. 5 Department of Genetic Medicine and Development, University of Geneva Medical School, Rue Michel-Servet 1, 1211 Geneva 4, Switzerland. 6 Institut de Biologia Evolutiva (UPF-CSIC), 08003 Barcelona, Catalonia, Spain. 7 Institucio Catalana de Recerca i Estudis Avançats, ICREA, 08010 Barcelona, Spain. 8 Department of Zoology, University of Cambridge, Downing Street, Cambridge CB2 3EJ, UK. 9 University of Cambridge, Department of Oncology, Hutchison/MRC Research Centre, Hills Road, Cambridge CB2 0XZ, UK. 10Cancer Research UK, Cambridge Research Institute, Li Ka Shing Centre, Robinson Way, Cambridge CB2 0RE, UK. 11Howard Hughes Medical Institute, University of Washington, Seattle, Washington 20815-6789, USA. 12Institute of Medical Genetics, Cardiff University, Heath Park, Cardiff CF14 4XN, UK. 13Department of Anthropology, Yale University, 10 Sachem Street, New Haven, Connecticut 06511, USA. 14The Genome Institute at Washington University, Washington University School of Medicine, Saint Louis, Missouri 63108, USA. 15MRC Functional Genomics Unit, University of Oxford, Department of Physiology, Anatomy and Genetics, South Parks Road, Oxford OX1 3QX, UK. 16Wellcome Trust Centre for Human Genetics, Roosevelt Drive, Oxford OX3 7BN, UK. 17Comparative Genomics Unit, Genome Technology Branch, National Human Genome Research Institute, National Institutes of Health, Bethesda, Maryland, 20892-2152, USA. 18Max Planck Institute for Evolutionary Anthropology, Primatology Department, Deutscher Platz 6, Leipzig 04103, Germany. 19Children’s Hospital Oakland Research Institute, Oakland, California 94609, USA. 20San Diego Zoo’s Institute for Conservation Research, Escondido, California 92027, USA. {Present addresses: Institut des Sciences de l’E´ volution – Montpellier (I.S.E.-M.), Universite´ de Montpellier II – CC 064, 34095 Montpellier Cedex 05, France (J.Y.D); Centre for Genomic Research, Institute of Integrative Biology, University of Liverpool, Crown Street, Liverpool L69 7ZB, UK (I.G.); Division of Biological Anthropology, University of Cambridge, Fitzwilliam Street, Cambridge CB2 1QH, UK (B.Y.); EASIH, University of Cambridge, Addenbrooke’s Hospital, Cambridge CB2 0QQ, UK (A.S.R.); Oxford Nanopore Technologies, Edmund Cartwright House, 4 Robert Robinson Avenue, Oxford OX4 4GA, UK (D.J.T.); Institute of Microbiology, Chinese Academy of Sciences, Datun Road, Chaoyang District, Beijing 100101, China (B.Z.); The Genome Analysis Centre, Norwich Research Park, Norwich NR4 7UH, UK (J.R.). 8 MARCH 2012 | VOL 483 | NATURE | 169 ©2012 Macmillan Publishers Limited. All rights reserved

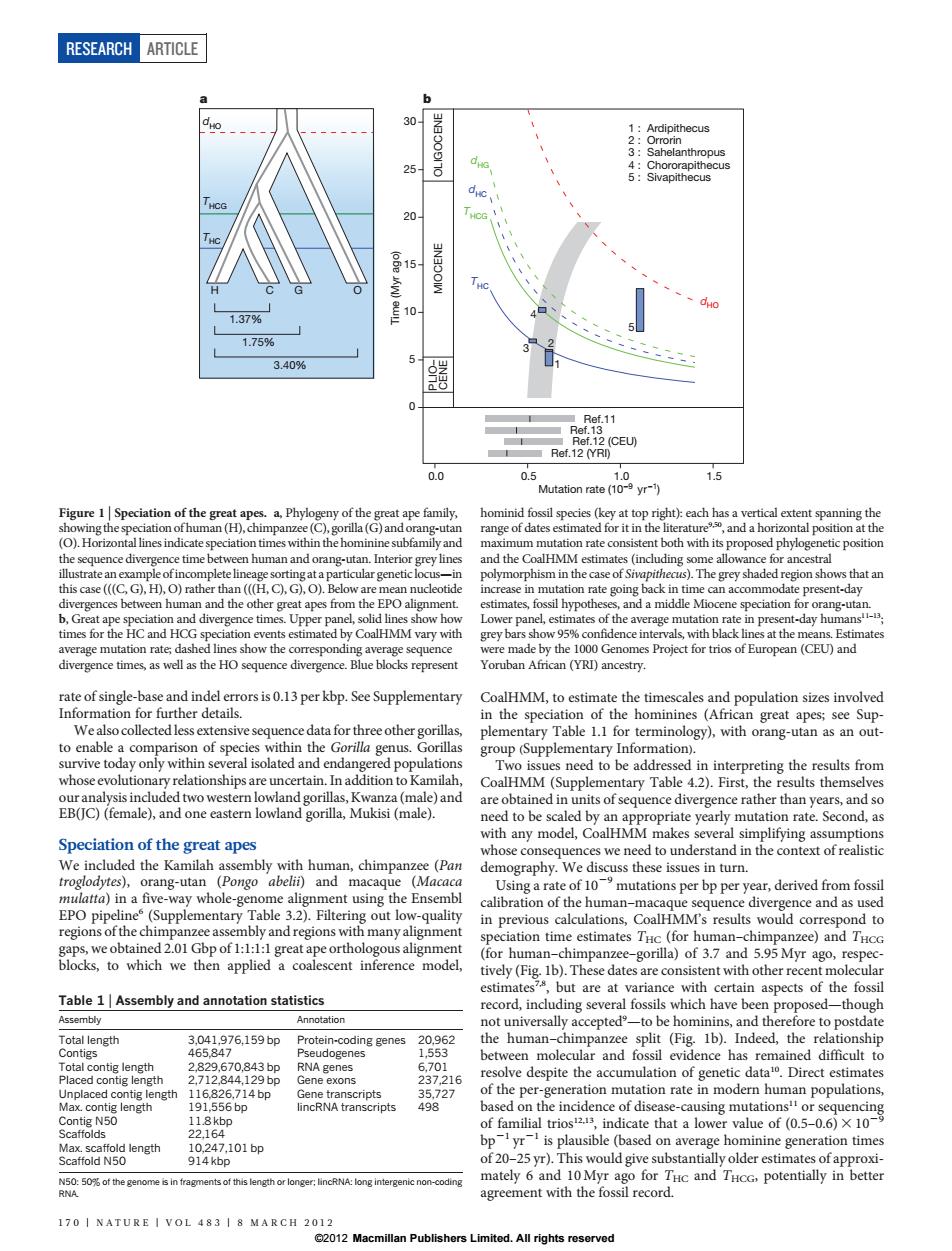

RESEARCH ARTICLE a 30- 1：Ardipithecus 2:Orrorin 3:Sahelanthropus 25 4:Chororapithecus 5:Sivapithecus duc CG 30 15 10 dHO 1.37% 1.75% 3.40% Ref.11 Ref.13 Ref.12(CEU) Ref.12 (YRI) 0.0 0.5 10 1.5 Mutation rate(10-9 yr-1) Figure 1 Speciation of the great apes.a,Phylogeny of the great ape family, hominid fossil species(key at top right):each has a vertical extent spanning the showing the speciation ofhuman(H),chimpanzee(C),gorilla(G)and orang-utan range of dates estimated for it in the literatureand a horizontal position at the (O).Horizontal lines indicate speciation times within the hominine subfamily and maximum mutation rate consistent both with its proposed phylogenetic position the sequence divergence time between human and orang-utan.Interior grey lines and the CoalHMM estimates (including some allowance for ancestral illustrate an example of incomplete lineage sorting at a particular genetic locus-in polymorphism in the case of Sivapithecus).The grey shaded region shows that an this case(((C,G),H),O)rather than (((H,C),G),O).Below are mean nucleotide increase in mutation rate going back in time can accommodate present-day divergences between human and the other great apes from the EPO alignment. estimates,fossil hypotheses,and a middle Miocene speciation for orang-utan. b,Great ape speciation and divergence times.Upper panel,solid lines show how Lower panel,estimates of the average mutation rate in present-day humans times for the HC and HCG speciation events estimated by CoalHMM vary with grey bars show 95%confidence intervals,with black lines at the means.Estimates average mutation rate,dashed lines show the corresponding average sequence were made by the 1000 Genomes Project for trios of European(CEU)and divergence times,as well as the HO sequence divergence.Blue blocks represent Yoruban African (YRI)ancestry rate of single-base and indel errors is0.13 per kbp.See Supplementary CoalHMM,to estimate the timescales and population sizes involved Information for further details. in the speciation of the hominines(African great apes;see Sup- We also collected less extensive sequence data for three other gorillas, plementary Table 1.1 for terminology),with orang-utan as an out- to enable a comparison of species within the Gorilla genus.Gorillas group (Supplementary Information). survive today only within several isolated and endangered populations Two issues need to be addressed in interpreting the results from whose evolutionary relationships are uncertain.In addition to Kamilah, CoalHMM(Supplementary Table 4.2).First,the results themselves our analysis included two western lowland gorillas,Kwanza(male)and are obtained in units of sequence divergence rather than years,and so EB(JC)(female),and one eastern lowland gorilla,Mukisi(male). need to be scaled by an appropriate yearly mutation rate.Second,as with any model,CoalHMM makes several simplifying assumptions Speciation of the great apes whose consequences we need to understand in the context of realistic We included the Kamilah assembly with human,chimpanzee(Pan demography.We discuss these issues in turn. troglodytes),orang-utan (Pongo abelii)and macaque (Macaca Using a rate of 10mutations per bp per year,derived from fossil mulatta)in a five-way whole-genome alignment using the Ensembl calibration of the human-macaque sequence divergence and as used EPO pipeline(Supplementary Table 3.2).Filtering out low-quality in previous calculations,CoalHMM's results would correspond to regions of the chimpanzee assembly and regions with many alignment speciation time estimates THc(for human-chimpanzee)and THcG gaps,we obtained 2.01 Gbp of 1:1:1:1 great ape orthologous alignment (for human-chimpanzee-gorilla)of 3.7 and 5.95 Myr ago,respec- blocks,to which we then applied a coalescent inference model, tively(Fig.1b).These dates are consistent with other recent molecular estimates?4,but are at variance with certain aspects of the fossil Table 1 Assembly and annotation statistics record,including several fossils which have been proposed-though Assembly Annotation not universally accepted-to be hominins,and therefore to postdate Total length 3,041,976,159bp Protein-coding genes 20.962 the human-chimpanzee split (Fig.1b).Indeed,the relationship Contigs 465.847 Pseudogenes 1.553 between molecular and fossil evidence has remained difficult to Total contig length 2,829.670,843bp RNA genes 6,701 Placed contig length 2,712,844,129bp 237,216 resolve despite the accumulation of genetic data.Direct estimates Gene exons Unplaced contig length 116.826,714bp Gene transcripts 35.727 of the per-generation mutation rate in modern human populations, Max.contig length 191,556bp lincRNA transcripts 49只 based on the incidence of disease-causing mutations"or sequencing Contig N50 11.8kbp of familial trios'23,indicate that a lower value of (0.5-0.6)X 10 Scaffolds 22.164 Max.scaffold length 10.247.101bp bpyr is plausible(based on average hominine generation times Scaffold N50 914kbp of 20-25 yr).This would give substantially older estimates of approxi- N50:50%of the genome is in fragments of this length or longer:lincRNA:long intergenic non-coding mately 6 and 10 Myr ago for THc and THcG,potentially in better RNA agreement with the fossil record. 170 NATURE I VOL 483 8 MARCH 2012 2012 Macmillan Publishers Limited.All rights reserved

rate of single-base and indel errors is 0.13 per kbp. See Supplementary Information for further details. We also collected less extensive sequence data for three other gorillas, to enable a comparison of species within the Gorilla genus. Gorillas survive today only within several isolated and endangered populations whose evolutionary relationships are uncertain. In addition to Kamilah, our analysis included two western lowland gorillas, Kwanza (male) and EB(JC) (female), and one eastern lowland gorilla, Mukisi (male). Speciation of the great apes We included the Kamilah assembly with human, chimpanzee (Pan troglodytes), orang-utan (Pongo abelii) and macaque (Macaca mulatta) in a five-way whole-genome alignment using the Ensembl EPO pipeline6 (Supplementary Table 3.2). Filtering out low-quality regions of the chimpanzee assembly and regions with many alignment gaps, we obtained 2.01 Gbp of 1:1:1:1 great ape orthologous alignment blocks, to which we then applied a coalescent inference model, CoalHMM, to estimate the timescales and population sizes involved in the speciation of the hominines (African great apes; see Sup￾plementary Table 1.1 for terminology), with orang-utan as an out￾group (Supplementary Information). Two issues need to be addressed in interpreting the results from CoalHMM (Supplementary Table 4.2). First, the results themselves are obtained in units of sequence divergence rather than years, and so need to be scaled by an appropriate yearly mutation rate. Second, as with any model, CoalHMM makes several simplifying assumptions whose consequences we need to understand in the context of realistic demography. We discuss these issues in turn. Using a rate of 1029 mutations per bp per year, derived from fossil calibration of the human–macaque sequence divergence and as used in previous calculations, CoalHMM’s results would correspond to speciation time estimates THC (for human–chimpanzee) and THCG (for human–chimpanzee–gorilla) of 3.7 and 5.95 Myr ago, respec￾tively (Fig. 1b). These dates are consistent with other recent molecular estimates7,8, but are at variance with certain aspects of the fossil record, including several fossils which have been proposed—though not universally accepted9 —to be hominins, and therefore to postdate the human–chimpanzee split (Fig. 1b). Indeed, the relationship between molecular and fossil evidence has remained difficult to resolve despite the accumulation of genetic data10. Direct estimates of the per-generation mutation rate in modern human populations, based on the incidence of disease-causing mutations11 or sequencing of familial trios12,13, indicate that a lower value of (0.5–0.6) 3 1029 bp21 yr21 is plausible (based on average hominine generation times of 20–25 yr). This would give substantially older estimates of approxi￾mately 6 and 10 Myr ago for THC and THCG, potentially in better agreement with the fossil record. dHO THCG THC H CG O 1.37% 1.75% 3.40% a Mutation rate (10−9 yr −1) Time (Myr ago) 0.0 0.5 1.0 1.5 0 5 10 15 20 25 30 PLIO− CENE MIOCENE OLIGOCENE dHO dHG dHC THCG THC Ref.11 Ref.13 Ref.12 (CEU) Ref.12 (YRI) 1 1 : Ardipithecus 2 2 : Orrorin 3 3 : Sahelanthropus 4 4 : Chororapithecus 5 5 : Sivapithecus b Figure 1 | Speciation of the great apes. a, Phylogeny of the great ape family, showing the speciation of human (H), chimpanzee (C), gorilla (G) and orang-utan (O). Horizontal lines indicate speciation times within the hominine subfamily and the sequence divergence time between human and orang-utan. Interior grey lines illustrate an example of incomplete lineage sorting at a particular geneticlocus—in this case (((C, G), H), O) rather than (((H, C), G), O). Below are mean nucleotide divergences between human and the other great apes from the EPO alignment. b, Great ape speciation and divergence times. Upper panel, solid lines show how times for the HC and HCG speciation events estimated by CoalHMM vary with average mutation rate; dashed lines show the corresponding average sequence divergence times, as well as the HO sequence divergence. Blue blocks represent hominid fossil species (key at top right): each has a vertical extent spanning the range of dates estimated for it in the literature9,50, and a horizontal position at the maximum mutation rate consistent both with its proposed phylogenetic position and the CoalHMM estimates (including some allowance for ancestral polymorphism in the case of Sivapithecus). The grey shaded region shows that an increase in mutation rate going back in time can accommodate present-day estimates, fossil hypotheses, and a middle Miocene speciation for orang-utan. Lower panel, estimates of the average mutation rate in present-day humans11–13; grey bars show 95% confidence intervals, with black lines at the means. Estimates were made by the 1000 Genomes Project for trios of European (CEU) and Yoruban African (YRI) ancestry. Table 1 | Assembly and annotation statistics Assembly Annotation Total length 3,041,976,159 bp Protein-coding genes 20,962 Contigs 465,847 Pseudogenes 1,553 Total contig length 2,829,670,843 bp RNA genes 6,701 Placed contig length 2,712,844,129 bp Gene exons 237,216 Unplaced contig length 116,826,714 bp Gene transcripts 35,727 Max. contig length 191,556 bp lincRNA transcripts 498 Contig N50 11.8 kbp Scaffolds 22,164 Max. scaffold length 10,247,101 bp Scaffold N50 914 kbp N50: 50% of the genome is in fragments of this length or longer; lincRNA: long intergenic non-coding RNA. RESEARCH ARTICLE 170 | NATURE | VOL 483 | 8 MARCH 2012 ©2012 Macmillan Publishers Limited. All rights reserved

ARTICLE RESEARCH However,this timetable for hominine speciation must also be recon- ciled with older events,such as the speciation of orang-utan,which is thought to have occurred no earlier than the Middle Miocene(12- 16 Myr ago),as fossil apes before that differ substantially from what we might expect of an early great ape4.This is possible if we allow for 0.2 mutation rates changing over time,with a mutation rate of around 1x 10bpyr in the common ancestor of great apes,decreasing 0.0 to lower values in all extant species(Fig.Ib).Comparable changes in 8910 12 16 8 21X ●nromosome mutation rate have been observed previously in primate evolution on larger timescales,including an approximately 30%branch length decrease in humans compared to baboons since their common 0.140 ancestor's.A decrease within the great apes is also a predicted con- sequence of the observed increase in body sizes over this time period and the association of small size with shorter generation times in other primates,and is consistent with deviations froma molecular clock seen 6 in sequence divergences of the great apes and macaque(Supplemen- tary Table 3.3).We discuss these and other constraints on estimates of 显0.120 great ape speciation times in the Supplementary Information.However we note that Sahelanthropus and Chororapithecus remain difficult to incorporate in this model,and can be accommodated as hominin and 0.110 gorillin genera only if most of the decrease occurred early in great ape -4×105-2×105 2×105 4×105 evolution. Physical distance to gene start/stop(bp) An alternative explanation for the apparent discrepancy in fossil Figure 2 Genome-wide incomplete lineage sorting (ILS)and selection and genetic dates (leaving aside the issue of whether fossil taxa have a,Variation in ILS.Each vertical blue line represents the fraction of ILS between been correctly placed)is that ancestral demography may have affected human,chimpanzee and gorilla estimated in a 1-Mbp region.Dashed black the genetic inferences.Certainly CoalHMM's model does not fit the lines show the average ILS across the autosomes and on X;the red line shows data in all respects.Perhaps most importantly,it assumes that ancestral the expected ILS on X,given the autosomal average and assuming neutral population sizes are constant in time and that no gene flow occurred evolution.b,Reduction in ILS around protein coding genes.The blue line between separated populations,approximations that may not hold in shows the mean rate of ILS sites normalized by mutation rate as a function of reality.Simulations (details in Supplementary Information)suggest distance upstream or downstream of the nearest gene(see Supplementary Information).The horizontal dashed line indicates the average value outside that an ancestral population bottleneck would have had limited impact 300 kbp from the nearest gene;error bars are s.e.m. on the inference of THc,its influence being captured largely by changes in the model's effective population size.Under conditions expected under a model of genome-wide neutral evolution (Sup- of genetic exchange between populations after the main separation plementary Fig.5.1).This variation reflects local differences in the of the chimpanzee and human lineages,the speciation time estimated ancestral effective population size Ne during the period between the by CoalHMM represents an average weighted by gene flow over the gorilla and chimpanzee speciationevents,most probably due to natural period of separation.This means in some cases it can be substantially selection reducing Ne and making ILS less likely.Within coding exons older than the date of most recent exchange.However it would only be mean ILS drops to 22%,and the suppression of ILS extends out to more recent than the speciation time inferred from fossils if there had several hundred kbp from coding genes,evident even in raw site been strong gene flow between populations after the development of patterns before any model inference (Fig.2b).An analysis of ILS sites derived fossil characteristics.To the extent that this is plausible,for in human segmental duplications suggests that assembly errors do not example as part of a non-allopatric speciation process,it constitutes an contribute significantly to this signal(Supplementary Information). alternative explanation for the dating discrepancy without requiring a We therefore attribute it to the effects of linkage around selected muta- change in mutation rate. tions,most probably in the form of background selection'7,observing In summary,although whole-genome comparisons can be strongly that it is greater around genes with lower ratios of non-synonymous to conclusive about the ordering of speciation events,the inability to synonymous mutation rates(dN/ds)(Supplementary Fig.8.4).Given observe past mutation rates means that the timing of events from that more than90%ofthe genome lies within 300 kbp ofa coding gene, genetic data remains uncertain.In our view,possible variation in and noting the similar phenomenon reported for recent human evolu- mutation rates allows hominid genomic data to be consistent with tion,this supports the suggestion that selection has affected almost all values of THc from 5.5 to 7 Myr ago and THcG from 8.5 to 12 Myr ago, of the genome throughout hominid evolution's with ancestral demographic structure potentially adding inherent In fitting the transitions between genealogies along the alignment, ambiguity to both events.Better resolution may come from further CoalHMM also estimates a regional recombination rate.This is primarily integrated analysis of fossil and genetic evidence. sensitive to ancestral crossover events before human-chimpanzee spe- ciation,yet despite the expectation of rapid turnover in recombination Incomplete lineage sorting and selection hotspots,averaged over 1-Mbp windows there is a good correlation The genealogy relating human(H),chimpanzee(C)and gorilla (G) with estimates from present-day crossovers in humans (R=0.49: varies between loci across the genome.CoalHMM explicitly models P<10;Supplementary Fig.5.5),consistent with the conservation this and infers the genealogy at each position:either the standard of recombination rates between humans and chimpanzees on the ((H,C),G)relationship or the alternatives ((H,G),C)or ((C,G),H), 1-Mbp scale1 which are the consequences of incomplete lineage sorting(ILS)in As expected,we see reduced ILS(Fig.2a)and human-chimpanzee the ancestral human-chimpanzee population.We can use the pattern sequence divergence dic(Supplementary Fig.6.1)on the X chromosome, of ILS to explore evolutionary forces during the human-chimpanzee- corresponding to a difference in N.between X and the autosomes within gorilla speciation period.Across the genome we find 30%of bases the ancestral human-chimpanzee population.Several factors can con- exhibiting ILS,with no significant difference between the number tribute to this difference2,notably the X chromosome's haploidy in sorting as ((H,G),C)and ((C,G),H).However,the fraction of ILS males,which reduces Ne on X by 0.75,enhances purifying selection in varies with respect to genomic position (Fig.2a)by more than males,and reduces the recombination rate,thereby increasing the 8 MARCH 2012 VOL 483 NATURE 171 2012 Macmillan Publishers Limited.All rights reserved

However, this timetable for hominine speciation must also be recon￾ciled with older events, such as the speciation of orang-utan, which is thought to have occurred no earlier than the Middle Miocene (12– 16 Myr ago), as fossil apes before that differ substantially from what we might expect of an early great ape14. This is possible if we allow for mutation rates changing over time, with a mutation rate of around 13 1029 bp21 yr21 in the common ancestor of great apes, decreasing to lower values in all extant species (Fig. 1b). Comparable changes in mutation rate have been observed previously in primate evolution on larger timescales, including an approximately 30% branch length decrease in humans compared to baboons since their common ancestor15. A decrease within the great apes is also a predicted con￾sequence of the observed increase in body sizes over this time period and the association of small size with shorter generation times in other primates16, and is consistent with deviations from a molecular clock seen in sequence divergences of the great apes and macaque (Supplemen￾tary Table 3.3). We discuss these and other constraints on estimates of great ape speciation times in the Supplementary Information. However we note that Sahelanthropus and Chororapithecus remain difficult to incorporate in this model, and can be accommodated as hominin and gorillin genera only if most of the decrease occurred early in great ape evolution. An alternative explanation for the apparent discrepancy in fossil and genetic dates (leaving aside the issue of whether fossil taxa have been correctly placed) is that ancestral demography may have affected the genetic inferences. Certainly CoalHMM’s model does not fit the data in all respects. Perhaps most importantly, it assumes that ancestral population sizes are constant in time and that no gene flow occurred between separated populations, approximations that may not hold in reality. Simulations (details in Supplementary Information) suggest that an ancestral population bottleneck would have had limited impact on the inference of THC, its influence being captured largely by changes in the model’s effective population size. Under conditions of genetic exchange between populations after the main separation of the chimpanzee and human lineages, the speciation time estimated by CoalHMM represents an average weighted by gene flow over the period of separation. This means in some cases it can be substantially older than the date of most recent exchange. However it would only be more recent than the speciation time inferred from fossils if there had been strong gene flow between populations after the development of derived fossil characteristics. To the extent that this is plausible, for example as part of a non-allopatric speciation process, it constitutes an alternative explanation for the dating discrepancy without requiring a change in mutation rate. In summary, although whole-genome comparisons can be strongly conclusive about the ordering of speciation events, the inability to observe past mutation rates means that the timing of events from genetic data remains uncertain. In our view, possible variation in mutation rates allows hominid genomic data to be consistent with values of THC from 5.5 to 7 Myr ago and THCG from 8.5 to 12 Myr ago, with ancestral demographic structure potentially adding inherent ambiguity to both events. Better resolution may come from further integrated analysis of fossil and genetic evidence. Incomplete lineage sorting and selection The genealogy relating human (H), chimpanzee (C) and gorilla (G) varies between loci across the genome. CoalHMM explicitly models this and infers the genealogy at each position: either the standard ((H,C),G) relationship or the alternatives ((H,G),C) or ((C,G),H), which are the consequences of incomplete lineage sorting (ILS) in the ancestral human–chimpanzee population. We can use the pattern of ILS to explore evolutionary forces during the human–chimpanzee– gorilla speciation period. Across the genome we find 30% of bases exhibiting ILS, with no significant difference between the number sorting as ((H,G),C) and ((C,G),H). However, the fraction of ILS varies with respect to genomic position (Fig. 2a) by more than expected under a model of genome-wide neutral evolution (Sup￾plementary Fig. 5.1). This variation reflects local differences in the ancestral effective population size Ne during the period between the gorilla and chimpanzee speciation events, most probably due to natural selection reducing Ne and making ILS less likely. Within coding exons mean ILS drops to 22%, and the suppression of ILS extends out to several hundred kbp from coding genes, evident even in raw site patterns before any model inference (Fig. 2b). An analysis of ILS sites in human segmental duplications suggests that assembly errors do not contribute significantly to this signal (Supplementary Information). We therefore attribute it to the effects of linkage around selected muta￾tions, most probably in the form of background selection17, observing that it is greater around genes with lower ratios of non-synonymous to synonymous mutation rates (dN/dS) (Supplementary Fig. 8.4). Given that more than 90% of the genome lies within 300 kbp of a coding gene, and noting the similar phenomenon reported for recent human evolu￾tion12, this supports the suggestion that selection has affected almost all of the genome throughout hominid evolution18. In fitting the transitions between genealogies along the alignment, CoalHMM also estimates a regional recombination rate. This is primarily sensitive to ancestral crossover events before human–chimpanzee spe￾ciation, yet despite the expectation of rapid turnover in recombination hotspots19, averaged over 1-Mbp windows there is a good correlation with estimates from present-day crossovers in humans (R 5 0.49; P , 10213; Supplementary Fig. 5.5), consistent with the conservation of recombination rates between humans and chimpanzees on the 1-Mbp scale19. As expected, we see reduced ILS (Fig. 2a) and human–chimpanzee sequence divergencedHC(Supplementary Fig.6.1) on theX chromosome, corresponding to a difference inNe between X and the autosomes within the ancestral human–chimpanzee population. Several factors can con￾tribute to this difference20, notably the X chromosome’s haploidy in males, which reduces Ne on X by 0.75, enhances purifying selection in males, and reduces the recombination rate, thereby increasing the 0.0 0.2 0.4 ILS 1 2 3 4 5 6 7 8 9 10 12 14 16 18 21 X Chromosome −4 × 105 −2 × 105 0 2 × 105 4 × 105 0.110 0.120 0.130 0.140 Physical distance to gene start/stop (bp) Scaled rate of ILS sites a b Figure 2 | Genome-wide incomplete lineage sorting (ILS) and selection. a, Variation in ILS. Each vertical blue line represents the fraction of ILS between human, chimpanzee and gorilla estimated in a 1-Mbp region. Dashed black lines show the average ILS across the autosomes and on X; the red line shows the expected ILS on X, given the autosomal average and assuming neutral evolution. b, Reduction in ILS around protein coding genes. The blue line shows the mean rate of ILS sites normalized by mutation rate as a function of distance upstream or downstream of the nearest gene (see Supplementary Information). The horizontal dashed line indicates the average value outside 300 kbp from the nearest gene; error bars are s.e.m. ARTICLE RESEARCH 8 MARCH 2012 | VOL 483 | NATURE | 171 ©2012 Macmillan Publishers Limited. All rights reserved

RESEARCH ARTICLE effect of selection via linkage.However,sequence divergence is addi- Table 8.5).GPR98,which also shows significant evidence of positive tionally affected by the mutation rate,which is higher in males than in selection under the branch-sitetest(P=0.0081),is highly expressed in females,further reducing the relative divergence observed on X2. the developing central nervous system.The gene with the strongest Incorporating the ancestral N estimates from CoalHMM,we estimate evidence for acceleration along the branch leading to hominines a ratio of 0.87 +0.09 between average mutation rates on X and the is RNF213 (branch-site P<2.9x 10),a gene associated with autosomes on the human-chimpanzee lineage,corresponding to a Moyamoya disease in which blood flow to the brain is restricted due male/female mutation rate bias a=2.3+0.4 (details in Supplemen- to arterial stenosis26.Given that oxygen and glucose consumption tary Information).Previous estimates of o in hominids have ranged scales with total neuron number2,RNF213 may have played a role from 2 to 7(refs 22,23).It is possible that some of the higher values, in facilitating the evolution of larger brains.Together,these observa- having been estimated from sequence divergence only and in smaller tions are consistent with a major role for adaptive modifications in data sets,were inflated by underestimating the suppression of ancestral brain development and sensory perception in hominine evolution. Ne on X,in particular due to purifying selection. Turning to lineage-specific selection pressures,we find relatively Our calculation of a assumes that a single speciation time applies similar numbers of accelerated genes in humans,chimpanzees and across the genome,attributing differences between the X chro- gorillas (663,562 and 535 respectively at nominal P<0.05,Sup- mosome and autosomes to the factors mentioned above.An alterna- plementary Table 8.3a)and genome-wide dN/ds ratios (0.256, tive model has been proposed24,involving complex speciation,with 0.249 and 0.239 in purifying sites,Supplementary Table 8.6).These more recent human-chimpanzee ancestry on X than elsewhere.Given numbers,which reflect variation in historical effective population potential confounding factors in demography,selection,mutation sizes as well as environmental pressures,reveal a largely uniform rate bias and admixture,our analyses do not discriminate between landscape of recent hominine gene evolution-in accordance with these models;however if the effective human-chimpanzee separation previously published analyses in human and chimpanzee(Sup- time on X is indeed reduced in this way it would imply a still lower plementary Table 8.7). value of a. Genes with accelerated rates of evolution along the gorilla lineage are most enriched for a number of developmental terms,including Functional sequence evolution ear,hair follicle,gonad and brain development,and sensory percep- We looked for loss or gain of unique autosomal sequence within tion of sound.Among the most significantly accelerated genes in humans,chimpanzees and gorillas by comparing raw sequence data gorilla is EVPL (P<2.2 X 10),which encodes a component of for each in the context of their reference assemblies(Supplementary the cornified envelope of keratinocytes,and may be related to Information).The total amount is small:3-7 Mbp per species,dis- tributed genome-wide in fragments no more than a few kbp in length (Supplementary Table 7.1).The vast majority(97%)of such material 0.34 was also found either in orang-utan or a more distant primate,indi- cating loss,and consistent with the expectation that gain is driven 0.33 primarily by duplication (which our analysis excludes).Some frag- ments found only in one species overlap coding exons in annotated genes:6 genes in human,5 in chimpanzee and 9 in gorilla(Sup- plementary Tables 7.2,7.3,7.4),the majority being associated with olfactory receptor proteins or other rapidly evolving functions,such 0.31 as male fertility and immune response. We did not assemble a gorilla Y chromosome,but by mapping 0.30 ~6X reads from the male gorillas Kwanza and Mukisi to the human Y,we identified several regions in which human single-copy material 0.0 0.2 0.4 0.6 is missing in gorilla,comprising almost 10%of the accessible male- Gene ILS fraction specific region.Across the Y chromosome there is considerable vari- ation in the copy number of shared material,and the pattern of CTCF 19.451 24.370 5.228 sites human-specific shared gorilla-specific coverage is quite different from that of reads from a male bonobo Human mapped in the same way(Supplementary Fig.7.1).Some missing or CpG depleted material overlaps coding genes (Supplementary Table 7.5), Gorilla including for example VCY,a gene expressed specifically in male germ CpG cells which has two copies in human and chimpanzee but apparently Shared only one in gorilla(Supplementary Information).The resulting picture CpG 1746 16843 2103 21895 164 4969 is consistent with rapid structural evolution ofthe Y chromosome in the great apes,as previously seen in the chimpanzee-human comparison2. ▣Disruption▣Indel▣Substitution.▣Unchanged Protein evolution 0 0.5 6057 005T7 The Ensembl EPO primate alignment was filtered to produce a high- Fraction of CTCF sequence motif changes quality genome-wide set of 11,538 alignments representingorthologous Figure 3 Differences in expression and regulation.a,Mean gene expression primate coding sequences,which were then scored with codon-based distance between human and chimpanzee as a function ofthe proportion ofILS evolutionary models for likelihoods of acceleration or deceleration of sites per gene.Each point represents a sliding window of 900 genes(over genes dN/ds in the terminal lineages,ancestral branch,and entire hominine ordered by ILS fraction);s.d.error limits are shown in grey.b,Top row, subfamily (Supplementary Information).We find that genes with classification of CTCF sites in the gorilla(EB(JC))and human(GM12878) accelerated rates of evolution across hominines are enriched for func- LCLs on the basis of species-uniqueness;numbers of alignable CTCF binding tions associated with sensory perception,particularly in relation to sites are shown for each category.Bottom three rows,sequence changes of CTCF motifs embedded in human-specific,shared and gorilla-specific CTCF hearing and brain development (Supplementary Table 8.4g,h).For binding sites located within shared CpGislands,species-specific CpG islands or example,among the most strongly accelerated genes are OTOF outside CpG islands.Numbers of CTCF binding sites are shown for each CpG (P=0.0056),LOXHDI(P<0.01)and GPR98 (P=0.0056),which are island category.Gorilla and human motif sequences are compared and all associated with diseases causing human deafness(Supplementary represented as indels,disruptions (>4-bp gaps)and substitutions. 172 NATURE I VOL 483 8 MARCH 2012 2012 Macmillan Publishers Limited.All rights reserved

effect of selection via linkage. However, sequence divergence is addi￾tionally affected by the mutation rate, which is higher in males than in females, further reducing the relative divergence observed on X21. Incorporating the ancestral Ne estimates from CoalHMM, we estimate a ratio of 0.87 6 0.09 between average mutation rates on X and the autosomes on the human–chimpanzee lineage, corresponding to a male/female mutation rate bias a 5 2.3 6 0.4 (details in Supplemen￾tary Information). Previous estimates of a in hominids have ranged from 2 to 7 (refs 22, 23). It is possible that some of the higher values, having been estimated from sequence divergence only and in smaller data sets, were inflated by underestimating the suppression of ancestral Ne on X, in particular due to purifying selection. Our calculation of a assumes that a single speciation time applies across the genome, attributing differences between the X chro￾mosome and autosomes to the factors mentioned above. An alterna￾tive model has been proposed24, involving complex speciation, with more recent human–chimpanzee ancestry on X than elsewhere. Given potential confounding factors in demography, selection, mutation rate bias and admixture, our analyses do not discriminate between these models; however if the effective human–chimpanzee separation time on X is indeed reduced in this way it would imply a still lower value of a. Functional sequence evolution We looked for loss or gain of unique autosomal sequence within humans, chimpanzees and gorillas by comparing raw sequence data for each in the context of their reference assemblies (Supplementary Information). The total amount is small: 3–7 Mbp per species, dis￾tributed genome-wide in fragments no more than a few kbp in length (Supplementary Table 7.1). The vast majority (97%) of such material was also found either in orang-utan or a more distant primate, indi￾cating loss, and consistent with the expectation that gain is driven primarily by duplication (which our analysis excludes). Some frag￾ments found only in one species overlap coding exons in annotated genes: 6 genes in human, 5 in chimpanzee and 9 in gorilla (Sup￾plementary Tables 7.2, 7.3, 7.4), the majority being associated with olfactory receptor proteins or other rapidly evolving functions, such as male fertility and immune response. We did not assemble a gorilla Y chromosome, but by mapping ,63 reads from the male gorillas Kwanza and Mukisi to the human Y, we identified several regions in which human single-copy material is missing in gorilla, comprising almost 10% of the accessible male￾specific region. Across the Y chromosome there is considerable vari￾ation in the copy number of shared material, and the pattern of coverage is quite different from that of reads from a male bonobo mapped in the same way (Supplementary Fig. 7.1). Some missing or depleted material overlaps coding genes (Supplementary Table 7.5), including for example VCY, a gene expressed specifically in male germ cells which has two copies in human and chimpanzee but apparently only one in gorilla (Supplementary Information). The resulting picture is consistent with rapid structural evolution of the Y chromosome in the great apes, as previously seen in the chimpanzee–human comparison25. Protein evolution The Ensembl EPO primate alignment was filtered to produce a high￾quality genome-wide set of 11,538 alignments representing orthologous primate coding sequences, which were then scored with codon-based evolutionary models for likelihoods of acceleration or deceleration of dN/dS in the terminal lineages, ancestral branch, and entire hominine subfamily (Supplementary Information). We find that genes with accelerated rates of evolution across hominines are enriched for func￾tions associated with sensory perception, particularly in relation to hearing and brain development (Supplementary Table 8.4g, h). For example, among the most strongly accelerated genes are OTOF (P 5 0.0056), LOXHD1 (P , 0.01) and GPR98 (P 5 0.0056), which are all associated with diseases causing human deafness (Supplementary Table 8.5). GPR98, which also shows significant evidence of positive selection under the branch-site test (P 5 0.0081), is highly expressed in the developing central nervous system. The gene with the strongest evidence for acceleration along the branch leading to hominines is RNF213 (branch-site P , 2.9 3 1029 ), a gene associated with Moyamoya disease in which blood flow to the brain is restricted due to arterial stenosis26. Given that oxygen and glucose consumption scales with total neuron number27, RNF213 may have played a role in facilitating the evolution of larger brains. Together, these observa￾tions are consistent with a major role for adaptive modifications in brain development and sensory perception in hominine evolution. Turning to lineage-specific selection pressures, we find relatively similar numbers of accelerated genes in humans, chimpanzees and gorillas (663, 562 and 535 respectively at nominal P , 0.05, Sup￾plementary Table 8.3a) and genome-wide dN/dS ratios (0.256, 0.249 and 0.239 in purifying sites, Supplementary Table 8.6). These numbers, which reflect variation in historical effective population sizes as well as environmental pressures, reveal a largely uniform landscape of recent hominine gene evolution—in accordance with previously published analyses in human and chimpanzee3,28 (Sup￾plementary Table 8.7). Genes with accelerated rates of evolution along the gorilla lineage are most enriched for a number of developmental terms, including ear, hair follicle, gonad and brain development, and sensory percep￾tion of sound. Among the most significantly accelerated genes in gorilla is EVPL (P , 2.2 3 1025 ), which encodes a component of the cornified envelope of keratinocytes, and may be related to 0.0 0.2 0.4 0.6 0.34 0.33 0.32 0.31 0.30 Gene ILS fraction H−C expression distance o o o o o o o o o o o o o ooo o oo oo o o o o o oo o oo o ooo o o oo ooo o o oo oo ooo o oo o a b CTCF sites 19,451 human-specific 24,370 shared 5,228 gorilla-specific Human CpG 863 0 290 463 0 101 Gorilla CpG Shared CpG Non CpG 1746 16843 2103 21895 164 4969 Disruption Indel Substitution Unchanged 0 0.5 1 0 0.5 1 0 0.5 1 Fraction of CTCF sequence motif changes Figure 3 | Differences in expression and regulation. a, Mean gene expression distance between human and chimpanzee as a function of the proportion of ILS sites per gene. Each point represents a sliding window of 900 genes (over genes ordered by ILS fraction); s.d. error limits are shown in grey. b, Top row, classification of CTCF sites in the gorilla (EB(JC)) and human (GM12878) LCLs on the basis of species-uniqueness; numbers of alignable CTCF binding sites are shown for each category. Bottom three rows, sequence changes of CTCF motifs embedded in human-specific, shared and gorilla-specific CTCF binding sites located within shared CpG islands, species-specific CpG islands or outside CpG islands. Numbers of CTCF binding sites are shown for each CpG island category. Gorilla and human motif sequences are compared and represented as indels, disruptions (.4-bp gaps) and substitutions. RESEARCH ARTICLE 172 | NATURE | VOL 483 | 8 MARCH 2012 ©2012 Macmillan Publishers Limited. All rights reserved

ARTICLE RESEARCH increased cornification of knuckle pads in gorilla Interestingly,gorilla both of which were corroborated by additional capillary sequencing and human both yielded brain-associated terms enriched for accele- (Supplementary Table 8.10).Why variants that appear to cause disease rated genes,but chimpanzee did not (Supplementary Table 8.4a-c). in humans might be associated with a normal phenotype in gorillas is Genes expressed in the brain or involved in its development have not unknown;possible explanations are compensatory molecular changes typically been associated with positive selection in primates,but our elsewhere,or differing environmental conditions.Such variants have results show that multiple great ape lineages show elevated dN/ds in also been found in both the chimpanzee and macaque genomes".33 brain-related genes when evaluated against a primate background. We also identified cases of pairwise parallel evolution among Gene transcription and regulation hominines.Human and chimpanzee show the largest amount,with We carried out an analysis of hominine transcriptome variation using significantly more shared accelerations than expected by chance, total RNA extracted and sequenced from lymphoblastoid cell lines whereas gorilla shares more parallel acceleration with human than with (LCLs)of one gorilla,two chimpanzees and two bonobos (Sup- chimpanzee across a range of significance thresholds(Supplementary plementary Information),and published RNA sequence data for eight Fig.8.3).Genes involving hearing are enriched in parallel accelerations human individuals".After quantifying reads mapping to exons and for all three pairs,but most strongly in gorilla-human(Supplementary genes in each species,we calculated the degree of species-specific Table 8.4d-f),calling into question a previous link made between expression and splicing in 9,746 1:1:1 expressed orthologous genes. accelerated evolution of auditory genes in humans and language evolu- On average,expression levels in human and chimpanzee were more tion2.It is also interesting to note that ear morphology is one of the few similar to each other than either was to gorilla(Supplementary Fig.10.2). external traits in which humans are more similar to gorillas than to However this effect is reduced in genes with a higher proportion of ILS chimpanzees" sites,which tend to show greater expression distance between humans Next we considered gene loss and gain.We found 84 cases of gene and chimpanzees(Fig.3a).More generally,patterns seen in the relative loss in gorilla due to the acquisition of a premature stop codon,requir- expression distances between the three species showed a significant ing there to be no close paralogue(Supplementary Table 8.8):one such overlap with those derived from genomic lineage sorting (P=0.026; gene is TEX14,which codes for an intercellular bridge protein essential Supplementary Table 10.4),demonstrating that ILS can be reflected in for spermatogenesis in mice.Genome-wide analysis of gene gain is functional differences between primate species. confounded by the difficulty in assembling closely related paralogues. We also explored species specific variation in splicingby calculat- We therefore resequenced,by finishing overlapping fosmids,three ing the variance in differential expression of orthologous exons within gene clusters known to be under rapid adaptive evolution in primates: each gene.In total we found 7%of genes whose between-species the growth hormone cluster",the PRM clusters involved in sperm variance is significant at the 1%level (based on the distribution of function and the APOBEC cluster implicated in molecular adaptation within-human variances,Supplementary Fig.10.5).For example, to viral defence.In the growth hormone cluster,we observed four Supplementary Fig.10.6 illustrates gorilla-specific splicing in the chorionic somatomammotropin(CSH)genes in gorilla compared to SQLE gene,involved in steroid metabolism. three in humans and chimpanzees,with a novel highly similar pair of We further investigated great ape regulatory evolution by compar- CSH-like genes in gorilla that share a 3'end similar to human growth ing the binding in human and gorilla of CTCF,a protein essential to hormone GH2,suggesting a complex evolutionary history as in other vertebrate development that is involved in transcriptional regulation, primates".We saw sequence but not gene copy number changes in the chromatin loop formation and protein scaffolding".We performed PRM and APOBEC clusters(Supplementary Information). ChIP-seq (chromatin immunoprecipitation sequencing)of CTCF in a In several cases,a protein variant thought to cause inherited disease gorilla LCL (from EB(JC)),and compared this with matched human in humans"is the only version found in all three gorillas for which we experiments",using the EPO alignments to identify species-specific have genome-wide sequence data(Supplementary Table 8.9).Striking and shared binding regions(Fig.3b and Supplementary Information). examples are the dementia-associated variant Arg432Cys in the Consistent with previous results reporting strong CTCF binding con- growth factor PGRN and the hypertrophic cardiomyopathy- servation,and in contrast to the rapid turnover of some other tran- associated variant Arg153His in the muscle Z disk protein TCAP, scription factor binding sites",we found that approximately 70%of b d Nigeria Central African Rep 800 Sequence Camerool divergence 700 Eauatonal 600 Guinea 30 Split time r 500 Democratic Republic 400 of Congo Nw 300 200 Western Eastern 0.0 0.2 0.4 0.6 ■Cross River gorilla Eastern lowland gorilla Western Eastern Migration rate (events per generation) Western lowland gorilla ■Mountain gorilla Figure 4Gorilla species distribution and divergence.a,Distribution of reference assembly(photograph by J.R.).c,Eastern lowland gorilla Mukisi gorilla species in Africa.The western species (Gorilla gorilla)comprises two (photograph by M.Seres).d,Isolation-migration model of the western and subspecies:western lowland gorillas (G.gorilla gorilla)and Cross River gorillas eastern species.NA,Nw and NE are ancestral,western and eastern effective (G.gorilla diehli).Similarly,the eastern species (Gorilla beringei)is subclassified population sizes;m is the migration rate.e,Likelihood surface for migration into eastern lowland gorillas (G.beringei graueri)and mountain gorillas (G. and split time parameters in the isolation-migration model;colours from blue beringei beringei).(Based on data in ref.43.)Areas of water are shown pale blue. (minimum)to red(maximum)indicate the magnitude of likelihood. Inset,area of main map.b,Western lowland gorilla Kamilah,source of the 8 MARCH 2012 VOL 483 I NATURE 173 2012 Macmillan Publishers Limited.All rights reserved

increased cornification of knuckle pads in gorilla29. Interestingly, gorilla and human both yielded brain-associated terms enriched for accele￾rated genes, but chimpanzee did not (Supplementary Table 8.4a–c). Genes expressed in the brain or involved in its development have not typically been associated with positive selection in primates, but our results show that multiple great ape lineages show elevated dN/dS in brain-related genes when evaluated against a primate background. We also identified cases of pairwise parallel evolution among hominines. Human and chimpanzee show the largest amount, with significantly more shared accelerations than expected by chance, whereas gorilla shares more parallel acceleration with human than with chimpanzee across a range of significance thresholds (Supplementary Fig. 8.3). Genes involving hearing are enriched in parallel accelerations for all three pairs, but most strongly in gorilla–human (Supplementary Table 8.4d–f), calling into question a previous link made between accelerated evolution of auditory genes in humans and language evolu￾tion28. It is also interesting to note that ear morphology is one of the few external traits in which humans are more similar to gorillas than to chimpanzees30. Next we considered gene loss and gain. We found 84 cases of gene loss in gorilla due to the acquisition of a premature stop codon, requir￾ing there to be no close paralogue (Supplementary Table 8.8): one such gene is TEX14, which codes for an intercellular bridge protein essential for spermatogenesis in mice. Genome-wide analysis of gene gain is confounded by the difficulty in assembling closely related paralogues. We therefore resequenced, by finishing overlapping fosmids, three gene clusters known to be under rapid adaptive evolution in primates: the growth hormone cluster31, the PRM clusters involved in sperm function and the APOBEC cluster implicated in molecular adaptation to viral defence. In the growth hormone cluster, we observed four chorionic somatomammotropin (CSH) genes in gorilla compared to three in humans and chimpanzees, with a novel highly similar pair of CSH-like genes in gorilla that share a 39 end similar to human growth hormone GH2, suggesting a complex evolutionary history as in other primates31. We saw sequence but not gene copy number changes in the PRM and APOBEC clusters (Supplementary Information). In several cases, a protein variant thought to cause inherited disease in humans32 is the only version found in all three gorillas for which we have genome-wide sequence data (Supplementary Table 8.9). Striking examples are the dementia-associated variant Arg432Cys in the growth factor PGRN and the hypertrophic cardiomyopathy￾associated variant Arg153His in the muscle Z disk protein TCAP, both of which were corroborated by additional capillary sequencing (Supplementary Table 8.10). Why variants that appear to cause disease in humans might be associated with a normal phenotype in gorillas is unknown; possible explanations are compensatory molecular changes elsewhere, or differing environmental conditions. Such variants have also been found in both the chimpanzee and macaque genomes3,33. Gene transcription and regulation We carried out an analysis of hominine transcriptome variation using total RNA extracted and sequenced from lymphoblastoid cell lines (LCLs) of one gorilla, two chimpanzees and two bonobos (Sup￾plementary Information), and published RNA sequence data for eight human individuals34. After quantifying reads mapping to exons and genes in each species, we calculated the degree of species-specific expression and splicing in 9,746 1:1:1 expressed orthologous genes. On average, expression levels in human and chimpanzee were more similar to each other than either was to gorilla (Supplementary Fig. 10.2). However this effect is reduced in genes with a higher proportion of ILS sites, which tend to show greater expression distance between humans and chimpanzees (Fig. 3a). More generally, patterns seen in the relative expression distances between the three species showed a significant overlap with those derived from genomic lineage sorting (P 5 0.026; Supplementary Table 10.4), demonstrating that ILS can be reflected in functional differences between primate species. We also explored species specific variation in splicing35 by calculat￾ing the variance in differential expression of orthologous exons within each gene. In total we found 7% of genes whose between-species variance is significant at the 1% level (based on the distribution of within-human variances, Supplementary Fig. 10.5). For example, Supplementary Fig. 10.6 illustrates gorilla-specific splicing in the SQLE gene, involved in steroid metabolism. We further investigated great ape regulatory evolution by compar￾ing the binding in human and gorilla of CTCF, a protein essential to vertebrate development that is involved in transcriptional regulation, chromatin loop formation and protein scaffolding36. We performed ChIP-seq (chromatin immunoprecipitation sequencing) of CTCF in a gorilla LCL (from EB(JC)), and compared this with matched human experiments37, using the EPO alignments to identify species-specific and shared binding regions (Fig. 3b and Supplementary Information). Consistent with previous results reporting strong CTCF binding con￾servation38, and in contrast to the rapid turnover of some other tran￾scription factor binding sites39, we found that approximately 70% of 0.0 0.2 0.4 0.6 800 700 600 500 400 300 200 Migration rate (events per generation) Split time (kyr ago) Western Cross River gorilla Western lowland gorilla Eastern lowland gorilla Mountain gorilla Eastern Congo Gabon Democratic Republic of Congo Rwanda Uganda Central African Rep. Nigeria Equatorial Guinea Cameroon Sequence divergence NA NE Eastern m m Western NW Split time τ a bd e c Figure 4 | Gorilla species distribution and divergence. a, Distribution of gorilla species in Africa. The western species (Gorilla gorilla) comprises two subspecies: western lowland gorillas (G. gorilla gorilla) and Cross River gorillas (G. gorilla diehli). Similarly, the eastern species (Gorilla beringei) is subclassified into eastern lowland gorillas (G. beringei graueri) and mountain gorillas (G. beringei beringei). (Based on data in ref. 43.) Areas of water are shown pale blue. Inset, area of main map. b, Western lowland gorilla Kamilah, source of the reference assembly (photograph by J.R.). c, Eastern lowland gorilla Mukisi (photograph by M. Seres). d, Isolation–migration model of the western and eastern species. NA, NW and NE are ancestral, western and eastern effective population sizes; m is the migration rate. e, Likelihood surface for migration and split time parameters in the isolation–migration model; colours from blue (minimum) to red (maximum) indicate the magnitude of likelihood. ARTICLE RESEARCH 8 MARCH 2012 | VOL 483 | NATURE | 173 ©2012 Macmillan Publishers Limited. All rights reserved
