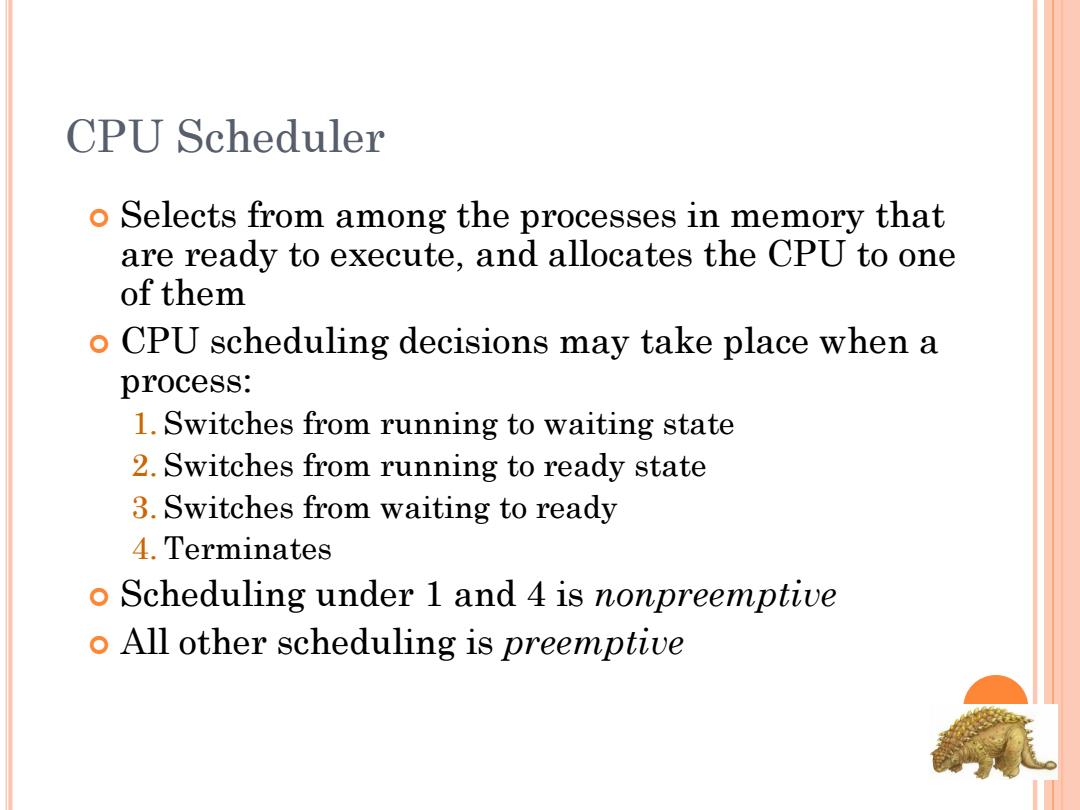

CPU Scheduler o Selects from among the processes in memory that are ready to execute,and allocates the CPU to one of them o CPU scheduling decisions may take place when a process: 1.Switches from running to waiting state 2.Switches from running to ready state 3.Switches from waiting to ready 4.Terminates o Scheduling under 1 and 4 is nonpreemptive o All other scheduling is preemptive
CPU Scheduler Selects from among the processes in memory that are ready to execute, and allocates the CPU to one of them CPU scheduling decisions may take place when a process: 1. Switches from running to waiting state 2. Switches from running to ready state 3. Switches from waiting to ready 4. Terminates Scheduling under 1 and 4 is nonpreemptive All other scheduling is preemptive

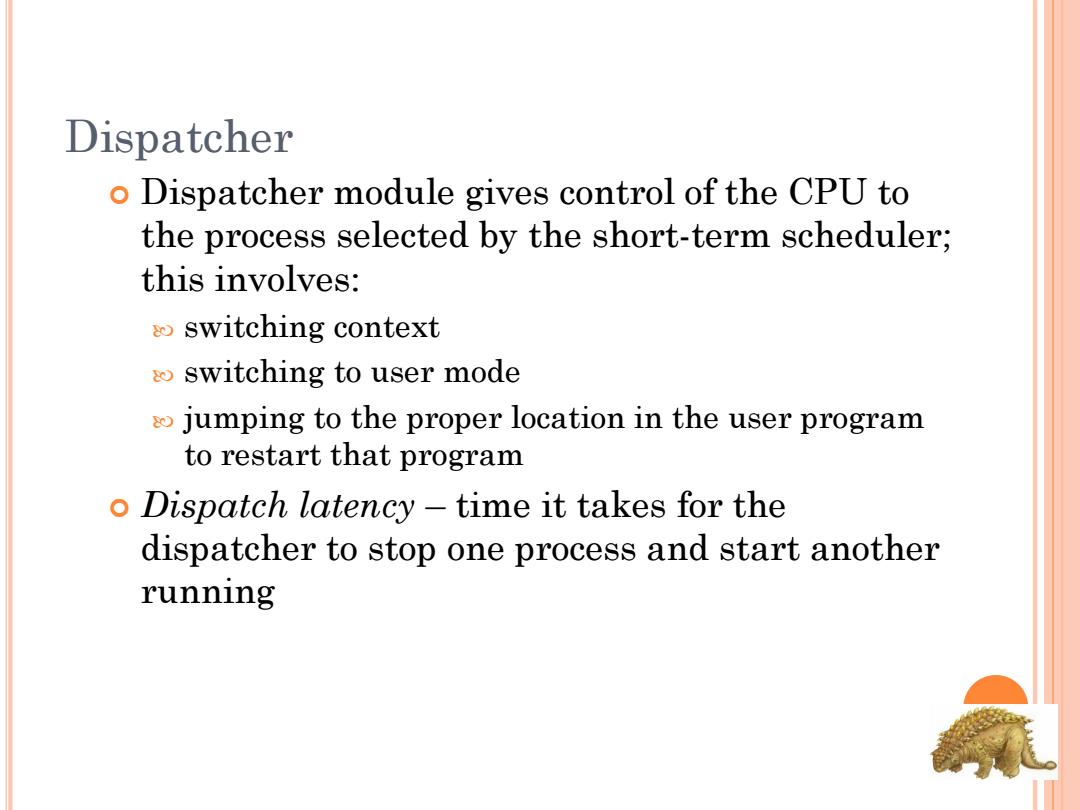

Dispatcher o Dispatcher module gives control of the CPU to the process selected by the short-term scheduler; this involves: switching context switching to user mode jumping to the proper location in the user program to restart that program o Dispatch latency-time it takes for the dispatcher to stop one process and start another running
Dispatcher Dispatcher module gives control of the CPU to the process selected by the short-term scheduler; this involves: switching context switching to user mode jumping to the proper location in the user program to restart that program Dispatch latency – time it takes for the dispatcher to stop one process and start another running
