Introduction to Composite Construction Slab edge Slab edge 2 Slab Slab reinforcement 8 Edge primary beam Intemal primary beam DECKMESHTM Secondary-beam-to-primary-beam connection Profiled steel sheeting Secondary-beam-to-column connection 5. Shear connectors 12 Primary-beam-to-column connection 6 Edge secondary beam 7 Internal secondary beam
Introduction to Composite Construction
Strictly composite only means the interaction of two materials within one construction element (e.g.a concrete-filled tubular steel column) 0 the philosophy of mixed building technology includes the combination of construction elements or members built up with different construction methods (e.g.concrete column in combination with a composite beam and a prefabricated slab)
Strictly composite only means : • the interaction of two materials within one construction element (e.g. a concrete-filled tubular steel column) • the philosophy of mixed building technology includes the combination of construction elements or members built up with different construction methods (e.g. concrete column in combination with a composite beam and a prefabricated slab)

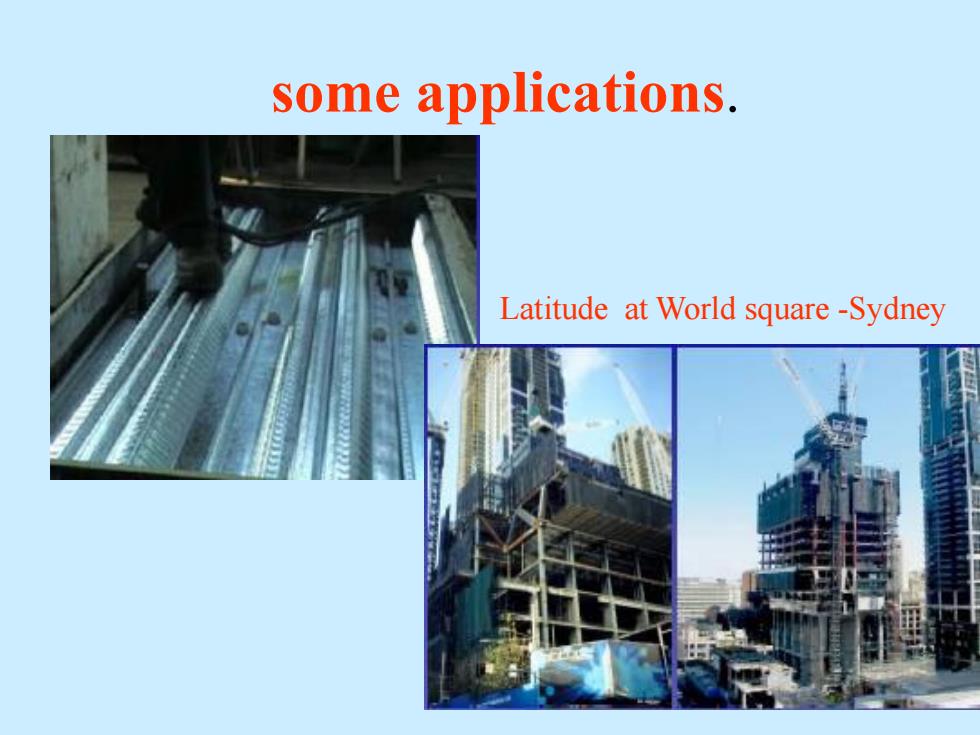

some applications. Latitude at World square-Sydney
some applications. Latitude at World square -Sydney

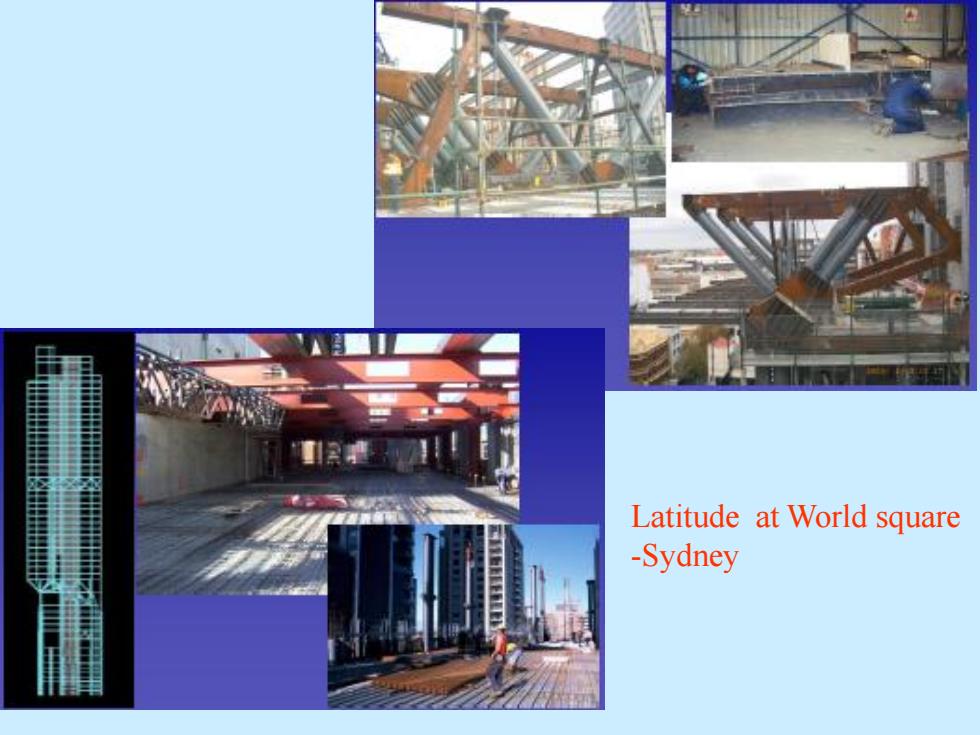

Latitude at World square -Sydney
Latitude at World square -Sydney

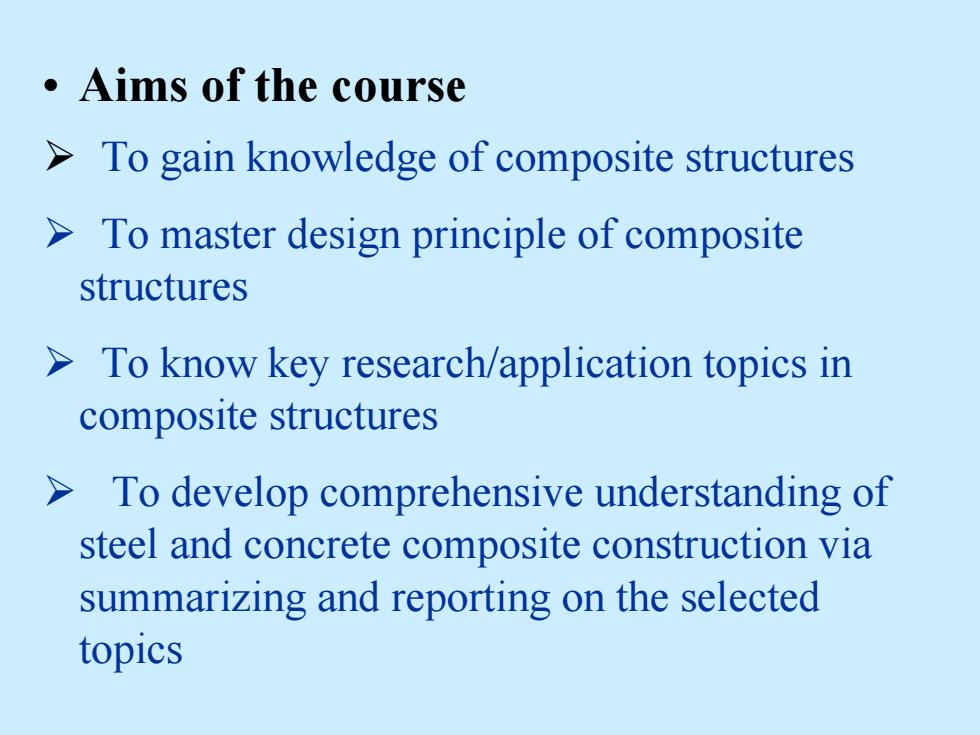

·Aims of the course >To gain knowledge of composite structures To master design principle of composite structures To know key research/application topics in composite structures >1 To develop comprehensive understanding of steel and concrete composite construction via summarizing and reporting on the selected topics
• Aims of the course To gain knowledge of composite structures To master design principle of composite structures To know key research/application topics in composite structures To develop comprehensive understanding of steel and concrete composite construction via summarizing and reporting on the selected topics
