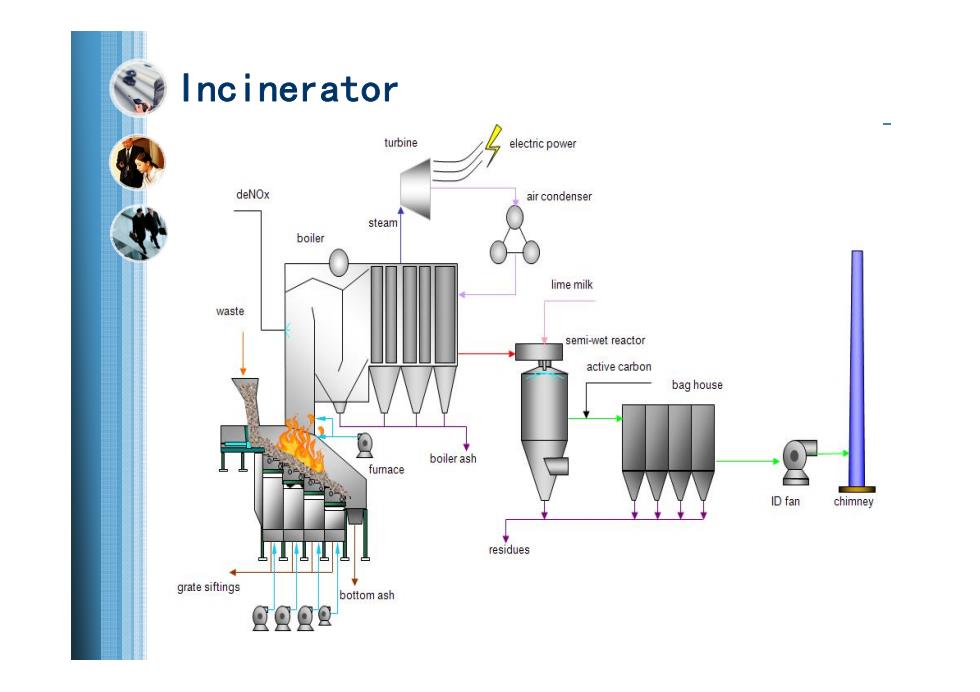

Incinerator turbine electric power deNOx air condenser steam boiler lime milk waste semi-wet reactor active carbon bag house boiler ash fumace ID fan chimney residues grate siftings bottom ash 但且包
Incinerator

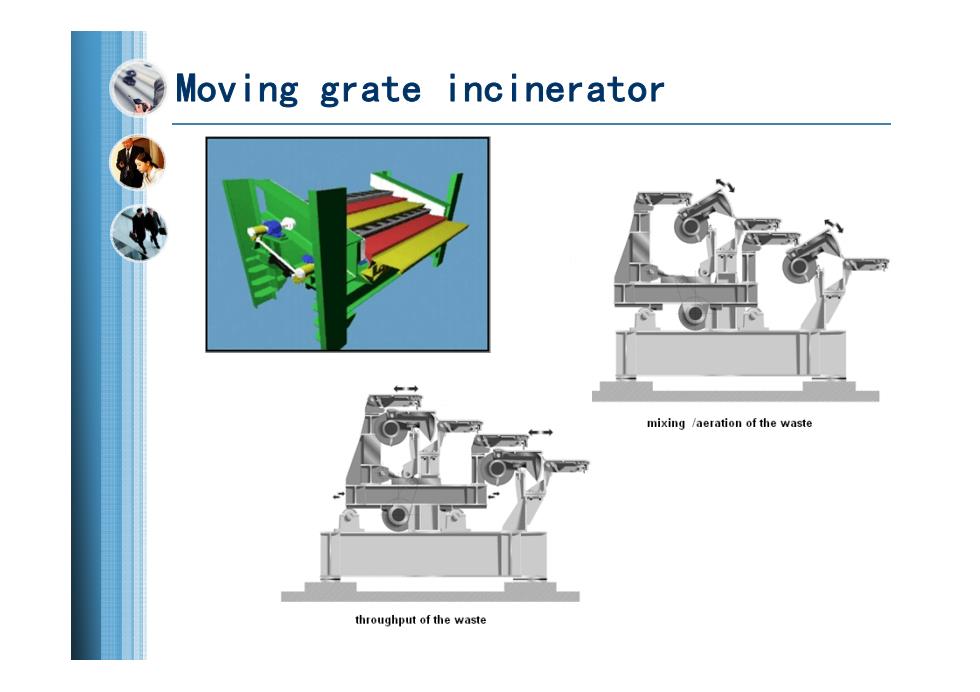

Moving grate incinerator mixing /aeration of the waste throughput of the waste
Moving grate incinerator

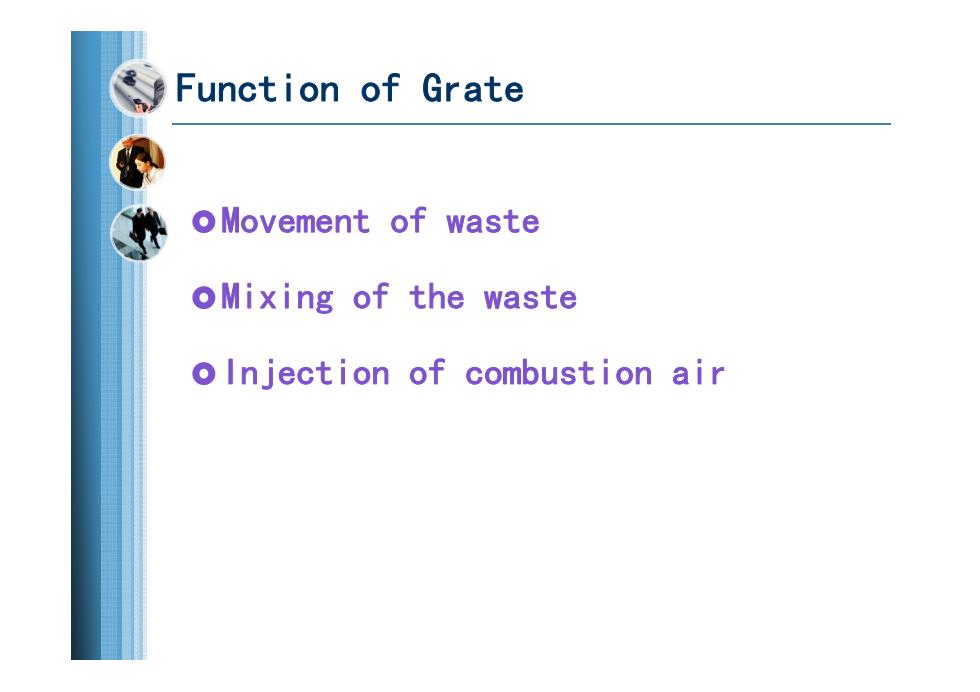

Function of Grate oMovement of waste OMixing of the waste oInjection of combustion air
Function of Grate Movement of waste Mixing of the waste Injection of combustion air

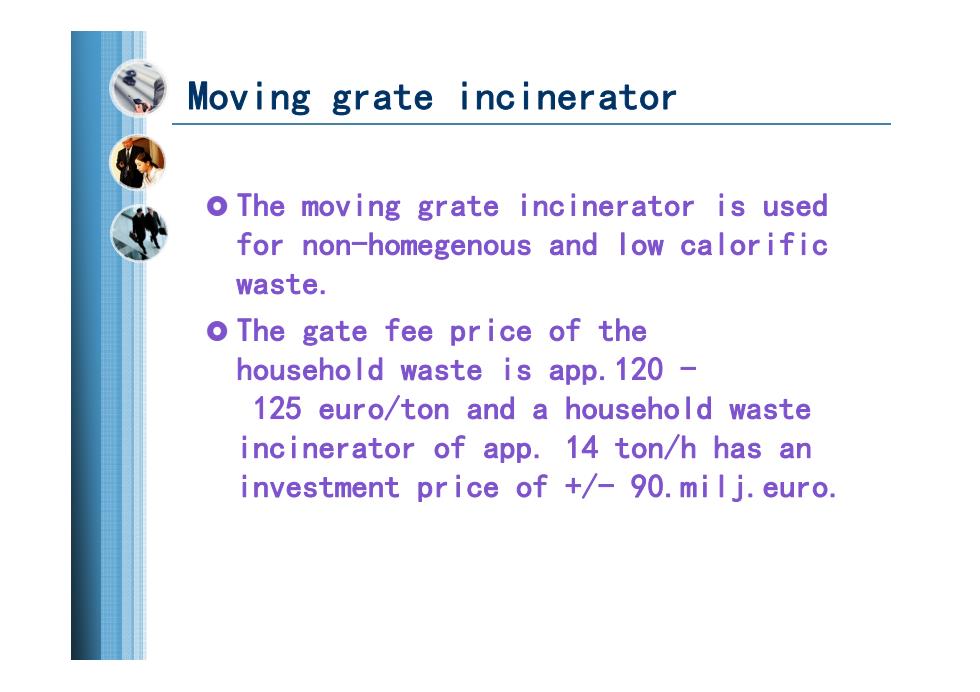

Moving grate incinerator o The moving grate incinerator is used for non-homegenous and low calor ific waste. o The gate fee price of the household waste is app.120- 125 euro/ton and a household waste incinerator of app.14 ton/h has an investment price of +/-90.milj.euro
Moving grate incinerator The moving grate incinerator is used for non-homegenous and low calorific waste. The gate fee price of the household waste is app.120 - 125 euro/ton and a household waste incinerator of app. 14 ton/h has an investment price of +/- 90.milj.euro

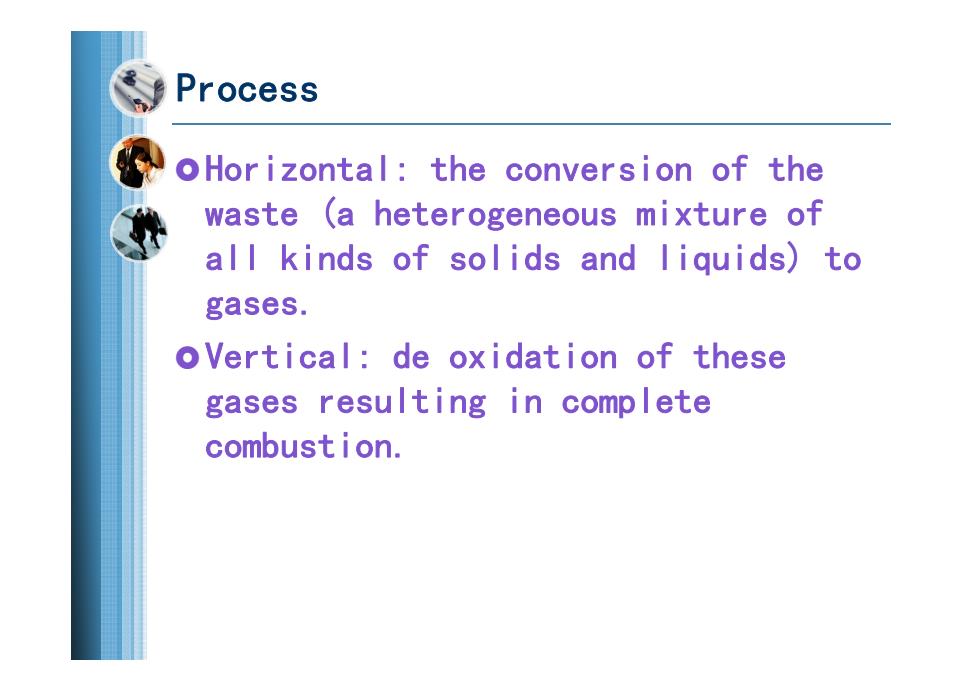

Process OHorizontal:the conversion of the waste (a heterogeneous r mixture of all kinds of solids and liquids)to gases. oVertical:de oxidation of these gases resulting in complete combust i on
Process Horizontal: the conversion of the waste (a heterogeneous mixture of all kinds of solids and liquids) to gases. Vertical: de oxidation of these gases resulting in complete combustion
