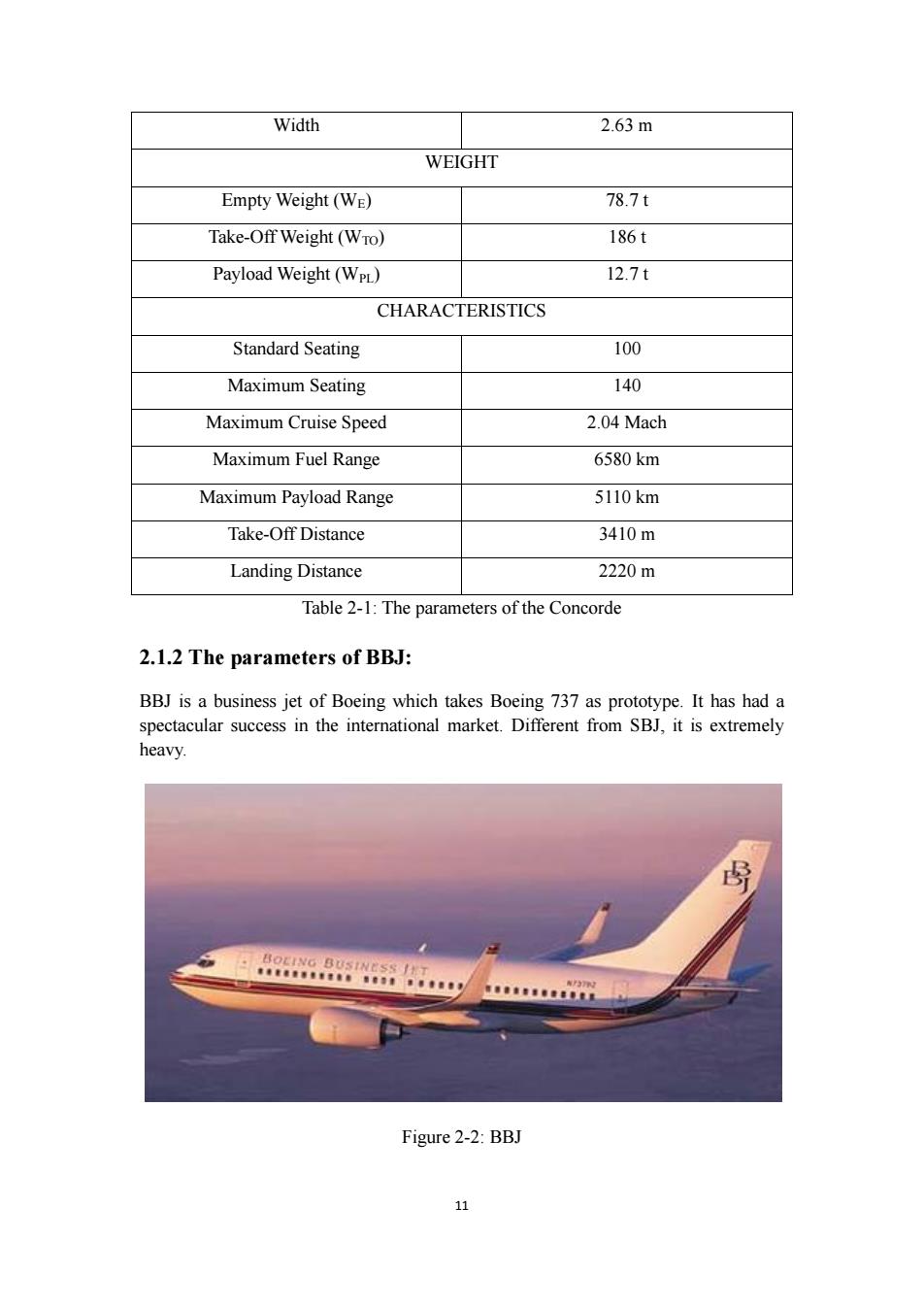

Width 2.63m WEIGHT Empty Weight (WE) 78.7t Take-Off Weight(WTo) 186t Payload Weight(WPL) 12.7t CHARACTERISTICS Standard Seating 100 Maximum Seating 140 Maximum Cruise Speed 2.04 Mach Maximum Fuel Range 6580km Maximum Payload Range 5110km Take-Off Distance 3410m Landing Distance 2220m Table 2-1:The parameters of the Concorde 2.1.2 The parameters of BBJ: BBJ is a business jet of Boeing which takes Boeing 737 as prototype.It has had a spectacular success in the international market.Different from SBJ,it is extremely heavy. BOLING BUSINESS IET 88801888308101000080 NBBRES8RESEE Figure 2-2:BBJ 11
11 Width 2.63 m WEIGHT Empty Weight (WE) 78.7 t Take-Off Weight (WTO) 186 t Payload Weight (WPL) 12.7 t CHARACTERISTICS Standard Seating 100 Maximum Seating 140 Maximum Cruise Speed 2.04 Mach Maximum Fuel Range 6580 km Maximum Payload Range 5110 km Take-Off Distance 3410 m Landing Distance 2220 m Table 2-1: The parameters of the Concorde 2.1.2 The parameters of BBJ: BBJ is a business jet of Boeing which takes Boeing 737 as prototype. It has had a spectacular success in the international market. Different from SBJ, it is extremely heavy. Figure 2-2: BBJ

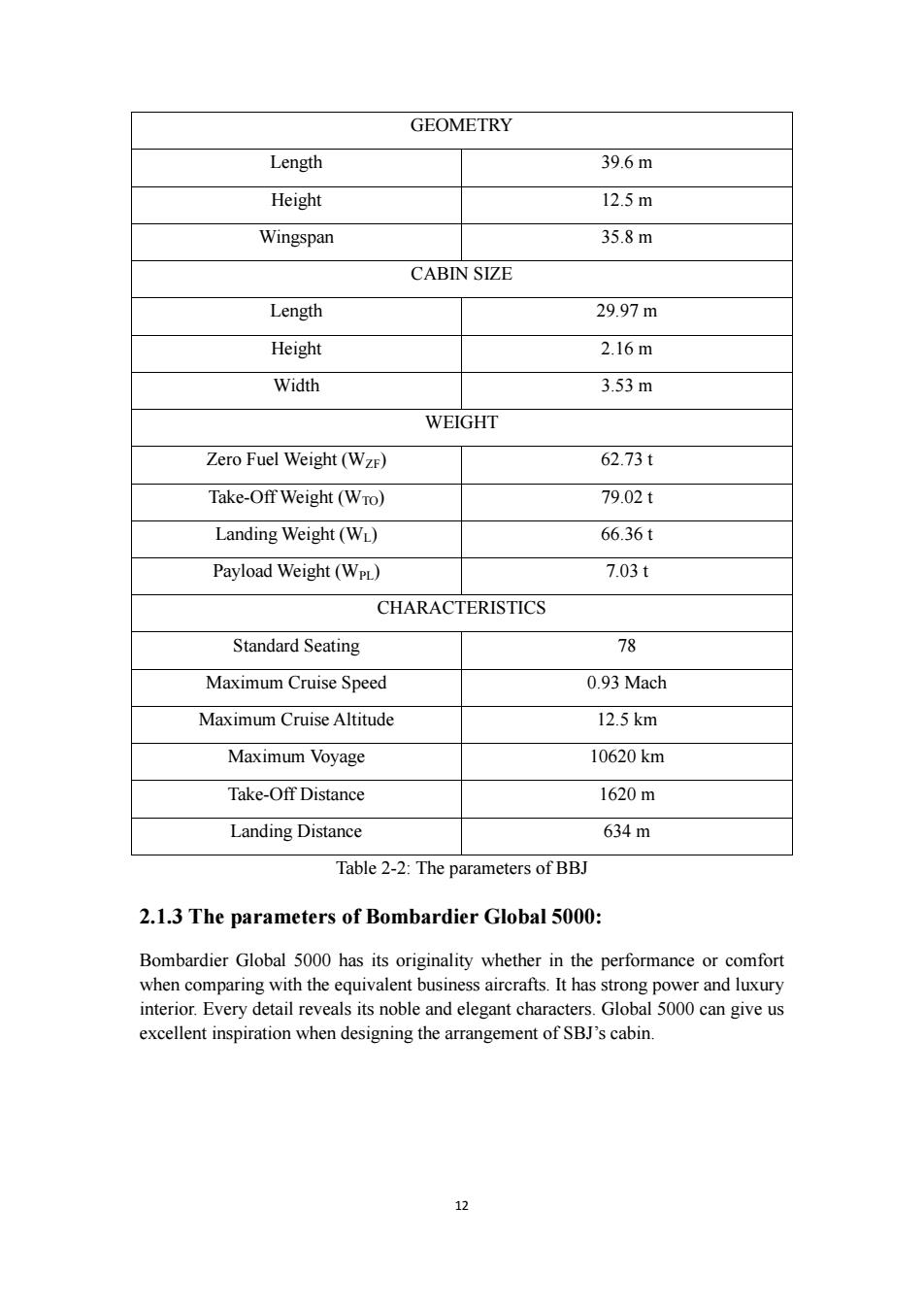

GEOMETRY Length 39.6m Height 12.5m Wingspan 35.8m CABIN SIZE Length 29.97m Height 2.16m Width 3.53m WEIGHT Zero Fuel Weight (WZE) 62.73t Take-Off Weight(WTo) 79.02t Landing Weight (WL) 66.36t Payload Weight (WPL) 7.03t CHARACTERISTICS Standard Seating 78 Maximum Cruise Speed 0.93 Mach Maximum Cruise Altitude 12.5km Maximum Voyage 10620km Take-Off Distance 1620m Landing Distance 634m Table 2-2:The parameters of BBJ 2.1.3 The parameters of Bombardier Global 5000: Bombardier Global 5000 has its originality whether in the performance or comfort when comparing with the equivalent business aircrafts.It has strong power and luxury interior.Every detail reveals its noble and elegant characters.Global 5000 can give us excellent inspiration when designing the arrangement of SBJ's cabin. 12
12 GEOMETRY Length 39.6 m Height 12.5 m Wingspan 35.8 m CABIN SIZE Length 29.97 m Height 2.16 m Width 3.53 m WEIGHT Zero Fuel Weight (WZF) 62.73 t Take-Off Weight (WTO) 79.02 t Landing Weight (WL) 66.36 t Payload Weight (WPL) 7.03 t CHARACTERISTICS Standard Seating 78 Maximum Cruise Speed 0.93 Mach Maximum Cruise Altitude 12.5 km Maximum Voyage 10620 km Take-Off Distance 1620 m Landing Distance 634 m Table 2-2: The parameters of BBJ 2.1.3 The parameters of Bombardier Global 5000: Bombardier Global 5000 has its originality whether in the performance or comfort when comparing with the equivalent business aircrafts. It has strong power and luxury interior. Every detail reveals its noble and elegant characters. Global 5000 can give us excellent inspiration when designing the arrangement of SBJ’s cabin

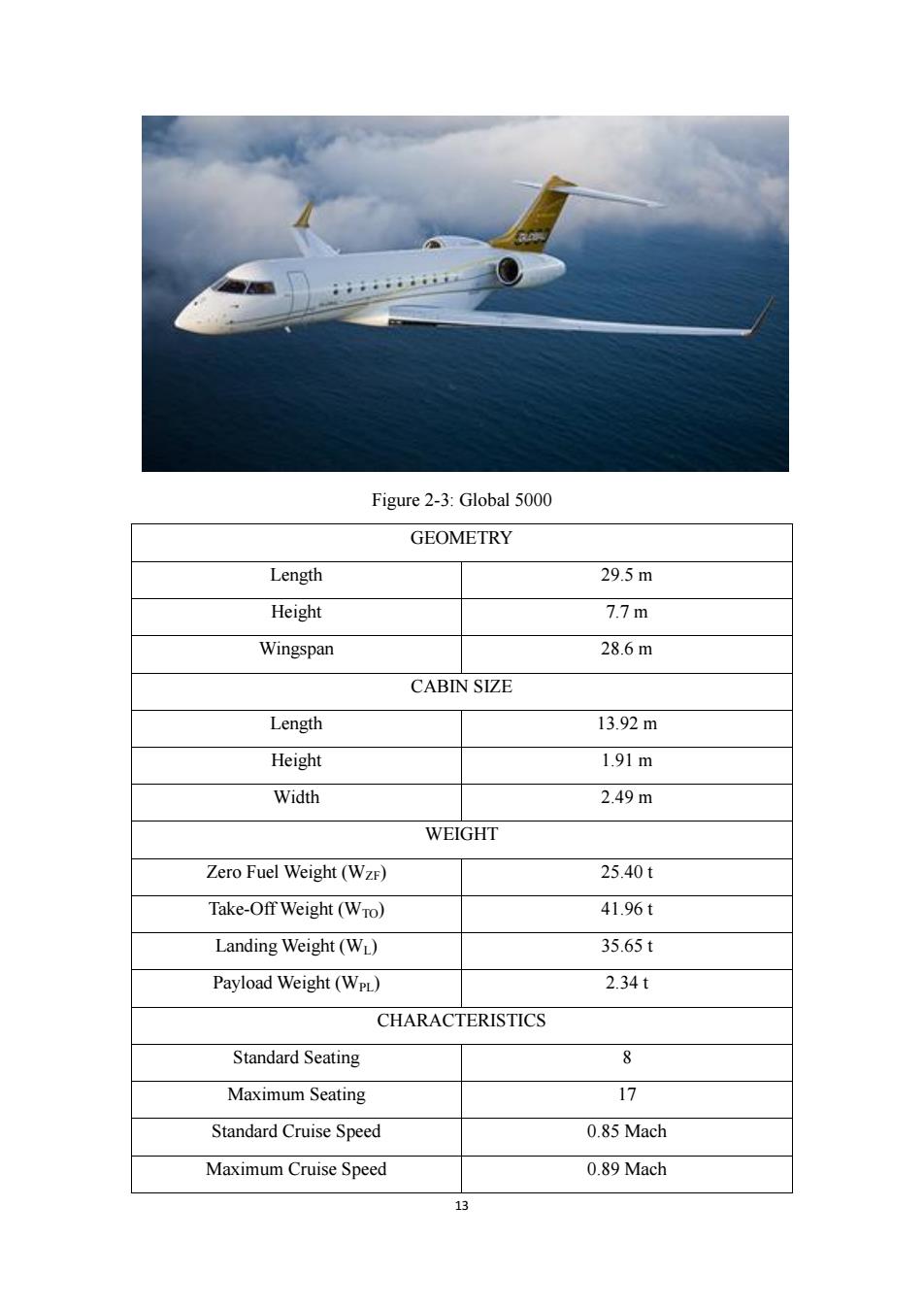

Figure 2-3:Global 5000 GEOMETRY Length 29.5m Height 7.7m Wingspan 28.6m CABIN SIZE Length 13.92m Height 1.91m Width 2.49m WEIGHT Zero Fuel Weight (WZF) 25.40t Take-Off Weight(WTo) 41.96t Landing Weight(WL) 35.65t Payload Weight (WPL) 2.34t CHARACTERISTICS Standard Seating 8 Maximum Seating 17 Standard Cruise Speed 0.85 Mach Maximum Cruise Speed 0.89 Mach 13
13 Figure 2-3: Global 5000 GEOMETRY Length 29.5 m Height 7.7 m Wingspan 28.6 m CABIN SIZE Length 13.92 m Height 1.91 m Width 2.49 m WEIGHT Zero Fuel Weight (WZF) 25.40 t Take-Off Weight (WTO) 41.96 t Landing Weight (WL) 35.65 t Payload Weight (WPL) 2.34 t CHARACTERISTICS Standard Seating 8 Maximum Seating 17 Standard Cruise Speed 0.85 Mach Maximum Cruise Speed 0.89 Mach

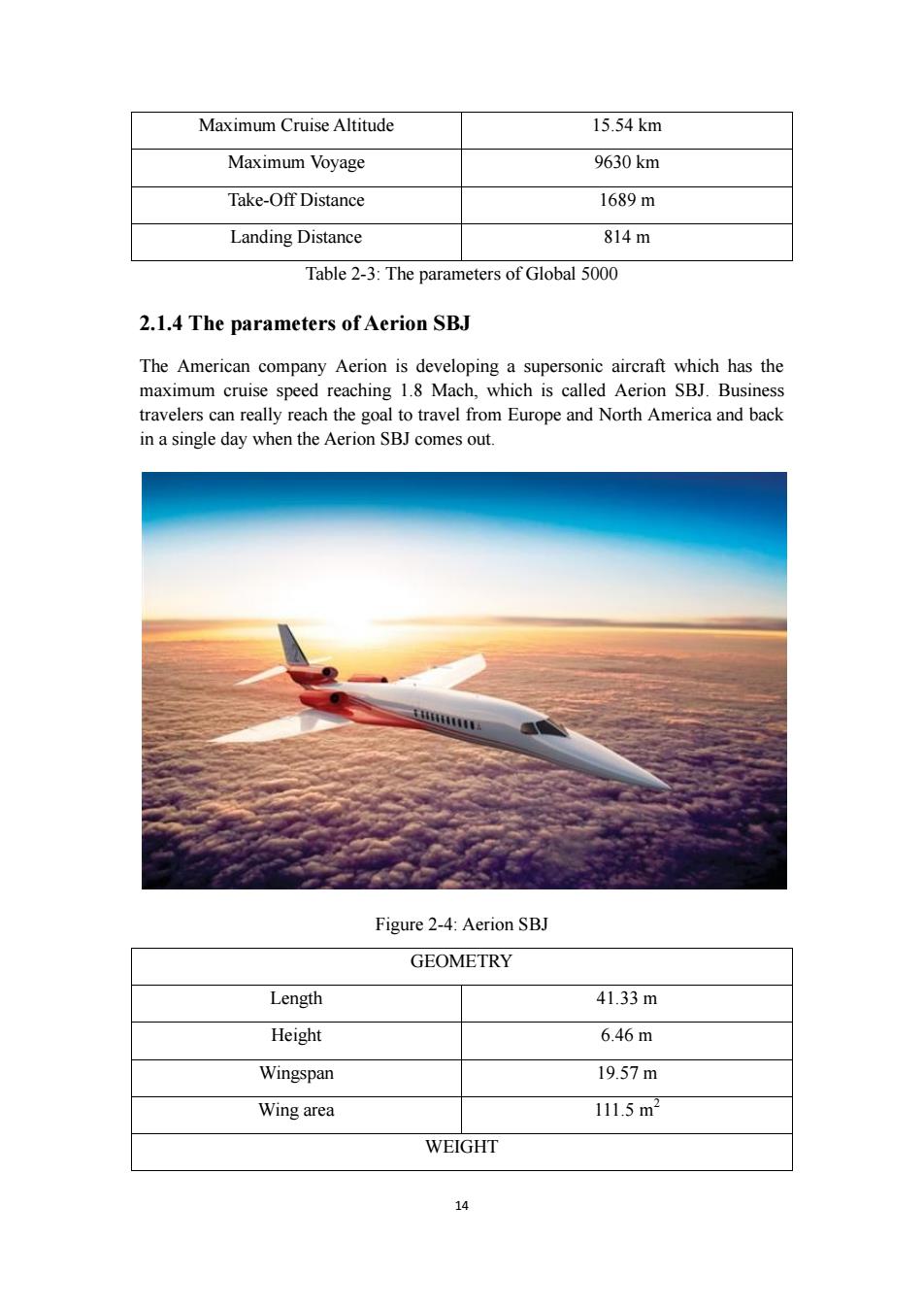

Maximum Cruise Altitude 15.54km Maximum Voyage 9630km Take-Off Distance 1689m Landing Distance 814m Table 2-3:The parameters of Global 5000 2.1.4 The parameters of Aerion SBJ The American company Aerion is developing a supersonic aircraft which has the maximum cruise speed reaching 1.8 Mach,which is called Aerion SBJ.Business travelers can really reach the goal to travel from Europe and North America and back in a single day when the Aerion SBJ comes out. SHRHMN Figure 2-4:Aerion SBJ GEOMETRY Length 41.33m Height 6.46m Wingspan 19.57m Wing area 111.5m2 WEIGHT 14
14 Maximum Cruise Altitude 15.54 km Maximum Voyage 9630 km Take-Off Distance 1689 m Landing Distance 814 m Table 2-3: The parameters of Global 5000 2.1.4 The parameters of Aerion SBJ The American company Aerion is developing a supersonic aircraft which has the maximum cruise speed reaching 1.8 Mach, which is called Aerion SBJ. Business travelers can really reach the goal to travel from Europe and North America and back in a single day when the Aerion SBJ comes out. Figure 2-4: Aerion SBJ GEOMETRY Length 41.33 m Height 6.46 m Wingspan 19.57 m Wing area 111.5 m2 WEIGHT

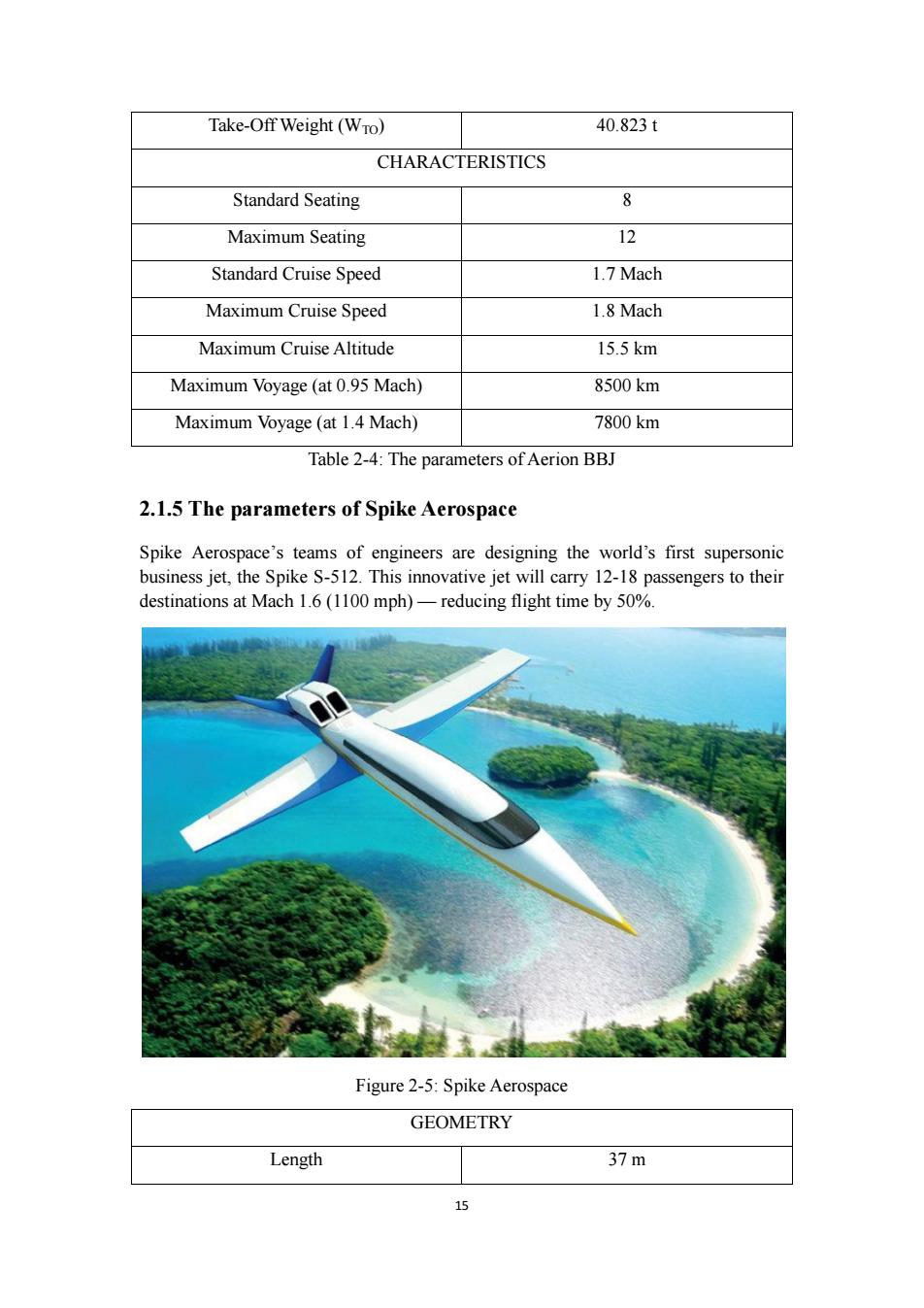

Take-Off Weight(WTo) 40.823t CHARACTERISTICS Standard Seating 8 Maximum Seating 12 Standard Cruise Speed 1.7Mach Maximum Cruise Speed 1.8 Mach Maximum Cruise Altitude 15.5km Maximum Voyage (at 0.95 Mach) 8500km Maximum Voyage(at 1.4 Mach) 7800km Table 2-4:The parameters of Aerion BBJ 2.1.5 The parameters of Spike Aerospace Spike Aerospace's teams of engineers are designing the world's first supersonic business jet,the Spike S-512.This innovative jet will carry 12-18 passengers to their destinations at Mach 1.6(1100 mph)-reducing flight time by 50%. Figure 2-5:Spike Aerospace GEOMETRY Length 37m 15
15 Take-Off Weight (WTO) 40.823 t CHARACTERISTICS Standard Seating 8 Maximum Seating 12 Standard Cruise Speed 1.7 Mach Maximum Cruise Speed 1.8 Mach Maximum Cruise Altitude 15.5 km Maximum Voyage (at 0.95 Mach) 8500 km Maximum Voyage (at 1.4 Mach) 7800 km Table 2-4: The parameters of Aerion BBJ 2.1.5 The parameters of Spike Aerospace Spike Aerospace’s teams of engineers are designing the world’s first supersonic business jet, the Spike S-512. This innovative jet will carry 12-18 passengers to their destinations at Mach 1.6 (1100 mph) — reducing flight time by 50%. Figure 2-5: Spike Aerospace GEOMETRY Length 37 m
