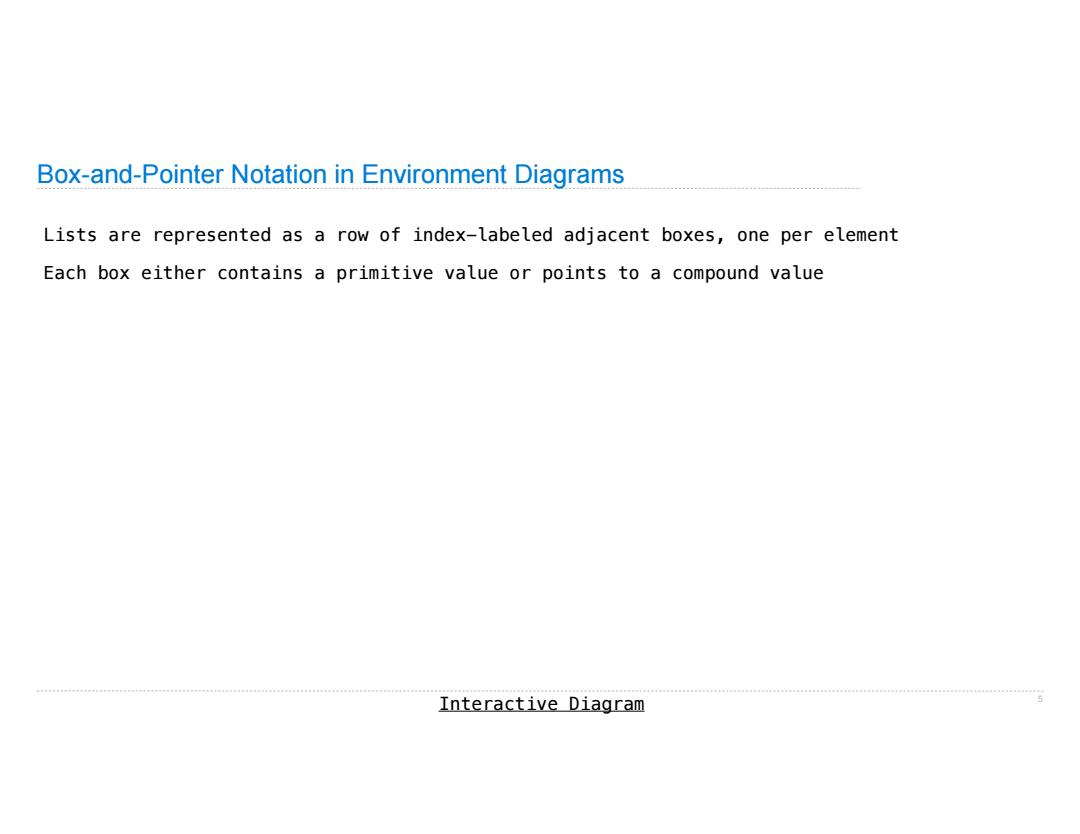

Box-and-Pointer Notation in Environment Diagrams Lists are represented as a row of index-labeled adjacent boxes,one per element Each box either contains a primitive value or points to a compound value Interactive Diagram 5

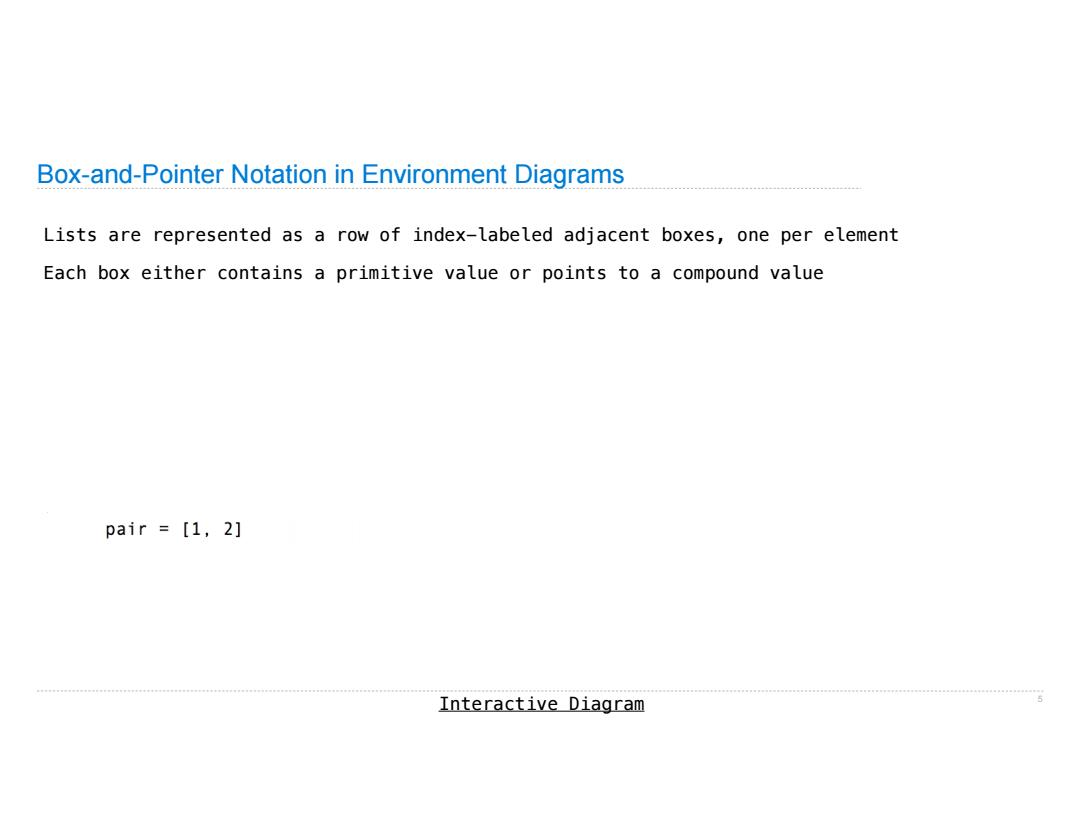

Box-and-Pointer Notation in Environment Diagrams Lists are represented as a row of index-labeled adjacent boxes, one per element Each box either contains a primitive value or points to a compound value 5 Interactive Diagram

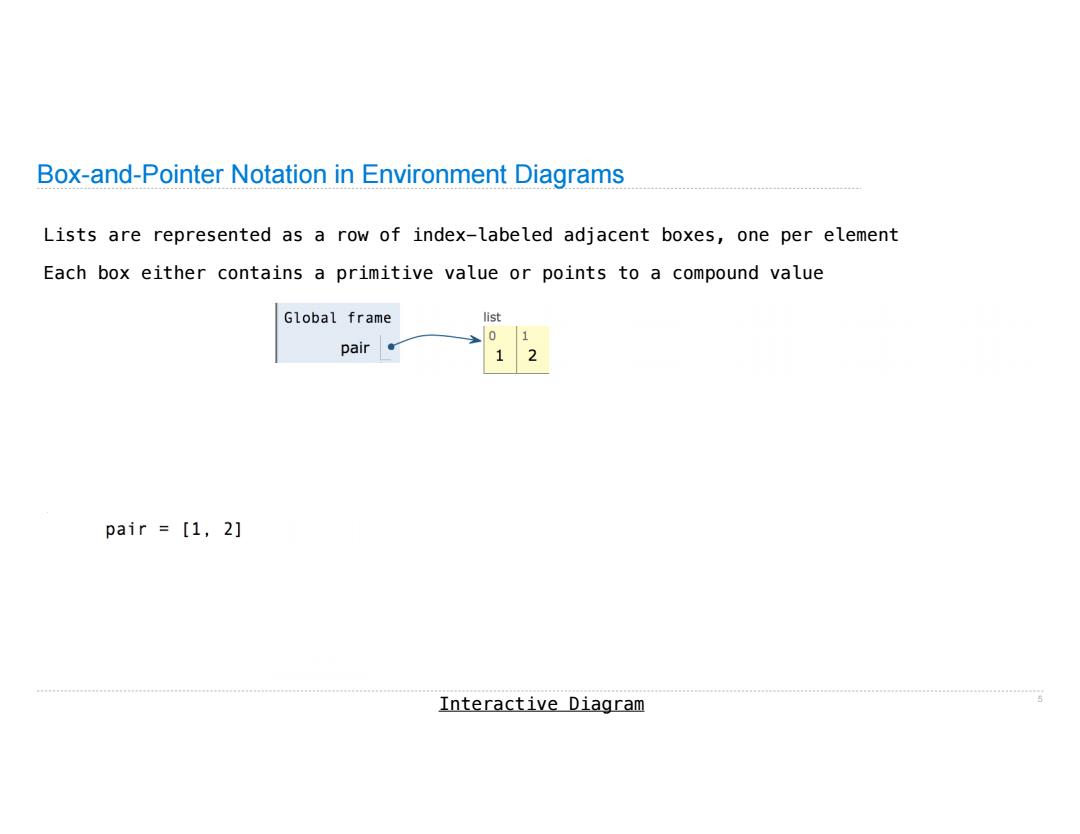

Box-and-Pointer Notation in Environment Diagrams Lists are represented as a row of index-labeled adjacent boxes,one per element Each box either contains a primitive value or points to a compound value pair=[1,2] Interactive Diagram m5
Box-and-Pointer Notation in Environment Diagrams Lists are represented as a row of index-labeled adjacent boxes, one per element Each box either contains a primitive value or points to a compound value 5 Interactive Diagram
Box-and-Pointer Notation in Environment Diagrams Lists are represented as a row of index-labeled adjacent boxes,one per element Each box either contains a primitive value or points to a compound value Global frame list 0 pair 1 2 pair=[1,2] 中中中中中中中中 Interactive Diagram 5
Box-and-Pointer Notation in Environment Diagrams Lists are represented as a row of index-labeled adjacent boxes, one per element Each box either contains a primitive value or points to a compound value 5 Interactive Diagram

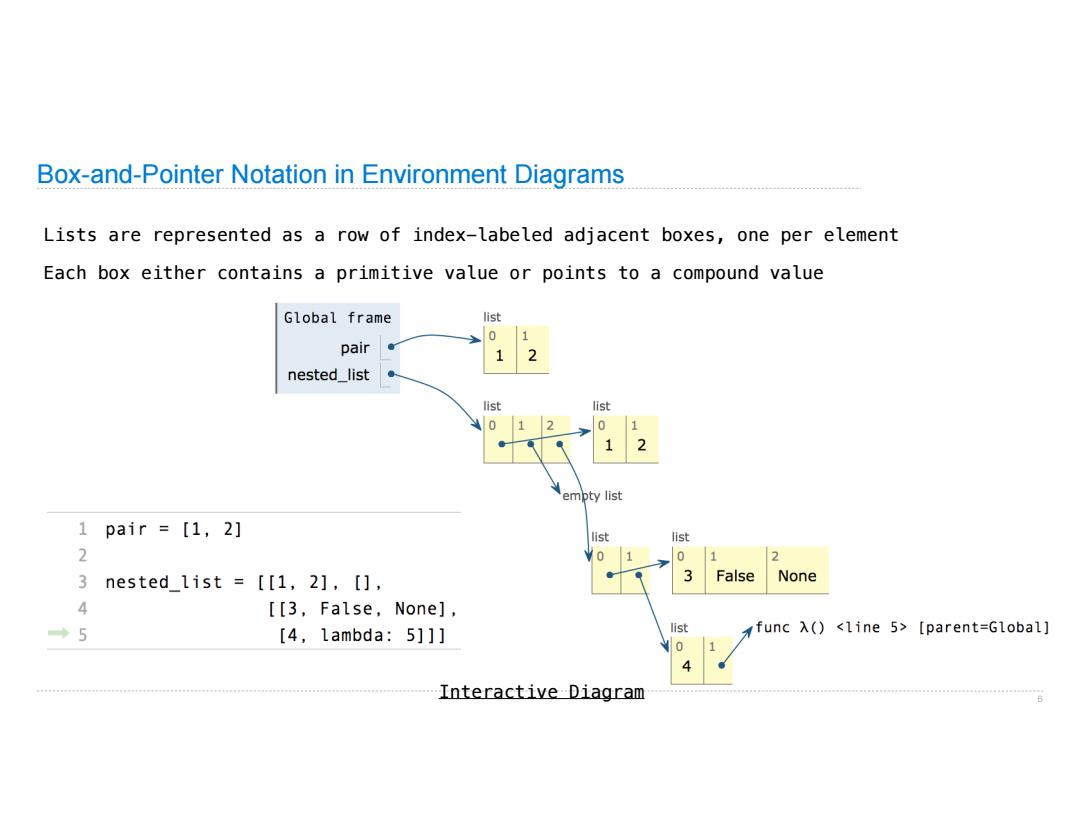

Box-and-Pointer Notation in Environment Diagrams Lists are represented as a row of index-labeled adjacent boxes,one per element Each box either contains a primitive value or points to a compound value Global frame list 0 pair 1 2 nested_list list list 40 1 2 0 1 1 2 empty list 1 pair=[1,2] list list 2 1 0 1 3 nested_list =[[1,2],[] 3 False None 4 [[3,False,None], →5 [4,1 ambda:5]] list funcλ()<line5>[parent=Global】 1 4 Interactive Diagram 6
Box-and-Pointer Notation in Environment Diagrams Lists are represented as a row of index-labeled adjacent boxes, one per element Each box either contains a primitive value or points to a compound value Interactive Diagram 6
Slicing (Demo)
Slicing (Demo)
