6 Appendix C Other Relational Query Languages Compare the preceding query with our earlier query “Find the names of all customers who have both an account and a loan at the bank.”The only difference is the ¬ appearing next to the example row in the borrower skeleton. This difference, however, has a major effect on the processing of the query. QBE finds all x values for which 1. There is a tuple in the depositor relation whose customer name is the domain variable x. 2. There is no tuple in the borrower relation whose customer name is the same as in the domain variable x. The ¬ can be read as “there does not exist.” The fact that we placed the ¬ under the relation name, rather than under an attribute name, is important. A ¬ under an attribute name is shorthand for =. Thus, to find all customers who have at least two accounts, we write depositor customer_name account_number P. x y x ¬ y In English, the preceding query reads “Display all customer name values that appear in at least two tuples, with the second tuple having an account number different from the first.” C.1.4 The Condition Box At times, it is either inconvenient or impossible to express all the constraints on the domain variables within the skeleton tables. To overcome this difficulty, QBE includes a condition box feature that allows the expression of general constraints over any of the domain variables. QBE allows logical expressions to appear in a condition box. The logical operators are the words and and or, or the symbols “&” and “|”. For example, the query “Find the loan numbers of all loans made to Smith, to Jones (or to both jointly)” can be written as borrower customer_name loan_number n P. x conditions n = Smith or n = Jones It is possible to express the above query without using a condition box, by using P. inmultiple rows. However, queries with P. inmultiple rows are sometimes hard to understand, and are best avoided
C.1 Query-by-Example 7 As yet another example,suppose that we modify the final query in Sec- tion C.1.3 to be"Find all customers who are not named Jones'and who have at least two accounts."We want to include an"x Jones"constraint in this query. We do that by bringing up the condition box and entering the constraint"x-= Jones": conditions x=Jones Turning to another example,to find all account numbers with a balance between $1300 and $1500,we write account account_number branch_name balance P. conditions -x≥1300 -x≤1500 As another example,consider the query"Find all branches that have assets greater than those of at least one branch located in Brooklyn."This query can be written as branch branch_name branch-city assets 卫-x y Brooklyn conditions y>_z QBE allows complex arithmetic expressions to appear in a condition box.We can write the query"Find all branches that have assets that are at least twice as large as the assets of one of the branches located in Brooklyn"much as we did in the preceding query,by modifying the condition box to conditions y22*-2 To find the account number of accounts with a balance between $1300 and $2000,but not exactly $1500,we write
C.1 Query-by-Example 7 As yet another example, suppose that we modify the final query in Section C.1.3 to be “Find all customers who are not named ‘Jones’ and who have at least two accounts.” We want to include an “x = Jones” constraint in this query. We do that by bringing up the condition box and entering the constraint “ x ¬ = Jones”: conditions -x ¬ = Jones Turning to another example, to find all account numbers with a balance between $1300 and $1500, we write account account_number branch_name balance P. x conditions x ≥ 1300 x ≤ 1500 As another example, consider the query “Find all branches that have assets greater than those of at least one branch located in Brooklyn.” This query can be written as branch branch_name branch_city assets P. x y Brooklyn z conditions y > z QBE allows complex arithmetic expressions to appear in a condition box. We can write the query “Find all branches that have assets that are at least twice as large as the assets of one of the branches located in Brooklyn” much as we did in the preceding query, by modifying the condition box to conditions y ≥ 2 * z To find the account number of accounts with a balance between $1300 and $2000, but not exactly $1500, we write

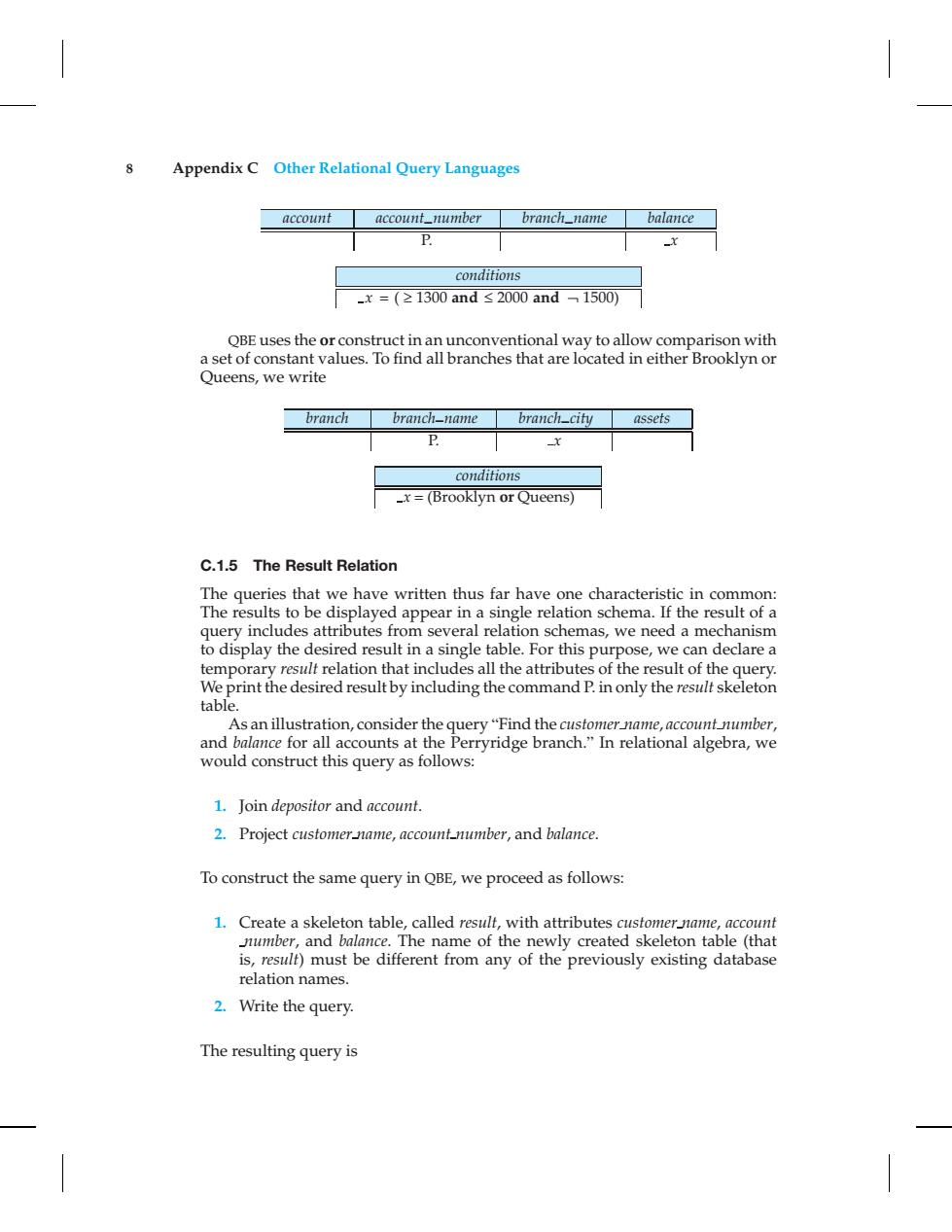

8 Appendix C Other Relational Query Languages account account_number branch_name balance P _x conditions -x=(21300and≤2000and-1500) QBE uses the or construct in an unconventional way to allow comparison with a set of constant values.To find all branches that are located in either Brooklyn or Queens,we write branch branch-name branch_city assets P x conditions x=(Brooklyn or Queens) C.1.5 The Result Relation The queries that we have written thus far have one characteristic in common: The results to be displayed appear in a single relation schema.If the result of a query includes attributes from several relation schemas,we need a mechanism to display the desired result in a single table.For this purpose,we can declare a temporary result relation that includes all the attributes of the result of the query. We print the desired result by including the command P.in only the result skeleton table. As an illustration,consider the query "Find the customer name,account number, and balance for all accounts at the Perryridge branch."In relational algebra,we would construct this query as follows: 1.Join depositor and account. 2.Project customername,account-number,and balance. To construct the same query in QBE,we proceed as follows: 1.Create a skeleton table,called result,with attributes customer name,account number,and balance.The name of the newly created skeleton table (that is,result)must be different from any of the previously existing database relation names. 2.Write the query. The resulting query is
8 Appendix C Other Relational Query Languages account account_number branch_name balance P. x x conditions = ( ≥ 1300 and and ≤ 2000 ¬ 1500) QBE uses the or construct in an unconventional way to allow comparison with a set of constant values. To find all branches that are located in either Brooklyn or Queens, we write branch branch_name branch_city assets P. x x = (Brooklyn or Queens) conditions C.1.5 The Result Relation The queries that we have written thus far have one characteristic in common: The results to be displayed appear in a single relation schema. If the result of a query includes attributes from several relation schemas, we need a mechanism to display the desired result in a single table. For this purpose, we can declare a temporary result relation that includes all the attributes of the result of the query. We print the desired result by including the command P. in only the result skeleton table. As an illustration, consider the query “Find the customer name, account number, and balance for all accounts at the Perryridge branch.” In relational algebra, we would construct this query as follows: 1. Join depositor and account. 2. Project customer name, account number, and balance. To construct the same query in QBE, we proceed as follows: 1. Create a skeleton table, called result, with attributes customer name, account number, and balance. The name of the newly created skeleton table (that is, result) must be different from any of the previously existing database relation names. 2. Write the query. The resulting query is

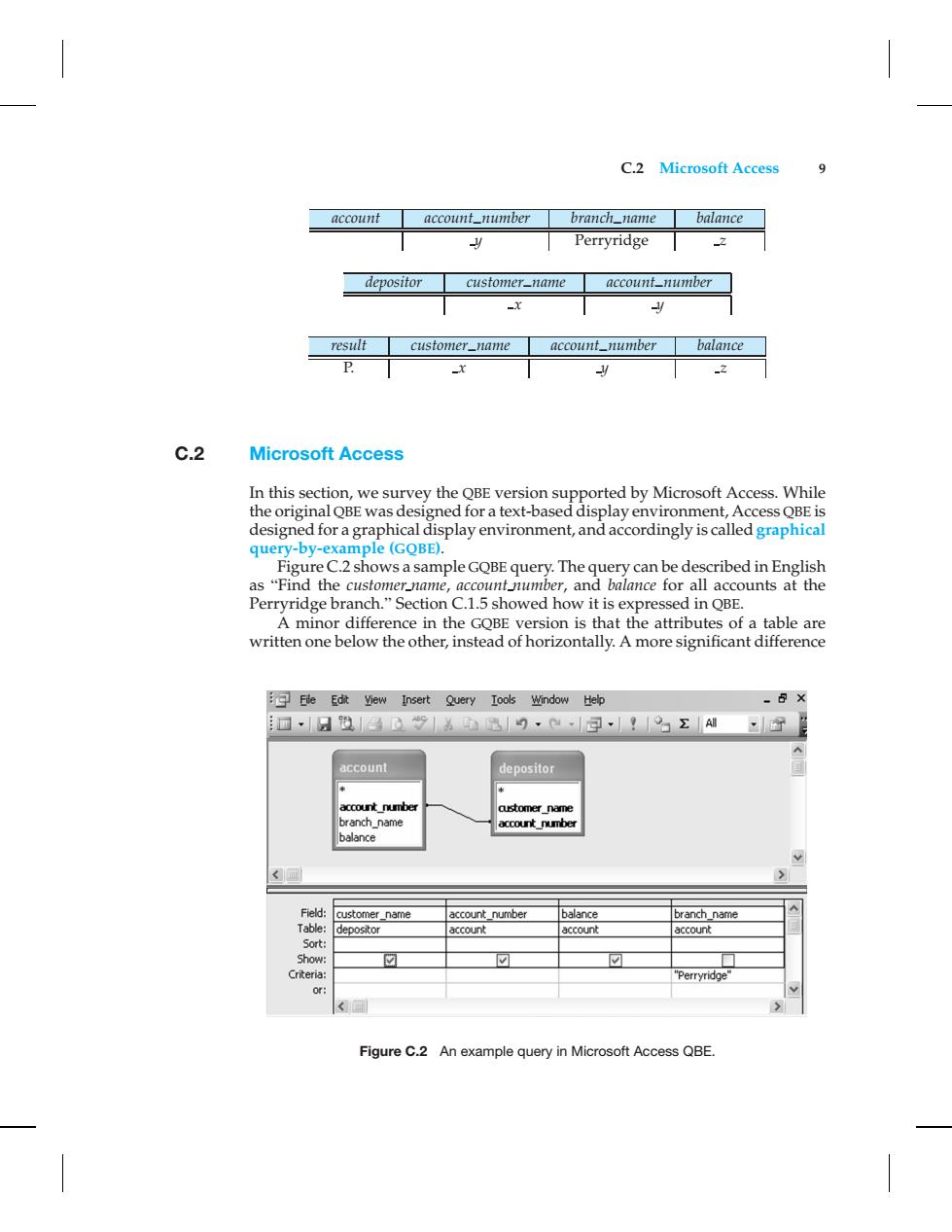

C.2 Microsoft Access 9 account account_number branch_name balance 为 Perryridge 2 depositor customer_name account_number -20 y result customer_name account_number balance P _x C.2 Microsoft Access In this section,we survey the QBE version supported by Microsoft Access.While the original QBE was designed for a text-based display environment,Access QBE is designed for a graphical display environment,and accordingly is called graphical query-by-example (GQBE). Figure C.2 shows a sample GQBE query.The query can be described in English as "Find the customer_name,account number,and balance for all accounts at the Perryridge branch."Section C.1.5 showed how it is expressed in QBE. A minor difference in the GQBE version is that the attributes of a table are written one below the other,instead of horizontally.A more significant difference Eile Edit Yiew Insert Query Iools Window Help -日X 回·日题83电9·心回，？9名ΣM图” A account depositor account number customer_name branch_name account_number balance L Field: customer name account number balance branch name Table: depositor account account account Sort: Show: ☑ ☑ ■ Criteria: "Perryridge or: 画 Figure C.2 An example query in Microsoft Access QBE
C.2 Microsoft Access 9 account account_number branch_name balance y Perryridge z depositor customer_name account_number x y result customer_name account_number balance P. x y z C.2 Microsoft Access In this section, we survey the QBE version supported by Microsoft Access. While the original QBE was designed for a text-based display environment, Access QBE is designed for a graphical display environment, and accordingly is called graphical query-by-example (GQBE). Figure C.2 shows a sample GQBE query. The query can be described in English as “Find the customer name, account number, and balance for all accounts at the Perryridge branch.” Section C.1.5 showed how it is expressed in QBE. A minor difference in the GQBE version is that the attributes of a table are written one below the other, instead of horizontally. A more significant difference Figure C.2 An example query in Microsoft Access QBE
10 Appendix C Other Relational Query Languages is that the graphical version of QBE uses a line linking attributes of two tables, instead of a shared variable,to specify a join condition. An interesting feature of QBE in Access is that links between tables are created automatically,on the basis of the attribute name.In the example in Figure C.2, the two tables account and depositor were added to the query.The attribute account number is shared between the two selected tables,and the system automatically inserts a link between the two tables.In other words,a natural-join condition is imposed by default between the tables;the link can be deleted if it is not desired. The link can also be specified to denote a natural outer join,instead of a natural join. Another minor difference in Access QBE is that it specifies attributes to be printed in a separate box,called the design grid,instead of using a P.in the table. It also specifies selections on attribute values in the design grid. Queries involving group by and aggregation can be created in Access as shown in Figure C.3.The query in the figure finds the name,street,and city of all customers who have more than one account at the bank.The"group by' attributes as well as the aggregate functions are noted in the design grid. Note that when a condition appears in a column of the design grid with the "Total"row set to an aggregate,the condition is applied on the aggregated value; for example,in Figure C.3,the selection">1"on the column account number is applied on the result of the aggregate"Count."Such selections correspond to selections in an SQL having clause. Selection conditions can be applied on columns of the design grid that are neither grouped by nor aggregated;such attributes must be marked as"Where" Eile Edit yiew Insert Query Iools Window Help 国·日题5小自89·，▣，？19Σ刚 customer depositor customer_name qu女omer_name customer_street account number customer_city L Field: customer_name customer_street customer_city account_numberv Table: customer customer customer depositor Total: Group By Group By Group By Count Sort: Show: ☑ ☑ Criteria: or: 〈回 Figure C.3 An aggregation query in Microsoft Access QBE
10 Appendix C Other Relational Query Languages is that the graphical version of QBE uses a line linking attributes of two tables, instead of a shared variable, to specify a join condition. An interesting feature of QBE in Access is that links between tables are created automatically, on the basis of the attribute name. In the example in Figure C.2, the two tables account and depositor were added to the query. The attribute account number is shared between the two selected tables, and the system automatically inserts a link between the two tables. In other words, a natural-join condition is imposed by default between the tables; the link can be deleted if it is not desired. The link can also be specified to denote a natural outer join, instead of a natural join. Another minor difference in Access QBE is that it specifies attributes to be printed in a separate box, called the design grid, instead of using a P. in the table. It also specifies selections on attribute values in the design grid. Queries involving group by and aggregation can be created in Access as shown in Figure C.3. The query in the figure finds the name, street, and city of all customers who have more than one account at the bank. The “group by” attributes as well as the aggregate functions are noted in the design grid. Note that when a condition appears in a column of the design grid with the “Total” row set to an aggregate, the condition is applied on the aggregated value; for example, in Figure C.3, the selection “> 1” on the column account number is applied on the result of the aggregate “Count.” Such selections correspond to selections in an SQL having clause. Selection conditions can be applied on columns of the design grid that are neither grouped by nor aggregated; such attributes must be marked as “Where” Figure C.3 An aggregation query in Microsoft Access QBE
