Three-Layer Web Architecture web server network application server database server HTTP browser data server Database System Concepts-6th Edition 9.12 @Silberschatz,Korth and Sudarshan
Database System Concepts - 6 9.12 ©Silberschatz, Korth and Sudarshan th Edition Three-Layer Web Architecture
Two-Layer Web Architecture Multiple levels of indirection have overheads Alternative:two-layer architecture network web server and application server database server HTTP browser data server Database System Concepts-6th Edition 9.13 @Silberschatz,Korth and Sudarshan
Database System Concepts - 6 9.13 ©Silberschatz, Korth and Sudarshan th Edition Two-Layer Web Architecture Multiple levels of indirection have overheads Alternative: two-layer architecture

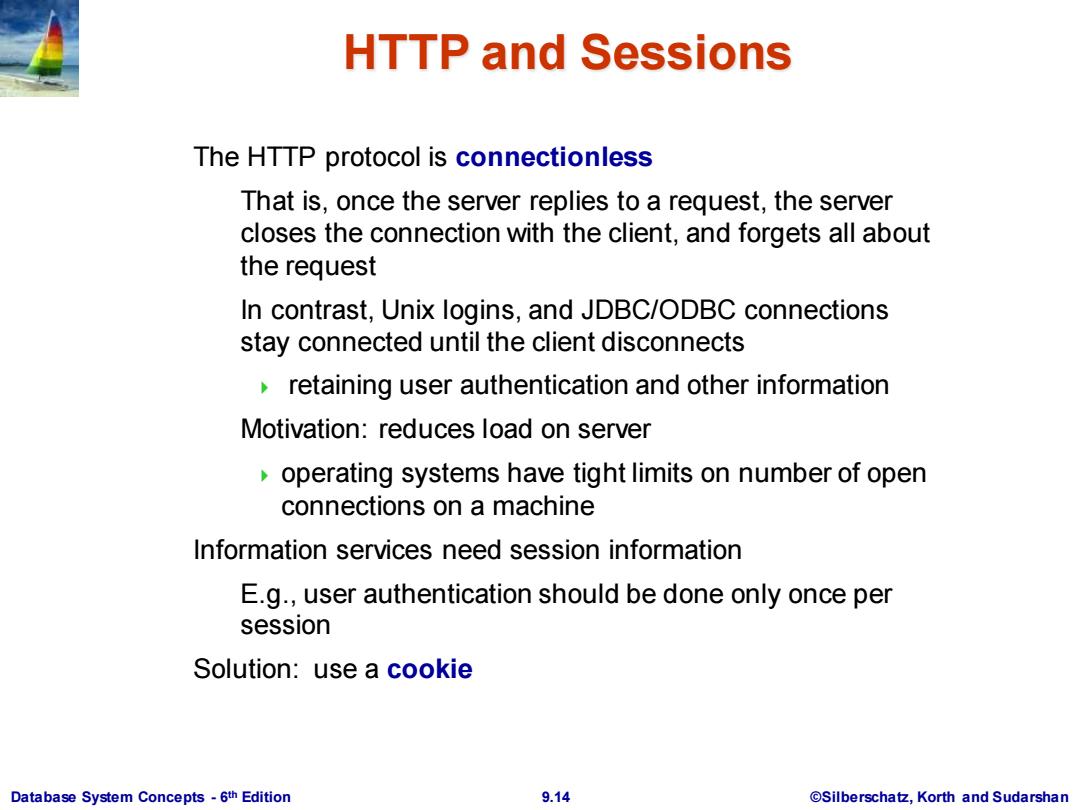

HTTP and Sessions The HTTP protocol is connectionless That is,once the server replies to a request,the server closes the connection with the client,and forgets all about the request In contrast,Unix logins,and JDBC/ODBC connections stay connected until the client disconnects retaining user authentication and other information Motivation:reduces load on server operating systems have tight limits on number of open connections on a machine Information services need session information E.g.,user authentication should be done only once per session Solution:use a cookie Database System Concepts-6th Edition 9.14 ©Silberschat乜，Korth and Sudarshan
Database System Concepts - 6 9.14 ©Silberschatz, Korth and Sudarshan th Edition HTTP and Sessions The HTTP protocol is connectionless That is, once the server replies to a request, the server closes the connection with the client, and forgets all about the request In contrast, Unix logins, and JDBC/ODBC connections stay connected until the client disconnects retaining user authentication and other information Motivation: reduces load on server operating systems have tight limits on number of open connections on a machine Information services need session information E.g., user authentication should be done only once per session Solution: use a cookie

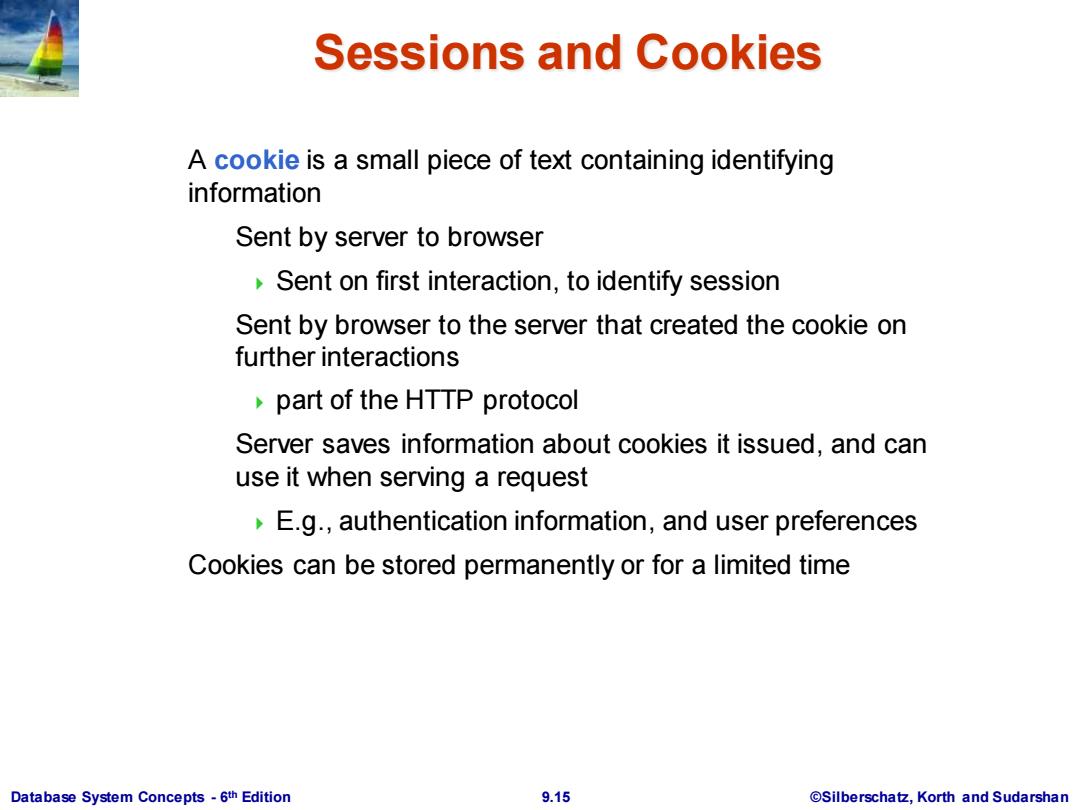

Sessions and Cookies A cookie is a small piece of text containing identifying information Sent by server to browser Sent on first interaction,to identify session Sent by browser to the server that created the cookie on further interactions part of the HTTP protocol Server saves information about cookies it issued,and can use it when serving a request E.g.,authentication information,and user preferences Cookies can be stored permanently or for a limited time Database System Concepts-6th Edition 9.15 @Silberschatz,Korth and Sudarshan
Database System Concepts - 6 9.15 ©Silberschatz, Korth and Sudarshan th Edition Sessions and Cookies A cookie is a small piece of text containing identifying information Sent by server to browser Sent on first interaction, to identify session Sent by browser to the server that created the cookie on further interactions part of the HTTP protocol Server saves information about cookies it issued, and can use it when serving a request E.g., authentication information, and user preferences Cookies can be stored permanently or for a limited time

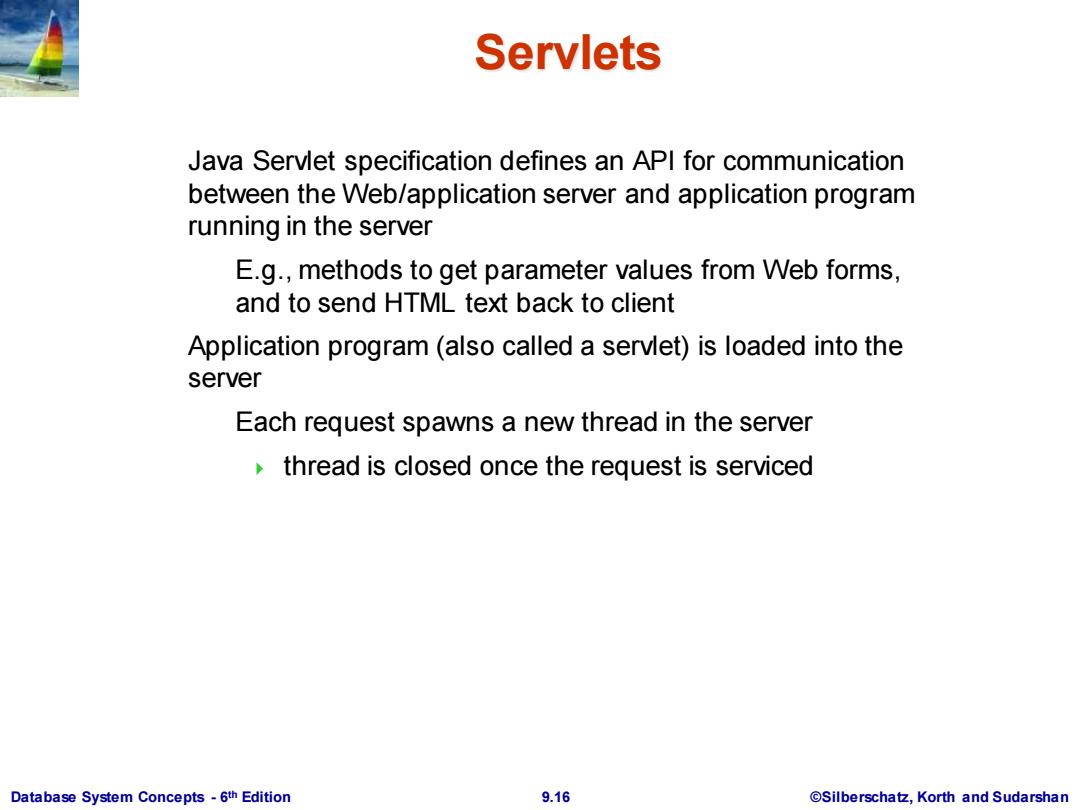

Servlets Java Servlet specification defines an APl for communication between the Web/application server and application program running in the server E.g.,methods to get parameter values from Web forms, and to send HTML text back to client Application program(also called a servlet)is loaded into the server Each request spawns a new thread in the server thread is closed once the request is serviced Database System Concepts-6th Edition 9.16 @Silberschatz,Korth and Sudarshan
Database System Concepts - 6 9.16 ©Silberschatz, Korth and Sudarshan th Edition Servlets Java Servlet specification defines an API for communication between the Web/application server and application program running in the server E.g., methods to get parameter values from Web forms, and to send HTML text back to client Application program (also called a servlet) is loaded into the server Each request spawns a new thread in the server thread is closed once the request is serviced
